The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
Telephone: 269-945-9501 Technical Services: 877-384-5464 Fax: 269-818-1680 Email: techsvcs@vikingcorp.com
1. DESCRIPTION
Viking Standard Response Large Orifice Dry Concealed Pendent Sprinkler VK192
is a thermosensitive spray sprinkler suitable for use in areas subject to freezing. The
sprinkler is designed for dry systems and preaction systems where it is necessary
to prevent water or condensation from entering the drop nipple before sprinkler
operation. The sprinkler may also be installed in spaces subject to freezing and sup-
plied from a wet system in an adjacent heated area. The large orifice dry pendent
sprinkler allows greater flows at lower pressures than standard orifice sprinklers.

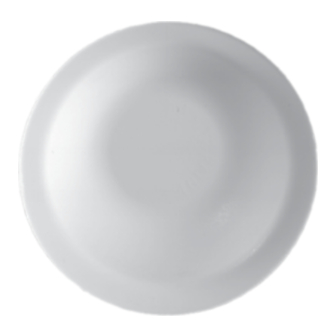

The dry concealed sprinkler is pre-assembled with a threaded adapter for installa-
tion with the domed cover that provides up to ½" (12.7 mm) of vertical adjustment.
The push-on, thread-off cover slips on from below the ceiling to allow installation of
the sprinkler prior to ceiling construction.
Viking Standard Response Dry Concealed Pendent Sprinkler VK192 available in
various finishes and temperature ratings to meet design requirements.
2. LISTINGS AND APPROVALS
cULus Listed: Category VNIV
NYC Approved: MEA 89-92-E, Volume 37
Refer to the Approval Chart and Design Criteria on page 4 for cULus Listing requirements that must be followed.
NOTE: Dry concealed sprinklers are NOT for use in freezers or with the dry sprinkler seal.
3. TECHNICAL DATA
Specifications:
Available since 2003.
Minimum Operating Pressure: 7 psi (0.5 bar)
Maximum Working Pressure: 175 psi (12 bar). Factory tested pneumatically to 95 psi (6.55 bar)
Thread size: 1" NPT or 25 mm BSP
Nominal K-Factor: 8.0 U.S. (115.2 metric*) for all listed and approved lengths.
*Metric K-factor measurement shown is when pressure is measured in Bar. When pressure is measured in kPa, divide the metric K-factor shown by 10.0.
Glass-bulb fluid temperature rated to -65 °F (-55 °C)
Covered by the following U.S. Patents: 8,636,075 and 10,220,231
Material Standards:
Frame Casting: Brass UNS-C84400
Deflector: Brass UNS-C26000
Bulb: Glass, nominal 5 mm diameter
Belleville Spring Sealing Assembly: Nickel Alloy, coated on both sides with
Teflon Tape
Compression Screw: Brass UNS-C36000
Pip Cap: Brass UNS-C31600 or UNS-C31400
Pip Cap Adapter: Brass UNS-C36000
Orifice: Copper UNS-C11000 or UNS-C21000
Tube: ERW Hydraulic Steel Tube
Barrel End and Threads: QM Brass
Support (Internal): Stainless Steel UNS-S30400
Barrel: Steel Pipe UNS-G10260, Electrodeposited Epoxy Base finish
Cover Adapter: Cold Rolled Steel UNS-G10080, Finish: Clear Chromate over Zinc Plating
Cover Assembly Materials:
Cover Plate Assembly: Copper UNS-C11000 and Brass UNS-C26800
Spring: Beryllium Nickel
Solder: Eutectic
Ordering Information: (Also refer to the current Viking price list.)
Viking Dry Large Orifice Concealed Pendent Sprinkler VK192 and Cover Plate Assembly must be ordered separately.
Form No. F_081311
19.06.24
TECHNICAL DATA
Rev 19.1
STANDARD RESPONSE
LARGE ORIFICE DRY
CONCEALED PENDENT
SPRINKLER VK192 (8.0K)
Viking Technical Data may be found on
The Viking Corporation's Web site at
http://www.vikinggroupinc.com.
The Web site may include a more recent
edition of this Technical Data Page.
Replaces Form No. F_081311 Rev. 15.1.P65
(Added patent number.)
Page 1 of 5
