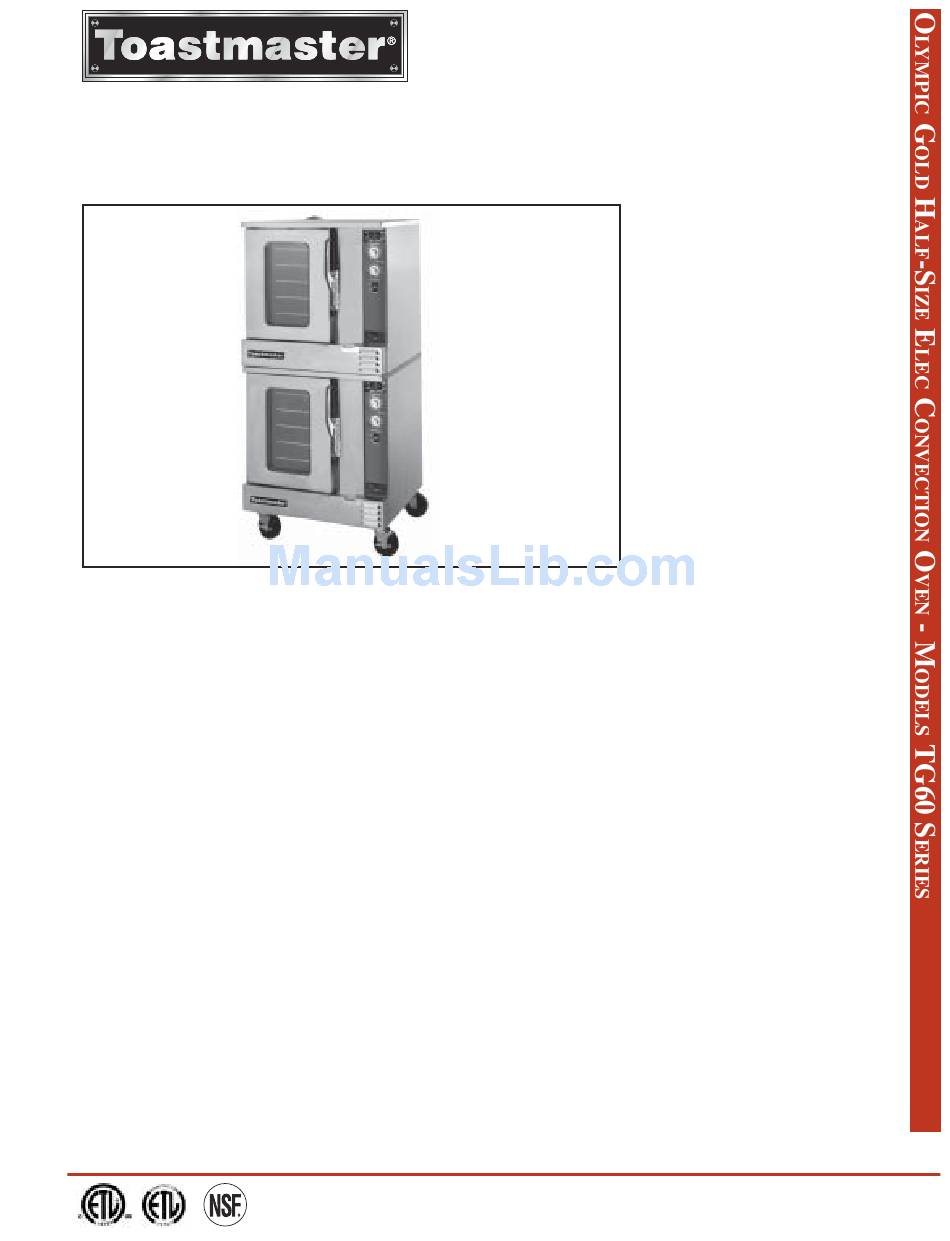

Toastmaster TG60 Series Brochure

Olympic Gold Half-Size Elec Convection Oven
Models TG60 Series
Application
The Olympic Gold Half-Size series of
convection ovens deliver increased
productivity in a smaller footprint.
Standard Features
7.5kW high efficiency heating
•
elements.
Available Standard depth
•
• Single deck convection oven is 33"
in height (with 4" legs).
• Patented "plug-in, plug-out" control
panel - easy to service.
• Stainless steel front, sides and top.
• Single door with window.
Coved, fastener-free, porcelain
•
interior.
SoftAir, two speed, 1/3hp, fan
•
motor.
• 11-position rack guides and 5
plated oven racks.
• Solid state temperature controls.
• Forced cool down fan mode.
• Oven "ready" light-cycles with
elements.
Available Controls
! SC-Standard Controls
o o
140 F to 500 F solid state
thermostat and 60 minute
mechanical timer.
! CCH-Cycle/Cook & Hold Control
150 o F to 500 o F temperature
controller with 140
"Hold" thermostat. Dual digital
display shows time and
temperature. A fan cycle timer
pulses the fan.
! PC-Programmable Controls
"PLUS" Cook-and Hold
Digital display, dial-in thermostat
and time settings, continuous or
cycle fan control, Hold mode, 5
programmable multistep cooking
sequences.
Construction
Exterior finish is stainless steel front,
top and sides. Back is aluminized
steel. Doors are stainless steel
construction, heavy-duty welded steel
frame and 5/8" diameter full-length
hinge pin with a single window. Heavy
duty removable wire rack guides
spaced on 1-5/8" centers offer 11
different rack positions. 5 wire racks
provided with each oven. 1/2hp, 2
speed motor, 1725/1140 rpm blower
motor. 4" legs standard.
1400 Toastmaster Drive, Elgin IL 60120-9272 USA - Tel: 847-741-3300 - Fax: 800-635-4725 - www.toastmastercorp.com
Form 716 Rev 0 (02/05)
Foodservice Equipment
Job ________
Electrical
Terminal connections are located
below oven section and are accessible
from the front of the oven. These
sheath type electrical heating elements
located at the rear of the oven function
as a single heating unit with a
combined rating of 7.5 kW. Available
voltages include 208, 240,380 or
480VAC single or three phase, 50/60
Hz. Ovens equipped with 480VAC
single or three phase heating elements
use 240VAC controls and motors and
do not require separate lead wires.
Heating
Oven heating is regulated by an
adjustable solid state thermostat
control. Blower fan circulates air within
the cavity "scrubbing" heat to the oven
interior for even heat distribution within
the cavity. Manual reset high limit
temperature control protects the oven
o F to 200 o F
from overheat condition.
Controls
Located on the front, at right side of
oven, away from heat zone.
Removable panel opens downward for
easy servicing.
Warranty
Product warranty includes one year
parts and labor.
Approximate Weights
Approximately 420 lbs. shipping.
Options
! Solid stainless steel door
! Available with or without window.
! Swivel caster-front with locks.
! Bolt down flanged feet.
! Continuous cleaning interior.
! Open rack or pan guides.
! Stainless steel exterior bottom.
! 12 hour Cook-and-Hold timer
! Double stacked units shipped
knocked down.
Item# ________
