- Page 1 2639 firestoneairide.com INSTALLATION INSTRUCTIONS 10-23...
- Page 2 (front to rear). This will vary, depending on the load, location of the load, condition of the existing suspension, and personal preference. ONCE INSTALLED SUCCESSFULLY, FOLLOW THE PRESSURE REQUIREMENTS FOR THE AIR SPRINGS. FOR FIRESTONE, GENERALLY: COIL-RITE RIDE-RITE RED LABEL...

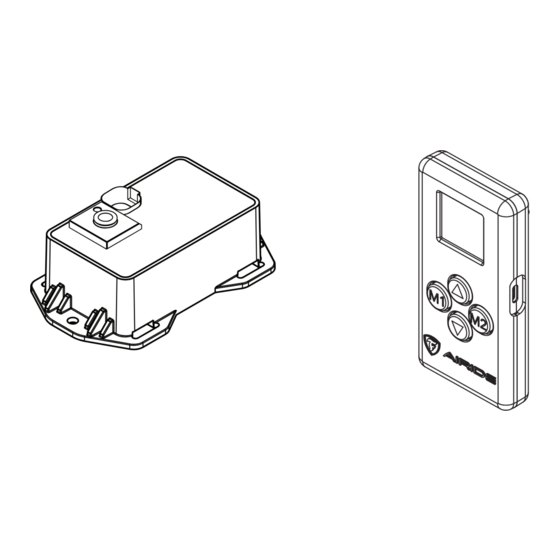

- Page 3 PARTS Compare the parts below to your kit. Assure you have all pieces, and organize them for an easier installation. MAIN KIT CONTENTS x 1 AIR COMPRESSOR x 1 WIRE HARNESS x 1 ECU AIR COMMAND AIR LINE TUBE SINGLE REMOTE (18 FEET) A24-760-7560 INFLATION VALVE BRACKET KIT NO-DRILL...
- Page 4 CONTENTS AND OVERVIEW PLANNING THE AIR FILTER PAGE INSTALL AIR LINE TUBE PREPARE THE AIR PAGE AIR FITTING COMPRESSOR 9499 AIR COMPRESSOR DRILL HOLES FOR PAGE AIR COMPRESSOR Create AND ECU loop in Air Tubing. * As a water/debris INSTALL THE trap.
-
Page 5: Planning The Install
- Provides ample air flow and is protected from airborne debris and moisture. - Mount close enough to the ECU to allow Wire Harness connections to reach. If using the optional Firestone Air Accessory Mounting Kit, consider the guidelines above, and follow the kit’s instructions. - Page 6 PREPARE THE AIR COMPRESSOR NOTE: Air Compressor can be mounted facing any direction. Install 1/8 NPT Push-to-Connect Straight Fitting on the Check Valve. 3055 1/8 NPT PUSH-TO-CONNECT STRAIGHT FITTING PRE-INSTALLED Tighten to engage two threads CHECK VALVE of thread lock. 9499 AIR COMPRESSOR firestoneairide.com...
- Page 7 CHECK SURROUNDING AREA AND BACK SIDE OF MOUNTING LOCATION TO AVOID DRILLING INTO EXISTING LINES OR WIRING. IF YOU ARE USING THE OPTIONAL FIRESTONE AIR ACCESSORY MOUNTING KIT, SKIP THIS STEP AND REFER TO THE MOUNTING KIT’S INSTRUCTIONS. Drill within reach of the ground wire ring terminal on body or frame of vehicle.
- Page 8 NOTE: You may want to BLACK combine other grounds GROUND to this mounting location. WIRE Body of vehicle (or optional Firestone BODY OR FRAME Air Accessory Mounting Kit OF VEHICLE – Part #2588) Air Accessory Mounting Kit cannot be used...
- Page 9 INSTALL THE WIRE HARNESS Route the Wire Harness in the most The yellow wire is not used. Wrap or wire protected manner possible, and securely nut it to protect it from the environment. make all connections as shown. 9499 AIR COMPRESSOR Why ground the Wire Harness to the battery? The ECU needs a good,...
- Page 10 INSTALL AIR LINE TUBES EXHAUST ALL AIR FROM THE SYSTEM PRIOR TO RELEASING AIR TUBES FROM AIR FITTINGS. Route the Air Tubing from 1/8 NPT Push-to-Connect Straight Fitting on the top of 3055 1/8 NPT PUSH-TO-CONNECT the Air Compressor to the STRAIGHT FITTING first 1/4"...
- Page 11 OPTIONAL INFLATION VALVE INSTALL IF USING THE OPTIONAL NO-DRILL INFLATION VALVE BRACKET, CHOOSE OPTION 1. IF DRILLING, CHOOSE OPTION 2. INFLATION VALVE MUST BE ACCESSIBLE BY AN AIR CHUCK. Secure the Air Inflation Select a protected location Install Inflation Valve Valve Bracket to a pro- to install the Inflation Valve, Assembly as shown.
- Page 12 Air Tubing, as shown, contact an Authorized when securing it to the Firestone dealer to vehicle. purchase a new one. SECURE THE AIR FILTER IN A LOCATION THAT PROTECTS IT FROM MOISTURE AND DEBRIS, AND IS ABOVE THE LOOP IN THE AIR LINE TUBE.
- Page 13 CONNECTING TO THE APP Download and install the Firestone Air Open the app. Once the app has Command app on a compatible iPhone established a Bluetooth connection on or Android device. startup, it will automatically link to the ECU. MAIN APP SCREEN...
- Page 14 AIR COMMAND SINGLE REMOTE QUICKSTART GUIDE ™ FUNCTIONS OF REMOTE BUTTONS Visor Clip Increase Pressure/ USB-C Move Up Set or Select Charging Memory 1/ Port Move Left Set or Select Memory 2/ Decrease Move Right Pressure/ Move Down/ Screen Exit HOME SCREEN LAYOUT Remaining Wireless...
- Page 15 AIR COMMAND SINGLE REMOTE QUICKSTART GUIDE ™ ACCESSIBILITY Hold down M1 and M2 to When the remote is off, Hold the up and down arrows access the passcode press any button to turn at the same time to access the entry screen.
- Page 16 TEST THE SYSTEM With the Air Command App and your air springs installed, you are ready to test the system. ™ Reattach the negative Use the Air Command App or ™ battery cable. Single Remote to inflate the Air Springs to 70 PSI. See Step 10 or 11 for details.
- Page 17 FIX AN AIR LEAK EXHAUST ALL AIR FROM THE SYSTEM PRIOR TO RELEASING AIR TUBES FROM AIR FITTINGS. Use the Air Command App or ™ Single Remote to deflate the Air Springs to 5 PSI. See Step 10 or 11 for details. LEAK AT AIR TUBING LEAK AT BASE OF AIR FITTING AND AIR FITTING...
- Page 18 NOTES firestoneairide.com...
- Page 19 2639 Installation Instructions...
- Page 20 There is a loop in the Air Tubing as shown to prevent water or debris from getting into the Air Compressor head and damaging it. Or, email us at rrtech@fsip.com. If emailing, please include photos to help us better diagnose and understand any problems you may be experiencing. CONNECT WITH US @firestoneairide FirestoneAiride Firestone Airide 10-23...
