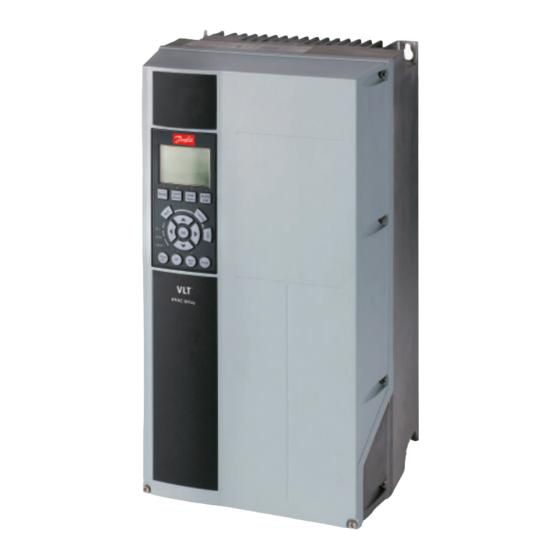

Page 1 Operating Guide VLT® HVAC Drive FC 102 355-800 kW, Enclosure Sizes E1h-E4h...
Page 5: Table Of Contents
Creating Cable Openings for an E1h/E2h E3h/E4h Mechanical Installation 4.9.1 Attaching the E3h/E4h to a Mounting Plate or Wall 4.9.2 Creating Cable Openings for an E3h/E4h 4.9.3 Installing Load share/Regen Terminals to an E3h/E4h Danfoss A/S © 2020.01 AQ275556502253en-000101 / | 3...
Page 6 Testing Before System Start Up 6.4.1 Testing Motor Rotation 6.4.2 Testing Encoder Rotation Starting Up the Drive for the First Time Parameter Settings 6.6.1 Parameter Setting Overview 6.6.2 Uploading and Downloading Parameter Settings 4 | Danfoss A/S © 2020.01 AQ275556502253en-000101 /...
Page 7 9.1.1 Electrical Data, 380–480 V AC 9.1.2 Electrical Data, 525–690 V AC Mains Supply Motor Output and Torque Characteristics 9.3.1 Motor Output (U, V, W) 9.3.2 Torque Characteristics Ambient Conditions Cable Specifications Danfoss A/S © 2020.01 AQ275556502253en-000101 / | 5...
Page 8 E1h Exterior Dimensions 9.8.2 E2h Exterior Dimensions 9.8.3 E3h Exterior Dimensions 9.8.4 E4h Exterior Dimensions Enclosure Airflow 9.10 Fastener Torque Ratings 10 Appendix 10.1 Conventions 10.2 Abbreviations 10.3 International/North American Default Parameter Settings 6 | Danfoss A/S © 2020.01 AQ275556502253en-000101 /...
Page 9: Introduction
1.4 Approvals and Certifications Illustration 1: Approvals and Certifications More approvals and certifications are available. Contact the local Danfoss office or partner. Drives of voltage T7 (525–690 V) are UL certified for only 525–600 V. Thermal memory retention requirement The drive complies with UL 61800-5-1 thermal memory retention requirements. For more information, refer to the Motor Thermal Protection section in the product-specific design guide.
Page 10: Disposal
Waterways (ADN), refer to the ADN-compliant Installation section in the product-specific design guide. 1.5 Disposal Do not dispose of equipment containing electrical components together with domestic waste. Collect it separately in accordance with applicable local regulations. 8 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 11: Safety
AC drives contain high voltage when connected to AC mains input, DC supply, or load sharing. Failure to perform installation, start-up, and maintenance by qualified personnel can result in death or serious injury. Only qualified personnel must perform installation, start-up, and maintenance. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 9...
Page 12 Contact with rotating shafts and electrical equipment can result in death or serious injury. Ensure that only trained and qualified personnel perform installation, start-up, and maintenance. Ensure that electrical work conforms to national and local electrical codes. Follow the procedures in this guide. 10 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 13 A mains shield option is available for enclosures with a protection rating of IP21/IP 54 (Type 1/Type 12). The mains shield is a Lexan cover installed inside the enclosure to protect against the accidental touch of the power terminals, according to BGV A2, VBG 4. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 11...
Page 14: Product Overview
768 (30.2) 746 (29.4) 746 (29.4) Depth [mm (in)] 870 (34.3) 870 (34.3) 794 (31.3) 794 (31.3) Weight [kg (lb)] – – – – Type 1 and Type 12 are UL designations. 12 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 15: Interior View Of Enclosure E1H/E2H
2 Local control panel (LCP) cradle illustration 3 RFI filter (optional) 4 Mains fuses (required for UL Compliance, but otherwise optional) 5 Mains terminals 6 RFI shield termination 7 Fan power card Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 13...
Page 16 Operating Guide | VLT® HVAC Drive FC 102 9 Mains disconnect (optional) 8 Space heater (optional) 11 Motor terminals 10 Brake/regeneration terminals (optional) 12 Ground terminals Illustration 2: Interior View of Enclosure E1h (Enclosure E2h is Similar) 14 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 17: Interior View Of Enclosure E3H/E4H
M12 35Nm (26FT-LB) 1 Load share/regeneration terminals (optional) 2 Control shelf (see illustration 3 Local control panel (LCP) cradle 4 RFI filter (optional) 5 Mains fuses (optional) 6 Mains terminals 7 Ground terminals Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 15...
Page 18: Control Shelf
RELAY 1 RELAY 2 1 LCP cradle (LCP not shown) 2 Bus terminal switch (see 5.11.8.2 Configuring RS485 Serial Communication) 3 Serial communication terminals (see table 4 Digital input/output terminals (see table 16 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 19: Local Control Panel (Lcp)
A numeric local control panel (NLCP) is available as an option. The NLCP operates in a manner similar to the LCP, but there are differences. For details on how to use the NLCP, see the product-specific programming guide. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 17...
Page 20 Accesses parameter groups or enables an option. [▵][▹] [▿] [◃] Moves between items in the menu. D. Indicator lights Indicator lights identify the drive status and provide a visual notification of warning or fault conditions. 18 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 21: Lcp Menu
The Personal Menu is used to determine what is shown in the display area. Refer to 3.5 Local Control Panel (LCP). This menu can also show up to 50 pre-programmed parameters. These 50 parameters are manually entered using parameter 0-25 My Personal Menu. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 19...
Page 22 Parameter 0-24 Display Line 3 Large kWh Counter Main Menu The Main Menu mode is used to: • List the parameter groups available to the drive and drive options. • Change parameter values. 20 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 23 Operating Guide | VLT® HVAC Drive FC 102 0.0% 0.00 A 1(1) Main Menu O-** Operation / Display 1-** Load and Motor 2-** Brakes 3-** Reference / Ramps Illustration 7: Main Menu View Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 21...
Page 24: Mechanical Installation
0 °C (32 °F) or higher. Also, temperature feedback is not shown when temperatures are below 0 °C (32 °F). Provide extra air conditioning for the cabinet or installation site when the temperature exceeds ambient temperature limits. 22 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 25: Gases
Motors with class e or class n protection ® When combined with an ATEX-approved PTC monitoring device like the VLT PTC Thermistor Card MCB 112, installation does not need an individual approval from an approbated organization. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 23...
Page 26: Installation Requirements
The drive utilizes a back-channel cooling concept that removes heat sink cooling air. The heat sink cooling air carries approximately 90% of the heat out of the back channel of the drive. Redirect the back-channel air from the panel or the room by using either: 24 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 27: E1H-E4H Airflow Rates
Test lift the drive approximately 610 mm (24 in) to verify the proper center of gravity lift point. Reposition the lifting point if the unit is not level. Always lift the drive using a lifting bar inserted into the lifting eyes. See illustration Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 25...
Page 28: E1H/E2H Mechanical Installation
1. Determine proper placement of the unit, concerning operating conditions and cable access. 2. Access the mounting holes by removing the front panel of the pedestal. 3. Set the pedestal on the floor and secure using 6 bolts through the mounting holes. 26 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 29: Attaching An E1H/E2H To The Pedestal
5. Fasten each bolt securely and torque to 19 Nm (169 in-lb). 6. Torque the 2 M10 nuts at the rear of the enclosure to 19 Nm (169 in-lb). Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 27...
Page 30 5 Bolt at rear of pedestal 6 Locking bracket Illustration 10: Pedestal to Enclosure Back Mounting Points 1 Enclosure 2 Pedestal 3 M10x30 fasteners (rear corner bolts not shown) Illustration 11: Pedestal to Enclosure Mounting Points 28 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 31: Creating Cable Openings For An E1H/E2H
4. Torque each nut to 2.3 Nm (20 in-lb). Example: 1 Cable entry hole 2 M5 nut 3 Cable entry plate 4 Slot in pedestal base 5 Front cover/grill Illustration 12: Installing the Cable Entry Plate 4.9 E3h/E4h Mechanical Installation Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 29...
Page 32: Attaching The E3H/E4H To A Mounting Plate Or Wall
8. Tilt the front of the terminal cover upward until the fastener hole in the bottom of the drive aligns with the keyhole opening (9) in the terminal. Secure with 2 T25 screws and torque to 2.3 Nm (20 in-lb). 9. Secure the bottom panel with 3 T25 screws and torque to 2.3 Nm (20 in-lb). 30 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 33 Mechanical Installation Operating Guide | VLT® HVAC Drive FC 102 Example: 1 Plastic square 2 Squares removed for cable access Illustration 13: Plastic Cable Entry Plate Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 31...
Page 34 Operating Guide | VLT® HVAC Drive FC 102 1 Load share/regen terminals (optional) 2 Bottom panel 3 Terminal cover 4 Grommet access hole for control wiring 5 Track guide 6 Slotted drive bracket 32 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 35: Installing Load Share/Regen Terminals To An E3H/E4H
15. Secure with 2 M4 screws and torque to 1.2 Nm (10 in-lb). Example: 1 Label fastener, M4 2 Label 3 Load share/regen terminal 4 Terminal fastener, M10 5 Terminal plate with 2 openings Illustration 15: Load share/Regen Terminals Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 33...
Page 36: Electrical Installation
20 motor overload protection in accordance with NEC. Failure to set the ETR function means that motor overload protection is not provided and property damage can occur if the motor overheats. Enable the ETR function by setting parameter 1-90 Motor Thermal Protection to [ETR trip] or [ETR warning]. 34 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 37: Emc-Compliant Installation
Use shielded cables for motor and control wiring. Use separate cables for mains input, motor, and control wiring. Provide a minimum 200 mm (7.9 in) separation between mains input cables, motor cables, and control cables. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 35...
Page 38 There is a risk for overvoltage. Isolation between components and critical parts could be insufficient, and may not comply with PELV requirements. Use external protective devices or galvanic isolation. For installations above 2000 m (6500 ft) altitude, contact Danfoss regarding PELV compliance.
Page 39 4 Minimum 200 mm (7.9 in) between control cables, motor cables, and mains cables. 5 Mains supply 6 Bare (unpainted) surface 7 Star washers 8 Brake cable (shielded) 9 Motor cable (shielded) 10 Mains cable (unshielded) Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 37...
Page 40 13 Common ground busbar. Follow local and national 14 Brake resistor requirements for cabinet grounding. 16 Connection to motor 15 Metal box 18 EMC cable gland 17 Motor Illustration 16: Example of Proper EMC Installation 38 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 41: Wiring Schematic
37 (D IN) 1 Terminal 37 (optional) is used for Safe Torque Off. Refer to the VLT® FC Series - Safe Torque Off Operating Guide for installation instructions. Illustration 17: Basic Wiring Schematic Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 39...
Page 42: Connecting The Motor
4. Connect the 3-phase motor wiring to terminals 96 (U), 97 (V), and 98 (W). See illustration 5. Tighten the terminals in accordance with the specifications shown in 9.10 Fastener Torque Ratings. 40 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 43: Connecting The Ac Mains
• Size the wiring according to the input current of the drive. For maximum wire sizes, see the Electrical Data section. • Comply with local and national electrical codes for cable sizes. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 41...
Page 44 Operating Guide | VLT® HVAC Drive FC 102 N O T I C E OUTPUT CONTACTOR Danfoss does not recommend using an output contactor on 525-690 V drives that are connected to an IT mains network. Procedure 1. Strip a section of the outer cable insulation.
Page 45 FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (26FT-LB) R/L1 91 S/L2 92 T/L3 93 FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (26FT-LB) R/L1 91 S/L2 92 T/L3 93 Illustration 19: AC Mains Terminals (E1h shown). Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 43...
Page 46: Connecting To Ground
There is a risk of burst transient when the ground potential between the drive and the control system is different. Install equalizing cables between the system components. Recommended cable cross-section: 16 mm (5 AWG). 44 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 47 FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (26FT-LB) FASTENER TORQUE M10 19Nm (14FT-LB), M12 35Nm (26FT-LB) R/L1 91 S/L2 92 T/L3 93 U/T1 96 V/T2 97 W/T3 98 Illustration 20: Ground Terminals (E1h shown). Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 45...
Page 48: E1H Terminal Dimensions
485 (19.1) 200 (7.9) 0 (0.0) 1 Mains terminals 2 Brake or regen terminals 3 Motor terminals 4 Ground terminals, M10 nut Terminal dimensions Illustration 21: E1h Terminal Dimensions (Front View) 46 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 49 Electrical Installation Operating Guide | VLT® HVAC Drive FC 102 649 (25.5) 649 (25.5) 0 (0.0) 0 (0.0) 14 (0.5) 44 (1.8) 0 (0.0) 36 (1.4) Illustration 22: E1h Terminal Dimensions (Side Views) Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 47...
Page 50: E2H Terminal Dimensions
515 (20.3) 485 (19.1) 200 (7.9) 0 (0.0) 1 Mains terminals 2 Brake or regen terminals 3 Motor terminals 4 Ground terminals, M10 nut Illustration 23: E2h Terminal Dimensions (Front View) 48 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 51 Electrical Installation Operating Guide | VLT® HVAC Drive FC 102 649 (25.5) 649 (25.5) 0 (0.0) 0 (0.0) 14 (0.5) 44 (1.8) 0 (0.0) 36 (1.4) Illustration 24: E2h Terminal Dimensions (Side Views) Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 49...
Page 52: E3H Terminal Dimensions
50 (2.0) 33 (1.3) 0 (0.0) 1 Mains terminals 2 Brake or regen terminals 3 Motor terminals 4 Ground terminals, M8 and M10 nuts Illustration 25: E3h Terminal Dimensions (Front View) 50 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 53 Operating Guide | VLT® HVAC Drive FC 102 (7.2) (7.2) 0 (0.0) 0 (0.0) 5X 14 (0.5) 44 (1.8) 0 (0.0) 36 (1.4) Illustration 26: E3h Mains, Motor, and Ground Terminal Dimensions (Side Views) Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 51...
Page 54 Electrical Installation Operating Guide | VLT® HVAC Drive FC 102 2X 125 (4.9) 0 (0.0) 20 (0.8) 0 (0.0) 14 (0.5) 35(1.4) Illustration 27: E3h Load Share/Regen Terminal Dimensions (Side Views) 52 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 55: E4H Terminal Dimensions
90 (3.5) 50 (2.0) 33 (1.3) 0 (0.0) 1 Mains terminals 2 Brake or regen terminals 3 Motor terminals 4 Ground terminals, M8 and M10 nuts Illustration 28: E4h Terminal Dimensions (Front View) Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 53...
Page 56 Operating Guide | VLT® HVAC Drive FC 102 (7.2) (7.2) 0 (0.0) 0 (0.0) 14 (0.5) 44 (1.8) 0 (0.0) 36 (1.4) Illustration 29: E4h Mains, Motor, and Ground Terminal Dimensions (Side Views) 54 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 57: Control Wiring
E4h Load Share/Regen Terminal Dimensions (Side Views) 5.11 Control Wiring 5.11.1 Control Cable Access All terminals to the control cables are inside the drive below the LCP. To access, either open the door or remove the front panel. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 55...
Page 58: Routing Control Cables
5. Connect the control cables to the relevant options on the control card. For more detail, see the relevant fieldbus instructions. The fieldbus cable must be tied down and routed along with the other control cables inside the unit Example: Illustration 31: Control Card Cable Routing 56 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 59: Control Terminal Types
Parameter group 8-3* FC – RS485 interface. A switch (BUS TER.) is provided on the control card for bus Port Settings termination resistance. See illustration Parameter group 8-3* FC – Port Settings Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 57...
Page 60: Relay Terminals
Relays 1 and 2 are standard relay terminals included on all drives. The location of the outputs depends on the drive configuration. See the Control Shelf section. • If a drive is configured with built-in optional equipment, more terminals may be included. Refer to the manual provided with the optional equipment. 58 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 61: Connecting The Control Cable To The Control Terminals
Then insert the stripped wire into the contact, and remove the screwdriver. 3. Pull gently on the wire to ensure that the contact is firmly established. Loose control cable can cause equipment faults or reduced performance. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 59...
Page 62: Disconnecting The Control Cable From The Control Terminals
If the status line at the bottom of the LCP reads AUTO REMOTE COAST, the unit is ready to operate, but is missing an input signal on terminal 27. Digital input terminal 27 is designed to receive a 24 V DC external interlock command that allows the drive to operate when using factory default programming values. 60 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 63: Configuring Rs485 Serial Communication
RS485 is a 2-wire bus interface compatible with multi-drop network topology. This interface contains the following features: • Either Danfoss FC or Modbus RTU communication protocol can be used. • Functions can be programmed remotely using the protocol software and RS485 connection or in parameter group 8-** Communications and Options.
Page 64: Safe Torque Off (Sto) Wiring
The contacts snap into place without the need for tools. Contacts must be installed in specific locations on the disconnect depending on their functions. Refer to the datasheet included in the accessory bag that comes with the drive. Specifications: 62 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 65: Wiring The Brake Resistor Temperature Switch
2. Remove the LCP (local control panel). See the Local Control Panel (LCP) section. 3. Remove any optional equipment covering the switches. 4. Set switches A53 and A54 to select the signal type (U = voltage, I = current). See illustration Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 63...
Page 66 Electrical Installation Operating Guide | VLT® HVAC Drive FC 102 Example: Illustration 38: Location of Switches A53 and A54 64 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 67: Starting The Drive
For E3h and E4h enclosures, ensure that the unit is mounted on an unpainted, metal surface. Vibration Check that the unit is mounted solidly, or that shock mounts are used, if necessary. Check for an unusual amount of vibration. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 65...
Page 68: Applying Power To The Drive
9. Apply power to the unit, but do not start the drive. For units with a disconnect switch, turn the switch to the ON position to apply power to the drive. 66 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 69: Programming The Drive
Application settings vary. Although these steps assume that an induction motor is used, a permanent magnet motor can also be used. For more information on specific motor types, see the product-specific programming guide. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 67...
Page 70: Configuring Automatic Energy Optimization
3. Select 1–0* General Settings and press [OK]. 4. Select parameter 1-03 Torque Characteristics and press [OK]. 5. Select either [2] Auto Energy Optim CT or [3] Auto Energy Optim VT and press [OK]. 68 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 71: Configuring Automatic Motor Adaptation
N O T I C E INCORRECT MOTOR ROTATION If the motor runs in the wrong direction, it can damage equipment. Before running the unit, check the motor rotation by briefly running the motor. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 69...
Page 72: Testing Encoder Rotation
Ensure that equipment is safe to operate under any condition. Ensure that the motor, system, and any attached equipment are ready for start. 70 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 73: Parameter Settings
- To download data from the LCP to the control card, select [2] All from LCP. 4. Press [OK]. A progress bar shows the uploading or downloading process. 5. Press [Hand On] or [Auto On]. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 71...
Page 74: Restoring Factory Default Settings Using The Recommended Initialization
Manually initializing does not reset the following parameter settings: • Parameter 15-00 Operating Hours • Parameter 15-03 Power Up's • Parameter 15-04 Over Temp's • Parameter 15-05 Over Volt's Start-up takes slightly longer than normal. 72 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 75: Wiring Configuration Examples
D IN *=Default value Notes/comments: D IN D IN Set parameter group 1-2* Motor Data according to motor nameplate. D IN D IN D IN +10 V A IN A IN A OUT Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 73...
Page 76: Wiring Configuration For Automatic Motor Adaptation Without T27
+10 V A IN Parameter 6-15 Terminal 53 High Ref./Feedb. Value 50 Hz A IN *=Default value A OUT Notes/comments: 0–10 V D IN 37 is an option. U - I 74 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 77 Parameter 6-14 Terminal 53 Low Ref./Feedb. value 0 Hz ≈ 5kΩ A IN Parameter 6-15 Terminal 53 High Ref./Feedb. Value 50 Hz A IN *=Default value A OUT Notes/comments: D IN 37 is an option. U - I Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 75...
Page 78 D IN D IN Notes/comments: D IN D IN D IN 37 is an option. Speed Reference Start (18) Freeze ref (27) Speed up (29) Speed down (32) Illustration 39: Speed Up/Down 76 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 79: Wiring Configuration: Feedback
Notes/comments: D IN D IN D IN 37 is an option. D IN D IN D IN +10 V A IN A IN 4-20 mA A OUT U - I A 54 Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 77...
Page 80 *=Default value D IN Notes/comments: D IN D IN D IN 37 is an option. D IN D IN +10 V A IN A IN A OUT 0-10 V U - I 78 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 81 *=Default value D IN Notes/comments: D IN D IN D IN 37 is an option. D IN D IN +10 V A IN A IN A OUT 0-10 V U - I Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 79...
Page 82: Wiring Configuration: Run/Stop
+24 V Notes/comments: D IN D IN D IN 37 is an option. D IN D IN D IN D IN D IN +10 V A IN A IN A OUT 80 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 83 If parameter 5-12 Terminal 27 Digital Inputs is set to [0] No operation, a jumper wire to terminal 27 is not needed. D IN D IN D IN 37 is an option. D IN D IN D IN +10 V A IN A IN A OUT Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 81...
Page 84 [167] Start command act. D IN *=Default value D IN Notes/comments: D IN D IN D IN 37 is an option. D IN D IN +10 V A IN A IN A OUT 82 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 85: Wiring Configuration: Start/Stop
If parameter 5-12 Terminal 27 Digital Input is set [0] No operation, a jumper wire to terminal 27 is D IN not needed. D IN D IN D IN 37 is an option. D IN Speed Start/Stop (18) Illustration 40: Start/Stop Command with Safe Torque Off Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 83...
Page 86 D IN 37 is an option. D IN D IN D IN +10 V A IN A IN A OUT Speed Latched Start (18) Stop Inverse (27) Illustration 41: Latched Start/Stop Inverse 84 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 87 Preset ref. 0 D IN Preset ref. 1 +10 V Preset ref. 2 A IN A IN Preset ref. 3 100% *=Default value A OUT Notes/comments: D IN 37 is an option. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 85...
Page 88: Wiring Configuration: External Alarm Reset
Notes/comments: +24 V D IN D IN 37 is an option. D IN D IN D IN D IN D IN D IN +10 V A IN A IN A OUT 86 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 89: Wiring Configuration: Rs485
7.1.9 Wiring Configuration: Motor Thermistor C A U T I O N THERMISTOR INSULATION Risk of personal injury or equipment damage. To meet PELV insulation requirements, use only thermistors with reinforced or double insulation. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 87...
Page 90 If only a warning is required, set parameter 1-90 Motor Thermal Protection to [1] Thermistor warn- D IN ing. D IN D IN 37 is an option. D IN D IN D IN D IN +10 V A IN A IN A OUT U - I 88 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 91: Wiring For Regen
D IN D IN D IN D IN D IN D IN D IN +10 V A IN A IN A OUT Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 89...
Page 92: Wiring Configuration For A Relay Setup With Smart Logic Control
7.1.12 Wiring Configuration for a Cascade Controller Refer to illustration 42 for an example with the built-in basic cascade controller with 1 variable-speed pump (lead) and 2 fixed-speed pumps, a 4–20 mA transmitter, and system safety interlock. 90 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 93 Operating Guide | VLT® HVAC Drive FC 102 Power card Control card Motor Mains System System start/ safety stop interlock From motor control circuitry Pressure transmitter 4-20 mA, 24 V DC Ground Illustration 42: Cascade Controller Wiring Diagram Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 91...
Page 94: Wiring Configuration For A Fixed Variable Speed Pump
Wiring Configuration Examples Operating Guide | VLT® HVAC Drive FC 102 7.1.13 Wiring Configuration for a Fixed Variable Speed Pump L1/L2/L3 L1/L2/L3 L1/L2/L3 Drive Illustration 43: Fixed Variable Speed Pump Wiring Diagram 92 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 95: Wiring Configuration For Lead Pump Alternation
At alternation, both relays de-energize and now relay 2 is energized as the 1 relay. ® For a detailed description of commissioning for mixed pump and master/slave applications, refer to VLT Cascade Controller Options MCO 101/102 Operating Instructions. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 93...
Page 96: Maintenance, Diagnostics, And Troubleshooting
Replace worn or damaged parts with Danfoss authorized parts. For service and support, contact the local Danfoss supplier. W A R N I N G...
Page 97: Status Messages
Heat Sink Access Panel Removed from the Rear of the Drive 8.3 Status Messages 8.3.1 Status Message Overview When the drive is in status mode, status messages automatically appear in the bottom line of the LCP display. See illustration Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 95...
Page 98: Status Messages - Operating Mode
Table 37: Reference Site Reference site Description Remote The speed reference is given from: • External signals. • Serial communication. • Internal preset references. Local The drive uses reference values from the LCP. 96 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 99: Status Messages - Operation Status
[19] Freeze Reference was selected as a function for a digital input (parameter group 5–1* Digital Inputs). The corre- sponding terminal is active. The drive saves the actual reference. Changing the reference is now only possible via terminal functions speed up and speed down. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 97...
Page 100 [12] Enable Start Forward and [13] Enable Start Reverse were selected as functions for 2 different digital inputs (pa- fwd/rev rameter group 5–1* Digital Inputs). The motor starts in forward or reverse depending on which corresponding termi- nal is activated. 98 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 101: Warnings And Alarms
A trip lock can only be canceled by disconnecting mains, removing the cause of the fault, and reconnecting the drive. Restart is prevented until the trip state is canceled by activating reset or, sometimes, by being programmed to reset automatically. Do not use the trip lock state for personal safety. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 99...
Page 102 The control card voltage is less than 10 V from terminal 50. Remove some of the load from terminal 50, as the 10 V supply is overloaded. Maximum 15 mA or minimum 590 Ω. A short circuit in a connected potentiometer or incorrect wiring of the potentiometer can cause this condition. 100 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 103 8.4.6 WARNING 5, DC Link Voltage High Cause The DC-link voltage (DC) is higher than the high-voltage warning limit. The limit depends on the drive voltage rating. The unit is still active. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 101...
Page 104 The drive trips when the counter reaches 100% if parameter 1-90 Motor Thermal Protection is set to trip options. The fault occurs when the motor runs with more than 100% overload for too long. 102 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 105 Shock loading or quick acceleration with high-inertia loads can cause this fault. If the acceleration during ramp-up is quick, the fault can also appear after kinetic back-up. If extended mechanical brake control is selected, a trip can be reset externally. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 103...
Page 106 8.4.15 ALARM 15, Hardware Mismatch Cause A fitted option is not operational with the present control card hardware or software. Troubleshooting Record the value of the following parameters and contact Danfoss. • Parameter 15-40 FC Type. • Parameter 15-41 Power Section.
Page 107 The temperature sensor is not connected. 8.4.19 WARNING/ALARM 21, Parameter Error Cause The parameter is out of range. The parameter number is shown in the display. Troubleshooting • Set the affected parameter to a valid value. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 105...
Page 108 The brake resistor is monitored during operation. If a short circuit occurs, the brake function is disabled and the warning appears. The drive is still operational, but without the brake function. Troubleshooting • Remove the power to the drive and replace the brake resistor (refer to parameter 2-15 Brake Check). 106 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 109 Blocked airflow around the drive. • Damaged heat sink fan. • Dirty heat sink. 8.4.28 ALARM 30, Motor Phase U Missing Cause Motor phase U between the drive and the motor is missing. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 107...
Page 110 AC drives contain high voltage when connected to AC mains input, DC supply, or load sharing. Failure to perform installation, start-up, and maintenance by qualified personnel can result in death or serious injury. Only qualified personnel must perform installation, start-up, and maintenance. 108 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 111 8.4.35 ALARM 37, Phase Imbalance Cause There is a current imbalance between the power units. 8.4.36 ALARM 38, Internal Fault Cause When an internal fault occurs, a code number defined in table 40 is shown. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 109...
Page 112 Check that the option is properly installed. • Check for loose or missing wiring. It may be necessary to contact the Danfoss supplier or service department. Note the code number for further troubleshooting directions. Table 40: Internal Fault Codes Number Text The serial port cannot be initialized.
Page 113 • Specify that no external supply is used via parameter 14-80 Option Supplied by External 24VDC, [0] No. A change in parameter 14-80 Option Supplied by External 24VDC requires a power cycle. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 111...
Page 114 The supply on the power card is out of range. There are 3 supplies generated by the switch mode supply (SMPS) on the power card: • 24 V • • ±18 V Troubleshooting • Check for a defective power card. 112 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 115 8.4.47 ALARM 50, AMA Calibration Failed Troubleshooting • Contact the Danfoss supplier or service department. 8.4.48 ALARM 51, AMA Check Unom and Inom Cause The settings for motor voltage, motor current, and motor power are wrong.
Page 116 Increase the current limit if necessary. Ensure that the system can operate safely at a higher limit. 8.4.57 WARNING 60, External Interlock Cause A digital input signal indicates a fault condition external to the drive. An external interlock has commanded the drive to trip. 114 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 117 The load and speed combination demands a motor voltage higher than the actual DC-link voltage. 8.4.62 WARNING/ALARM 65, Control Card Overtemperature Cause The cutout temperature of the control card has exceeded the upper limit. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 115...
Page 118 The temperature sensor on the power card is either too hot or too cold. Troubleshooting • Check that the ambient operating temperature is within the limits. • Check for clogged filters. • Check fan operation. • Check the power card. 116 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 119 The control card and power card are incompatible. Troubleshooting • To check compatibility, contact the Danfoss supplier with the type code from the unit nameplate and the part numbers on the cards. 8.4.68 ALARM 71, PTC 1 Safe Stop Cause ®...
Page 120 Investigate the mechanics around the load and motor. Check feedback connections from motor encoder to drive. • Select motor feedback function in parameter 4-30 Motor Feedback Loss Function. • Adjust the tracking error band in parameter 4-35 Tracking Error and parameter 4-37 Tracking Error Ramping. 118 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 121 The mounted options are incompatible. 8.4.81 ALARM 84, No Safety Option Cause The safety option was removed without applying a general reset. Troubleshooting Reconnect the safety option. 8.4.82 ALARM 85, Dang Fail PB Cause PROFIBUS/PROFIsafe error. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 119...
Page 122 The fan is not operating. The fan monitor checks that the fan is spinning at power-up or whenever the mixing fan is turned on. The mixing fan fault can be configured as a warning or an alarm in parameter 14-53 Fan Monitor. 120 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 123 The trip and reset points are different based on the power size. This alarm is equivalent to Alarm 29, Heat Sink Temp. Troubleshooting Check for the following: Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 121...
Page 124 Troubleshooting • Press [Reset] to stop the alarm. 8.4.99 ALARM 425, FPC Update Failure Cause This alarm is generated after the control card failed to update the fan power card PUD. 122 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 125 8.4.101 ALARM 427, FPC Supply Cause Supply voltage fault (5 V, 24 V, or 48 V) on fan power card is detected. Troubleshooting • Check fan power card wiring. • Replace fan power card. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 123...
Page 126: Troubleshooting
Remote or bus reference? erences. Check for correct wiring. Check • Preset reference active? scaling of terminals. Check reference signal. • Terminal connection correct? • Scaling of terminals correct? • Reference signal available? 124 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 127 If the imbalanced leg stays on same in- AC drive 1 position: A to B, B to C, C put terminal, it is a problem with the AC to A. drive. Contact the supplier. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 125...
Page 128 Warnings and Alarms sec- eter 3-42 Ramp 1 Ramp Down Time. Ena- lems tion. Check that motor data are en- ble overvoltage control in parameter tered correctly. 2-17 Over-voltage Control. 126 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 129: Specifications
- Load share or regen [mm (AWG)] Maximum external mains fuses [A] 6928 8036 8783 Estimated power loss at 400 V [W] (2) (3) 5910 6933 7969 Estimated power loss at 460 V [W] (2) (3) Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 127...
Page 130 (IE/IE3 border line). Lower efficiency motors add to the power loss in the drive. Applies for dimensioning of drive cooling. If the switching frequency is higher than the default setting, the power losses can increase. LCP and typical control card power consumptions are included. For power loss data according to EN 50598-2, refer to www.danfoss.com/ vltenergyefficiency.
Page 131: Electrical Data, 525-690 V Ac
(IE/IE3 border line). Lower efficiency motors add to the power loss in the drive. Applies for dimensioning of drive cooling. If the switching frequency is higher than the default setting, the power losses can increase. LCP and typical control card power consumptions are included. For power loss data according to EN 50598-2, refer to www.danfoss.com/ vltenergyefficiency.
Page 132 60 s. Normal overload=110% torque for a du- ration of 60 s. Typical shaft output at 525 V [kW] Typical shaft output at 575 V [hp] Typical shaft output at 690 V [kW] 130 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 133 (IE/IE3 border line). Lower efficiency motors add to the power loss in the drive. Applies for dimensioning of drive cooling. If the switching frequency is higher than the default setting, the power losses can increase. LCP and typical control card power consumptions are included. For power loss data according to EN 50598-2, refer to www.danfoss.com/ vltenergyefficiency.
Page 134: Mains Supply
Measured using 5 m (16.4 ft) shielded motor cables at rated load and rated frequency. Efficiency measured at nominal current. For energy efficiency class, see Conditions . For part load losses, see www.danfoss.com/vltenergyefficiency. 9.2 Mains Supply The unit is suitable for use on a circuit capable of delivering not more than 100 kA short circuit current rating (SCCR) at 480/600 V.
Page 135: Ambient Conditions
Minimum cross-section to control terminals 0.25 mm /24 AWG 9.6 Control Input/Output and Control Data 9.6.1 Digital Inputs All digital inputs are galvanically isolated from the supply voltage (PELV) and other high-voltage terminals. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 133...
Page 136: Sto Terminal
-10 V to +10 V (scaleable) Input resistance, R Approximately 10 kΩ Maximum voltage ±20 V Current mode Switch A53 (S201)/A54 (S202) = ON (I) Current level 0/4 to 20 mA (scaleable) 134 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 137: Pulse/Encoder Inputs
Current range at analog output 0/4 to 20 mA Maximum load GND - analog output less than 500 Ω Accuracy on analog output Maximum error: 0.8% of full scale Resolution of analog output 8 bit Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 135...
Page 138: Control Card, Rs485 Serial Communication
(2) (3) 240 V AC, 0.2 A Maximum terminal load (AC-15) 1–2 (NO) (Inductive load @ cosφ 0.4) 80 V DC, 2 A Maximum terminal load (DC-1) on 1–2 (NO) (Resistive load) 136 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 139: Control Card, +10 V Dc Output
System response time (terminals 18, 19, 27, 29, 32, 33) ≤2 ms Speed control range (open loop) 1:100 of synchronous speed Speed accuracy (open loop) 30–4000 RPM: Error ±8 RPM All control characteristics are based on a 4-pole asynchronous motor. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 137...
Page 140: Control Card Performance
If a circuit breaker is used, the SCCR rating is 42 kA. The input voltage and power rating of the drive determines the specific Class L fuse. The input voltage and power rating are found on the product nameplate. 138 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 141 N500–N560 42000 Circuit breaker 100000 Class L fuse, 1200 A 525–690 N450–N630 42000 Circuit breaker 100000 Class L fuse, 800 A 525–690 N710–N800 42000 Circuit breaker 100000 Class L fuse, 1200 A Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 139...
Page 142: Enclosure Dimensions
Operating Guide | VLT® HVAC Drive FC 102 9.8 Enclosure Dimensions 9.8.1 E1h Exterior Dimensions 22 (0.8) 13 (0.5) 2043 (80.4) 2002 (78.8) 1553 (61.1) 1393 (54.9) (35.9) 393 (15.5) 602 (23.7) Illustration 50: Front View of E1h 140 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 143 Operating Guide | VLT® HVAC Drive FC 102 2X 101 (4.0) 2X 9 (0.7) 20 (0.8) 125 (4.9) 280 (11.0) 35 (1.4) 190 (7.5) (20.2) (22.3) 1 Knockout panel Illustration 51: Side View of E1h Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 141...
Page 144 154 (6.1) 1800 (70.9) 168 (6.6) 1209 (47.6) 601 (23.7) 4X 73 (2.8) 4X 457 (18.0) 69 (2.7) 464 (18.3) 1 Heat sink access panel (optional) Illustration 52: Back View of E1h 142 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 145 22 (0.8) 17 (0.7) (5.4) 412 (16.2) 560 (22.0) 293 (11.5) 173 (6.8) 560 (22.0) 22 (0.8) 1 Cable entry plate Illustration 53: Door Clearance and Cable Entry Plate Dimensions for E1h Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 143...
Page 146: E2H Exterior Dimensions
Operating Guide | VLT® HVAC Drive FC 102 9.8.2 E2h Exterior Dimensions 13 (0.5) (3.8) 2043 2002 (80.4) (78.8) 1553 (61.1) 1393 (54.9) (35.9) (15.5) (27.5) Illustration 54: Front View of E2h 144 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 147 Operating Guide | VLT® HVAC Drive FC 102 2X 101 (4.0) 2X 9 (0.7) 20 (0.8) 125 (4.9) 280 (11.0) 35 (1.4) (20.2) 190 (7.5) (22.3) 1 Knockout panel Illustration 55: Side View of E2h Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 145...
Page 148 154 (6.1) 1800 (70.9) 168 (6.6) 1209 (47.6) 601 (23.7) 4X 121 (4.8) 4X 457 (18.0) 69 (2.7) 560 (22.0) 1 Heat sink access panel (optional) Illustration 56: Back View of E2h 146 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 149 22 (0.8) 17 (0.7) (5.4) 508 (20.0) 656 (25.8) 293 (11.5) 173 (6.8) 22 (0.8) 656 (25.8) 1 Cable entry plate Illustration 57: Door Clearance and Cable Entry Plate Dimensions for E2h Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 147...
Page 150: E3H Exterior Dimensions
13 (0.5) 1578 1537 (62.1) (60.5) 1348 (53.1) 13 (0.5) 15 (0.6) (17.6) 10 (0.4) (1.2) 10 (0.4) 346 (13.6) 506 (19.9) 1 Disconnect option only Illustration 58: Front View of E3h 148 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 151 Specifications Operating Guide | VLT® HVAC Drive FC 102 20 (0.8) 2X 101 (4.0) 2X 19 (0.7) 2X 18 (0.7) 2X 21 (0.8) 482 (19.0) Illustration 59: Side View of E3h Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 149...
Page 152 744 (29.3) 168 (6.6) 136 (5.4) 39 (1.5) 215 (8.5) 430 (16.9) 4X 457 (18.0) 22 (0.9) 464 (18.3) 1 Heat sink access panel (optional) Illustration 60: Back View of E3h 150 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 153 2X 219 (8.6) 2X 220 (8.6) (6.3) 1 RFI shield termination (standard with RFI option) 2 Cable/EMC clamp 3 Cable entry plate Illustration 61: RFI Shield Termination and Cable Entry Plate Dimensions for E3h Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 151...
Page 154: E4H Exterior Dimensions
9.8.4 E4h Exterior Dimensions 13 (0.5) 1578 1537 (62.1) (60.5) 1348 (53.1) 13 (0.5) 15 (0.6) (17.6) 10 (0.4) (1.2) 10 (0.4) (23.8) (13.3) 1 Disconnect option only Illustration 62: Front View of E4h 152 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 155 Specifications Operating Guide | VLT® HVAC Drive FC 102 20 (0.8) 2X 101 (4.0) 2X 19 (0.7) 2X 18 (0.7) 2X 21 (0.8) 482 (19.0) Illustration 63: Side View of E4h Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 153...
Page 156 168 (6.6) 136 (5.4) 39 (1.5) 263 (10.4) 4X 74 (2.9) 4X 457 (18.0) 526 (20.7) 22 (0.9) 560 (22.0) 1 Heat sink access panel (optional) Illustration 64: Back View of E4h 154 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 157 2X 268 (10.6) 2X 220 (8.6) (6.3) 1 RFI shield termination (standard with RFI option) 2 Cable/EMC clamp 3 Cable entry plate Illustration 65: RFI Shield Termination and Cable Entry Plate Dimensions for E4h Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 155...
Page 158: Enclosure Airflow
Apply the correct torque when tightening fasteners in the locations that are listed in table 48. Too low or too high torque when fastening an electrical connection results in a bad electrical connection. To ensure correct torque, use a torque wrench. 156 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 159 Regen terminals (Enclosures E3h/E4h) M10/M12 19 (168)/37 (335) Relay terminals – 0.5 (4) Door/panel cover 2.3 (20) Cable entry plate 2.3 (20) Heat sink access panel 2.3 (20) Serial communication cover 2.3 (20) Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 157...
Page 160: Appendix
CSIV Customer-specific initialization values Current transformer Direct current Digital voltmeter EEPROM Electrically erasable programmable read-only memory Electromagnetic compatibility Electromagnetic interference Electrostatic discharge Electronic thermal relay Nominal motor frequency Fan power card 158 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 161 Motor control processor Motion control tool MDCIC Multi-drive control interface card Millivolts NEMA National Electrical Manufacturers Association Negative temperature coefficient Nominal motor power Printed circuit board Protective earth PELV Protective extra low voltage Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 159...
Page 162: International/North American Default Parameter Settings
North American default parameter value value Parameter 0-03 Regional Settings International North America Parameter 0-71 Date Format DD-MM-YYYY MM/DD/YYYY Parameter 0-72 Time Format 24 h 12 h – – Parameter 1-20 Motor Power [kW] 160 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 163 [1] North America. parameter 0-02 Motor Speed Unit Visible only when is set to [0] RPM. parameter 0-02 Motor Speed Unit Visible only when is set to [1] RPM. Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 161...
Page 164 Control card Location Back-wall cooling Overtemperature trip point 128, 130 Brake Cooling Terminal dimensions 46, 48, 50, 53 Airflow rates Terminal location 14, 16 Dust Terminal torque rating Requirements Brake resistor 162 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 165 Exterior dimensions Cleaning E1h access panel dimensions E2h access panel dimensions E3h access panel dimensions E4h access panel dimensions External alarm reset Overtemperature trip point 128, 130 External interlock 80, 114 Warning Heater Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 163...
Page 166 Troubleshooting Leakage current 11, 44 Open-loop speed control configurations Lifting 22, 25 Optional equipment Load share Overcurrent protection Terminal location Overvoltage 127, 129 Terminal torque rating Wiring schematic Local control panel 164 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 167 E3h dimensions (front and side views) Location 13, 16 E4h dimensions (front and side views) RS485 57, 61, 87, 136, 157 Relays Run/stop command Serial communication descriptions Run/stop wiring configuration Terminal 27 58, 61 Terminal 37 Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706| 165...
Page 168 9, 66, 105, 108, 108, 108 Selecting input signal Voltage level Warnings Definition Indicator light List of Weight Width Wires Access Wiring configurations External alarm reset Fixed variable speed pump Lead pump alternation Open loop Regen 166 | Danfoss A/S © 2020.01 AQ275556502253en-000101 / 130R0706...
Page 170 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies.

Danfoss VLT HVAC Drive FC 102 Operating Manual

Quick Links

Troubleshooting

Related Manuals for Danfoss VLT HVAC Drive FC 102

Summary of Contents for Danfoss VLT HVAC Drive FC 102

Table of Contents
