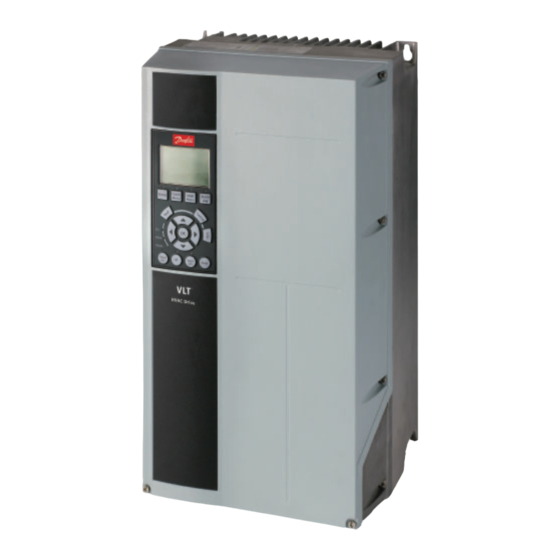

Page 1 MAKING MODERN LIVING POSSIBLE Design Guide ® HVAC Drive FC 102 1.1-90 kW www.danfoss.com/drives...
Page 3: Table Of Contents
3.1.11.2 Electrical and Mechanical Specifications 3.1.11.3 Electrical Wiring 3.1.12 Remote Mounting Kit for LCP 3.1.13 IP21/IP41/ TYPE1 Enclosure Kit 3.1.14 IP21/Type 1 Enclosure Kit 3.1.15 Output Filters 4 How to Order 4.1 Ordering Form MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 4 6.5.3 Control Terminals 6.5.4 Switches S201, S202, and S801 6.5.5 Electrical Installation, Control Terminals 6.5.6 Basic Wiring Example 6.5.7 Electrical Installation, Control Cables 6.5.8 Relay Output 6.6 Additional Connections 6.6.1 DC Bus Connection Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 5 7.1.13 Cascade Controller Wiring Diagram 7.1.14 Start/Stop Conditions 8 Installation and Set-up 8.1 Installation and Set-up 8.2 FC Protocol Overview 8.3 Network Configuration 8.4 FC Protocol Message Framing Structure 8.4.1 Content of a Character (byte) MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 6 8.8.10 Function Codes Supported by Modbus RTU 8.8.11 Modbus Exception Codes 8.9 How to Access Parameters 8.9.1 Parameter Handling 8.9.2 Storage of Data 8.9.3 IND 8.9.4 Text Blocks 8.9.5 Conversion Factor 8.9.6 Parameter Values Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 7 9.6.6 Automatic Adaptations to Ensure Performance 9.6.7 Derating for Low Air Pressure 9.6.8 Derating for Running at Low Speed 9.7 Troubleshooting 9.7.1 Alarm Words 9.7.2 Warning Words 9.7.3 Extended Status Words Index MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 8: How To Read This Design Guide
How to Read this Design Gui... Design Guide 1 How to Read this Design Guide ® Danfoss reserves the right to revise this publication at any HVAC Drive time and to make changes to its contents without prior FC 102 Series notice or any obligation to notify former or present users of such revisions or changes.
Page 9 Revolutions Per Minute Regenerative terminals Regen Second Synchronous Motor Speed Torque limit Volts The maximum output current VLT,MAX The rated output current supplied by the VLT,N frequency converter Table 1.3 Abbreviations MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 10 Determines the relationship between the reference input at 0% value (typically 0V, 0mA, 4mA) and the resulting reference. The minimum reference value set in The instantaneous motor voltage. 3-02 Minimum Reference The rated motor voltage (nameplate data). Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 11 Trip A state entered in fault situations, e.g. if the frequency converter is subject to an over temperature or when the frequency converter is protecting the motor, process or MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 12 In addition, a high power factor indicates that the different harmonic currents are low. The frequency converter’s built-in DC coils produce a high power factor, which minimises the imposed load on the mains supply. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 13: Introduction To Vlt ® Hvac Drive
Incorrect installation of above 2 km, contact Danfoss regarding PELV. the motor, frequency converter or fieldbus may cause 525-690 V: At altitudes above 2 km, contact Danfoss death, serious personal injury or damage to the regarding PELV.
Page 14: Ce Labelling
EMC-correct installation, see the instructions in this Voltage [V] Min. waiting time (minutes) Design Guide. In addition, Danfoss specifies which standards our products comply with. Danfoss offers the 200-240 1.1-3.7 kW 5.5-45 kW filters presented in the specifications and provide other 380-480 1.1-7.5 kW...
Page 15: Air Humidity
As an aid to the installer, Danfoss has prepared EMC instal- An extra protection in such areas is a coating of the lation guidelines for the Power Drive system. The standards printed circuit boards, which can be ordered as an option.
Page 16: Vibration And Shock
2.6 Safe Torque Off 1E-10/h • SFF (Safe Failure Fraction) > 99% The FC 102 can perform the safety function Safe Torque Off • HFT (Hardware Fault Tolerance) = 0 (1001 (STO, as defined by EN IEC 61800-5-2 ) and Stop Category 0...
Page 17 2.6.1 Terminal 37 Safe Torque Off Function and commissioned by qualified and skilled personnel The FC 102 is available with Safe Torque Off functionality • The unit must be installed in an IP54 cabinet or via control terminal 37. Safe Torque Off disables the in an equivalent environment.
Page 18 Illustration 2.3). This safety function corresponds to a category 0 stop (uncontrolled stop) in accordance with IEC 60204-1. If the function is triggered during operation, the motor runs down in an uncontrolled manner. The power Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 20 Torque Off. This means that the output to Safe Torque Off resumed yet after Safe Torque Off activation. terminal 37 is HIGH (24 V) only, if both the signal from Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 21 37 by the interrupt device while the Off Alarm or [3] Safe Torque Off Warning should be selected motor is driven by the FC 102 (i.e. mains supply is by mistake and MCB 112 is triggered, then the frequency not interrupted).
Page 22: Advantages
SYSTEM CURVE 2.1 Remove the 24 V DC voltage supply to terminal 37 by the interrupt device while the motor is driven by the FC 102 (i.e. mains supply is FAN CURVE not interrupted). The test step is passed if the...
Page 23 Inlet Guide Vans offer a 40% This is because the frequency converter is able to control reduction but are expensive to install. The Danfoss frequency fan speed according to thermal load on the system and converter solution reduces energy consumption with more the fact that the frequency converter has a built-in facility than 50% and is easy to install.
Page 24 Such motor starters are not required if a frequency converter is used. Illustration 2.13 Example with Varying Flow As illustrated in Illustration 2.14, a frequency converter does not consume more than rated current. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 25 2.7.10 Without a Frequency Converter Energy Direct Digital D.D.C. E.M.S. Management Control system V.A.V. = Variable Air Volume Sensor Sensor P = Pressure = Temperature Table 2.9 Abbreviations used in Illustration 2.15 and Illustration 2.16 MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 26 Design Guide 2.7.12 Application Examples The next pages give typical examples of applications within HVAC. For further information about a given application, ask a Danfoss supplier for an information sheet that gives a full description of the application. Variable Air Volume Ask for The Drive to...Improving Variable Air Volume Ventilation Systems MN.60.A1.02...
Page 27 PID controller of the HVAC can be used to eliminate the need for additional controllers. Pressure signal Frequency Cooling coil Heating coil converter VAV boxes Filter Supply fan Pressure transmitter Flow Frequency converter Return fan Flow Illustration 2.17 The VLT Solution MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 28 Several features of the Danfoss HVAC dedicated frequency converter can be utilised to improve the performance of a CAV system. One concern of controlling a ventilation system is poor air quality. The programmable minimum frequency can be set to maintain a minimum amount of supply air regardless of the feedback or reference signal.
Page 29 The frequency converters can also be used to turn the fan on and off as needed. Several features of the Danfoss HVAC dedicated frequency converter, the HVAC frequency converter can be utilised to improve the performance of a cooling tower fans application. As the cooling tower fans drop below a certain speed, the effect the fan has on cooling the water becomes small.
Page 30 Introduction to VLT® HVAC D... Design Guide Frequency converter Water Inlet Temperature Sensor BASIN Water Outlet Conderser Water pump Supply Illustration 2.19 The VLT Solution Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 31 Frequency converter Water Inlet Flow or pressure sensor BASIN Water Outlet Throttling valve Condenser Water pump Supply Illustration 2.20 The VLT Solution MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 32 In the event the flow rate needs to be increased later in the systems life, the frequency converter can simply increase the pump speed instead of requiring a new pump impeller. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 33 Introduction to VLT® HVAC D... Design Guide Flowmeter Flowmeter Frequency converter Frequency converter Illustration 2.21 The VLT Solution MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 34 Note that when running multiple pumps in parallel, they must run at the same speed to maximize energy savings, either with individual dedicated drives or one running multiple pumps in parallel. Frequency converter Frequency converter Illustration 2.22 The VLT Solution Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 36 The current (A) and the typical power rating (kW) for a PM motor can be found in chapter 9.1 Mains Supply Tables for different voltages. The Danfoss EC+ concept provides the possibitily for using high efficient PM motors in IEC standard enclosure types operated by Danfoss frequency converters.
Page 37 Auto Linked to Hand/ Remote Auto Auto ⇒ Off Linked to Hand/ Remote Auto All keys Local Local All keys Remote Remote Table 2.14 Conditions for Either Local or Remote Reference MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 38 Reference Handling) and the feedback signal is selected frequency converter. [14] Multi Setpoint Maximum attempts using 20-20 Feedback Function. to keep all zones at or below their respective setpoints, Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 39 This is shown in Illustration 2.28. Ref. signal Ref. P 20-01 P 20-04 Desired P 20-07 FB conversion Flow Flow signal Illustration 2.28 Feedback Conversion MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 40 Up to 8 preset references can be programmed in the reference. A third digital input can be used to reset the frequency converter. The active preset reference can be Digipot reference. All reference resources and the bus Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 41 S202 behind the LCP set to ON (current input). frequency converter and size! allowed application Also active in Hand operating specifications. mode. Prohibit the motor from 4-10 [0] Clockwise reversing (if necessary) MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 42 Set 20-93 PID Proportional Gain to 0.3 and increase it until the feedback signal begins to oscillate. If necessary, start and stop the frequency converter or make step changes in the Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 43: General Aspects Of Emc
Avoid placing cables with a sensitive signal level alongside motor and brake cables. Radio interference higher than 50 MHz (airborne) is especially generated by the control electronics. See for more information on EMC. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 44 400 A or intended for use in complex systems. Table 2.17 Emission Requirements When the generic (conducted) emission standards are used the frequency converters are required to comply with the following limits Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 45 3) Hx versions can be used according to EN/IEC 61800-3 category C4 4) T7, 37-90 kW complies with class A group 1 with 25 m motor cable. Some restrictions for the installation apply (contact Danfoss for details). HX, H1, H2, H3, H4 or H5 is defined in the type code pos. 16-17 for EMC filters HX - No EMC filters built in the frequency converter (600 V units only) H1 - Integrated EMC filter.
Page 46 Compliance with various system level guidelines: The harmonic current data in Table 2.22 are given in accordance with IEC/EN61000-3-12 with reference to the Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 47 8 kV AD — — 10V/m — 6 kV CD Table 2.23 EMC Immunity Form 1) Injection on cable shield AD: Air Discharge CD: Contact Discharge CM: Common mode DM: Differential mode MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 48: Galvanic Isolation (Pelv)
61800-5-1. above 2 km, contact Danfoss regarding PELV. The PELV galvanic isolation can be shown in 6 locations 525-690 V: At altitudes above 2 km, contact Danfoss (see Illustration 2.34): regarding PELV. To maintain PELV, all connections made to the control WARNING terminals must be PELV, e.g.
Page 49: Brake Function
• Dimension RCDs according to the system configu- ration and environmental considerations T = cycle time in seconds is the braking time in seconds (as part of the total cycle time) MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 50 Check that the brake resistor can cope with a voltage of power and the mean power for the latest 120 s. The brake 410 V, 820 V or 975 V - unless Danfoss brake resistors are used. can also monitor the power energising and ensure that it does not exceed the limit selected in 2-12 Brake Power Limit (kW).
Page 51: Extreme Running Conditions
Enable flying start to catch a spinning motor. Motor-generated overvoltage The voltage in the intermediate circuit is increased when the motor acts as a generator. This occurs in following cases: MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 52 3000 1330 2.13.1 Motor Thermal Protection This is the way Danfoss is protecting the motor from being overheated. It is an electronic feature that simulates a bimetal relay based on internal measurements. The charac- teristic is shown in Illustration 2.40 t [s] ...
Page 53 With the torque limit feature the motor is protected for being overloaded independent of the speed. With the ETR, the motor is protected for being over heated and there is no need for any further motor protection. That means MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 54: Selection
Selection Design Guide 3 Selection 3.1 Options and Accessories Danfoss offers a wide range of options and accessories for the frequency converters. 3.1.1 Mounting of Option Modules in Slot B Disconnect power to the frequency converter. For A2 and A3 enclosure types: Remove the LCP, the terminal cover, and the LCP frame from the frequency converter.
Page 55: Digital Inputs - Terminal X30/1-4
Max. impedance 24V DC analog level outputs ±0.1 mA < 500 Ω 0/4 - 20 mA (NPN) Table 3.4 Parameters for set-up: 6-6* and 16-77 24V DC Illustration 3.4 Principle Diagram MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 56 Illustration 3.5 Relay Option MCB 105 A2-A3-A4-B3 A5-B1-B2-B4-C1-C2-C3-C4 IMPORTANT! The label MUST be placed on the LCP frame as shown (UL approved). Table 3.5 Legend to Illustration 3.5 and Illustration 3.6 Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 57 Index [6] is relay 7, index [7] is relay 8, and index [8] is relay 9 Relay 7 Relay 8 Relay 9 Illustration 3.7 Relay 7, Relay 8, and Relay 9 MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 58: Back-Up Option Mcb 107 (Option D)
This enables full operation of the LCP (including the parameter setting) and fieldbusses without mains supplied to the power section. Illustration 3.10 Connection to 24 V Back-up Supplier (A2-A3). Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 59 Specifications according to IEC 60751 • Support Extended PID controllers with I/Os for set 3 x Analog Outputs supplying 0-10 V DC. point inputs, transmitter/sensor inputs and outputs for actuators. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 60: Ptc Thermistor Card Mcb
(default is Safe Stop Alarm). ® Parameter group: 18-3*. See also VLT HVAC Drive Programming Guide. Parameter groups for set-up: 26-4*, 26-5* and 26-6*. See ® also VLT HVAC Drive Programming Guide. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 61 10 ... 1000 Hz 1.14 g Shock resistance 50 g Safety system values EN 61508 for Tu = 75 °C ongoing 2 for maintenance cycle of 2 years 1 for maintenance cycle of 3 years MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 62: Ordering Code Numbers And Parts Delivered
Temperature range Galvanic Isolation The sensors to be connected are expected to be galvanically isolated from the mains voltage level IEC 61800-5-1 and UL508C Cabling Maximum signal cable length 500 m Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 63: Electrical Wiring
Enclosure IP66 front Ordering no. 130B1114 Max. cable length between and unit Communication std RS-485 64,5± 0.5 mm Table 3.11 Technical Data (2.54± 0.04 in) Panel cut out Illustration 3.18 Dimensions MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 64: Ip21/Ip41/ Type1 Enclosure Kit
C at the bottom of the frequency converter and use the clamps from the accessory bag to correctly fasten the cables. Holes for cable glands: Size A2: 2x M25 and 3xM32 Size A3: 3xM25 and 3xM32 Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 65 Illustration 3.22 Enclosure Types B4 - C3 - C4 Top cover Brim Base part Illustration 3.21 Enclosure Type B3 Base cover Screw(s) Fan cover Top clip Table 3.14 Legend to Illustration 3.21 and Illustration 3.21 MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 67: How To Order
Order the frequency converter as either standard or with C0 options, MCO 33-34 integral options by sending a type code string describing C1 options the product a to the local Danfoss sales office, i.e.: C option software 36-37 D options 38-39 FC-102P18KT4E21H1XGCXXXSXXXXAGBKCXXXXDX Table 4.1 Example of Drive Configurator Interface Set-up...
Page 68 X: No Mains disconnect switch and Load Sharing 1: With Mains disconnect switch (IP55 only) Mains option 8: Mains disconnect and Load Sharing D: Load Sharing See Chapter 9 for max. cable sizes. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 69: Ordering Numbers
Front mounting kit, IP55 enclosures 130B1129 Panel mounting kit for all LCPs including fasteners and gasket - without 130B1170 cable Table 4.3 Options can be ordered as factory built-in options, see ordering information. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 70 24 V DC back-up 130B1208 External Options Ethernet IP Ethernet master Table 4.4 Options Ordering Information For information on fieldbus and application option compatibility with older software versions, contact your Danfoss supplier. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 71 130B0983 Table 4.5 Accessories Ordering Information 4.2.2 Ordering Numbers: Harmonic Filters Harmonic filters are used to reduce mains harmonics. • AHF 010: 10% current distortion • AHF 005: 5% current distortion MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 72 130B2480 P250 + 130B2469 + 130B2481 2x 130B2469 2x 130B2481 P315 2x130B2470 2x130B2482 P355 130B2470 130B2482 P400 + 130B2471 + 130B2483 2x130B2471 130B2483 P450 Table 4.7 380-415 V AC, 60 Hz Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 73 175G6641 + 175G6665 P400 2x175G6653 2x175G6665 P450 175G6653 + 175G6654 175G6665 + 175G6666 P500 2X 175G6654 2X 175G6666 P560 175G6654 + 175G6655 175G6666 + 175G6667 P630 Table 4.9 500-525 V AC, 50 Hz MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 74 130B2299 + 130B2300 P400 2x130B2335 2x130B2300 P450 130B2300 + 130B2301 P500 2x130B2301 P560 130B2301 + 130B2300 P630 2x130B2302 P710 Table 4.10 690 VAC, 50 Hz * For higher currents, contact Danfoss. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 75 Table 4.11 Mains Supply 3x200 to 480 V AC When using Sine-wave filters, the switching frequency should comply with filter specifications in 14-01 Switching Frequency. NOTICE See also Output Filter Design Guide. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 76 Table 4.12 Mains Supply 3x525-690 V AC NOTICE When using sine-wave filters, the switching frequency should comply with filter specifications in 14-01 Switching Frequency. NOTICE See also Output Filter Design Guide. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 77 1500 P710 P800 130B2407 130B2394 1500 P800 P1M0 130B2407 130B2394 1500 P1M0 130B2410 130B2395 2300 Table 4.13 Mains supply 3x380 to 3x480 V AC NOTICE See also Output Filter Design Guide. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 78 P1M4 2x130B2430 2x130B2421 1530 Table 4.14 Mains supply 3x525 to 3x690 V AC NOTICE See also Output Filter Design Guide. 4.2.7 Ordering Numbers: Brake Resistors NOTICE See Brake Resistor Design Guide. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 79: Mechanical Installation
°C, derating of the frequency converter becomes relevant, see chapter 9.6.2 Derating for Ambient Temperature. The service life of the frequency converter is reduced if derating for ambient temperature is not taken into account. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 83: Mechanical Mounting
A3, there must be a clearance between the frequency converters of min. 50 mm. For optimal cooling conditions, allow a free-air passage above and below the frequency converter. See Table 5.4. Illustration 5.3 Proper Mounting with Back Plate MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 84: Field Mounting
“1”, due to insufficient cooling air over the heat sink. Enclosure IP20 IP21 IP55 IP66 A4/A5 * = No screws to tighten - = Does not exist Table 5.6 Tightening Torque for Covers (Nm) Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 85: Electrical Installation
Mains, Brake resistor, load sharing, Motor cables Relay 0.5-0.6 Ground 37-45 75-90 Mains, motor cables 14 (up to 95 mm 24 (over 95 mm Load Sharing, brake cables Relay 0.5-0.6 Ground Table 6.1 Tightening-up Torque MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 86: Removal Of Knockouts For Extra Cables
2 x rated mains wires terminated separately according to EN 50178. The mains connection is fitted to the mains switch, if this is included. Illustration 6.3 Tightening the Earth Cable Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 87 Illustration 6.10 Mains Connection Enclosure Type B4 (IP20) Illustration 6.7 Connecting to Mains and Earthing with Discon- nector When disconnector is used (enclosure type A4/A5) the PE must be mounted on the left side of the frequency converter. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 88: Motor Connection
If it is necessary to split the screen to install a motor isolator or motor relay, continue the screen with the lowest possible HF impedance. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 89 Illustration 6.15 Motor Connection for Enclosure Type B1 and B2 (IP21/NEMA Type 1, IP55/NEMA Type 12 and IP66/NEMA Tighten terminals in accordance with the Type 4X) information provided in chapter 6.1.1 Torque. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 90 (IP21/NEMA Type 1 and IP55/66/NEMA Type 12) Illustration 6.16 Motor Connection for Enclosure Type B3 Illustration 6.19 Motor Connection for Enclosure Type C3 and Illustration 6.17 Motor Connection for Enclosure Type B4 Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 91 1) Mains 28.4 2) Motor 28.4 3) Brake/Load Sharing 28.4 4) Control Cable 22.5 5) Control Cable 22.5 6) Control Cable 22.5 Table 6.4 Legend to Illustration 6.22 ± 0.2 mm Tolerance MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 92 Illustration 6.24 A4 - IP55 Threaded Gland Holes Hole Number and recommended use Nearest metric 1) Mains 2) Motor 3) Brake/Load Sharing 4) Control Cable 5) Control Cable Table 6.6 Legend to Illustration 6.24 Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 93 4) Control 28.4 Table 6.8 Legend to Illustration 6.26 Cable 5) Control 22.5 Knock-out hole Cable 5) Control 22.5 Cable Table 6.10 Legend to Illustration 6.28 ± 0.2 mm Tolerance Knock-out hole MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 94 3) Brake/Load Sharing 4) Control 28.4 4) Control Cable Cable 5) Control Cable 5) Control 22.5 Cable Table 6.14 Legend to Illustration 6.32 Table 6.12 Legend to Illustration 6.30 ± 0.2 mm Tolerance Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 95 1) Mains 63.3 2) Motor 63.3 3) Brake/Load 1 1/2 50.2 Sharing 4) Control 28.4 Cable 5) Control 22.5 Cable Table 6.16 Legend to Illustration 6.34 ± 0.2 mm Tolerance MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 96: Relay Connection
Illustration 6.37 Terminals for Relay Connection (Enclosure Types C1 and C2). Illustration 6.36 Terminals for Relay Connection (Enclosure Types A1, A2 and A3). Illustration 6.38 Terminals for Relay Connection (Enclosure Types A5, B1 and B2). Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 97: Fuses And Circuit Breakers
6.2.3 CE Compliance of component break-down internally in the frequency converter. Fuses or circuit breakers are mandatory to comply with IEC 60364. Danfoss recommend using a selection of the Branch Circuit Protection To protect the installation against electrical and fire hazard, following.
Page 98: Fuse Tables
(18.5) gG-160 (18.5-22) NZMB2-A200 gG-80 (22) aR-160 (30) gG-100 (30) 37-45 aR-160 (37) aR-200 (37) NZMB2-A250 aR-200 (45) aR-250 (45) Table 6.19 200-240 V, Enclosure Types A, B and C Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 99 NZMB1-A100 gG-63 (30) 37-55 gG-63 (37) gG-160 (37-45) NZMB2-A200 gG-100 (45) aR-250 (55) aR-160 (55) 75-90 aR-200 (75-90) aR-250 NZMB2-A250 Table 6.21 525-600 V, Enclosure Types A, B and C MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 100 (22) gG-63 (30) gG-63 (37) gG-100 (37) gG-80 (45) gG-125 (45) gG-100 (55) gG-160 (55-75) gG-125 (75) gG-80 gG-100 gG-100 gG-125 Table 6.22 525-690 V, Enclosure Types A, B and C Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 101 UL Compliance Fuses or circuit breakers are mandatory to comply with NEC 2009. Danfoss recommends using a selection of the following The fuses below are suitable for use on a circuit capable of delivering 100,000 Arms (symmetrical), 240 V, or 480 V, or 500 V, or 600 V depending on the frequency converter voltage rating.
Page 102 KTS-R-60 JKS-60 JJS-60 KTS-R-80 JKS-80 JJS-80 KTS-R-100 JKS-100 JJS-100 KTS-R-125 JKS-125 JJS-125 KTS-R-150 JKS-150 JJS-150 KTS-R-200 JKS-200 JJS-200 KTS-R-250 JKS-250 JJS-250 Table 6.26 380-480 V, Enclosure Types A, B and C Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 103 HSJ-40 FWH-50 HSJ-50 FWH-60 HSJ-60 FWH-80 HSJ-80 FWH-100 HSJ-100 FWH-125 HSJ-125 FWH-150 HSJ-150 FWH-200 HSJ-200 A50-P-225 L50-S-225 FWH-250 HSJ-250 A50-P-250 L50-S-250 Table 6.28 380-480 V, Enclosure Types A, B and C MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 104 Table 6.30 525-600 V, Enclosure Types A, B and C 170M fuses shown from Bussmann use the -/80 visual indicator. –TN/80 Type T, -/110 or TN/110 Type T indicator fuses of the same size and amperage may be substituted. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 105 KTS-R-125 JKS-125 JJS-125 2028220-125 KLS-150 A6K-125-R HST-125 150 A KTS-R-150 JKS-150 JJS-150 2028220-150 KLS-175 A6K-150-R HST-150 Table 6.32 *525-690 V, Enclosure Types B and C * UL compliance only 525-600 V MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 106: Disconnectors And Contactors
The factory setting is for clockwise rotation with the frequency converter output connected as follows: Terminal No. Function 96, 97, 98, 99 Mains U/T1, V/T2, W/T3 Ground Table 6.34 Terminal Functions Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 107: Relay Option Mcb
(Circuit breakers are not suitable as protection device). NOTICE If a retrofit applications requires unequal amount of wires per phase, consult the factory for requirements and documentation or use the top/bottom entry side cabinet option. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 108 Feedback Source cannot be used, and 1-01 Motor Control recommended for short cable lengths. Principle must be set to Special motor characteristics (U/f). Illustration 6.41 Parallel Motor Connection Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 109: Direction Of Motor Rotation
600 V < U ≤ 690 Reinforced U = 2000 Motor rotation check can be performed using 1-28 Motor Rotation Check and following the steps shown in the Table 6.36 Motor Insulation display. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 110: Motor Bearing Currents
6.4.6 Motor Bearing Currents 6.5 Control Cables and Terminals 6.5.1 Access to Control Terminals All motors installed with FC 102 90 kW or higher power frequency converter should have NDE (Non-Drive End) All terminals to the control cables are located underneath insulated bearings installed to eliminate circulating bearing the terminal cover on the front of the frequency converter.
Page 111: Analog I/O Option Mcb
6.5.3 Control Terminals Item Description 8 pole plug digital I/O 3 pole plug RS-485 Bus 6 pole analog I/O USB Connection Table 6.38 Legend Table to Illustration 6.48, for FC 102 MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 112: Switches S201, S202, And S801
10 pole plug digital I/O 3 pole plug RS-485 Bus 6 pole analog I/O SB Connection Table 6.39 Legend Table to Illustration 6.48, for FC 102 Illustration 6.49 Location of S201, S202 and S801 Switches 6.5.5 Electrical Installation, Control Terminals...
Page 113: Basic Wiring Example
Start (27) Illustration 6.54 Basic Wiring Illustration 6.53 Remove Screwdriver To remove the cable from the terminal Insert a screwdriver in the square hole. Pull out the cable. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 114: Electrical Installation, Control Cables
(terminal 20, 55, 39) of the frequency converter to avoid ground currents from both groups to affect other groups. For example, switching on the digital input may disturb the analog input signal. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 115 Illustration 6.57 Input Polarity NPN (Sink) NOTICE To comply with EMC emission specifications, screened/ armoured cables are recommended. If an unscreened/ unarmoured cable is used, see chapter 2.9.2 EMC Test Results. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 116: Sensor Input Option Mcb
The DC bus terminal is used for DC back-up, with the supply voltage, may occur on the terminals. intermediate circuit being supplied from an external source. It uses terminals 88 and 89. For further information, contact Danfoss. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 117: How To Connect A Pc To The Frequency Converter
Danfoss AHF filters and 12-18-pulse rectifiers, can differences due to the ground and shield connected in the PC USB port.
Page 118: Grounding
Do not install a mains switch cables. The screen should provide a minimum • Ensure that 14-50 RFI Filter is set to [1] On. coverage of 80%. The screen material must be Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 119 Motor cable between con- trol cables, motor cable and Mains-supply mains cable Motor, 3 phases and Reinforced protective earth Protective earth Illustration 6.62 EMC-correct Electrical Installation of a Frequency Converter in Cabinet MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 120: Use Of Emc-Correct Cables
• The screen coverage, i.e. the physical area of the cable covered by the screen - often stated as a percentage value • Screen type, i.e. braided or twisted pattern Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 121: Grounding Of Screened Control Cables
DC capacitor damage or result in reduced product life. <10 mm Illustration 6.67 Twisted-pair Cables MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 122: Residual Current Device
This number along with the description of the alarm assist in troubleshooting. If contacting 1,7L Danfoss for service, make sure to mention IP 65 H1/1A number and alarm description. Illustration 6.69 Motor Name Plate Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 123 4-11 Motor Speed Low Limit [RPM] or 4-12 Motor Speed Low Limit [Hz]. 4-13 Motor Speed High Limit [RPM] or 4-14 Motor Speed High Limit [Hz]. 3-41 Ramp 1 Ramp Up Time. 3-42 Ramp 1 Ramp Down Time. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 124: Application Examples
Safe Stop Speed Speed Start/Stop [18] Illustration 7.1 Terminal 37: Available only with Safe Stop Function Start (18) Start (27) Illustration 7.2 Terminal 37: Available Only with Safe Torque Off Function Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 125: Potentiometer Reference
Only one event will be evaluated at any time. If an event is motor, which results in an increase of the stator evaluated as FALSE, nothing happens (in the SLC) during resistance, Rs. Normally, this is not critical. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 126: Slc Application Example
Set Action 3 in 13-52 SL Controller Action [3] to Select preset Controller Timer [0]. Ex.: 2 sec. 1 [11] Set Action 4 in 13-52 SL Controller Action [4] to No Action Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 127: Cascade Controller
3). In this operation, the run time pump at variable speed over a wide for range is not an between pumps is equalized reducing the required pump maintenance and increasing reliability and lifetime of the MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 128: Pump Staging With Lead Pump Alternation
Staging freq. Mains operation occurring. Time • De-stage at No-Flow ensures that all fixed speed Illustration 7.8 Pump Staging with Lead Pump Alternation pumps are stopped individually until the no-flow status disappears. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 129: Fixed Variable Speed Pump Wiring Diagram
When all relays are de-energised, the first built in relay to be energised cuts in the contactor corresponding to the pump controlled by the relay. E.g. RELAY 1 cuts in contactor K1, which becomes the lead pump. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 130: Cascade Controller Wiring Diagram
2 fixed speed pumps, a 4-20 mA transmitter and System Safety Interlock. Power Card Control Card MOTOR MAINS System System Start/ Safety Stop Interlock From Motor Control Circuitry Pressure Transmitter 4-20 mA, 24 V dc Illustration 7.11 Cascade Controller Wiring Diagram Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 131: Start/Stop Conditions
Destaging [Auto On] Starts and stops according to commands via Staging/Destaging terminals or serial bus cascade controller only can work when drive in "Auto ON" mode Table 7.2 LCP Key Functions MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 132: Installation And Set-Up
69 is connected to the N signal (TX-,RX-). See drawings in chapter 6.8.3 Grounding of Screened Control Cables. If more than one frequency converter is connected to a master, use parallel connections. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 133: Fc Protocol Overview
Note: The default selection depends on the The FC protocol, also referred to as FC bus or Standard protocol selected in 8-30 Protocol bus, is the Danfoss standard fieldbus. It defines an access 8-35 Minimum Specify a minimum delay time between...
Page 134: Network Configuration
Bit 5 = 1: Broadcast, address bits (0-4) are not A stop bit completes a character, thus consisting of 11 bits used in all. Bit 5 = 0: No Broadcast Bit 0-4 = frequency converter address 1-31 Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 135: Data Control Byte (Bcc)
PCD1 PCD2 high Illustration 8.8 Parameter Block Text block The text block is used to read or write texts via the data block. PCD1 PCD2 Illustration 8.9 Text Block MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 136: The Pke Field
0-01 Language where [0] is English, and [4] is Danish, this response: select the data value by entering the value in the PWE 0111 Command cannot be performed block. See Example - Selecting a data value. Serial Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 137: Data Types Supported By The Frequency Converter
The various attributes of each parameter are displayed in Write the data in EEPROM. factory setting. Parameter values are transferred as whole numbers only. Conversion factors are therefore used to transfer decimals. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 138: Reading A Parameter Value
PWELOW = 03E8 Hex - Data value 1000, corresponding to 100 Hz, see chapter 8.4.12 Conversion. 8.6.1 Assumptions The telegram looks like this: Danfoss assumes that the installed controller supports the interfaces in this document, and strictly observes all requirements and limitations stipulated in the controller and frequency converter.
Page 139: Frequency Converter With Modbus Rtu
Even parity, 1 stop bit (default) check T1-T2-T3- 8 bits 8 bits N x 8 16 bits T1-T2-T3- Table 8.11 Modbus RTU Parameters bits Table 8.13 Typical Modbus RTU Message Structure MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 140: Start/Stop Field
This tells the master what kind of error occurred, or the reason for the exception. Also refer to chapter 8.8.10 Function Codes Supported by Modbus RTU and chapter 8.8.11 Modbus Exception Codes Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 141 (STW). 50210 Output data: Frequency converter main actual value register (MAV). Table 8.17 Holding Registers * Used to specify the index number to be used when accessing an indexed parameter. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 142: How To Control The Frequency Converter
3410 & 3411 holds the parameters value. A value of 11300 (Decimal), means that the parameter is set to 1113.00 S. For information on the parameters, size and converting index, consult the product relevant programming guide. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 143: Storage Of Data
03HEX "Read Holding Registers" and written using Error Check (CRC) function 10HEX "Preset Multiple Registers." Readable sizes Table 8.22 Response range from 1 register (2 characters) up to 10 registers (20 characters). MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 144: Force/Write Single Coil (05 Hex)
02 - (Par. 3-03 is 32 bits long, i.e. 2 registers) Query Error Check (CRC) The query message specifies the coils 17 to 32 (speed set- point) to be forced. Table 8.27 Example: Read 3-03 Maximum Reference, register 03030 Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 145: Preset Single Register (06 Hex)
Preset Data HI Preset Data LO Table 8.31 Query Error Check (CRC) Table 8.29 Query Response The normal response is an echo of the query, returned after the register contents have been passed. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 146: Danfoss Fc Control Profile
3-10 Preset Reference Bit 06 = ’1’: Permits the frequency converter to start the according to Table 8.34. motor, if the other starting conditions are met. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 147: Status Word According To Fc Profile (Stw) (8-10 Control Profile = Fc Profile)
Bit 03 = ’1’: The frequency converter trips. To re-establish default setting, reversing is set to digital in 8-54 Reversing operation, enter [Reset]. Select. Bit 15 causes reversing only when Ser. communi- cation, Logic or or Logic and is selected. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 148: Bus Speed Reference Value
One of the timers exceeds 100%. All bits in the STW are set to ’0’ if the connection between the Interbus option and the frequency converter is lost, or an internal communication problem has occurred. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 149: General Specifications And Troubleshooting
Weight enclosure IP55 [kg] 9.7/13.5 9.7/13.5 9.7/13.5 13.5 13.5 Weight enclosure IP66 [kg] 9.7/13.5 9.7/13.5 9.7/13.5 13.5 13.5 0.96 0.96 0.96 0.96 0.96 Efficiency Table 9.1 Mains Supply 3x200-240 V AC MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 151 9.7/13.5 9.7/13.5 9.7/13.5 14.2 14.2 Weight enclosure IP66 [kg] 9.7/13.5 9.7/13.5 9.7/13.5 9.7/13.5 9.7/13.5 14.2 14.2 Efficiency 0.96 0.97 0.97 0.97 0.97 0.97 0.97 Table 9.3 Mains Supply 3x380-480 V AC MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 152 23.5 Weight enclosure IP21 [kg] Weight enclosure IP55 [kg] Weight enclosure IP66 [kg] 0.98 0.98 0.98 0.98 0.98 0.98 0.98 0.98 0.98 0.99 Efficiency Table 9.4 Mains Supply 3x380-480 V AC Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 155 [mm ]/(AWG) Estimated power loss at rated max. load [W] Weight, enclosure IP20 [kg] Efficiency 0.96 0.96 0.96 0.96 0.96 0.96 0.96 Table 9.7 Mains Supply 3x525-690 V AC IP20 MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 156 [mm ]/(AWG) [35]/(1/0) [95]/(4/0) Weight IP21 [kg] Weight IP55 [kg] 0.98 0.98 0.98 0.98 0.98 0.98 0.98 0.98 0.98 0.98 Efficiency Table 9.8 Mains Supply 3x525-690 V AC IP21-IP55/NEMA 1-NEMA 12 Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 157 4 W extra for a fully loaded control card or options for slot A or slot B, each). ± 5%). Although measurements are made with state of the art equipment, some measurement inaccuracy must be allowed for ( Motor and mains cable: 300 MCM/150 mm MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 158: General Specifications
Voltage level, logic '1' NPN Maximum voltage on input 28 V DC Input resistance, R approx. 4 kΩ All digital inputs are galvanically isolated from the supply voltage (PELV) and other high-voltage terminals. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 159 68 (P,TX+, RX+), 69 (N,TX-, RX-) Terminal number 61 Common for terminals 68 and 69 The RS-485 serial communication circuit is functionally seated from other central circuits and galvanically isolated from the supply voltage (PELV). MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 160 Resolution of output frequency at 0 - 590 Hz ≤ 2 ms System response time (terminals 18, 19, 27, 29, 32, 33) Speed control range (open loop) 1:100 of synchronous speed Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 161 The USB connection is galvanically isolated from the supply voltage (PELV) and other high-voltage terminals. The USB connection is not galvanically isolated from protection earth. Use only isolated laptop/PC as connection to the USB connector on or an isolated USB cable/converter. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 162: Efficiency
3 sources: • DC intermediate circuit coils. • Integral fan. • RFI filter choke. The typical values measured at a distance of 1 m from the unit: Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 163: Peak Voltage On Motor
Table 9.12 Frequency converter, P7K5, T2 Rise time dU/dt Cable Vpeak length [m] [μsec] [kV] [kV/μsec] 0.264 0.624 1.894 0.536 0.596 0.896 0.568 0.568 0.806 Table 9.13 Frequency converter, P11K, T2 MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 164 Table 9.19 Frequency converter, P45K, T2 Rise time dU/dt Cable Mains Vpeak length [m] voltage [V] [μsec] [kV] [kV/μsec] 0.640 0.690 0.862 0.470 0.985 0.985 0.760 1.045 0.947 Table 9.20 Frequency converter, P1K5, T4 Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 165 Table 9.26 Frequency converter, P22K, T4 Cable Mains Rise time Vpeak dU/dt length [m] voltage [V] [μsec] [kV] [kV/μsec] 0.271 1.000 3.100 0.440 1.000 1.818 0.520 0.990 1.510 Table 9.27 Frequency converter, P30K, T4 MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 166: Special Conditions
With a typical full load current of IE2 motors, full output Enclosure Type A, using 60° AVM shaft power can be maintained up to 50 °C. For more specific data and/or derating information for other motors or conditions, contact Danfoss. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 167: Derating For Ambient Temperature, Enclosure Type B
A1-A3 50°C, A4-A5 45°C A1-A3 55°C, A4-A5 50°C f sw (kHz) Illustration 9.6 Derating of I for Different T AMB, MAX Enclosures Type A, using SFAVM and maximum 10 m motor cable MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 168 110% 100% 45 C 50 C (kHz) Illustration 9.11 Derating of I for different T AMB, MAX enclosure types B3 and B4, using SFAVM in Normal overload mode (110% over torque) Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 169: Derating For Ambient Temperature, Enclosure Type C
C1 & C2 45°C 50°C 55°C (kHz) Illustration 9.18 Derating of I for different T AMB, MAX enclosure types C1 and C2, using SFAVM in Normal overload mode (110% over torque) MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 170 600 V frequency 60° AVM. Note: The graph is drawn with the current as converters, enclosure type C, 60 AVM, NO absolute value and is valid for both high and normal overload. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 171: Automatic Adaptations To Ensure Performance
(or a motor for enclosure types A, B and C. At altitudes above AMB, MAX designed for this type of operation may be used). 2000 m, contact Danfoss regarding PELV. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 172: Troubleshooting
VLT HVAC of the motor. Drive, see 14-20 Reset Mode in the FC 102 Programming Guide NOTICE In the graphs shown below, the typical VT curve is below...
Page 173 AMA Parameter out of range AMA interrupted by user AMA timeout AMA internal fault Current limit External Interlock Output Frequency at Maximum Limit Voltage Limit Control Board Over-temperature Heat sink Temperature Low MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 174 A trip lock is Table 9.35 LED Indication an action when an alarm occurs, which may cause damage to or connected parts. A Trip Lock situation can only be reset by a power cycling. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 175 The alarm words, warning words and extended status words can be read out via serial bus or optional fieldbus for diagnosis. See also 16-90 Alarm Word, 16-92 Warning Word and 16-94 Ext. Status Word. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 176: Alarm Words
Earth fault DESAT 40000000 PTC 1 Safe Stop [A71] 20000000 Drive initialised 80000000 Dangerous Failure [A72] 40000000 Safe Stop [A68] 80000000 Table 9.38 16-91 Alarm Word 2 Table 9.37 16-90 Alarm Word Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 177: Warning Words
20000000 Reserved 08000000 40000000 PTC 1 Safe Stop [W71] 10000000 80000000 Reserved 20000000 40000000 Safe Stop [W68] Table 9.40 16-93 Warning Word 2 80000000 Not used Table 9.39 16-92 Warning Word MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 178: Extended Status Words
Reserved 10000000 Reserved 80000000 Reserved 20000000 Reserved 40000000 Reserved Table 9.42 Extended Status Word 2, 16-95 Ext. Status Word 2 80000000 Reserved Table 9.41 Extended Status Word, 16-94 Ext. Status Word Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 179 Check if the motor is mechanically overloaded If the intermediate circuit voltage exceeds the limit, the frequency converter trips after a time. Check that the motor current set in 1-24 Motor Current is correct. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 180 If the acceleration during ramp up is Check the operation of the communication quick, the fault can also appear after kinetic back-up. If equipment. extended mechanical brake control is selected, trip can be reset externally. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 181 The frequency converter is still Table 9.43 is displayed. operational but, since the brake transistor has short- circuited, substantial power is transmitted to the brake resistor, even if it is inactive. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 182 Check for loose or missing wiring WARNING 40, Overload of digital output terminal 27 It may be necessary to contact your Danfoss supplier or Check the load connected to terminal 27 or remove short- service department. Note the code number for further circuit connection.
Page 183 Safe Torque Off with trip lock. An unexpected combination output drops below the maximum limit. of Safe Torque Off commands has occurred: WARNING/ALARM 65, Control card over temperature The cut-out temperature of the control card is 80 °C. MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 184 WARNING 201, Fire mode was active This indicates the frequency converter had entered fire mode. Cycle power to the unit to remove the warning. See the fire mode data in the alarm log. Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 185: Index
Data Types Supported by the Frequency Converter.... 135 Branch Circuit Protection..............95 DC brake....................144 Break-away torque................. 8 DC Bus Connection................114 Building Management System............57 DC-link....................177 Building Management System, BMS..........21 MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 186 Flow meter....................30 Local (Hand On) and Remote (Auto On) Control...... 35 Freeze output................... 8 Local speed determination............... 30 Frequency Converter Hardware Setup........130 Low evaporator temperature............30 Frequency Converter Set-up............132 Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 187 Ordering numbers................65 RFI Switch....................119 Ordering Numbers:............73, 74, 75, 76 Rise time....................161 Ordering Numbers: Harmonic Filters..........69 RS-485....................130 Ordering Numbers: Options and Accessories......67 Output current..................177 MG11BC02 Danfoss A/S © Rev. 06/2014 All rights reserved.
Page 188 The EMC directive (2004/108/EC)........... 12 The low-voltage directive (2006/95/EC)........12 The machinery directive (2006/42/EC)......... 12 Thermal Protection................. 6 Thermistor....................9 Throttling valve..................29 Torque Characteristics..............156 Transmitter/sensor inputs..............57 Troubleshooting................. 170 Danfoss A/S © Rev. 06/2014 All rights reserved. MG11BC02...
Page 190 Danfoss can accept no responsibility for possible errors in catalogues, brochures and other printed material. Danfoss reserves the right to alter its products without notice. This also applies to products already on order provided that such alterations can be made without subsequential changes being necessary in specifications already agreed. All trademarks in this material are property of the respective companies.

Danfoss FC 102 Design Manual

1 How to Read this Design Guide

2 Introduction to VLT ® HVAC Drive

3 Selection

4 How to Order

5 Mechanical Installation

6 Electrical Installation

7 Application Examples

8 Installation and Set-Up

9 General Specifications and Troubleshooting

Index

Quick Links

Troubleshooting

Related Manuals for Danfoss FC 102

Summary of Contents for Danfoss FC 102

Table of Contents
