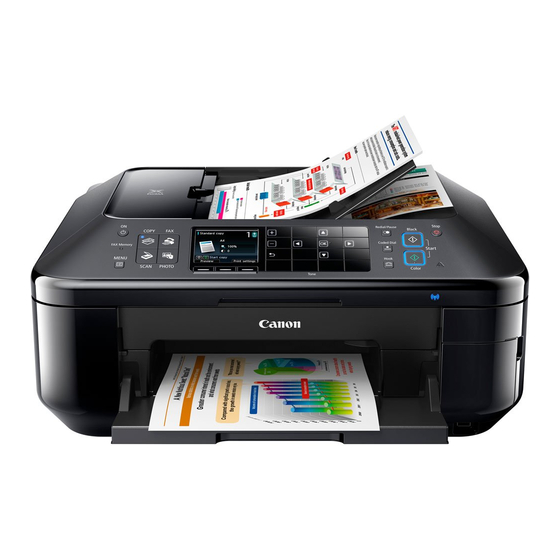

- Page 1 Setting Up Your MX892 In Default Mode (Tel Priority Mode) With An Answering Machine DSL/Cable Modem Connection Next...
- Page 2 Fax Easy Setup Click Next to step through this image-friendly version of Fax Easy Setup. If you started Fax Easy Setup, on the fax machine’s operation panel, and prefer to go through this image-friendly version… Step 1 Step 2 Press the FAX button at any screen Click Next to proceed...
-
Page 3: Connecting The Phone Lines
Connecting The Phone Lines Previous Next... - Page 4 Connecting Your Phone/Answering Machine Is your answering machine built into your phone? Click Here or Go To Page 13 Click the Next Button Previous Next...
- Page 5 (Phone) (Existing Phone Cord) (Existing Phone Cord) Answering Machine DSL/Cable Modem Wall jack Hand Set (Phone) After Answering Machine (Phone Cord included (Existing Phone Cord) with Canon printer) (Existing Phone Cord) DSL/Cable (Existing Phone Cord) Modem Wall jack Previous Next...
- Page 6 Fax to Phone Line Connection • Plug the provided phone cord into the DSL/Cable Modem. Hand Set (Phone) Answering Machine (Phone Cord included (Existing Phone Cord) with Canon printer) (Existing Phone Cord) DSL/Cable (Existing Phone Cord) Modem Wall jack Previous Next...
- Page 7 • Plug the provided phone cord into the “LINE” jack located on the rear of the multifunction. Hand Set (Phone) Answering Machine (Phone Cord included (Existing Phone Cord) with Canon printer) (Existing Phone Cord) DSL/Cable (Existing Phone Cord) Modem Wall jack Previous Next...
- Page 8 Fax to Phone Line Connection • Remove the white plug from the upper jack labeled “EXT.” Hand Set (Phone) Answering Machine (Phone Cord included (Existing Phone Cord) with Canon printer) (Existing Phone Cord) DSL/Cable (Existing Phone Cord) Modem Wall jack Previous Next...
- Page 9 • Plug the second phone cord into the “EXT.” jack located on the rear of the multifunction Hand Set (Phone) Answering Machine (Phone Cord included (Existing Phone Cord) with Canon printer) (Existing Phone Cord) DSL/Cable (Existing Phone Cord) Modem Wall jack Previous Next...
- Page 10 Fax to Phone Line Connection • Plug the second phone cord into the answering machine. Hand Set (Phone) Answering Machine (Phone Cord included (Existing Phone Cord) with Canon printer) (Existing Phone Cord) DSL/Cable (Existing Phone Cord) Modem Wall jack Previous Next...
- Page 11 Fax to Phone Line Connection • Plug the third phone cord into the answering machine. Hand Set (Phone) Answering Machine (Phone Cord included (Existing Phone Cord) with Canon printer) (Existing Phone Cord) DSL/Cable (Existing Phone Cord) Modem Wall jack Previous Next...
- Page 12 Fax to Phone Line Connection • Plug the third phone cord into the phone. Hand Set (Phone) Answering Machine (Phone Cord included (Existing Phone Cord) with Canon printer) (Existing Phone Cord) DSL/Cable (Existing Phone Cord) Modem Wall jack Previous Next...
- Page 13 Fax to Phone Line Connection Before Hand Set (Existing Phone Cord) (Existing Phone Cord) (Phone) DSL/Cable Modem Wall jack After Hand Set (Phone) (Phone Cord included with Canon printer) (Existing Phone Cord) (Existing Phone Cord) DSL/Cable Wall jack Modem Previous Next...
- Page 14 Fax to Phone Line Connection • Plug the provided phone cord into the DSL/Cable Modem. Hand Set (Phone) (Phone Cord included with Canon printer) (Existing Phone Cord) (Existing Phone Cord) DSL/Cable Wall jack Modem Previous Next...
- Page 15 Fax to Phone Line Connection • Plug the provided phone cord into the “LINE” jack located on the rear of the multifunction. Hand Set (Phone) (Phone Cord included with Canon printer) (Existing Phone Cord) (Existing Phone Cord) DSL/Cable Wall jack Modem...
- Page 16 Fax to Phone Line Connection • Remove the white plug from the upper jack labeled “EXT.” Hand Set (Phone) (Phone Cord included with Canon printer) (Existing Phone Cord) (Existing Phone Cord) DSL/Cable Wall jack Modem Previous Next...
- Page 17 Fax to Phone Line Connection • Plug the second phone cord into the “EXT.” jack located on the rear of the multifunction Hand Set (Phone) (Phone Cord included with Canon printer) (Existing Phone Cord) (Existing Phone Cord) DSL/Cable Wall jack Modem...
- Page 18 Fax to Phone Line Connection • Plug the second phone cord into the phone. Hand Set (Phone) (Phone Cord included with Canon printer) (Existing Phone Cord) (Existing Phone Cord) DSL/Cable Wall jack Modem Previous Next...
-
Page 19: Setting Up The Receive Mode
Setting Up The Receive Mode Previous Next... - Page 20 Step 1 Step 2 Turn on the MX892 by pressing the Press the FAX button. ON button if it is not powered on already. Previous Next...
- Page 21 Step 3 Step 4 The fax standby screen will appear. Press the center FUNCTION button. Previous Next...
- Page 22 Step 5 Step 6 The Receive mode settings Use the UP or Down button to highlight “TEL priority mode”. screen will appear. Previous Next...
- Page 23 Step 7 Step 8 Press the right FUNCTION button The Advanced screen will appear. under the Advanced label. Previous Next...
- Page 24 Step 9 Step 10 Use the UP or DOWN button to Press the OK button. select “User-friendly reception”. Previous Next...
- Page 25 Step 11 Step 12 The User-friendly reception Use the UP or DOWN button to select “ON”. screen will appear. Previous Next...
- Page 26 Step 13 Step 14 The screen will quickly flash “User- Press the OK button. friendly reception ON”. Previous Next...
- Page 27 Step 15 Step 16 The screen will return to the Press the Back button to return to Advanced window. Receive mode settings window. Previous Next...
- Page 28 Step 17 Step 18 Confirm “TEL priority mode” is You will return to the “Fax standby screen” and the receive mode will highlighted and then press the OK button. appear on the screen. Previous Next...
-
Page 29: Receiving A Fax
• If fax tones are heard by the MX892 it will take over the call and receive the fax document. IMPORTANT: In order to receive a fax, you must either pick up the handset on a phone that is connected to the MX892 or let your answering machine answer the call. Previous...
