SERVICE MANUAL
1. Caution....................................................................................2
2. specification..............................................................................6
3. Alignment Procedure..................................................................7
4．Block diagram...........................................................................２７
5．Scheme Diagram .....................................................................２８
5. Troubleshooting........................................................................３５
6
7. BOM list .............................................................................................................38
This m anual i s t he l atest at t he t ime of pr inting, and doe s not
include the modification which may be made after the printing, by
the constant improvement of product

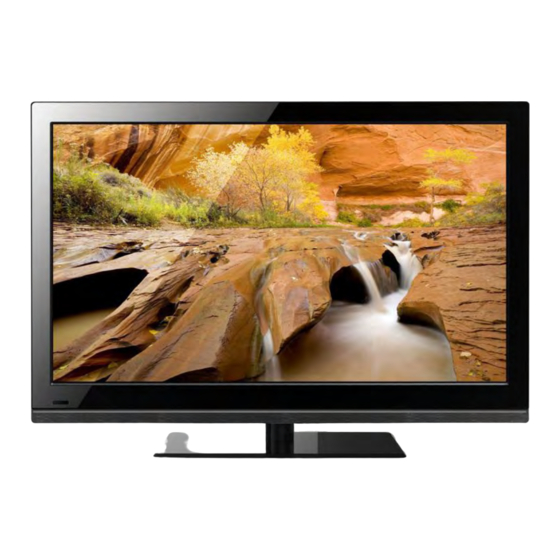

MODEL:- LEDTVVJG32HH-ZMA
32D3260 MS82S-AP
7
Advertisement
Table of Contents
Related Manuals for TCL LEDTVVJG32HH-ZMA
Summary of Contents for TCL LEDTVVJG32HH-ZMA
- Page 1 SERVICE MANUAL MODEL:- LEDTVVJG32HH-ZMA 32D3260 MS82S-AP 1. Caution…………………………………………………………………………2 2. specification……………………………………………………………………6 3. Alignment Procedure…………………………………………………………7 4．Block diagram…………………………………………………………………２７ 5．Scheme Diagram ……………………………………………………………２８ 5. Troubleshooting………………………………………………………………３５ 7. BOM list ......................38 This m anual i s t he l atest at t he t ime of pr inting, and doe s not...
- Page 2 1. CAUTION CA UTION: Use of controls, adjustments or procedures other than those specified herein may result in hazardous radiation exposure. CA UT ION : T O RE DUCE TH E RIS K OF CA U T ION ELECTR ICA L SHOCK, DO NOT RE MOVE COVER (OR BACK).
- Page 3 IMPORTANT SAFETY INSTRUCTIONS CAUTION: Read all of these instructions. Sa ve these instructions for later use . Follo w all W arnings and Instructions marked on the audio equipment. 1. Read Instructions-All the safety and operating instructionsshouldbe read before the productis operated. 2.
- Page 4 PROTECTION AND LOCATION OF YOUR SET Do not use this television set near water ... for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet basement, or near a swimming pool, etc. Never expose the set to rain or water. If the set has been exposed to rain or water, unplug the set from the wall outlet and refer servicing to qualified service personnel.
- Page 5 OPERATION OF YOUR SET 18. This television set should be operated only from the type of power source indicated on the marking label.If you are not sure of the type of power supply at your home, consult your television dealer or local power company. For television sets designed to operate from battery power, refer to the operating instructions.
- Page 6 Ltd. VIDEOCON R&D Center Alignment Procedure MS82S-AP/LA Chassis MODEL:- LEDTVVJG32HH-ZMA...
-
Page 7: Table Of Contents
MS82S-AP/LA Chassis Software Upgrade Guidance Content 1. General Description 2. Factory Menu 2.1 Way of accessing 2.2 Factory Menu 2.3 ADC calibration menu 2.4 White Balance adjustment 3. Design Menu 3.1 way of accessing 3.2 SHOP Menu 3.3 Other Menu 3.4 Service Menu 3.5 PARAM SETTING MENU 3.6 Hotel Menu... -
Page 8: General Description
MS82S-AP/LA Chassis Software Upgrade Guidance General Description S82S-AP/LA is our latest design especially for LCDTV products selling in Asia Pacific (AP) and Latin America (LA) market. It features by its high integration, easy debugging as well as convenience in terms of maintenance. Fast software upgrade through USB disk facilitates both manufacture and after-sale service. -
Page 9: Factory Menu
MS82S-AP/LA Chassis Software Upgrade Guidance 2.2 Factory Menu Factory Menu Name Default Description Status Factory Menu shortcut button switch HOTKEY The item must be disabled (OFF) after production WARM- OFF: Normal mode. Display blue screen when no signal. Turn to automatically standby mode if keep the signal unavailable over 15 minutes. -
Page 10: Adc Calibration Menu
MS82S-AP/LA Chassis Software Upgrade Guidance 2.3 ADC calibration menu ADC Menu Press the button in remote control to select certain to change the value of ADC data or start item and ADC calibration. Notes: 1. Only YPBPR and RGB source should be calibrated. ADC Calibration menu Name Default... -
Page 11: White Balance Adjustment
MS82S-AP/LA Chassis Software Upgrade Guidance 2.4 White Balance Adjustment menu White Balance menu Press the button in remote control to select certain item and to adjust White Balance White Balance Adjustment menu Name Default Description Status Source Select the source you intend to apply WB adjustment. Only HDMI1, AV1, YPBPR, PC and should be adjusted. -
Page 12: Design Menu
MS82S-AP/LA Chassis Software Upgrade Guidance 3 Factory Main Menu 3.1 Accessing way: 1. In the first place, press Menu button of remote control, then select Contrast item of Picture submenu. Finally, press 1, 9, 5, 0 consecutively. 2. When the DESIGN HOTKEY item of Design Menu is enabled (ON), press Return button of remote control. -
Page 13: Shop Menu
MS82S-AP/LA Chassis Software Upgrade Guidance 3.2 SHOP MENU Contain many options which can be chosen according to the requirements of customers as default settings when leave factory. Press the button in remote control to select certain item and to toggle among the available options.. -
Page 14: Other Menu
MS82S-AP/LA Chassis Software Upgrade Guidance 3.3 Other Menu Press the button in remote control to select certain item and to toggle among the available options.. Other Menu Name Default Description Status VIF1 Exclusively used by R&D. VIF2 Exclusively used by R&D. VIF3 Exclusively used by R&D. -
Page 15: Service Menu
MS82S-AP/LA Chassis Software Upgrade Guidance MU1 DQS1 Manually adjust DQS1 phase of DDR1 Exclusively used by R&D ON: enable teletext OFF: Disable teletext 3.4 SERVICE MENU Press the button in remote control to select certain item and to toggle among the available options.. SERVICE MENU (Product Info) Name Default... -
Page 16: Param Setting Menu
MS82S-AP/LA Chassis Software Upgrade Guidance ERROR CODE TCL_LOGO Display TCL Logo or not. On : display, Off: not display LOGO_LIGHT TCL_SHOW DEMO function ON/OFF 3.5 PARAM SETTING MENU Press the button in remote control to select certain item to enter menu. -
Page 17: Hotel Menu
MS82S-AP/LA Chassis Software Upgrade Guidance 3.6 HOTEL MENU Press the button in remote control to select certain item and to enter submenu. HOTEL MENU Name Default Description Status POWER LOGO select LOGO CH LOCK Channel scan lock. MAX VOL Max volume AUTO SET The switch of PIC, SOUND etc. -
Page 18: Steps Of Debugging
MS82S-AP/LA Chassis Software Upgrade Guidance 4. The steps of debugging 4.1 Device Color Analyzer CA-210. Video Pattern Generator Chroma2329. Color TV Pattern Generator PM5418, VGA cable, AV cable(RCA),YPBPR(RCA) cable. 。 Chroma2329 Fluke5418 CA-210 4.2 steps of debugging ： According to the requirement of order, we suggest take the below steps to finish the appropriate settings. -
Page 19: White Balance Adjustment
MS82S-AP/LA Chassis Software Upgrade Guidance Ⅱ.steps of debug: 1) Access to the Factory menu->ADC 2) Select PC source 3) Select AUTO ADC，Press button in your remote control to calibrate the ADC automatically. 4) Select YPBPR source 5) Repeat step 3. 6) When the OK appears the calibration has been finished successfully. - Page 20 MS82S-AP/LA Chassis Software Upgrade Guidance 4) input white signal in 720p format 5) change R Gain and B Gain to make sure the value of color coordination equal to (x, y). 6) repeat step 2~5 until both of the value of color coordination of white and grey equal to (x, y).
-
Page 21: White Balance Adjustment (Automatically)
4.5 ADC Calibration and White Balance Adjustment (automatic) The process of adjusting ADC and White Balance automatically is out of the range of this file. Please refer to the relevant technical file of HuiZhou factory of TCL 5. Chip list of software programming before SMT Following chips must be programmed before SMT by ALL-11 or other tools. -
Page 22: Appendix
MS82S-AP/LA Chassis Software Upgrade Guidance Appendix: 1. Software upgrade through USB disk 1) Please ensure the software you are using has a correct file name TCL_MS82_UPDATE.bin, then copy it to the root directory of a USB disk. 2) Insert the USB disk to the USB socket of the set for which you are going to upgrade program. -
Page 23: Check Software Version, Release Date And Project Id
MS82S-AP/LA Chassis Software Upgrade Guidance 2. Check software version, release date and Project ID After upgrading, sometimes you may not certain whether the new software has been successfully updated or not. In this case, you can check the software version and release date in Factory Main Menu to make sure the success of upgrading. - Page 24 MS82S-AP/LA Chassis Software Upgrade Guidance Product Information Check product information Remote Control name Power Supply name Audio Channel number Change project ID PRELIMINARY INFORMATION ----- SUBJECT TO CHANGE...
-
Page 25: Faq
MS82S-AP/LA Chassis Software Upgrade Guidance 3. FAQ 1) Why there is no picture after upgrading software or changing project ID? It may be caused by fault of project ID. You can try below method to fix the problem. a. If the resolution of the panel of your set is 1366×768(HD panel), you can press Menu, and 4976 of remote control in series after turning on. - Page 26 Trouble shooting 1、 Can not switch on： no switch on Check 3.3V/12V/24V of power supply Check PW Only 3.3V Check signal P—ON， Check DC-DC DIMBL—ON of main IC link part,check to PW Check the peripheral circuit of mail IC,check solder of Check reset Check IIC bus main IC,check data fo NVM...
