Summary of Contents for TCL LE32HDF3010

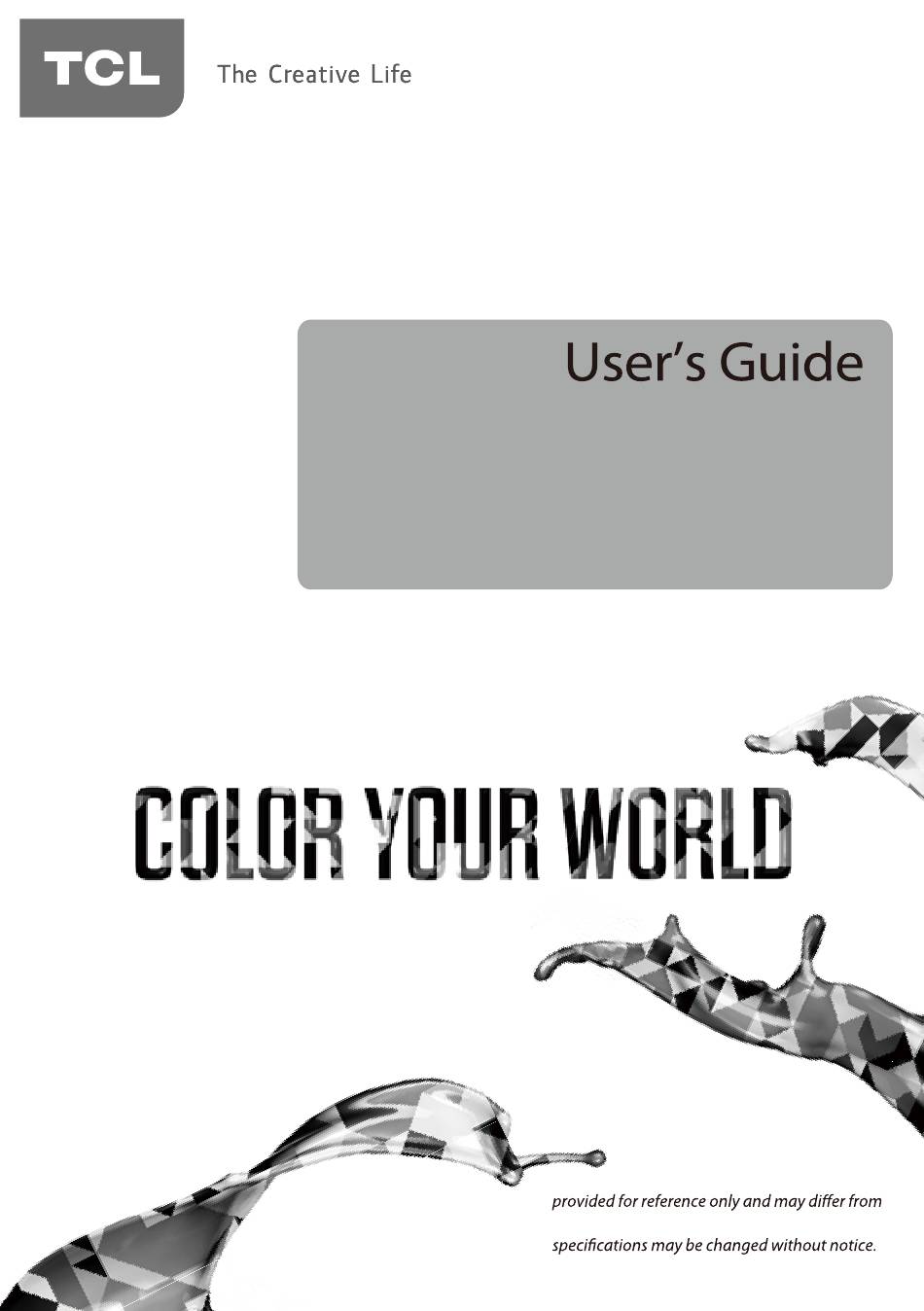

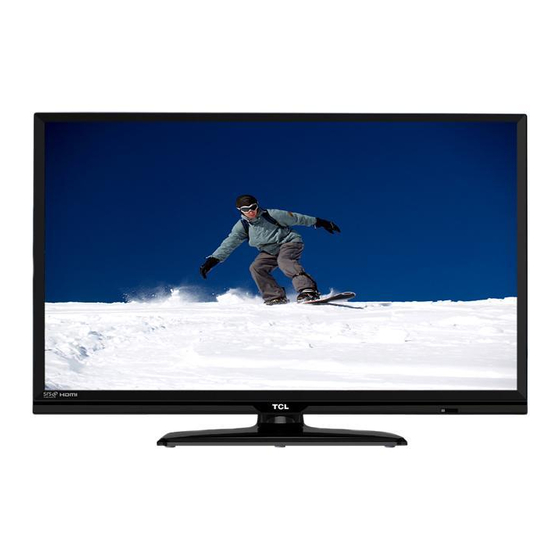

- Page 1 For use with models : LE32HDF3010 / LE32HDF3010TA Need assistance? visit our website at www.tclusa.com or call 1-877-300-8837 (for mainland 48 States), or 1-877-800-1269 (for AK, HI, and Puerto Rico). Figures and illustrations in this User’s Guide are actual product appearance. Product design and...
-
Page 2: Important Information
Product Registration Please register your TCL purchase on-line at www.tclusa.com. It will make it easier to contact you should it ever be necessary. Registration is not required for warranty coverage. -
Page 3: Important Safety Instructions
Important Safety Instructions 1. Read and follow all instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 5. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. -
Page 4: Table Of Contents
Table of Contents Important Information ........ 1 Sound Menu ..........14 Important Safety Instructions ..... 2 Equalizer ............14 SRS TruSurround HD ........14 Chapter 1 - Connections and Setup Speaker ............14 Before Initial Setup ........4 SPDIF Type ..........14 Check Supplied Parts ........ -
Page 5: Chapter 1 Connections And Setup
Chapter 1 Connections and Setup Before Initial Setup Protect Against Power Surges • Connect all components before you plug any power cords into the wall outlet or power strip. • NEVER plug your TV into an outlet that is controlled by a wall switch. •... -
Page 6: Attaching Your Tv To The Table Stand
Connections and Setup Attaching Your TV to the Table Stand Your TV comes without the table stand attached so that you can choose to mount your TV either to its table stand or to a wall (wall mount sold separately). If you want to mount your TV to the wall, don’t attach the table stand. -
Page 7: Buttons On Tv
Connections and Setup Buttons on TV If you cannot locate your remote, you can use the TV panel buttons on your TV to operate many TV features. Selects channels stored in the channel list or acts as the up/ CH+/- down arrow (▲/▼) through the menu items. -
Page 8: Choose Your Connections
Connections and Setup by way of an integrated mini-plug cable. Since HDMI technology is based on Digital Visual Interface (DVI), the jack on the back of your TV is also compatible with DVI components. HDMI 2 IN: Lets you connect a component, such as a digital cable or satellite box, with an HDMI output for the best picture quality. - Page 9 Connections and Setup HDMI Connection (Best) Set-top box HDMI 2 IN HDMI 2 IN HDMI cable Same connection to HDMI 1/DVI IN Same connection to HDMI 1/HDMI 3 IN Y / VIDEO (VIDEO) COMPONENT IN (CMPT) Input Menu operation for input source selection Input or select the input source directly by pressing INPUT button.
-
Page 10: Remote Control Functions
Connections and Setup Remote Control Functions INPUT Press INPUT repeatedly to select the video input (Alphanumeric buttons) Enters a channel number, then press OK (or let the entry timeout). • (dot) To enter a digital channel with a sub-channel, INPUT enter the main channel;... -
Page 11: Obtain The Signal
Connections and Setup Obtain the Signal The first step in connecting your TV is obtaining the signal. The back panel of your TV allows you to receive analog and/or digital channels by using the HDMI or ANT/CABLE/SAT connections. To obtain the best quality, use the HDMI connection. -
Page 12: Setup Wizard
Connections and Setup Setup Wizard Perform the following steps before you press on the remote control unit. • Insert the batteries into the remote control unit. • Connect the antenna cable to the TV. • Plug in the AC cord to the AC outlet. Français The first time you switch the set on, the Setup Wizard opens, which guides you through the setup process. -
Page 13: Chapter 2 - Menu Operation
Chapter 2 Menu Operation Menu Display The following are just illustrations of the menu display. Some menu items may not be displayed depending on the selected input source. Input Picture Picture Mode < Vibrant > Input Input Brightness Contrast Component Saturation Picture Picture... -
Page 14: Using Menu System
Menu Operation Using Menu System display the menu screen. Press▲/▼ to select “Picture”, then press OK/► to display options. This section explores the menus of your TV. Each menu is outlined and detailed to help you get the Picture Mode most from your TV. -
Page 15: Advanced Settings
Menu Operation Advanced Settings Option “On/Off”. When you select the “Off” option, the sound speaker on the TV will be turned off. Zoom Mode: Selects the desired screen format. The screen format may vary depending on the SPDIF Type incoming signal. This option controls the type of audio stream sent to 3DNR (Noise Reduction): This setting reduces the Digital Audio Output jack (SPDIF OUT). -
Page 16: Language
Menu Operation Language 3. Repeat the process to hide additional channels. Select the OSD menu language from English, 4. Press MENU to return to the previous menu, or Spanish, or French. press CLEAR to close the menu. Channel DTV Signal: Show the condition of DTV signal: Good or Bad, Normal. -
Page 17: Parental Control
Menu Operation Font Size - Allows you to set the size of the 3. Re-enter the same code to confirm the pass digital closed caption text. word. Note: The password must be entered before Font Edge Style - Allows you to set edge style the TV will continue with Parental settings next of the closed caption text. -
Page 18: Time Setup
Menu Operation OK/► to enter the US Movie Ratings screen. announcements, and programs without ratings. The Exempt option applies to both US and Canadian In the US Movie Ratings panel you can unrated programs and Canadian programs rated E. customize the program blocking of the following Movie ratings: 1. -
Page 19: Location
Menu Operation panel and tuner information. Location This option allows you to select the desired location setting. Only Home mode is ENERGY STAR compliant. Restore to Default This option resets all settings (except parental lock settings) to the factory defaults. 1. -
Page 20: Chapter 3 Other Information
Chapter 3 Other Information Frequently Asked Questions (FAQs) What’s the quickest way to view High Definition (HD) video? Connect an off-air antenna to the ANT/CABLE/SAT IN to view free local digital channels. You may need to purchase an antenna. Visit www.antennaweb.org for assistance in deciding what type of antenna to use to receive the local digital channels available to you. -
Page 21: Troubleshooting
Other Information Troubleshooting Most problems you encounter with your TV can be corrected by consulting the following troubleshooting list. TV Problems The TV won’t turn on. • Make sure the TV is plugged in. • Check the wall receptacle (or extension cord) to make sure it is “live” by plugging in another device. •... - Page 22 TV and turn it on. See if the problem is fixed. If the problem remains, then please visit www.tclusa. com for updated FAQs or contact TCL Customer Support at the support number provided in your Warranty under “How To Get Service.”...
-
Page 23: Care And Cleaning
Other Information Care and Cleaning Caution: Turn OFF your TV before cleaning. You can clean the TV as required, using a soft lint-free cloth. Be sure to occasionally dust the ventilation slots in the cabinet to help assure adequate ventilation. IMPORTANT: Never use strong cleaning agents, such as ammonia-based cleaners, or abrasive powder. -
Page 24: Limited Warranty
All LCD/LED Models. What your warranty covers: Defects in materials or workmanship to the original owner of this TCL product when purchased as new from an Authorized Dealer of TCL brand products in the United States and packaged with this warranty statement. - Page 25 • Special, incidental or consequential damages. Product Registration: Please register your TCL purchase on-line at www.tclusa.com. It will make it easier to contact you should it ever be necessary. Registration is not required for warranty coverage. LIMITATION OF WARRANTY •...
- Page 26 Product design and specifications may be changed without notice. TTE Technology, Inc. 555 S. Promenade Ave., Suite 103, Corona, CA 92879 TCL and associated marks are trademarks of TCL S.A.used under license to TTE Corporation. Part No.: 72-F30M39-XNA1A...
