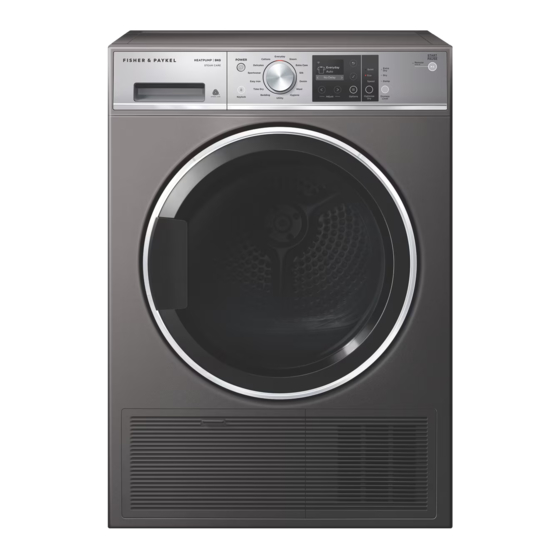

- Page 1 FABRIC CARE SOLUTION DRYER ON PLINTH INSTALLATION DH9060*, FM2060S1 and FM2060SG1 models INSTALLATION GUIDE NZ AU...
-
Page 2: Components Required
COMPONENTS REQUIRED TOOLS Supplied Not supplied Spanner (dryer) Box cutter Spanner (plinth) Phillips screwdriver Allen key Level PARTS Supplied Supplied (not required*) 1x Cold water hose 1x Communication cable 1x Hot water hose 1x Blanking cap 7x Plugs 4x M10 bolts 2x Plinth bolt hole covers 2x Dryer front brackets 2x Dryer rear brackets... - Page 3 ACCESSING YOUR PRODUCT SPECIFICATIONS For full product, cabinetry and service specifications, refer to the Planning Guide. To access the Planning Guide, scan the QR code or visit fisherpaykel.com/specify. Search by appliance type, product name or model code. 1042...
-
Page 4: Prior To Installation
PRIOR TO INSTALLATION 1. Ensure cabinetry and servicing specifications have been met and clearances have been considered. Refer to the Planning Guide for details. fisherpaykel.com/specify 2. Ensure floor is level and clear and a finished return has been created. 3. Ensure power will remain accessible following install to allow access for any future product maintenance. - Page 5 UNPACK 1. Cut the straps and the line printed on the top of the dryer carton. Lift to remove. Discard braces and corner posts. Remove any packaging and accessories from the drum and base packer. Dispose of packaging responsibly. 2. Cut the straps and tape to open the plinth carton from the top.
- Page 6 REVERSE DOOR (OPTIONAL) The dryer door has reversible hinge and latch fittings and can be switched to open to the left or right, as needed. 1. Unscrew hinge, remove door and place face down on a protected surface. Remove plugs (x 8) from inner door flanges, then remove screws.
- Page 7 REVERSE DOOR (OPTIONAL) 4. Unscrew latch, and slide to remove. 5. Rotate latch and insert on opposite side of dryer. Secure with screw. Refit and secure latch cover with latch cover screws. 6. Refit door hinge and secure with hinge screws.
- Page 8 LEVEL PLINTH 1. Push the front of the plinth to open. Remove the divider before closing the drawer. 2. Place the plinth in its final install location. Adjust the feet using the supplied spanner until the plinth is level front to back and corner to corner.
- Page 9 FIT DRYER TO PLINTH 1. Remove the four pre-fitted plinth brackets using a Phillips screwdriver. Set screws aside for later use. 2. Fit the two supplied front dryer brackets using the screws removed in step 1. 3. Lift the dryer onto the plinth and slot the front feet securely into the front plinth brackets.
- Page 10 FIT DRYER TO PLINTH 4. Remove the two screws from the front of the dryer and refit through the plinth 5. Fit the two supplied rear brackets to the plinth using the screws removed in step 1. Set aside any remaining screws. 6.
- Page 11 RAISE PRODUCT SET 1. Partially roll stacked products into alcove and check alignment. To do this, use the supplied 6mm hex key, rotate clockwise to lower both sets of wheels via the adjustment screws. 2. Ensure all feet are raised off the floor before rolling the plinth to the final install location.
- Page 12 CONNECT CABLES AND HOSES 1. Refer to the Planning Guide for full service information. Supply: 220 - 240V, 50Hz Service: 10A Outlet: 3-prong grounding-type Supply: Hoses provided Pressure: 50KPa (7psi) - 1MPa (150psi). Min 6 litres/min. fisherpaykel.com/specify 2. Optional: Fit the drain hose extension if dryer can be connected to a drain.
- Page 13 CONNECT CABLES AND HOSES 4. Turn off cold water tap for washer, and undo washer cold hose at tap end. 5. Connect washer and dryer straight ends to the top of the supplied Y join. 6. Connect the dryer straight hose to the bottom of the Y join.
- Page 14 CONNECT CABLES AND HOSES 7. Partially push dryer and plinth into the alcove. 8. Route the power cables and hoses through service holes. Ensure power will remain accessible following install to allow access for any future product maintenance. 9. Connect the cold hose to cold water tap and turn tap on.
- Page 15 CONNECT CABLES AND HOSES 10A. Standpipe Installations Route the drain hose through the guide and place into the standpipe. Ensure a maximum of 20mm of the hose rests in the standpipe. 10B. Spigot Installations Drill out blanking insert from the spigot. Route the drain hose through the guide and place into the spigot.
- Page 16 INSTALL DRYER 1. Push dryer into the alcove. Take care not to damage hoses or cords. 2. Turn the adjustment screw counter-clockwise to retract the wheels. Ensure the wheels are fully raised off the floor. 3. Check alignment and ensure required clearances are maintained.
- Page 17 INSTALL DRYER 4. Once adjustment is complete, fit the plinth bolt hole covers.
- Page 18 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2023. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
