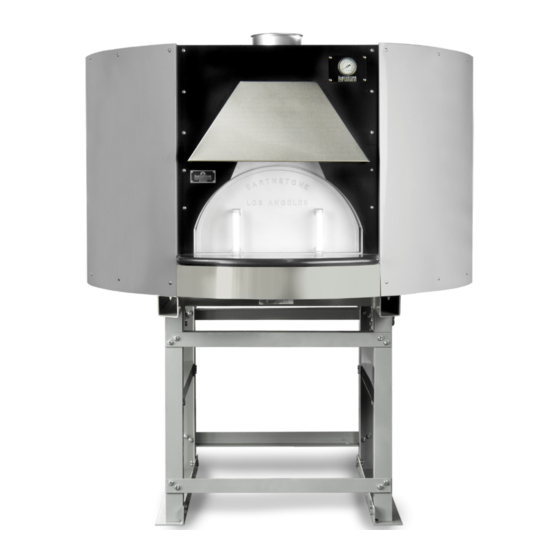

PRE-ASSEMBLED INSTALLATION INSTRUCTIONS
FOR PA, PAG AND PAGW OVEN SERIES
EARTHSTONE OVENS-6717 SAN FERNANDO RD GLENDALE CA 91201
TELEPHONE: 800-840-4915
818-553-1134
FAX: 818-553-1133
www.earthstoneovens.com
e-mail: info@earthstoneovens.com
A MAJOR CAUSE OF OVEN RELATED FIRES IS FAILURE TO MAINTAIN
REQUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS
OF UTMOST IMPORTANCE THAT THIS OVEN BE INSTALLED ONLY IN
ACCORDANCE WITH THESE INSTRUCTIONS
12/4/2017
Advertisement
Table of Contents
Related Manuals for EarthStone 160-PAGW
Summary of Contents for EarthStone 160-PAGW
- Page 1 PRE-ASSEMBLED INSTALLATION INSTRUCTIONS FOR PA, PAG AND PAGW OVEN SERIES EARTHSTONE OVENS-6717 SAN FERNANDO RD GLENDALE CA 91201 TELEPHONE: 800-840-4915 818-553-1134 FAX: 818-553-1133 www.earthstoneovens.com e-mail: info@earthstoneovens.com A MAJOR CAUSE OF OVEN RELATED FIRES IS FAILURE TO MAINTAIN REQUIRED CLEARANCES (AIR SPACES) TO COMBUSTIBLE MATERIALS. IT IS...
-
Page 2: Table Of Contents
EARTHSTONE WOOD FIRE OVENS 6717 SAN FERNANDO RD, GLENDALE CA 91201 info@earthstoneovens.com www.earthstoneovens.com Pre-Assembled installation instructions. For gas or wood/gas models please see PAGW installation guide in addition to the information in this installation guide. Table of contents Page Instructions for moving and lifting oven... -
Page 3: Instructions For Moving And Lifting Oven
INSTRUCTIONS FOR LIFTING AND MOVING OVEN Only proper heavy lifting ATTENTION: INSTALLING OVEN machinery and handling equipment should be used for unloading, moving and installing the Slowly lower oven into proper location. Oven oven. This duty should be performed by should be set on a level floor. - Page 4 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS---U.L. LISTED LIST OF SUPPLIED ITEMS OVEN ADDITIONAL ITEMS CAST ALUMINUM DOOR DIAL TEMPERATURE GAUGE FOR WOOD FIRE OVENS DIGITAL THERMOMETER FOR GAS AND GAS/WOOD OVENS TRAINING VIDEO...
-
Page 5: Installation Procedures Written Portion
EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- PRE-ASSEMBLED INSTALLATION INSTRUCTION GUIDE READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING AND USING THE APPLIANCE. If this oven is not properly installed, a fire may result. To reduce the risk of fire, follow the installation instructions. Please read this entire manual before you install the oven. Failure to follow instructions may result in property damage, bodily injury, or even death. - Page 6 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- INSTALLATION. OPERATING AND MAINTENANCE PREFACE Refer to pages 9, 10 and 11 for complete instructions. 1) On daily basis, and after the oven temperature is at least 500 at F: (a) Ashes are to be removed by a metal ash scoop/shovel or by a suitable fire-safe vacuum cleaner with long metal wand extensions provided by the user;...
-
Page 7: Exhausting
EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- INSTALLATION PROCEDURES Mark an outline on the floor of the location desired. This is to assure that you have adequate space. Refer to Fig. 1, pg. 6. Check that there is adequate clearance at the ceiling for the hood. There must be a minimum of 3 inches of clearance between the top of the hood and/or oven and the surface of the drywall above. - Page 8 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- Important: Chases should be made of non-combustable materials. TYPE-I EXHAUST HOOD-Installed per NFPA 96, standard for ventilation control and fire protection of commercial cooking operations. (For commercial applications only) If required, a Type 1 hood must be placed above the cooking opening and set on the top of the oven.
-
Page 9: Required Clearances And Air Gaps
EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ALL CLEARANCES SPECIFIED ARE THE MINIMUM REQUIRED AIR SPACES COMBUSTIBLES 3"MIN. HOOD 3"MIN. 105" 80" OUTSIDE DIAMETER FOR COMMERCIAL USE ONLY MODEL 60 - 33” X 32” Figure 2 MODEL 90 - 50", MODEL 110 - 58"... - Page 10 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- GREASE HOOD (Commercial use only) FIGURE 16...
- Page 11 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- ALL COMMERCIAL MODELS 22" 10” 37” OVERALL EXHAUST HOOD DIMENSIONS ARE MINIMUMS. SECTION FIGURE 17 Oven stand Base plate ½ “ Dia. Anchors Coat with Simpson’s epoxy Embed 4” min. 4” to 6” conc. Floor...
- Page 12 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- DIRECT VENTING FOR ORDERING PARTS MENTIONED ON THIS PAGE CONTACT EARTHSTONE OR YOUR SUPPLIER. Tel: 800-840-4915- 818-553-1134 MODELS 90 & 110 USE 6 INCH INSIDE DIAMETER GREASE DUCT MODELS 130 & 160 USE 8 INCH INSIDE DIAMETER GREASE DUCT 30”...
- Page 13 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- RESIDENTIAL DIRECT VENTING FOR ORDERING PARTS MENTIONED ON THIS PAGE CONTACT EARTHSTONE 800-840-4915 OR YOUR SUPPLIER. MODELS 60 & 90 & 110 USE 6 INCH INSIDE DIAMETER GREASE DUCT/BUILDING HEATIN G APPLIANCE CHIMNEY CHIMNEY ROUND TOP - OR EXHAUST FAN FOR GAS FIRED OVENS (EXHAUSTO MODEL GSV-009).
-
Page 14: Operating Instructions
EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- WOOD-FIRED PIZZA OVEN OPERATING INSTRUCTIONS WARNING: READ ALL INSTRUCTIONS CAREFULLY. IMPROPER USE OF THIS APPLIANCE MAY RESULT IN A BUILDING FIRE OR PERSONAL INJURY. INSTRUCTIONS MUST BE READ AND THOROUGHLY UNDERSTOOD BY ALL OPERATING AND SUPERVISING PERSONNEL. WATCH TRAINING VIDEO FOR VISUAL OPERATION INSTRUCTIONS. -
Page 15: Maintenance Instructions
EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- Before starting, turn "ON" exhaust fan and make-up air blowers. Place a small amount of wood and kindling on the hearth over a fire-starter block. Light fire- starter. At any time do not use more than four pieces of wood, CAUTION: NEVER USE GASOLINE TYPE LANTERN FUEL, KEROSENE, CHARCOAL LIGHTER FLUID OR SIMILAR PRODUCTS TO START OR "FRESHEN UP"... - Page 16 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- Store wood in a cool, dry place well away from any source of flame or heat. If stored outside, keep the fuel covered to protect from rain or snow. If stored inside, fuel should be kept in a covered metal container at least 6 inches above the floor.
-
Page 17: Type I Exhaust Hood Diagram
EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- Type-I Exhaust Hood Installed per NFPA 96 **IT IS NEVER APPROPRIATE TO USE “CLASS A” OR For Models 90 and 110 “B VENT” IN ANY PART OF THE EXHAUST SYSTEM 36” MIN EXHAUST SYSTEMS SERVING SOLID-FUEL... -
Page 18: Clearance Information
EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- CLEARANCE INFORMATION FOR FACADES 1 inch minimum clearance to combustibles Facade Flue Collar Models 90 and 110 - 6 inch diameter Models 130 and 160 - 8 inch diameter Air gap must be sealed with a non combustible strip. -
Page 19: Combustion Air Intake Installation
EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- IMPORTANT: PLEASE READ FOR GAS FIRE OR GAS/WOOD COMBINATION OVENS ONLY Combustion air intake procedures and installation Proper installation: Roof Roof Air flow Air flow Air flow Air flow False Ceiling False Ceiling 24”x24” opening needed for 24”x24”... - Page 20 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- Improper Installation (cont) 2) Oven is not closed to plenum/attic and is open to HVAC airflow. Roof Air flow Air flow Ceiling Installing a sealed enclosure around the oven shell may cause improper operation by starving the burner system of combustion air.
- Page 21 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- NOTICE Expansion cracks, due to the refractory mass, are normal in the front entrance and on any interior surface. This will not effect the performance, efficiency and longevity of the oven in any way. Cut view of inside oven...
-
Page 22: Firing Instructions
EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- What kind of wood to use?: Oak, Almond, Walnut, Citrus, Apple, Cherry and most fruit and hard woods. Moisture Content: Moisture content should not exceed 15 to 25 percent. Firewood from suppliers should be within this range. - Page 23 EARTHSTONE OVENS PRE-ASSEMBLED INSTALLATION INSTRUCTIONS--- Position 1 Position 2 Position 3 Heat up time: (from cold start). Try not to over fire the oven. This will not harm the oven but you may get the oven to hot for cooking and may need to wait for the oven to cool down a little.
