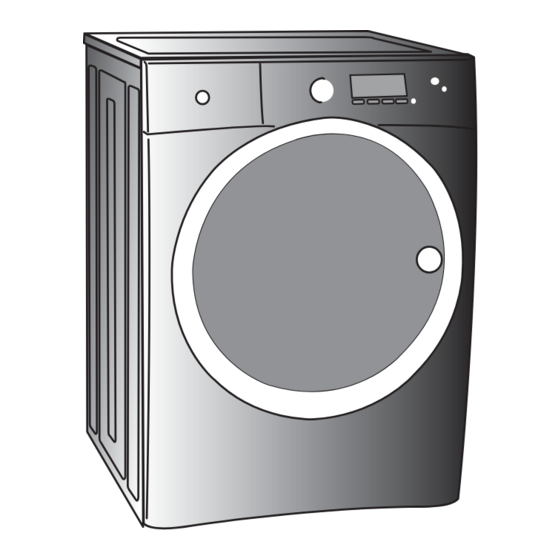

- Page 1 Use & Care Guide Wave-Touch™ Front-Load Washer Guide d’utilisation et d’entretien Laveuse à chargement frontal Wave-Touch Guía de uso y cuidado Lavadora de carga frontal Wave-Touch 137356900 A (1005)
-
Page 2: Table Of Contents
Please read and save this guide Thank you for choosing Electrolux, the new premium brand in home appliances. This Use & Care Guide is part of our commitment to customer satisfaction and product quality throughout the life of your new appliance. -
Page 3: Safety
Safety Important Safety Instructions Recognize safety symbols, words and WARNING labels For your safety the following information in this Your safety and the safety of others is very manual must be followed to minimize the risk of important. fi re or explosion or to prevent property damage, We have provided many important safety personal injury or death. - Page 4 Safety WARNING To reduce the risk of fi re, electrical shock, or injury to persons when using this washer, comply with the basic warnings listed below. Failure to comply with these warnings could result in serious personal injuries. You can be killed or seriously injured if you don’t follow these Important Safety Instructions: PROTECT CHILDREN PREVENT FIRE •...
- Page 5 Safety Important Safety Instructions, continued PREVENT INJURY PREVENT INJURY AND DAMAGE TO THE WASHER • To prevent shock hazard and assure stability during operation, the washer must be installed • To prevent serious personal injury and damage and electrically grounded by a qualifi ed service to the washer: person in accordance with local codes.
-
Page 6: Features
Wash Drum Dual Stage, Wide-Angle Touch-2-Open™ Adjustable Door Hinge Door Latch with Leveling Legs Safety Lock ® As an ENERGY STAR Partner, Electrolux Major Appliances has determined that this ® product meets the ENERGY STAR guidelines for energy effi ciency. -
Page 7: Operating Instructions
Operating Instructions Getting Started To run your washer, follow these basic steps: Sort laundry into loads that can be washed Add laundry products to the dispenser. (See together. (See page 8.) page 10-11.) Prepare items for washing. (See page 8.) Select the appropriate cycle and settings for the load. -
Page 8: Operating Your Washer
Operating Instructions Operating Your Washer BEFORE USING YOUR WASHER Read these important instructions in this section of the Use and Care Guide before operating your washer. WARNING To reduce the risk of fi re, electric shock or injury to persons, read the IMPORTANT SAFETY INSTRUCTIONS in this Use and Care Guide before operating your washer. - Page 9 Operating Instructions OPERATING YOUR WASHER, continued 3. Pretreat stains and heavy soil. See Stain Removal Guide in this guide or Stain Guides in the LCD User Interface for safe, successful stain removal instructions. 4. Add laundry load to washer. Combine large and small items in a load. Load large items fi...
- Page 10 Operating Instructions OPERATING YOUR WASHER, continued 5. Add laundry products to the dispenser. For best results Use a low-sudsing, high effi ciency detergent to prevent oversudsing in front load washers. Look for this symbol on the detergent label: Detergent, liquid chlorine bleach and liquid fabric softener will be dispensed at the proper times in the cycle.
- Page 11 Operating Instructions OPERATING YOUR WASHER, continued Liquid Chlorine Bleach If desired, add liquid chlorine bleach to the Other Wash Products chamber labeled “Liquid Bleach” and marked Water conditioner, detergent booster and en- with this symbol . Fill to the MIN line for zyme products may be added with the deter- small loads or the MAX line for large loads.
- Page 12 Operating Instructions OPERATING YOUR WASHER, continued 6. Select the appropriate cycle and settings for the load. Turn the cycle selector knob in either direc- tion to select the cycle desired. The icon for that cycle will be illuminated and if the cycle description feature is turned on, the cycle and estimated cycle time are displayed on the User Interface screen for 5 seconds.
- Page 13 Operating Instructions OPERATING YOUR WASHER, continued 7. Start the washer. Close the door and press start. The washer will not operate with the door unlatched and DOOR OPEN will be displayed. Select delay start to delay the beginning of the cycle for up to 22 hours if desired. As a safety measure, the door will automati- cally lock and remained locked during the DOOR LOCKED...
-
Page 14: Cycle Selection
Operating Instructions Cycle Selection Turn the cycle selector in either direction to the cycle desired. The icon for that cycle will be illumi- nated. Press on the cycle selector knob to extend it or return it fl ush to the console. For best results Follow the fabric care label instructions on items to be washed. - Page 15 Operating Instructions Cycle Selection, continued DEEP CLEAN SANITIZE CASUAL Use the deep clean sanitize cycle to clean and Use this cycle for cottons and blends with a per- sanitize heavily soiled, colorfast fabrics includ- manent press or no-iron fi nish. ing towels, bedding, cloth diapers, and children’s clothing.
- Page 16 Operating Instructions Cycle Selection, continued SPECIALTY CYCLES To access you washer’s Specialty Cycles: • Turn the cycle selector knob to favorites/spe- cialty. • Press the button under the LCD corresponding to specialty cycles. • Rotate the cycle selector knob to scroll through the list of available Specialty Cycles to choose from.
- Page 17 Operating Instructions SPECIALTY CYCLES , continued STUFFED ANIMALS STEAM PRETREAT Wash stuffed animals and soft toys with the The STEAM PRETREAT is a prewash cycle that STUFFED ANIMALS cycle. Wash temperature uses steam and gentle agitation to pretreat and is auto temp cold, with a mid-agitation injection release tough stains on delicate items.
- Page 18 Operating Instructions Cycle Selection, continued MY FAVORITES To select one of your 3 favorite cycles: • Turn the cycle selector knob to favorites/spe- cialty. • Press the button under the LCD corresponding to my favorites to display the favorites cycles. •...
- Page 19 Operating Instructions MY FAVORITES , continued If more than one user has been entered in CUSTOM MODE: • The current user’s name will be displayed when the washer is turned on if CUSTOM MODE is on. • Press the button under to continue using that user’s favorite cycles.
-
Page 20: Washing/Rinsing Temperature
Operating Instructions Washing/Rinsing Temperature The appropriate washing temperature will auto- matically be indicated for the cycle selected. For best results Follow the fabric care label instructions on items to be washed. To change the temperature, press the temperature button to scroll to the desired setting. Select a wash water temperature according to fi... - Page 21 Operating Instructions Temperature, continued SANITIZE TEMP This setting sanitizes heavily soiled white and color- fast fabrics such as towels, bedding, and children’s clothing by killing 99.9% of bacteria using wash water heated with a boost heater to 152° F (67° C). Cold water is used to cool and rinse the load.
-
Page 22: Spin Speed
Operating Instructions Spin Speed Maximum spin, high spin, medium spin, mini- mum spin, and low spin speeds are available for each cycle. The spin speed and/or duration of fi nal spin vary from cycle to cycle. Increasing the spin speed will extract more water, decrease drying time and conserve energy. -
Page 23: Options
Operating Instructions Options Suitable options will automatically be indicated when the cycle is selected. To select or clear the add steam, eco friendly, stain clean, extra rinse, auto temp, extra spin, prewash, warm rinse and delay start options, press the scroll up or scroll down buttons under options until the desired option is displayed. - Page 24 Operating Instructions Options, continued ECO FRIENDLY ADD MORE WATER The eco friendly option reduces the hot and warm Increase the water fi ll level of the agitation portion water temperature a few degrees to save energy. It is of any wash cycle. available with all cycles except deep clean sanitize STAIN PRETREAT and spin only.
- Page 25 Operating Instructions Options, continued WARM RINSE Select the warm rinse option with the normal, heavy duty, active wear, fast wash, delicates and hand wash cycles. DELAY START Use delay start to select a wash time convenient to your schedule or during off-peak energy hours. The start of any cycle can be delayed for 30 min- utes to 22 hours.
-
Page 26: Cycle Chart
Operating Instructions Washer Settings Chart These temperature, spin speeds, soil levels and options are available with the following cycles: specialty cycles temperature sanitize eco hot warm eco warm cold eco cold spin speed maximum spin high spin medium spin low spin minimum spin no spin soil level... -
Page 27: Operating User Interface Features
Operating User Interface Features User Interface Features SAVE AS FAVORITE The save as favorite feature allows you to per- sonalize up to 3 custom cycles each custom user. See save as favorite in “Operating User Interface Preferences” for more details. SET PREFS The set prefs feature allows you to personalize cycles, hide cycle descriptions, select the lan-... -
Page 28: Saving Favorites
Operating User Interface Features Saving Favorites Use the save as favorite feature to name and save a custom cycle to memory with all options and settings preferred. Up to 3 favorites may be saved for each custom user. Follow these steps: •... -
Page 29: Setting Preferences
Operating User Interface Features Setting Preferences CUSTOM MODE CUSTOM MODE allows up to 3 household mem- bers to personalize up to 3 favorite cycles each. To enter custom users and personalize favorite cycles: • Use the scroll up or scroll down buttons until you reach set prefs. - Page 30 Operating User Interface Features Setting Preferences, continued NOTE INSTALL CYCLE Run the INSTALL CYCLE before operating the wash- The INSTALL CYCLE is prompted automatically er the fi rst time. Remove all items from the washer only once when the washer is turned on the drum and press start.
- Page 31 Operating User Interface Features Setting Preferences, continued CONTRAST Press the button beneath plus (+) or minus (-) symbols to increase or decrease the contrast of the display. Press select to accept the change or press the button under EXIT to return to normal operation without any changes.
-
Page 32: Other Features
Operating User Interface Features Other Features STATUS DISPLAY The estimated total cycle time will be displayed when the cycle is selected. The time may increase if water pressure is low, oversudsing occurs or the load becomes unbalanced. The approximate time remaining will be displayed during the cycle. -
Page 33: Stain Removal Guide
Stain Removal Guide Stain Removal Procedures SAFE STAIN REMOVAL PROCEDURES WARNING To reduce the risk of fi re or serious injury to per- sons or property, comply with the basic warnings HARMFUL VAPOR HAZARD listed below: Do not use or mix liquid chlorine bleach with other •... -
Page 34: Stain Removal Suggestions
Stain Removal Guide Stain Removal Suggestions STAIN TREATMENT Adhesive tape, chewing Apply ice. Scrape off excess. Place stain face down on paper towels. Saturate with prewash gum, rubber cement stain remover or nonfl ammable dry cleaning fl uid. Baby formula, dairy prod- Use product containing enzymes to pretreat or soak stains. -
Page 35: Care & Cleaning
Care & Cleaning Inside Routine Cleaning (Preventative) To help prevent odors, mold or mildew, leave the door open for a few hours after use or whenever the washer is not in use. CAUTION ENTRAPMENT and TIP-OVER HAZARD An open door could entice children to hang on the door or crawl inside the washer. - Page 36 Care & Cleaning Other Inside Routine Cleaning (Preventative) CLEANING DISPENSER DRAWER AREA NOTE Detergent and fabric softener may build up in the dispenser drawer. Residue should be removed once or twice a month. • Remove the drawer by pulling the drawer out until it stops.
- Page 37 Care & Cleaning Inside Cleaning (Aggressive) In cases where the CLEAN WASHER cycle along with care and cleaning of rubber gasket folds isn’t done, and severe odor, mold, mildew, or residue buildup have developed, follow the below cleaning procedure to help alleviate the problem. CLEANING PROCEDURE - Washer Drum Ensure the wash tub is empty (or no clothes load).
- Page 38 Care & Cleaning Outside Routine Cleaning • When washing is completed, wipe top and sides of washer with a damp cloth. Turn water faucets off to prevent pressure build-up in the hoses. • Clean the cabinet with mild soap and water. Never use harsh, gritty or abrasive cleansers •...
-
Page 39: Solutions To Common Problems
Solutions to Common Problems Common Washing Problems Many washing problems involve poor soil and stain removal, residues of lint and scum, and fabric damage. For satisfactory washing results, follow these suggestions provided by The Soap and Detergent Association. PROBLEM POSSIBLE CAUSES SOLUTIONS PREVENTIVE MEASURES Blue stains... - Page 40 Solutions to Common Problems Common Washing Problems, continued PROBLEM POSSIBLE CAUSES SOLUTIONS PREVENTIVE MEASURES Yellow • Agitation time too short. • Soak in detergent booster or • Select correct wash cycle. buildup of • Wash water temperature too product containing enzymes. •...
-
Page 41: Service Prevention Checklist
Solutions to Common Problems Service Prevention Checklist Before calling for service, review this list. It may save both time and expense. The list includes common occurrences that are not the result of defective workmanship or materials in this washer. OCCURRENCE POSSIBLE CAUSE SOLUTION NOISE... - Page 42 Solutions to Common Problems Avoid Service Checklist, continued OCCURRENCE POSSIBLE CAUSE SOLUTION WATER Water collects in folds of This is a result of the washing action and the bellows at the end of is part of the normal operation of the the cycle.
-
Page 43: Warranty Information
Warranty Information Your appliance is covered by a one year limited warranty. For one year from your original date of purchase, Electrolux will repair or replace any parts of this appliance that prove to be defective in materials or workmanship when such appliance is installed, used, and maintained in accordance with the provided instructions. -
Page 44: Notes
