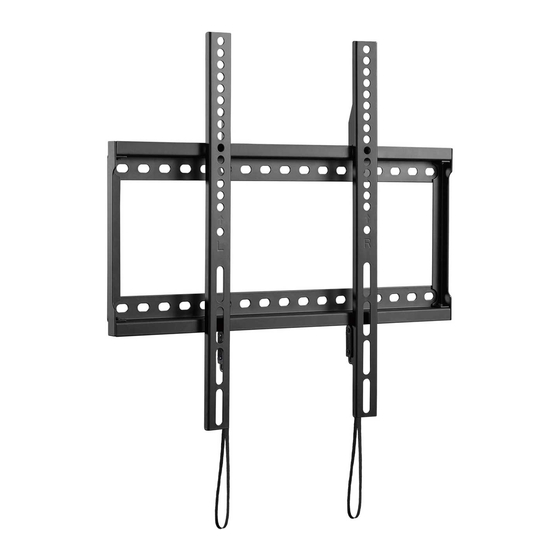

Fixed Flat-Screen
Wall Mount
MODEL: DWF2670X
CAUTION: DO NOT EXCEED MAXIMUM LISTED WEIGHT CAPACITY. SERIOUS INJURY OR
PROPERTY DAMAGE MAY OCCUR!
50x50/75x75/100x100/100x150/
100x200/150x100/150x150/
200x100/200x200/200x400/
300x200/300x300/350x350/
400x200/400x300/400x400
Este manual está disponible en español en la página de Tripp Lite: tripplite.com
Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com
Русскоязычная версия настоящего руководства представлена на веб-сайте компании
Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar: tripplite.com
1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support
21-06-207-933E68-EN.indd 1
21-06-207-933E68-EN.indd 1
Owner's Manual
Tripp Lite по адресу: tripplite.com
WARRANTY REGISTRATION
Register your product today and be
automatically entered to win an ISOBAR
surge protector in our monthly drawing!
tripplite.com/warranty
Copyright © 2021 Tripp Lite. All rights reserved.
70"
MAX
®
1
75kg
75kg
(165 lb.)
(165 lb.)
MAX
MAX
7/7/2021 8:50:27 AM
7/7/2021 8:50:27 AM
Advertisement
Related Manuals for Tripp Lite DWF2670X
Summary of Contents for Tripp Lite DWF2670X
- Page 1 400x200/400x300/400x400 Este manual está disponible en español en la página de Tripp Lite: tripplite.com Ce manuel est disponible en français sur le site Web de Tripp Lite : tripplite.com Русскоязычная версия настоящего руководства представлена на веб-сайте компании Tripp Lite по адресу: tripplite.com Dieses Handbuch ist in deutscher Sprache auf der Tripp Lite-Website verfügbar: tripplite.com...
-
Page 2: Warranty And Product Registration
PRODUCT REGISTRATION Visit tripplite.com/warranty today to register for your new Tripp Lite product. You’ll be automatically entered into a drawing for a chance to win a FREE Tripp Lite product!* * No purchase necessary. -
Page 3: Component Checklist
Component Checklist IMPORTANT: Ensure that you have received all parts according to the component checklist prior to installing. If any parts are missing or faulty, visit tripplite.com/support for service. A (x2) M5x6 (x4) F (x3) B (x2) C (x1) D (x1) Package M M5x14 (x4) M6x14 (x4) - Page 4 1. Assemble the Wall Plate M5x6 2a. Mount on Wood Stud Wall Find and mark the exact location of mounting holes Drill pilot holes Washer Anchor Screw the Bolt assembled wall plate onto the wall WARNING • Make sure mounting screws are anchored into the center of the studs. Use of a stud finder is highly recommended.
- Page 5 2b. Mount on Solid Brick and Concrete Block Mark the exact location of mounting holes Drill pilot holes Anchor Bolt Screw the Concrete assembled wall Anchor plate onto the wall Washer WARNING • When installing wall mounts onto a concrete masonry unit (also known as a CMU or “cinder block”), verify that the actual concrete thickness is at least 35 mm (1-3/8”) in order to hold the concrete anchors.
- Page 6 3. Install Adapter Brackets 3-1 For Flat-Back Screen Note: Choose M5X14 appropriate screws, M6X14 washers and spacers (if necessary) according to the type of screen. Washer • Position the adapter brackets as close as possible to the center of the display. •...
- Page 7 4. Hang Display onto the Wall Plate • Using an assistant or mechanical lifting equipment, hook the display with attached adapter brackets over the top of the mounted wall plate. • Push the safety clamps on the bottom of the adapter brackets upward and tighten the two screws to lock each bracket to the wall plate.
- Page 8 1111 W. 35th Street, Chicago, IL 60609 USA • tripplite.com/support 21-06-207 • 93-3E68_RevB 21-06-207-933E68-EN.indd 8 21-06-207-933E68-EN.indd 8 7/7/2021 8:50:29 AM 7/7/2021 8:50:29 AM...
