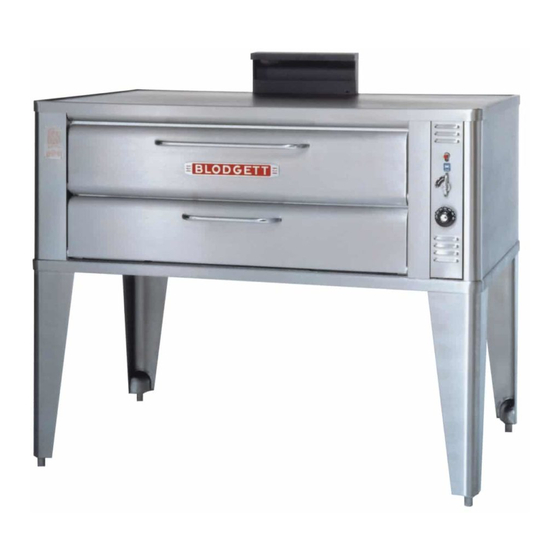

Blodgett 901 Installation And Operation Manual
Gas deck ovens
Hide thumbs
Also See for 901:
- Installation and operation manual (67 pages) ,
- Installation operation & maintenance (58 pages) ,
- Installation & operation manual (45 pages)
Advertisement
Quick Links
Advertisement
Related Manuals for Blodgett 901
Summary of Contents for Blodgett 901
- Page 1 901, 911, 911-P, 951, 961, 961-P, 966, 981, 1048-B & 1060-B 0539 BLODGETT OVEN COMPANY www.blodgett.com 42 Allen Martin Drive, Essex Junction, Vermont 05452USA Telephone: (802) 658-6600 Fax: (802)864-0183 PN 34093 Rev E (2/21) © 2021 - G.S. Blodgett Corporation...
-
Page 2: Table Of Contents
Contents Installation and Operation Manual for Export Series Gas Deck Ovens Original Instructions ..................1 Installation . -
Page 3: Installation
Installation Safety Information • Risk of burns - always open the cooking cabinet door CAUTION!! very slowly (hot vapors). READ THE INSTRUCTIONS BEFORE USING • Risk of burns - the external temperatures of the unit THE OVEN! may exceed 60°C. Only touch the unit at the con- •... - Page 4 Delivery and Location DELIVERY AND INSPECTION OVEN LOCATION All Blodgett ovens are shipped in containers to prevent The well planned and proper placement of your oven will damage. Upon delivery of your new oven: result in long term operator convenience and satisfactory performance.
- Page 5 1. Slide the deck pieces into the unit until they drop into the shelf supports. 82,5 cm leg shown 2. Push together until the center gap closes. Use only Blodgett Rokite decks. Figure 2 Steel Decks 1. Slide the deck pieces into the unit until they drop into the shelf supports.
- Page 6 Installation Oven Assembly OVEN STACKING (if applicable) 1000 Series Ovens 900 Series Ovens 1. Fasten 30,5 cm legs to lower section. 1. Place two boards on top of the lower oven. 2. Remove the sheet metal flue cover on the bottom of the UPPER OVEN ONLY.
- Page 7 Installation Ventilation A mechanically driven, canopy type exhaust hood is re- quired. The hood should completely cover the oven with an overhang of at least 15 cm on all sides not adjacent to a wall. The distance from the floor to the lower edge of the Draft Diverter hood should not exceed 2.1m.
- Page 8 Installation Gas Connection and Initial Startup Connect the oven to the gas line with the proper type of 5. Reinstall the manifold. gas according to Local and National Installation Stan- 6. Remove the two screws holding the pilot bracket. dards. 7.
- Page 9 Installation Gas Connection and Initial Startup Inlet Burner Injector Standard Air Opening Pilot Injector Type of Gas Pressure Pressure Diameter Delivery Value mbars mbars kW (Hi) 0.53 0.53 G20/G25 20/25 1.75 0.53 30/50 0.29 30/37/50 0.29 2.05 0.53 2.05 0.53 G20/G25 20/25 1.75...
- Page 10 Installation Gas Connection and Initial Startup Inlet Burner Injector Standard Air Opening Pilot Injector Type of Gas Pressure Pressure Diameter Delivery Value mbars mbars kW (Hi) 1048BL, 1060BL 3.35 0.53 3.35 0.53 G20/G25 20/25 0.53 30/50 2.05 0.29 30/37/50 2.05 0.29 1048B, 1060B 0.53...
-
Page 11: Operation
Operation 900 Series Control Panel NOTE: Operation is restricted to qualified personnel. LIGHTING 1. Turn the MANUAL CONTROL VALVE (1) to ON. 2. Press the SAFETY PILOT IGNITION BUTTON (2) 3. Light the pilot burner with a match. Continue to hold the safety pilot ignition button for 30 seconds. - Page 12 Operation 1000 Series Control Panel NOTE: Operation is restricted to qualified personnel. LIGHTING 1. Turn the MANUAL CONTROL VALVE (1) to ON. 2. Turn the SAFETY PILOT IGNITION KNOB (2) to the light position. 3. Light the pilot burner with a match. Continue to hold the safety pilot ignition knob for 30 seconds.
-
Page 13: Maintenance
Maintenance Cleaning and Replacement of Parts CLEANING 4. Open combustion compartment door. Remove screws holding the pilot burner to the bracket on the WARNING!! right hand main burner. DO NOT spray the oven with a water jet. 5. Disconnect safety valve capillary from pilot burner. Daily Remove the pilot burner. - Page 14 Middleby Germany Arjan Koole +49 7191 733085 akoole@middleby.com Middleby Spain Alvaro de la Torre +34 94 454 2815 +34 94 454 0257 +34 94 454 0257 adelatorre@middleby.com You may also contact Blodgett Technical Service at (802) 658-6600 or visit www.blodgett.com.
