Blodgett 1060 Specifications

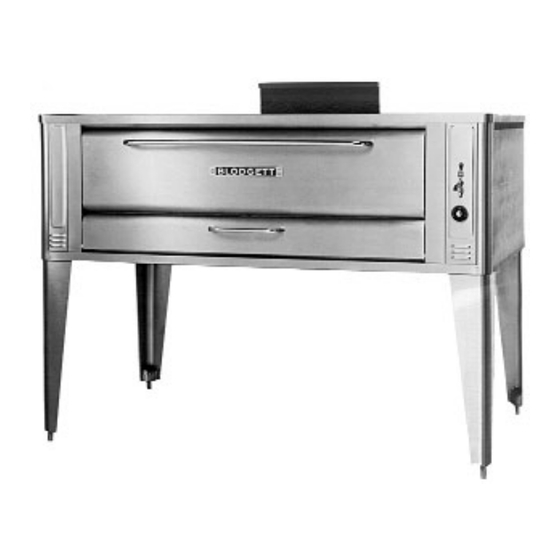

MODEL 1060
Deck Oven
OPTIONS AND ACCESSORIES
(AT ADDITIONAL CHARGE)
Legs:
12" (273mm) stainless steel legs
32" (794mm) stainless steel legs
Flexible gas hose with quick disconnect and
restraining device:
36" (914 mm)
48" (1219mm)
Stainless steel stacking crown angle leg frame
assembly
Casters
Stainless steel crown angle trim
Flue connector
Vent kit
OPTIONS AND ACCESSORIES
(AT NO ADDITIONAL CHARGE)
Centigrade dial, 150°C to 340°C
No. 12 gauge (3.02mm) press-formed, reinforced
and flanged aluminized steel deck (Model 1060-S)
Project
Item No.
Quantity
Ovens consist of basic sections and are a complete and separate unit
capable of operating alone or in combination.
All data is shown per oven section, unless otherwise indicated.
Refer to operator manual specification chart for listed model name.
EXTERIOR CONSTRUCTION
INTERIOR CONSTRUCTION
OPERATION

STANDARD FEATURES

* For all international markets, contact your local distributor.
BLODGETT OVEN COMPANY
www.blodgett.com
44 Lakeside Avenue, Burlington, VT 05401
Toll Free: (800) 331-5842 • Phone: (802) 860-3700 • Fax: (802) 864-0183
Full angle iron frame
Stainless steel front, top, sides and back
Spring assist doors with concealed hinges
Heavy chrome plated tubular steel door handle
32" (794mm) black powder coated legs (for single units)
12" (273mm) black powder coated legs (for double units)
Burner door opens easily for ignition, cleaning or adjustment, without
removal of any fastenings
Vitreous fiber insulation at top, back, sides, bottom and doors
60" x 36" x 10" (1524mm x 914mm x 254mm) oven compartment interior.
Aluminized steel baking compartment liner
Aluminized steel combustion chamber
Ultra Rokite deck supported by an angle iron frame
Two free-floating, easily removable duplex-tube burners
Removable fixed orifices on main and pilot burners
Main gas valve, temperature control valve and safety pilot valve fully within
section body and are accessible through a covered and ventilated compart-
ment in front
Air mixers with adjustable air shutters and locking device
Snap throttle thermostat with temperature control range of 300°F (150°C) to
650°F (340°C)
Fahrenheit dial 300°F to 650°F
Ultra Rokite deck
Two year oven parts and one year labor warranty*
Five year limited oven door warranty*
