MSP430FR2355 LaunchPad™ Development Kit
The MSP-EXP430FR2355 LaunchPad™ Development Kit is an easy-to-use Evaluation Module (EVM) for
the MSP430FR2355 microcontroller (MCU). The kit contains everything needed to start developing on the
ultra-low-power MSP430FRx FRAM microcontroller platform, including onboard debug probe for
programming, debugging, and energy measurements. The board also features onboard buttons and LEDs
for quick integration of a simple user interface, an onboard Grove connector for external Grove sensors,
as well as an ambient light sensor to showcase the integrated analog peripherals.

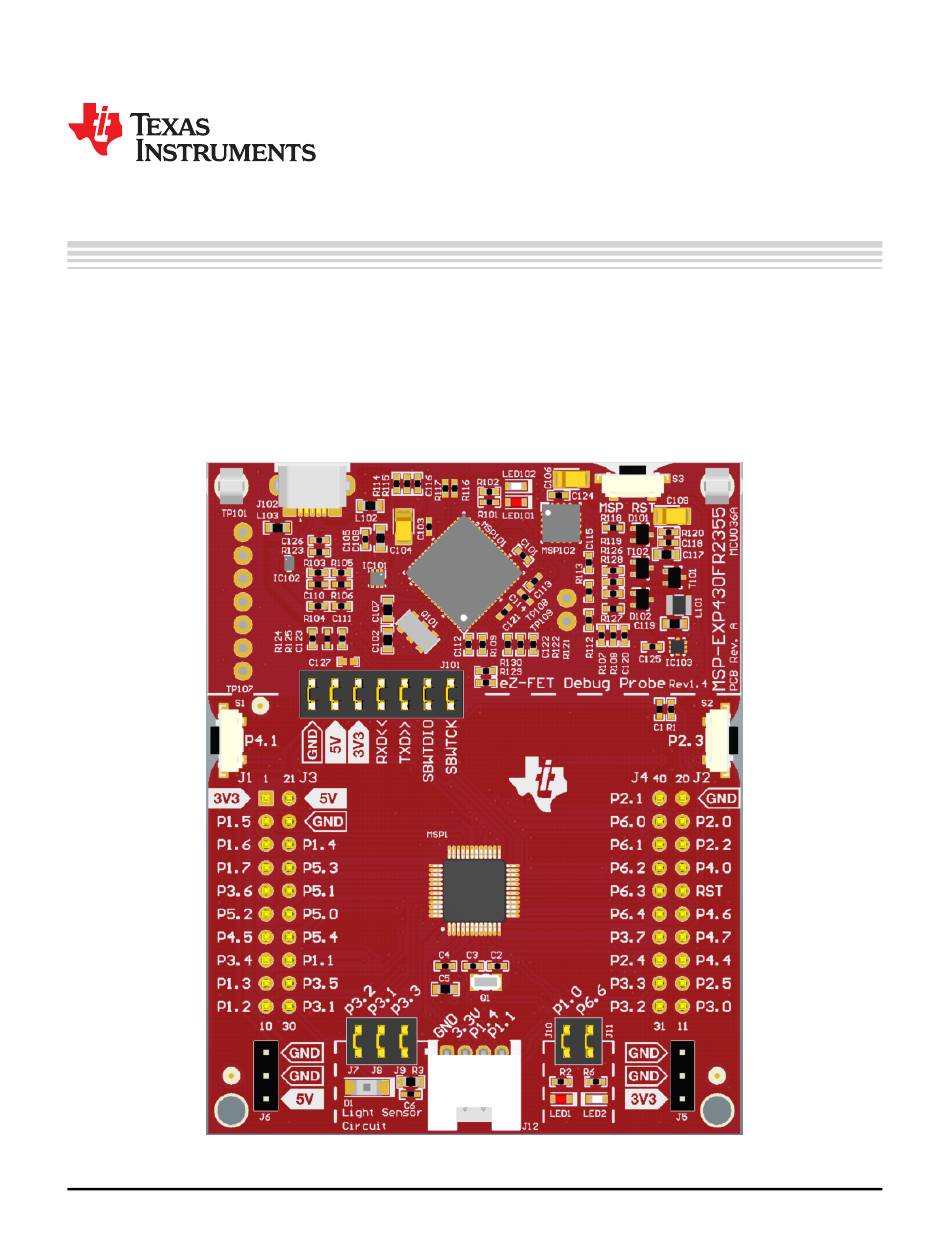

Figure 1
shows the MSP-EXP430FR2355 LaunchPad development kit.
SLAU680 – May 2018
Submit Documentation Feedback

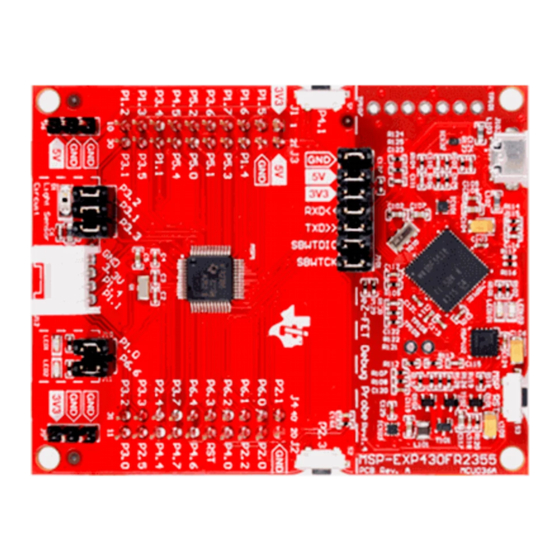

Figure 1. MSP-EXP430FR2355 LaunchPad Development Kit
MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355)
Copyright © 2018, Texas Instruments Incorporated
User's Guide
SLAU680 – May 2018
(MSP ‑ ‑ EXP430FR2355)
1
Advertisement
Table of Contents
Related Manuals for Texas Instruments LaunchPad MSP430FR2355
Summary of Contents for Texas Instruments LaunchPad MSP430FR2355
-
Page 1: Msp-Exp430Fr2355 Launchpad Development Kit
Figure 1 shows the MSP-EXP430FR2355 LaunchPad development kit. Figure 1. MSP-EXP430FR2355 LaunchPad Development Kit MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 2: Table Of Contents
Using TI Resource Explorer to Browse MSP-EXP430FR2355 in MSPWare ......................Schematics (1 of 2) ......................Schematics (2 of 2) List of Tables ....................EnergyTrace Technology MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... - Page 3 IAR Embedded Workbench, C-SPY are registered trademarks of IAR Systems. All other trademarks are the property of their respective owners. MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
-
Page 4: Getting Started
For proper operation, drivers are needed. TI recommends that you get the drivers by installing an IDE such as TI's CCS or IAR EW430. Drivers are also available at www.ti.com/MSPdrivers. MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 5: Next Steps: Looking Into The Provided Code
With the onboard eZ-FET debug probe, debugging and downloading new code is simple. A USB connection between the EVM and a PC through the provided USB cable is all that is needed. MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 6: Hardware
LaunchPad MSP430FR2355 standard headers User interface Grove Ambient Light 2 buttons, 2 LEDs Connector Sensor Figure 3. MSP-EXP430FR2355 Block Diagram MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 7: Hardware Features
Three 16-bit timers with three capture/compare registers (Timer_B3) • One 16-bit timer with seven capture/compare registers (Timer_B7) • 32-bit hardware multiplier (MPY) • 44 GPIOs MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 8: Msp430Fr2355 Pinout
DVCC P1.7/UCA0TXD/UCA0SIMO/TB0.2/TDO/OA1+/A7/VREF+ MSP430FR2355TPT DVSS MSP430FR2353TPT P2.0/TB1.1/COMP0.O P2.7/TB0CLK/XIN P2.1/TB1.2/COMP1.O P2.6/MCLK/XOUT P2.2/TB1CLK P2.5/COMP1.0 P2.3/TB1TRG P2.4/COMP1.1 P4.0/UCA1STE/ISOTXD/ISORXD P4.7/UCB1SOMI/UCB1SCL P4.1/UCA1CLK Figure 4. MSP430FR2355 Pinout MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 9: Ez-Fet Debug Probe
The software and more information about the debugger can be found on the eZ-FET wiki. MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 10: Ez-Fet Isolation Jumper Block Diagram
Spy-Bi-Wire debug: SBWTCK clock signal. This pin also functions as the TST signal. USB Connector eZ-FET Debug Probe EnergyTrace Technology Isolation Jumper Block Target MSP430FR2355 Figure 6. eZ-FET Isolation Jumper Block Diagram MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 11: Application Backchannel Uart In Device Manager
Grove sensors and actuators without the need to interface the LaunchPad development kit with a Grove Base BoosterPack plug-in module. MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 12: Power
Consider disconnecting these at the isolation jumper block, or at least consider their current sinking and sourcing capability in the final measurement. MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 13: Clocking
The LaunchPad development kit adheres to the 40-pin LaunchPad development kit pinout standard. A standard was created to aid compatibility between LaunchPad development kits and BoosterPack plug-in modules across the TI ecosystem. MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 14: Boosterpack Checker Tool
However, each pin has other functionality that can be configured by the software. See the MSP430FR2355 device data sheet for more details on individual pin functions. MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 15: Design Files
Demonstrates features of MSP430FR2355 device Blinks an LED on the LaunchPad development kit at a BlinkLED_MSP-EXP430FR2355 None Section 3.2 fixed interval MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 16: Out-Of-Box Software Example
SAC. The Out-of-Box demonstrates these interconnections and uses one SAC pair in the Light Sensor mode and the second SAC pair in the Function Generator mode. MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 17: Default Waveform Of The Function Generator Mode
SAC3 DAC, and the output waveform is captured with the internal ADC connection and displayed on the cloud GUI. MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 18: Blink Led Example
MSPWare without having to download files to your local drive. Go check out TI Resource Explorer Cloud now at dev.ti.com. MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 19: Ti Resource Explorer Cloud
For more information, see the full comparison between CCS Cloud and CCS Desktop. Go check out Code Composer Studio Cloud now at dev.ti.com. MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 20: Ccs Cloud
CCS v8.0 or higher is required. When CCS has been launched, and a workspace directory chosen, use Project>Import Existing CCS Eclipse Project. Direct it to the desired demo project directory that contains main.c. MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 21: Directing The Project>Import Function To The Demo Project
You can resolve this by renaming or deleting that project. (Even if you do not see it in the CCS workspace, be sure to check the workspace directory on the file system.) MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 22: Launchpad Development Kit Websites
Resources www.ti.com 4.1.3 IAR Embedded Workbench for Texas Instruments 430 IDE IAR Embedded Workbench for MSP430 is another very powerful integrated development environment that allows you to develop and manage complete embedded application projects. It integrates the IAR C/C++ Compiler, IAR Assembler, IAR ILINK Linker, editor, project manager, command line build utility, and IAR C-SPY Debugger. -
Page 23: Fram Utilities
Many online communities focus on the LaunchPad development kit – for example, www.43oh.com. You can find additional tools, resources, and support from these communities. MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 24: Faq
A: The target device on this LaunchPad development kit does not come in the dual in-line package. Sockets for the available device package are too expensive for this kit’s target price. MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... -
Page 25: Schematics
Schematics www.ti.com Schematics Figure 17. Schematics (1 of 2) SLAU680 – May 2018 MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated... - Page 26 Schematics www.ti.com Figure 18. Schematics (2 of 2) MSP430FR2355 LaunchPad™ Development Kit (MSP ‑ EXP430FR2355) SLAU680 – May 2018 Submit Documentation Feedback Copyright © 2018, Texas Instruments Incorporated...
