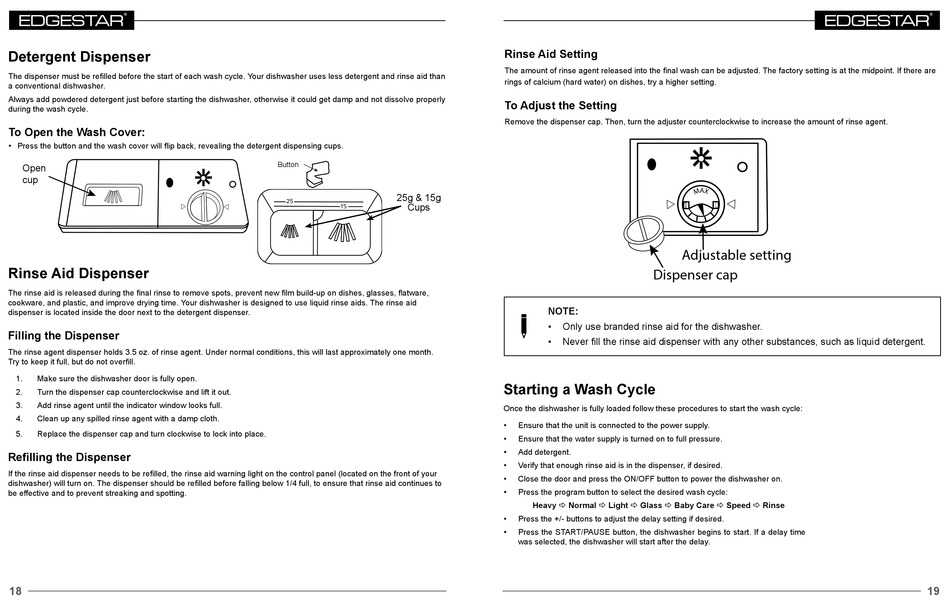

Detergent Dispenser
The dispenser must be refilled before the start of each wash cycle. Your dishwasher uses less detergent and rinse aid than
a conventional dishwasher.
Always add powdered detergent just before starting the dishwasher, otherwise it could get damp and not dissolve properly
during the wash cycle.
To Open the Wash Cover:
• Press the button and the wash cover will flip back, revealing the detergent dispensing cups.
Open
cup
Rinse Aid Dispenser
The rinse aid is released during the final rinse to remove spots, prevent new film build-up on dishes, glasses, flatware,
cookware, and plastic, and improve drying time. Your dishwasher is designed to use liquid rinse aids. The rinse aid
dispenser is located inside the door next to the detergent dispenser.
Filling the Dispenser
The rinse agent dispenser holds 3.5 oz. of rinse agent. Under normal conditions, this will last approximately one month.
Try to keep it full, but do not overfill.
1.
Make sure the dishwasher door is fully open.
2.
Turn the dispenser cap counterclockwise and lift it out.
3.
Add rinse agent until the indicator window looks full.
4.
Clean up any spilled rinse agent with a damp cloth.
5.
Replace the dispenser cap and turn clockwise to lock into place.
Refilling the Dispenser
If the rinse aid dispenser needs to be refilled, the rinse aid warning light on the control panel (located on the front of your
dishwasher) will turn on. The dispenser should be refilled before falling below 1/4 full, to ensure that rinse aid continues to
be effective and to prevent streaking and spotting.
18
Button
25
1 oz
15
.5 oz
Rinse Aid Setting
The amount of rinse agent released into the final wash can be adjusted. The factory setting is at the midpoint. If there are
rings of calcium (hard water) on dishes, try a higher setting.
To Adjust the Setting
Remove the dispenser cap. Then, turn the adjuster counterclockwise to increase the amount of rinse agent.
25g & 15g
Cups
NOTE:
•
Only use branded rinse aid for the dishwasher.
•
Never fill the rinse aid dispenser with any other substances, such as liquid detergent.
Starting a Wash Cycle
Once the dishwasher is fully loaded follow these procedures to start the wash cycle:
•
Ensure that the unit is connected to the power supply.
•
Ensure that the water supply is turned on to full pressure.
•
Add detergent.
•
Verify that enough rinse aid is in the dispenser, if desired.
•
Close the door and press the ON/OFF button to power the dishwasher on.
•
Press the program button to select the desired wash cycle:
Heavy Normal Light Glass Baby Care Speed Rinse
•
Press the +/- buttons to adjust the delay setting if desired.
•
Press the START/PAUSE button, the dishwasher begins to start. If a delay time
was selected, the dishwasher will start after the delay.
Adjustable setting
Dispenser cap
19
