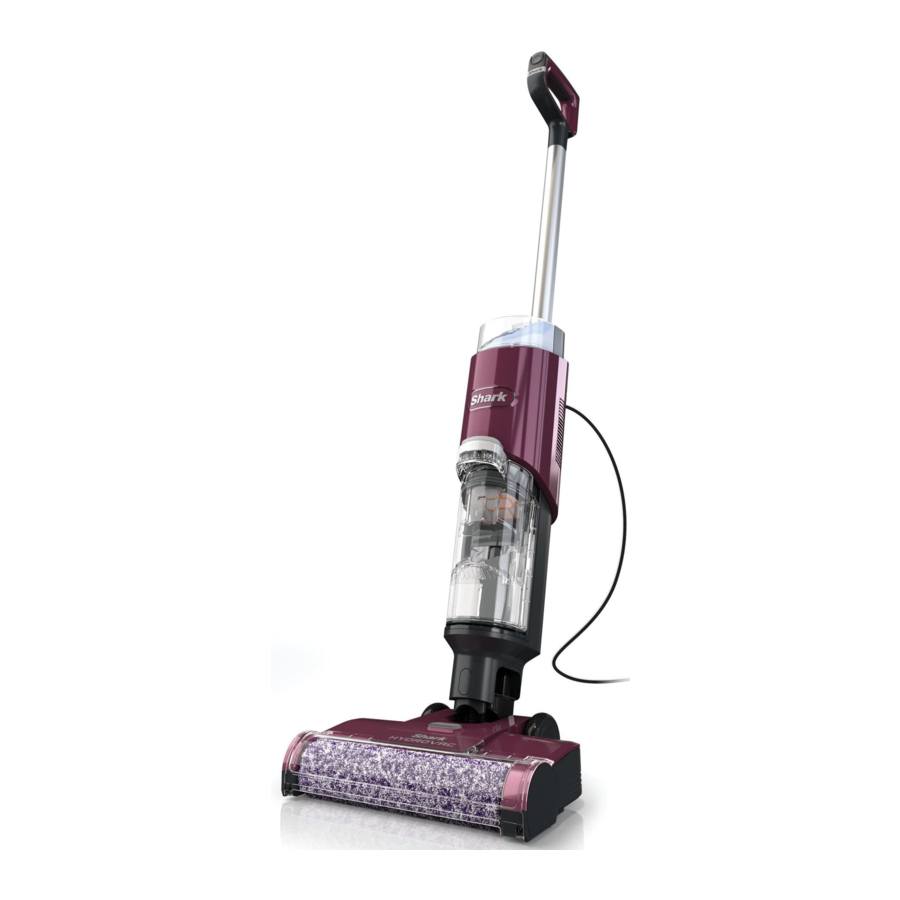

Shark HydroVac WD200 - Corded 3-in-1 Cleaner Manual

ASSEMBLY

1. Align the Pole with the opening in the Main Body and insert firmly until it clicks into place.


2. Place the Storage Tray on the floor near a wall outlet. Place the 3-in-1 Cleaner on the tray.


NOTE: To remove the handle, press the release button located on the back of the unit with a thin tool while pulling up on the handle.

NOTE: When assembling your HydroVac, there may be a little water in or around the water tanks. This is because we test all our HydroVacs before you buy them to ensure the highest quality.

USING YOUR 3-IN-1 CLEANER

To use, unwrap the power cord from the back of the unit. Plug the prongs in to a safe outlet. Make sure the prongs are not wet before plugging into an outlet. When you are done cleaning, unplug the cord and wrap it around the cord-wrap hooks.

FILLING THE CLEAN SOLUTION TANK

REMOVE THE CLEAN SOLUTION TANK
Press the release button and lift off the Clean Solution Tank.

FILL THE CLEAN SOLUTION TANK
Unscrew the cap and add water to the tank, up to the WATER line. Next, add Shark HydroVac™ Multi-Surface Concentrate, filling to the HYDROVAC CONCENTRATE line. Replace the cap and reinsert the tank until it clicks into place. The top of the tank should be flush with the top of the body.

NOTE: Only use Shark HydroVac Multi-Surface Concentrate, Shark HydroVac Disinfectant, and water with this product.

NOTE: If the clean solution tank is empty, the unit may make a pumping sound. This is normal. Refill the clean solution tank to continue.

NOTE: Be sure to not overfill the Clean Solution Tank with more HydroVac Multi Surface Concentrate than instructed, as this may cause streaking.

NOTE: The 3-in-1 Cleaner will not run without sufficient water supply in the clean solution tank.

CONTROLS

POWER ON
Press and release the Power button on the handle to turn on power.

POWER OFF
Press and release the Power button on the handle to turn off power. Raise handle to upright position.

CLEANING MODES

HARD FLOOR MODE
Use Hard Floor mode for powerful cleaning on bare floors. To activate Hard Floor mode, turn on the unit and tilt the handle back.

AREA RUG MODE
Area Rug mode always uses fluid and suction simultaneously to optimally clean your rugs. To switch to Area Rug mode, press the Area Rug icon on top of the handle. The Area Rug light on the main body will illuminate. Press the icon again to switch back to Hard Floor mode.

NOTE: To prevent leakage, DO NOT place the main body on the floor. The nozzle should always be kept flat on the floor.

NOTE: If you encounter a difficult stain, use Area Rug mode for improved stain cleaning.

NOTE: If you encounter a stubborn odor on your floor or area rug, continue to clean in Area Rug mode until the odor is gone.

NOTE: If your floors are cloudy, streaky, or spotty after cleaning, it may be due to accumulated soap or grease residue. The floor may require several cleanings with the Hydrovac.

MAINTAINING YOUR 3-IN-1 CLEANER

SELF-CLEAN CYCLE

The self-clean cycle automatically cleans the system and the brushroll.

Recommended after every use

RECOMMENDED AFTER EVERY USE

1. Place the unit on the storage tray.
2. Empty the Dirty Water Tank and make sure the clean solution tank is at least half full.
3. Press the Power Button to start the self-clean cycle. The icon will pulse for the full 2-minute duration of the cycle.
4. DO NOT remove the unit from the storage tray during the self-clean cycle. The icon will turn off when the cycle is complete.
5. Empty the dirty water tank.


NOTE: Make sure the clean solution tank is at least half full and that the dirty water tank is empty before running the selfclean cycle.

NOTE: You will not be able to run a self-clean cycle until battery is sufficiently charged (1 solid bar or higher).

MANUALLY CLEANING THE BRUSHROLL

You can clean the brushroll by hand as an alternative to the self-clean cycle, and to remove debris or hair wrapped around the brushroll.

1. To access the brushroll, press the button on the top of the nozzle and lift off the brushroll cover.


2. Remove the brushroll by pulling up on the pull tab on the left side of the nozzle. Wipe away any debris stuck on the back wall Wash thoroughly with warm water. Allow the brushroll to air-dry completely in a well-ventilated area for at least 24 hours.


3. Reinsert the brushroll by lining up the grooves on the end of the brushroll with the helix on the inner right side of the nozzle, then press down on the left side of the brushroll. When properly installed, the brushroll tab will be flush with the left side of the nozzle


4. To reinstall the brushroll cover, insert the tabs on the cover into the slots on the nozzle. Press down on the cover until it clicks into place.


NOTE: Do not place brushroll in washing machine or dishwasher. Replace the brushroll after 6 months.

CLEANING THE DIRTY WATER TANK

1. To remove the dirty water tank, press the release button and pull out the tank.


2. To dispose of liquid waste only, pour it out through the Easy Pour spout on the back of the dirty water tank.


3. To dispose of solid debris, lift out the Solids Separator. Grasp the recessed areas on the sides of the separator and lift it out. Empty the solid debris into the trash. If any liquid waste remains in the tank, pour it down a drain. To clean, rinse the separator and the tank with water.


4. Clean the filter housing and the foam filter after every use. Pull out the foam filter and hand-wash with warm water and soap. Allow the foam filter to air-dry completely in a wellventilated area for 24 hours before reinstalling back into the unit.


NOTE: Replace the filter every 6 Months.

NOTE: Do not place dirty water tank in washing machine or dishwasher.

5. After cleaning the dirty water tank and the solids separator, allow them to air-dry in a well-ventilated area for at least 24 hours. To reinstall the tank, insert the bottom into the opening in the main body, then tilt the tank back until it clicks into place.


CHECKING FOR BLOCKAGES

If you are experiencing poor performance, or if you run over a hard or sharp object, or notice a noise change while using your unit, check for blockages or objects caught in the brushroll, nozzle chamber, or inlet hose.

1. Turn off the power.
2. Remove the brushroll cover, brushroll, and dirty water tank.
3. Check the openings and remove all debris.
4. When finished, reinstall the brushroll and the cover.

TROUBLESHOOTING

To reduce the risk of shock and unintended operation, turn off power before servicing.

LED INDICATOR	WHAT IT MEANS	WHAT TO DO
The Water Droplet LED is pulsing red.	The dirty water tank is full.	Empty the fluid in the dirty water tank. *If this is a false error, remove solids separator and clean completely. Allow part to dry for 24 hours or dry manually.
The Water Droplet LED is pulsing aqua.	The clean solution tank is empty.	Fill the clean solution tank. Refer to the "Filling the Clean Solution Tank" section.
The Area Rug icon and the three water droplet lights are flashing red at the same time.	Brushroll cover is not installed properly.	Refer to the "Cleaning the Brushroll" section, step 4
The Area Rug icon and the three water droplet lights are flashing red out of sync.	The brushroll is jammed.	Turn off the power before cleaning the brushroll and any debris that may be causing the jam. Refer to the "Cleaning the Brushroll" section.
Self-Clean icon and droplets are flashing blue.	Not enough solution to run Self-Clean Cycle.	Fill clean solution tank to allow self-clean cycle to run.
Self-Clean icon and droplets are flashing red.	Dirty water tank is full and preventing Self-Clean Cycle to run.	Empty dirty water tank to allow self-clean cycle to run.

NOTE: If 3-in-1 Cleaner still does not operate properly, contact Customer Service at 1 800 798 7398 or sharkclean.com/support

Ordering Refills and Parts
Replace the filter and brushroll every 6 months.
Only use Shark HydroVac™ Disinfectant, Shark HydroVac Concentrate, or water with the Shark HydroVac.
To order brushrolls, filters, Shark HydroVac Multi-Surface Concentrate, and Shark HydroVac Disinfectant, please visit sharkclean.com or scan the QR code below.

REGISTER YOUR PURCHASE

registeryourshark.com

RECORD THIS INFORMATION
Model Number:
Date Code:
Date of Purchase (Keep receipt):
Store of Purchase:

TIP: You can find the model and serial numbers on the QR code label on the bottom of the back of the 3-in-1 Cleaner.

TECHNICAL SPECIFICATIONS

Voltage: 120V ≂ 60Hz
Power: 200W

PLEASE READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
This Owner's Guide is designed to help you keep your Shark Hydrovac 3-in-1 Cleaner running at peak performance.
