Features
24 x 10/100Mbps Auto -MDIX Fast Ethernet ports
=
4 x 10/100/1000Mbps Auto-MDIX Gigabit ports
=
2 x shared SFP (Mini-GBIC) slots
=
1 x RS-232 console port
=
8K MAC address entries
=
256KByte data RAM buffer
=
802.1Q Tagged VLAN, Dynamic VLAN Learning GVRP, and Asymmetric VLAN (Up to 256 VLAN Groups)
=
Spanning Tree Protocols: 802.1d STP, 802.1w RSTP, and 802.1s MSTP
=
Quality of Service (QoS): Port-based QoS, bandwidth rate control, IEEE 802.1p, and DSCP
=
802.1X Port-Based Access Control and RADIUS Authentication
=
IGMP snooping v1/2 (Up to 64 entries)
=
Link Aggregation and Port Trunking: Static and 802.3ad Dynamic LACP
=
Store-and-Forward switching method
=
802.3x Flow Control for full duplex and backpressure for half duplex operation
=
Broadcast, Multicast, and DLF(Destination Lookup Failure) Storm Filtering protection
=
Supports port status control (enable/disable, auto-negotiation, speed, duplex, and flow-control)
=
Port Mirroring for network traffic analysis
=
Syslog support for external device logging
=
Switch management with:
=
19" (1U) Rack mount design with mounting hardware included
=
3-year limited warranty
=

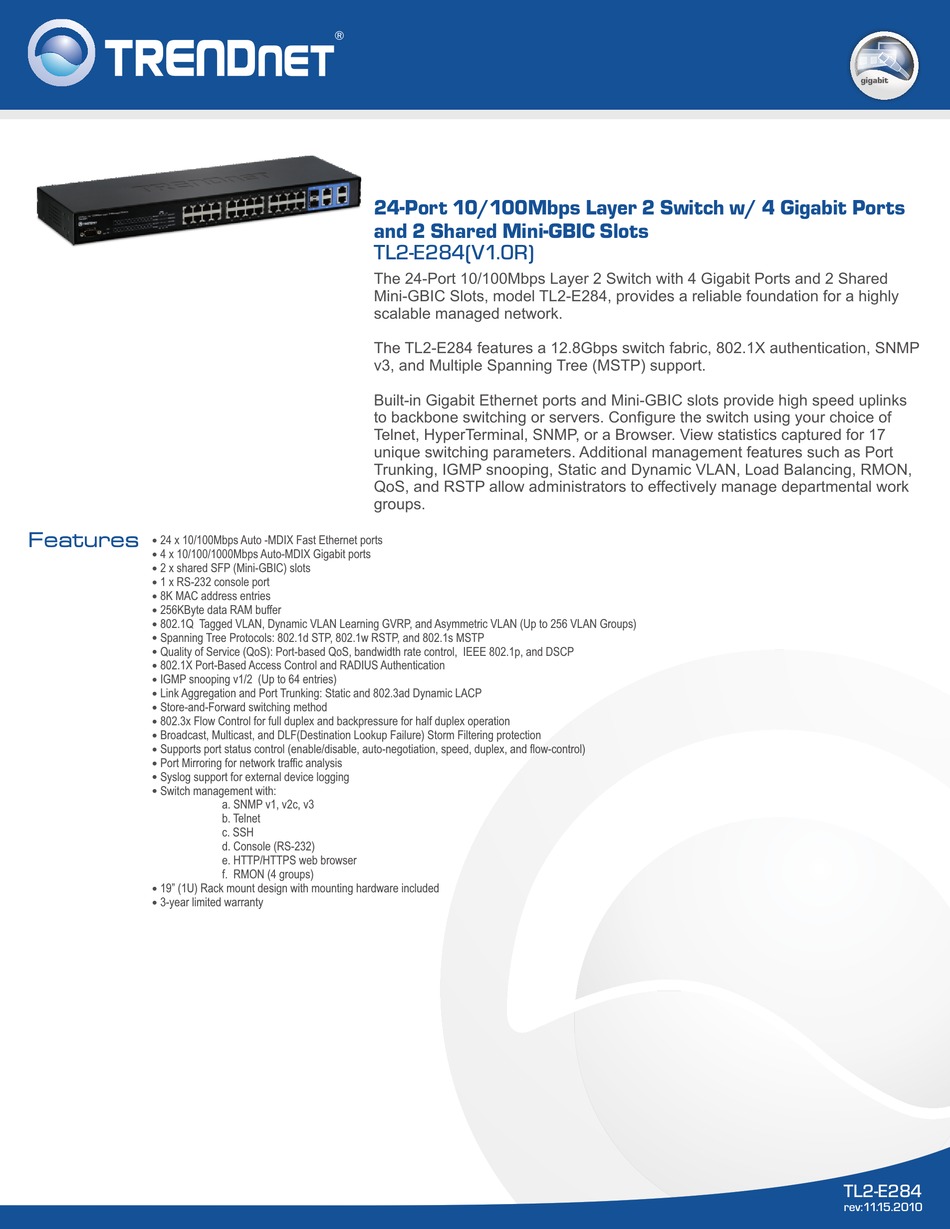

24-Port 10/100Mbps Layer 2 Switch w/ 4 Gigabit Ports
and 2 Shared Mini-GBIC Slots
TL2-E284(V1.0R)
The 24-Port 10/100Mbps Layer 2 Switch with 4 Gigabit Ports and 2 Shared
Mini-GBIC Slots, model TL2-E284, provides a reliable foundation for a highly
scalable managed network.
The TL2-E284 features a 12.8Gbps switch fabric, 802.1X authentication, SNMP
v3, and Multiple Spanning Tree (MSTP) support.
Built-in Gigabit Ethernet ports and Mini-GBIC slots provide high speed uplinks
to backbone switching or servers. Configure the switch using your choice of
Telnet, HyperTerminal, SNMP, or a Browser. View statistics captured for 17
unique switching parameters. Additional management features such as Port
Trunking, IGMP snooping, Static and Dynamic VLAN, Load Balancing, RMON,
QoS, and RSTP allow administrators to effectively manage departmental work
groups.
a. SNMP v1, v2c, v3
b. Telnet
c. SSH
d. Console (RS-232)
e. HTTP/HTTPS web browser
f. RMON (4 groups)
gigabit
TL2-E284
rev:11. 1 5.2010
