Viking VK514 Technical Data Manual

Telephone: 269-945-9501 Technical Services: 877-384-5464 Fax: 269-818-1680 Email: techsvcs@vikingcorp.com
Visit the Viking website for the latest edition of this technical data page www.vikinggroupinc.com
1. DESCRIPTION

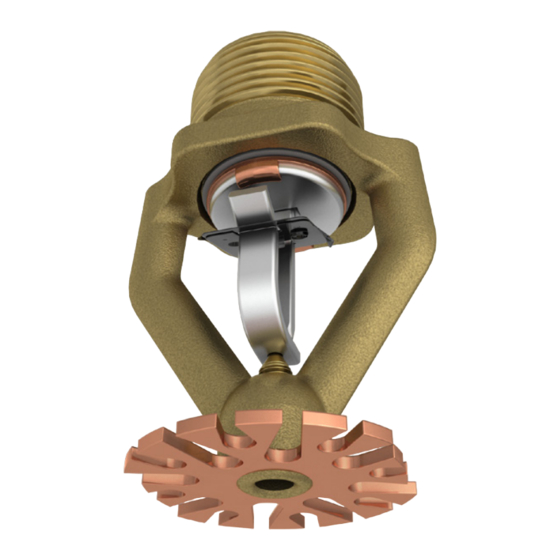

Viking Specific Application Early Suppression Fast Response (ESFR) Pendent
Sprinkler VK514 incorporates the capability to suppress specific high-challenge
fires. The larger K-Factor allows protection of higher hazard commodities at
greater ceiling heights with lower end-head pressures. K28.0 sprinklers can:
• Provide flexibility of fire protection designs.
• Eliminate the use of in-rack sprinklers when protecting high piled storage of
certain specified materials up to:
UL (Refer to Table 4): 43 ft. (13,1 m) with ceilings up to 48 ft. (14,6 m)*
FM (Refer to Table 5): 50 ft. (15,2 m) with ceilings up to 55 ft. (16,76 m)*
Viking VK514 ESFR Pendent Sprinklers are primarily intended to protect the
following types of storage, which tend to produce severe-challenge fires: palletized
and solid pile storage and single, double, and portable open rack storage (no
open-top containers or solid shelves). The VK514 is listed to utilize a minimum
aisle width of 6'-0" (UL - 43' storage or FM - 45' storage) or 8'-0" (FM - 50' storage).
Viking ESFR Pendent VK514 Sprinklers provide protection of most common
storage materials, including:
• Encapsulated or unencapsulated Class I, II, III, and IV commodities*.
• UL Listed for protection of cartoned nonexpanded** Group A plastic
commodities*.
• FM Approved for protection of cartoned unexpanded** plastic commodities.*
* Refer the Approval Chart and Commodity Selection and Design Criteria Overview for Listing
and Approval requirements that must be followed.
** The terms nonexpanded and unexpanded are equivalent.
2. LISTINGS AND APPROVALS*
UL Listed: Category VNWH (Listed as a Specific Application ESFR
Sprinkler)
FM Approved: Class 2035
* Refer the Approval Chart and Commodity Selection and Design Criteria Overview for Listing and Approval requirements that must be followed.
3. TECHNICAL DATA
Specifications:
Maximum Working Pressure: 175 psi (12 bar). Factory tested hydrostatically to 500 psi (34.5 bar).
Thread size: 1" NPT or 25 mm BSPT (Refer to Table 2)
Nominal K-factor: 28.0 U.S. (404 metric*)
* Metric K-factor measurement shown is in bar. When pressure is measured in kPa, divide the metric K-factor shown by 10.0.
Overall Length: 3-3/16" (81 mm)
Deflector Diameter: 1-3/4" (45 mm)
Covered by one or more of the following patents: US5,829,532; US6,059,044; US6,336,509; US6,502,643; US6,868,917; AU722593; GB2336777
Material Standards:
Frame Casting: Brass UNS-C84400
Deflector: Phosphor Bronze UNS-C51000
Seat: Copper UNS-C11000 and Stainless Steel UNS-S30400
Belleville Spring Sealing Assembly: Nickel Alloy, coated on both sides with PTFE Tape
Compression Screw: Stainless Steel UNS-S31603
Trigger and Support: Stainless Steel UNS-S31600
Fusible Element Assembly: Beryllium Nickel, coated with black epoxy paint.
Ordering Information: Refer to Table 2
Form No. F_010715 20.06.02
TECHNICAL DATA
The Viking Corporation, 210 N Industrial Park Drive, Hastings MI 49058
45 ft. (13,5 m) with ceilings up to 50 ft. (15,2 m)*
Rev 20.2
OR
SPECIFIC APPLICATION ESFR
PENDENT SPRINKLER
VK514 (K28.0)
TABLE 1
SPRINKLER GENERAL INFORMATION
Item
Sprinkler Identification
Number (SIN)
K-factor, gpm/psi (lpm/bar )
½ ½
Thread Size
Sprinkler Orientation
Maximum Working Pressure
Replaces Form No. F_010715 Rev 20.1
(Revised Table 3)
Page 1 of 6
Description
VK514
28.0 (404)
1" NPT (25 mm)
Pendent
175 psi (12 bar)
