Remove the battery (see

Remove the memory module/wireless module compartment cover (see

on page

35).

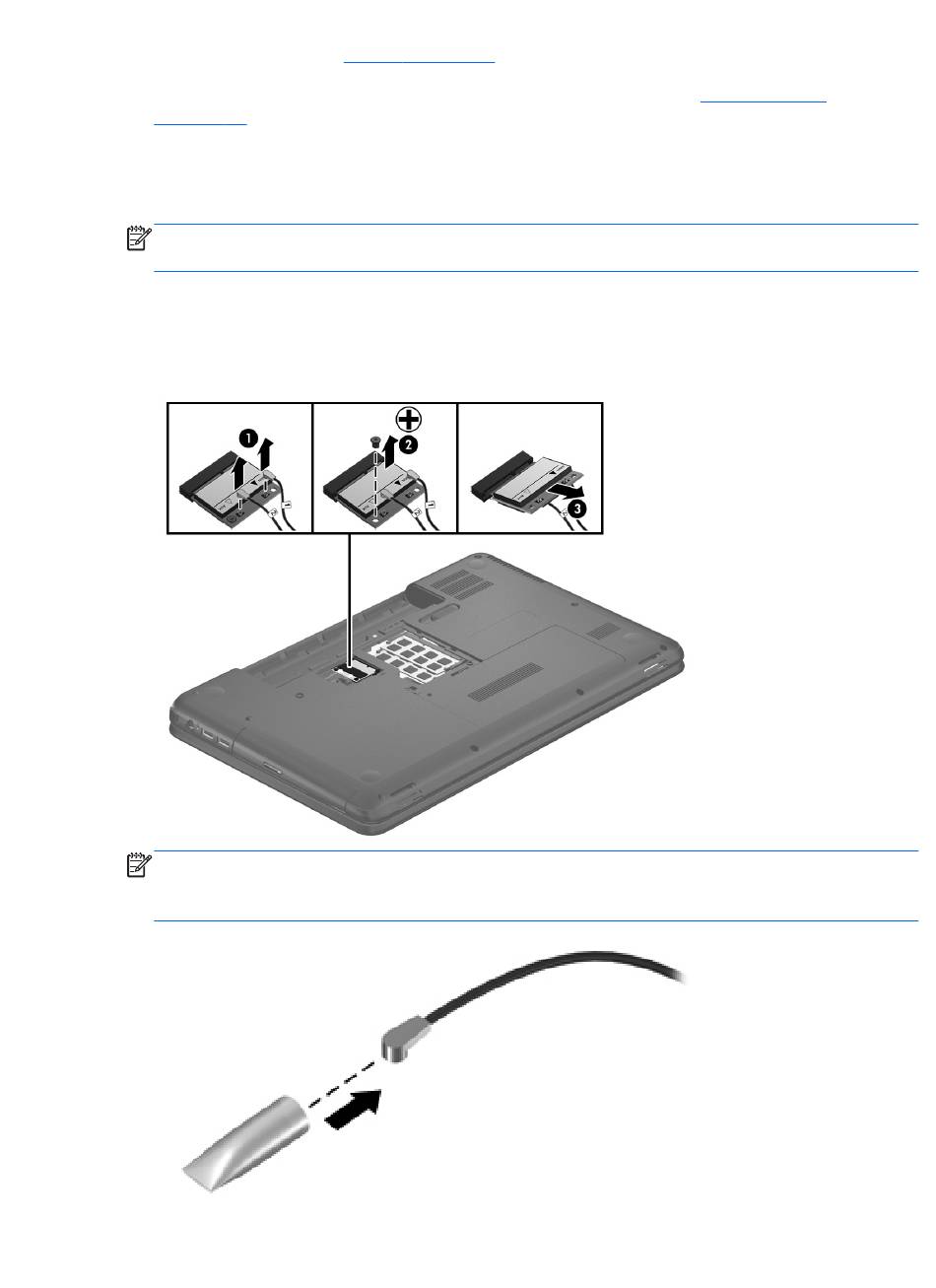

Remove the WLAN module:

Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.

NOTE:

The #1 WLAN antenna cable is connected to the WLAN module #1 terminal. The #2

WLAN antenna cable is connected to the WLAN module #2 terminal.

Remove the Phillips PM2.0×3.0 screw (2) that secures the WLAN module to the system board.

(The WLAN module tilts up.)

Remove the WLAN module by pulling the module away from the slot at an angle (3).

NOTE:

If the WLAN antennas are not connected to the terminals on the WLAN module,

the protective sleeves must be installed on the antenna connectors, as shown in the

following illustration.

Battery on page

34).

Memory module

Component replacement procedures
