M S-7558 M ainboard

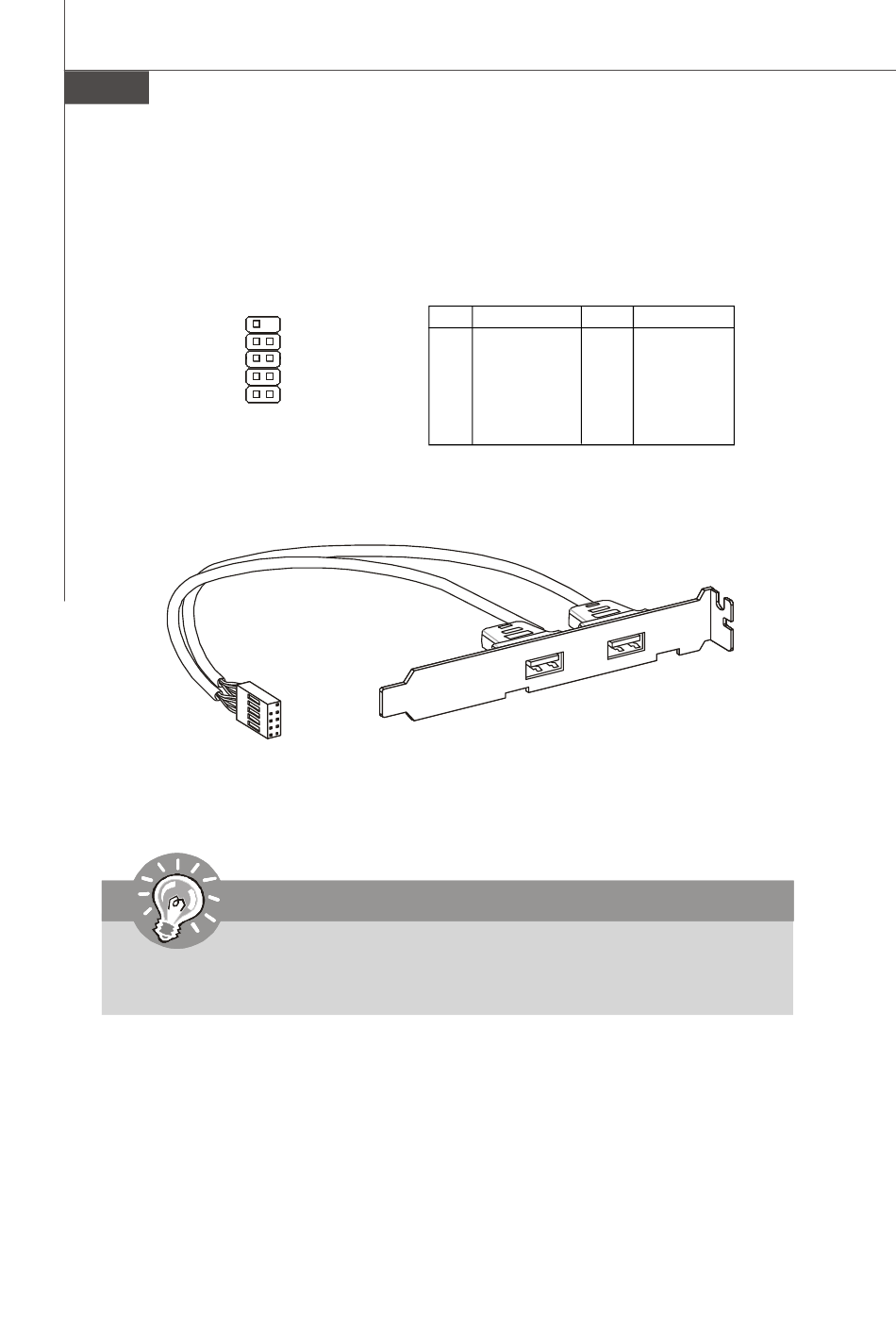

Front USB Connector: JUSB1~3
These connectors, compliant with Intel
connecting high-speed USB interface peripherals such as USB HDD, digital cameras,
M P3 players, printers, modems and the like.
10
2
JUSB1~3
Important
Note that the pins of VCC and GND must be connected correctly to avoid
possible damage.
2-18
® I/O Connectivity Design Guide, is ideal for
PIN
9
1
3
5
1
7
9
Pin Definition
SIGNAL PIN SIGNAL
VCC 2 VCC
USB0- 4 USB1-
USB0+ 6 USB1+
GND 8 GND
Key (no pin) 10 NC
USB 2.0 Bracket
(optional)
