11.

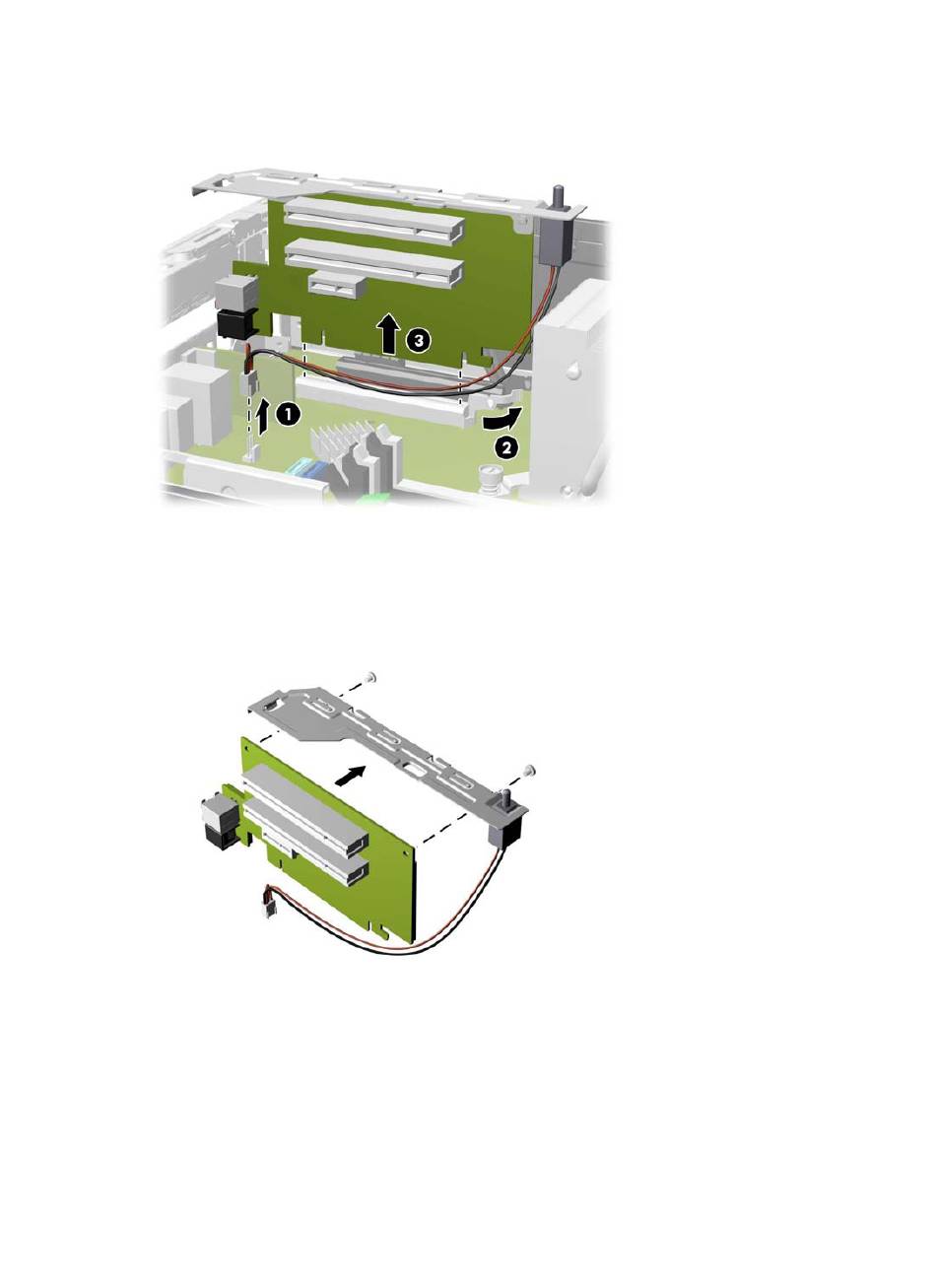

To remove the riser card, disconnect the hood sensor cable from the system board (1), pull back
the arm on the back of the riser card slot (2), then lift the riser card out of the riser card slot (3).
Figure 2-36
Removing the Riser Card
12.
Remove the two screws that secure the metal bracket to the top of the card and remove the
bracket. You do not need to remove the hood sensor from the bracket.
Figure 2-37
Removing the Riser Card Bracket
Replacing the Riser Card
35
