If you are removing a PCI Express card from the black PCI Express x16 socket, pull the

retention arm on the back of the expansion socket away from the card and carefully rock

the card back and forth until the connectors pull free from the socket. Pull the expansion

card straight up from the socket then away from the inside of the chassis to release it from

the chassis frame. Be sure not to scrape the card against the other components.

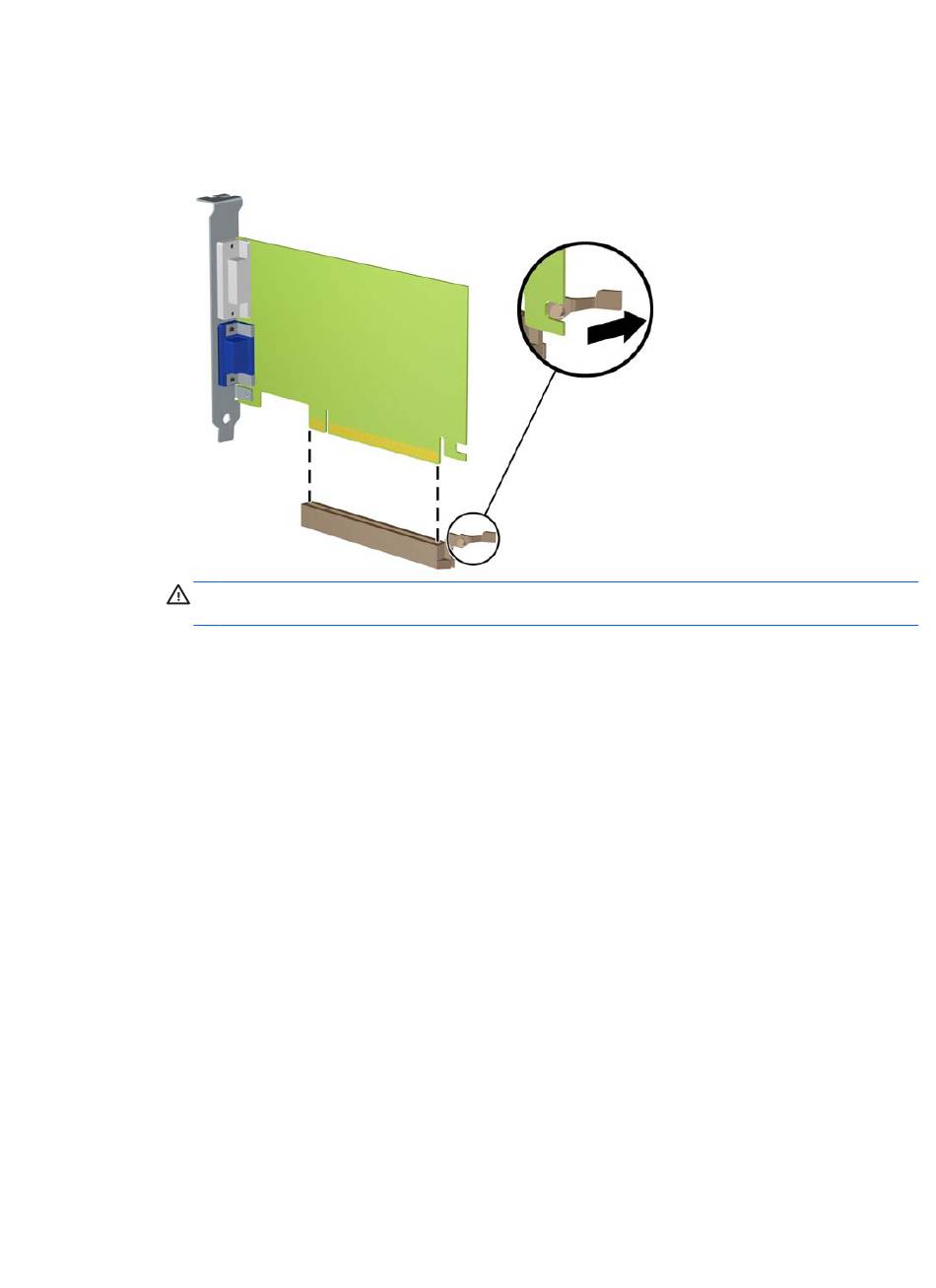

Figure 2-16

Removing a PCI Express x16 Expansion Card

CAUTION:

After removing an expansion card, you must replace it with a new card or

expansion slot cover for proper cooling of internal components during operation.

Installing a Half-Height Expansion Card
