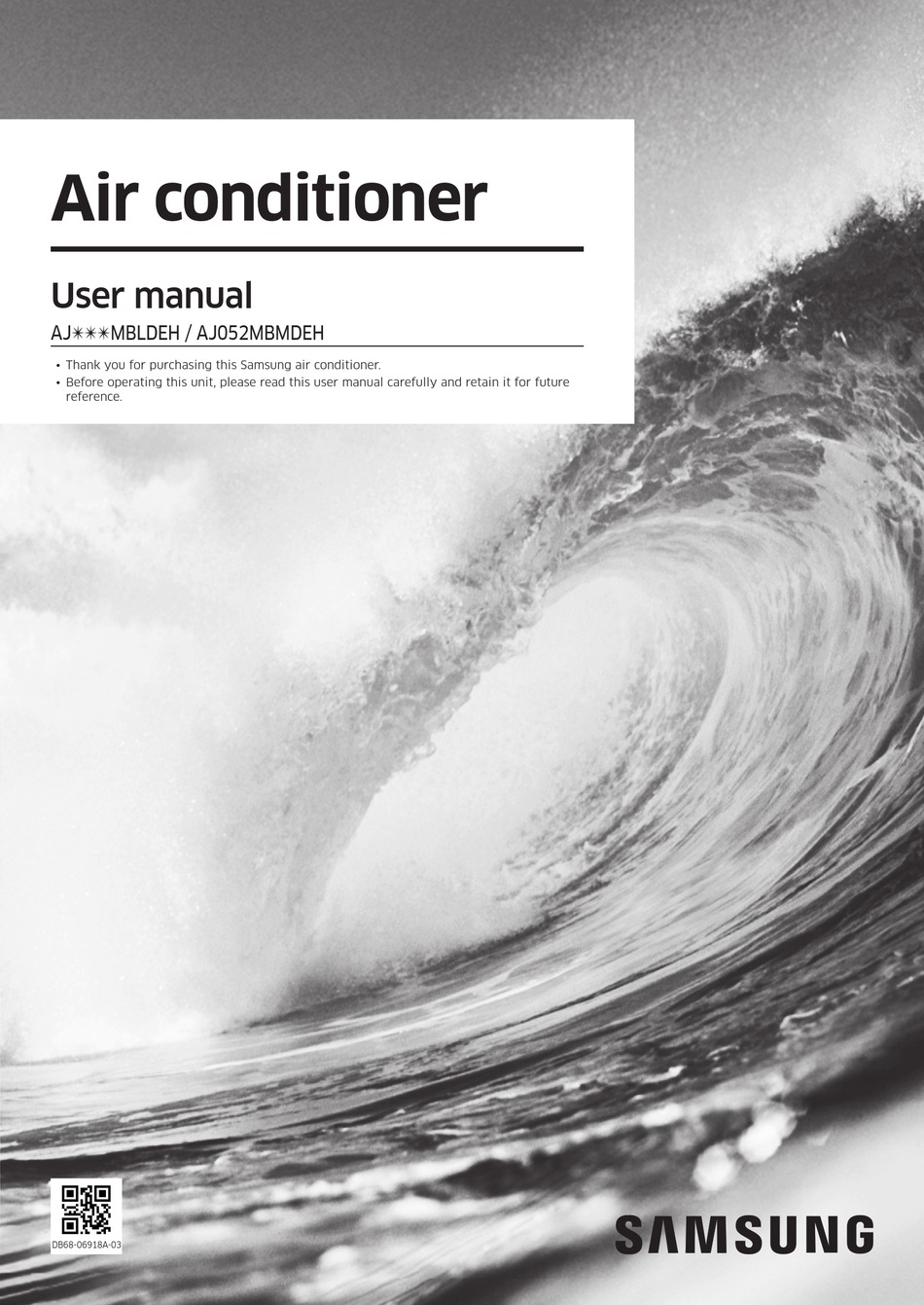

- Page 1 Air conditioner User manual AJMBLDEH / AJ052MBMDEH • Thank you for purchasing this Samsung air conditioner. • Before operating this unit, please read this user manual carefully and retain it for future reference. DB68-06918A-03...
-
Page 2: Table Of Contents
Contents Safety Information Safety Information At a Glance Indoor Unit Overview Cleaning and Maintenance Cleaning the Air Conditioner Cleaning the air filter Maintaining the Air Conditioner Periodical checks Appendix Troubleshooting Operation Features Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems) This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. -
Page 3: Safety Information
If you have any questions, call your nearest contact centre or find help and information online at www.samsung.com. WARNING Hazards or unsafe practices that may result in severe personal injury or death. - Page 4 Safety Information The installation of this appliance must be performed by a qualified technician or service company. • Failing to do so may result in electric shock, fire, explosion, problems with the product, or injury. Install a switch and circuit breaker dedicated to the air conditioner. •...
- Page 5 CAUTION Install your appliance on a level and hard floor that can support its weight. • Failing to do so may result in abnormal vibrations, noise, or problems with the product. Install the draining hose properly so that water is drained correctly. •...
- Page 6 Safety Information FOR USING WARNING If the appliance is flooded, please contact your nearest service centre. • Failing to do so may result in electric shock or fire. If the appliance generates a strange noise, a burning smell or smoke, unplug the power plug immediately and contact your nearest service centre.
- Page 7 After unpacking the air conditioner, keep all packaging materials well out of the reach of children, as packaging materials can be dangerous to children. • If a child places a bag over its head, it may result in suffocation. Do not touch the front panel with your hands or fingers during the heating operation.
- Page 8 Safety Information CAUTION Do not place objects or devices under the indoor unit. • Water dripping from the indoor unit may result in fire or property damage. Check that the installation frame of the outdoor unit is not broken at least once a year.
- Page 9 This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 10: At A Glance
Indoor Unit Overview Congratulations on the purchase of the air conditioner. We hope you enjoy the features of your air conditioner and stay cool or warm with optimal efficiency. Please read the user manual to get started and to make the best use of the air conditioner. SLIM DUCT TYPE(AJMBLDEH) Air filter (the return air side) Ceiling... -
Page 11: Cleaning And Maintenance
Cleaning the Air Conditioner Cleaning the air filter For the best performance from your air conditioner, clean it periodically. When cleaning, make sure to unplug from the unit for user’s safety. When cleaning the filter, make sure to unplug the power from the unit. Washable foam based Air filter captures large particles from the air. - Page 12 Cleaning the Air Conditioner MAS duct type (AJ052MBMDEH) 1. Slide out the Air filter on the rear side panel to the right side. 2. Clean the Air filter with a vacuum cleaner or soft brush. If dust is too heavy, then rinse it with running water and dry it in a ventilated area.
-
Page 13: Maintaining The Air Conditioner
Maintaining the Air Conditioner If the air conditioner will not be used for an extended period of time, dry the air conditioner to maintain in best conditions. 1. Dry the air conditioner thoroughly by operating in Fan mode for 3 to 4 hours and disconnect the power plug. - Page 14 Maintaining the Air Conditioner Internal protections via the unit control system This internal protection operates if an internal fault occurs in the air conditioner. Type Description The internal fan will be off against cold air when the heat pump is Against cold air heating.
-
Page 15: Appendix
Troubleshooting Refer to the following chart if the air conditioner operates abnormally. This may save time and unnecessary expense. Problem Solution • Check if the power plug is properly connected. • Check whether the auxiliary power switch (MCCB, ELB) is turned on. •... - Page 16 Troubleshooting Problem Solution • Check whether the indicator is displayed at the bottom right The wired remote of the remote control display. In this case, turn off both the air control does not conditioner and the auxiliary power switch, and then contact a operate.
- Page 17 Problem Solution • Both cooling and heating do not operate in the Fan mode. Select the Cool, Heat, Auto, or Dry mode. • Check whether the air filter is blocked with dirt. A dusty filter may decrease the cooling and heating efficiencies. Clean the air filter frequently.
- Page 18 Troubleshooting Problem Solution • In winter, if the indoor humidity is high, steam may be produced Steam is produced around the air outlet while the defrost function is running. This is a on the indoor unit. normal operation. The outdoor unit fan continues to •...
-
Page 19: Operation Features
Operation Features Operating temperature and humidity Mode Outdoor temperature Indoor temperature Indoor humidity Cool mode -5°C to 43°C 16°C to 32°C 80% or less Heat mode -15°C to 24°C 27°C or less Dry mode -5°C to 43°C 16°C to 32°C CAUTION •... - Page 20 QUESTIONS OR COMMENTS? COUNTRY CALL OR VISIT US ONLINE AT TURKEY 444 77 11 www.samsung.com/tr/supportt ALGERIA 3004 TUNISIA 80 1000 12 www.samsung.com/n_africa/supportt MOROCCO 080 100 22 55 BOTSWANA 8007260000 NAMIBIA 08 197 267 864 ZAMBIA 0211 350370 MAURITIUS 800 2550 www.samsung.com/support...
