Summary of Contents for Datavideo PD-10

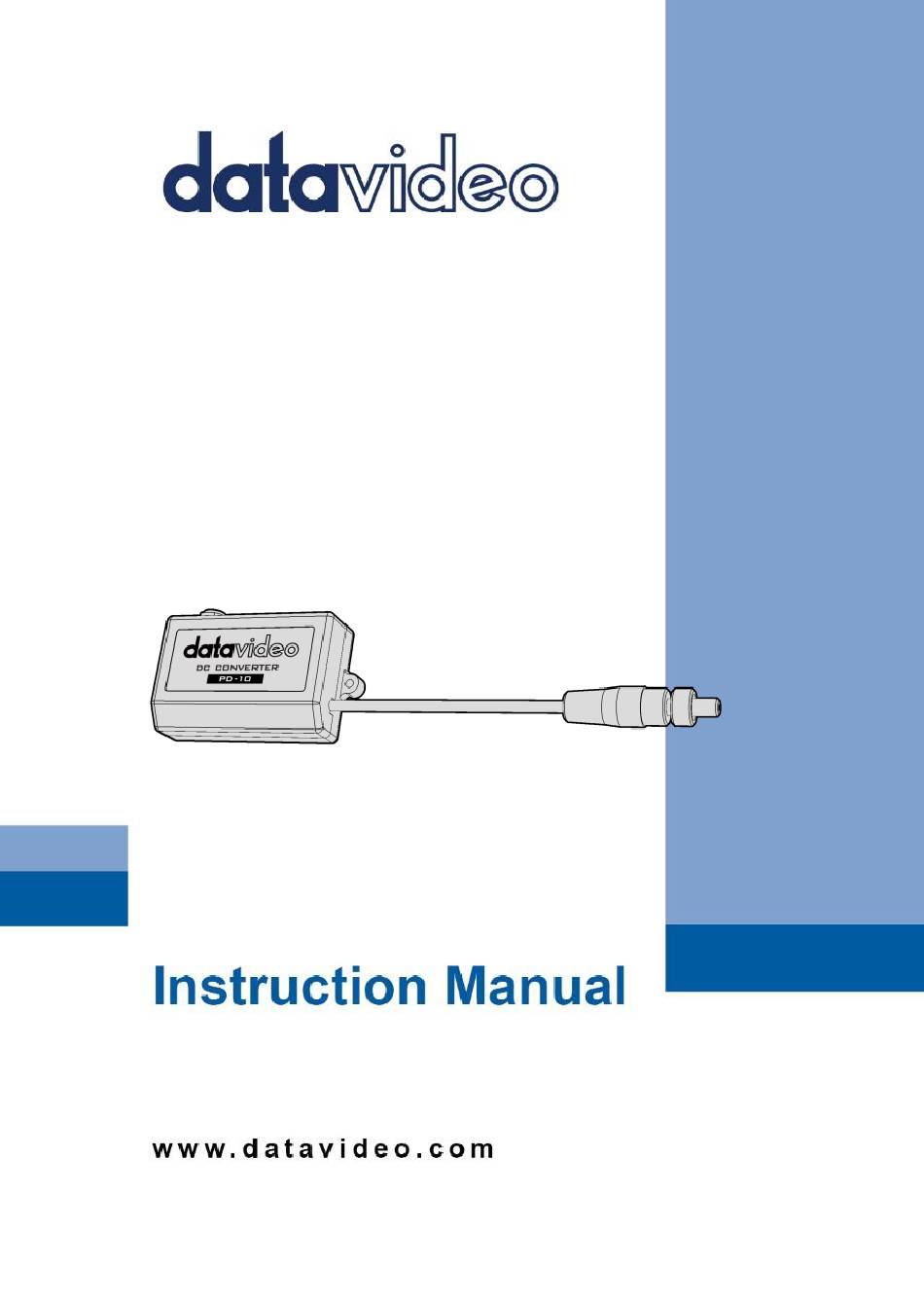

  • Page 1 DC Converter PD-10...

  • Page 2: Table Of Contents

    Table of Contents FCC COMPLIANCE STATEMENT ........4 WARNINGS AND PRECAUTIONS ........4 WARRANTY ..............6 ............ 6 TANDARD ARRANTY ..........7 HREE ARRANTY DISPOSAL ..............7 INTRODUCTION ............. 9 ..............9 EATURES INSTALLATION ............. 10 ............10 RODUCT IAGRAM .............
  • Page 3 Disclaimer of Product & Services The information offered in this instruction manual is intended as a guide only. At all times, Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete.

  • Page 4: Fcc Compliance Statement

    AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. Do not allow anything to rest on the power cord. Do not locate this unit where the power cord will be walked on, rolled over, or otherwise stressed.
  • Page 5 If an extension cord must be used with this unit, make sure that the total of the ampere ratings on the products plugged into the extension cord do not exceed the extension cord rating. 10. Make sure that the total amperes of all the units that are plugged into a single wall outlet do not exceed 15 amperes.

  • Page 6: Warranty

    Datavideo office.  All non-Datavideo manufactured products (product without Datavideo logo) have only one year warranty from the date of purchase.  Damage caused by accident, misuse, unauthorized repairs, sand, grit or water is not covered under warranty.

  • Page 7: Three Year Warranty

    1 year.  The three-year warranty must be registered on Datavideo's official website or with your local Datavideo office or one of its authorized distributors within 30 days of purchase. Disposal For EU Customers only - WEEE Marking...
  • Page 8 CE Marking is the symbol as shown on the left of this page. The letters "CE" are the abbreviation of French phrase "Conformité Européene" which literally means "European Conformity". The term initially used was "EC Mark" and it was officially replaced by "CE Marking"...

  • Page 9: Introduction

    PTR-10/10T device’s DC 12 V Output to a selectable DC Output. You may select either 7.2 V or 8.4 V for powering the camera mounted on the PTR-10/10T. If necessary, the PD-10 can be secured on the PTR- 10/10T device.

  • Page 10: Installation

    Installation Product Diagram As illustrated in the diagram below, secure PD-10 on the PTR-10/10T PD-10...

  • Page 11: Instructions

    1. First drill two screw holes at the bottom of the PTR-10/10T as depicted in the diagram below. 2. Use the two screws that come with the product package to secure PD-10 to the position as indicated by the arrows in the diagram below.

  • Page 12: Connection And Operation

    Connection and Operation PTR-10/10T Output Power Switch DC 12V OUT To camera’s power input...

  • Page 13: Dimensions

    Dimensions All measurements in millimeters (mm)

  • Page 14: Specifications

    Specifications Name DC-DC Converter Model No. PD-10 Input Power 10 – 17 V (Max: 35W) 7.2±5% 3A (21.6 W) Output Power 8.4±5% 3A (25.2 W) Green: 7.2 V LED Behaviors Orange: 8.4 V Operating 0 – 40°C Temperature...
  • Page 15 Notes...

  • Page 16: Service And Support

    Datavideo Technologies Co., Ltd. All rights reserved 2020 Jan-16.2020 Ver:E1...
