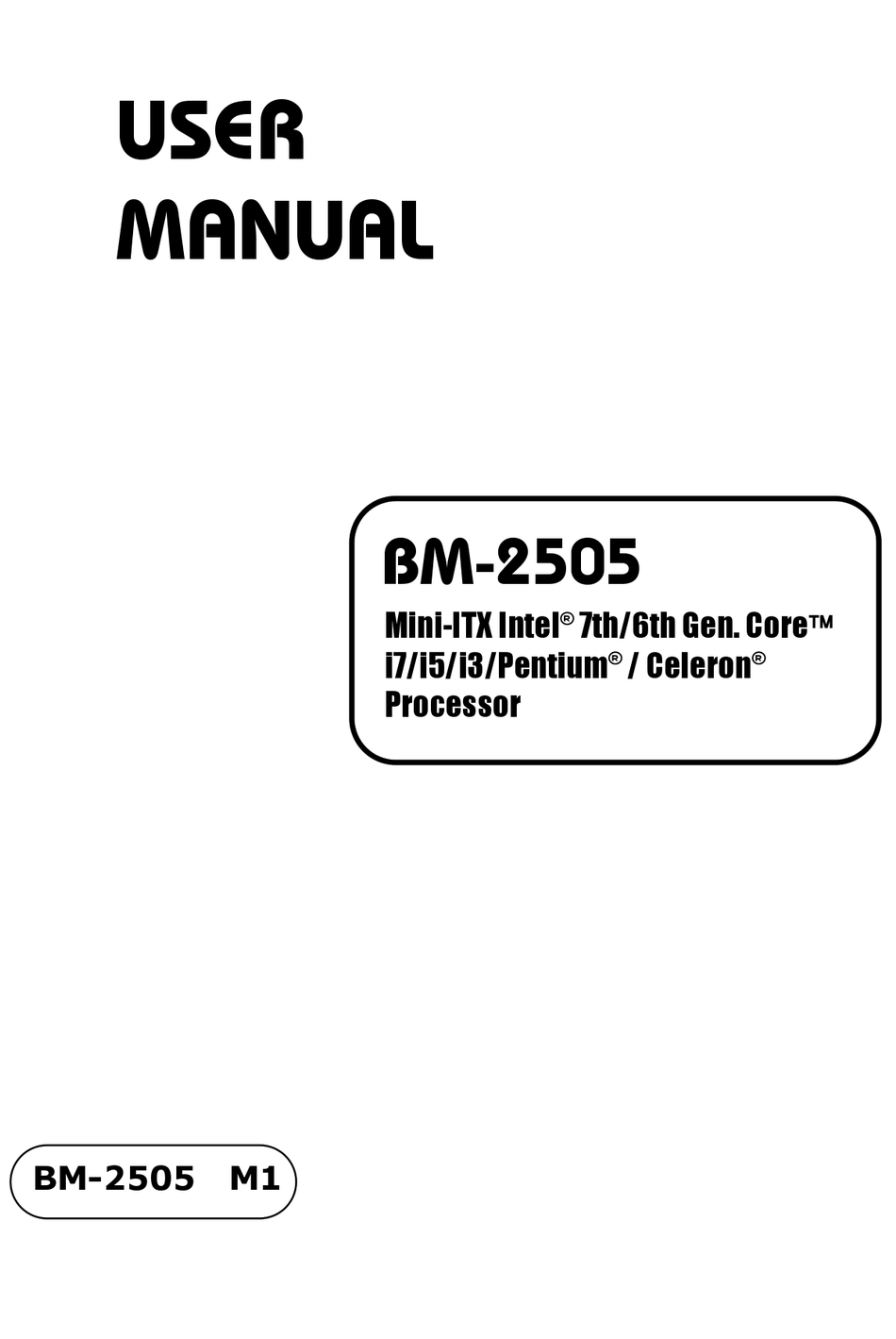

Page 1 USER MANUAL BM-2505 Mini-ITX Intel 7th/6th Gen. Core ® i7/i5/i3/Pentium / Celeron ® ® Processor BM-2505 M1...
Page 2 BM-2505 ® Mini-ITX Intel 7th/6th Gen. ®  Core i7/i5/i3 Pentium ® Celeron Processor COPYRIGHT NOTICE & TRADEMARK All trademarks and registered trademarks mentioned herein are the property of their respective owners. This manual is copyrighted in Mar. 2020. You may not reproduce or transmit in any form or by any means, electronic, or mechanical, including photocopying and recording.
Page 3 FCC NOTICE This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
Page 4: Table Of Contents
................1-1 Introduction ............1-2 About This Manual ................2-1 Getting Started ..............2-2 Package List ............. 2-3 BM-2505 Specifications ............2-4 Safety Precautions ............3-1 Hardware Configuration ..3-2 JUMPER & CONNECTOR QUICK REFERENCE TABLE ..........3-4 COMPONENT LOCATIONS 3.2.1...
Page 5 3.4.7 Keyboard / Mouse Mode Selection ........3-18 3.4.8 Internal USB 2.0 Connector ..........3-19 3.4.9 Dual DVI-D Ports .............. 3-20 3.4.10 DisplayPort Connector (Optional) ........3-22 3.4.11 HD Audio Connector ............3-23 3.4.12 Printer Port Connector (Optional) ........3-24 3.4.13 Front Panel Connector ............
Page 6 ..........4-7 Installing Sound Driver Utility ® ....4-8 Intel USB 3.0 eXtensible Host Controller Utility ® Intel Management Engine Components Driver Installer ................ 4-9 Installation ..4-10 Installing Intel Rapid Storage Technology Driver Utility Installing Microsoft Hotfix kb3211320 and kb3213986 Driver ..............
Page 7 Configuring WatchDog Timer ..............A-21 Flash BIOS Update List of Figures Figure 3-1. BM-2505 Main Board Component Location (Top View) .. 3-5 Figure 3-2. BM-2505 Main Board Component Location (Bottom View) ..................3-6 Figure 5-1. Extensible Firmware Interface Diagram ......5-2...
Page 8: Revision History
Revision History The revision history of BM-2505 User Manual is described below: Version No. Revision History Page No. Date Initial Release 2020/3/18...
Page 9: Introduction
Introduction This chapter provides the introduction for the BM-2505 system as well as the framework of the user manual. The following topic is included: • About This Manual BM-2505 SERIES USER MANUAL Page: 1-1...
Page 10: About This Manual
Chapter 2 Getting Started This chapter describes the package contents and outlines the system specifications. It also includes the physical illustrations for the BM-2505 system. Read the safety reminders carefully on how to take care of your system properly. Chapter 3 System Configuration This chapter outlines the locations of the motherboard components and their respective functions.
Page 11: Getting Started
Getting Started This chapter provides the information for the BM-2505 system. It describes how to set up the system quickly and outlines the system specifications. The following topics are included: • Package List • BM-2505 Specification • Safety Precautions Experienced users can go to Chapter 3 System Configuration on page 3-1 for a quick start.
Page 12 If you discover any of the items listed below are damaged or lost, please contact your local distributor immediately. Item Q’ty BM-2505 Manual / Driver DVD Quick Guide Mini Jumper (2 mm) SATA Cable (240 mm) I/O Shield BM-2505 SERIES USER MANUAL Page: 2-2...
Page 13 Environment Operating Temperature  0°C ~ 60°C (32°F~ 140°F) Storage Temperature  -40°C ~ 85°C (-40°F~ 185°F) Humidity  20%~ 90% ® Note: Intel 7th generation CPU is NOT compatible with Win7 / Win8.1. BM-2505 SERIES USER MANUAL Page: 2-3...
Page 14: Safety Precautions
Always disconnect power when the system is not in use. Disconnect power source when you change any hardware devices. For instance, when you connect a jumper or install any cards, a surge of power may damage the electronic components or the whole system. BM-2505 SERIES USER MANUAL Page: 2-4...
Page 15: Hardware Configuration
I/O Ports diagram, and jumper & connector settings, and component locations for the main board. The following topics are included: • Jumper & Connector Quick Reference Table • Component Locations • Configuration and Jumper Settings • Connector Pin Assignments BM-2505 SERIES USER MANUAL Page: 3-1...
Page 16: Jumper & Connector Quick Reference Table
(Optional) Printer Port (LPT) LPT1 Connector Front Panel Connector CPU Fan Connector CPU_FAN1 System Fan Connector SYS_FAN1 Half-Sized Mini PCI Express Slots M_PCIE1 PCI Express Slots (PCIe (x16)) PCI_E1 SATA 3.0 Connectors SATA1, SATA2 BM-2505 SERIES USER MANUAL Page: 3-2...
Page 17 Chapter 3 Hardware Configuration CONNECTOR Description NAME ATX Power Input Connectors ATX_PWR1, ATX_PWR2 SPI Connector Low Pin Count (LPC) Connector JP12 DDR4 SO-DIMM memory socket SO-DIMM1 DDR4 SO-DIMM memory socket SO-DIMM2 BM-2505 SERIES USER MANUAL Page: 3-3...
Page 18: Component Locations
Chapter 3 Hardware Configuration 3.2 COMPONENT LOCATIONS 3.2.1 Top View of BM-2505RA-**N SYS Fan ATX PWR (4 pins) DisplayPort PCIe(x16) INTEL LGA1151 ATX PWR Mini PCIe (24 pins) CPU Fan 2 x SATA DDR4 SO-DIMM BM-2505 SERIES USER MANUAL Page: 3-4...
Page 19: Jumper Settings Of Bm-2502Ra-**N
1.0V USB3 SATA1 Figure 3-1 BM-2505 Main Board Component Location (Top View) WARNING: Always disconnect the power cord when you are working with connectors and jumpers on the main board. Make sure both the system and peripheral devices are turned OFF as sudden surge of power could damage sensitive components.
Page 20: Bottom View Of Bm-2502Ra-**N
Chapter 3 Hardware Configuration 3.2.3 Bottom View of BM-2502RA-**N Figure 3-2 BM-2505 Main Board Component Location (Bottom View) BM-2505 SERIES USER MANUAL Page: 3-6...
Page 21: I/O View Of Bm-2505Ra-**N
Chapter 3 Hardware Configuration 3.2.4 I/O View of BM-2505RA-**N COM 2 PS/2 Keyboard LAN 1 LAN 2 Line In Connector Line Out COM 1 2 x DVI-D 4 x USB 3.0 2 x USB 2.0 Mic In BM-2505 SERIES USER MANUAL Page: 3-7...
Page 22: Setting Jumpers
2 to create one setting and shorting. You can also select to connect pins 2 and 3 to create another setting. The format of the jumper picture will be illustrated throughout this manual. The figure below shows different types of jumpers and jumper settings. BM-2505 SERIES USER MANUAL Page: 3-8...
Page 23 Chapter 3 Hardware Configuration Jumper diagrams Jumper settings BM-2505 SERIES USER MANUAL Page: 3-9...
Page 24: Setting Main Board Connectors And Jumpers
Jumper Location: JP_COM1 & JP_COM2 & JP_COM4 Description: COM1, COM2 and COM4 Port Pin9 RI/+5V/+12V Selection JUMPER ILLUSTRATION JUMPER SELECTION SETTING JP_COM1 JP_COM2 JP_COM4 (Default Setting) JP_COM2 JP_COM4 JP_COM1 JP_COM2 JP_COM4 JP_COM1 JP_COM2 JP_COM4 JP_COM1 BM-2505 SERIES USER MANUAL Page: 3-10...
Page 25: Com Ports
COM2 DTR# Note: COM2 Pin 9 is selectable for RI, +5V or +12V by jumper setting. Default setting is RI. Please see “COM1, COM2, COM4 Port Pin9 Definition Selection Guide” section for selection details. BM-2505 SERIES USER MANUAL Page: 3-11...
Page 26 COM3(RS-232), COM4(RS-232) Connector Pin Header Pin Assignment: ASSIGNMENT ASSIGNMENT DCD# DSR# RTS# CTS# COM3/ DTR# COM4 Pin Header COM5(RS-232), COM6 (RS-232) Connector Pin Header Pin Assignment: ASSIGNMENT ASSIGNMENT DCD# DSR# RTS# CTS# DTR# COM5/ COM6 Pin Header BM-2505 SERIES USER MANUAL Page: 3-12...
Page 27: Com1 Rs-232/422/485 Selection
Chapter 3 Hardware Configuration 3.4.3 COM1 RS-232/422/485 Selection Jumper Location: JP6 Description: COM1 RS-232/422/485 Selection SELECTION JUMPER SETTINGS JUMPER ILLUSTRATION Open RS-232 (Default Setting) 1-2, RS-422 3-4, 9-10 1-2, RS-485 5-6, BM-2505 SERIES USER MANUAL Page: 3-13...
Page 28: Com1 Rs-485 Auto Flow Selection
Chapter 3 Hardware Configuration 3.4.4 COM1 RS-485 Auto Flow Selection Jumper Location: JP11 Description: COM1 RS-485 Auto Flow Selection SELECTION JUMPER SETTINGS JUMPER ILLUSTRATION Disable JP11 Enable (Default Setting) JP11 BM-2505 SERIES USER MANUAL Page: 3-14...
Page 29: Lan And Dual Usb 3.0 Ports
No LAN switch/hub connected LAN1_USB1 Right Side LED Yellow Color Blinking LAN Message Active No LAN Message Active USB 3.0 signals: ASSIGNMENT ASSIGNMENT VCC5 VCC5 USBP1N USBP2N USBP1P USBP2P RX1_DN RX2_DN RX1_DP RX2_DP TX1_DN TX2_DN TX1_DP TX2_DP BM-2505 SERIES USER MANUAL Page: 3-15...
Page 30 No LAN switch/hub connected LAN2_USB2/ Right Side LED Yellow Color Blinking LAN Message Active No LAN Message Active USB 3.0 signals: ASSIGNMENT ASSIGNMENT VCC5 VCC5 USBP3N USBP4N USBP3P USBP4P RX3_DN RX4_DN RX3_DP RX4_DP TX3_DN TX4_DN TX3_DP TX4_DP BM-2505 SERIES USER MANUAL Page: 3-16...
Page 31: Ps/2 Keyboard Connector And 2 X 1 Usb 2.0 Connectors
3.4.6 PS/2 Keyboard Connector and 2 x 1 USB 2.0 Connectors Port Name: JPS2_USB1 (rear I/O) Description: PS/2 Keyboard Connector and 2 x USB 2.0 Connectors JPS2_USB1 Keyboard signals: ASSIGNMENT ASSIGNMENT DATA USB 2.0 signals: ASSIGNMENT ASSIGNMENT VCC5 VCC5 USB_P6_DN USB_P5_DN USB_P6_DP USB_P5_DP BM-2505 SERIES USER MANUAL Page: 3-17...
Page 32: Keyboard / Mouse Mode Selection
Chapter 3 Hardware Configuration 3.4.7 Keyboard / Mouse Mode Selection Jumper Location: JP13 Description: Keyboard / Mouse Mode Selection SELECTION JUMPER SETTINGS JUMPER ILLUSTRATION Keyboard 1-3, 2-4 Mode (Default Setting) JP13 Mouse Mode 3-5, 4-6 JP13 BM-2505 SERIES USER MANUAL Page: 3-18...
Page 33: Internal Usb 2.0 Connector
Chapter 3 Hardware Configuration 3.4.8 Internal USB 2.0 Connector Connector Location: USB3 Description: Internal USB 2.0 Connector USB 2.0 connector signals: ASSIGNMENT ASSIGNMENT USB_5_VCC5 USB_5_VCC5 USB2_P9_DN_R USB2_P7_DN USB2_P9_DP_R USB2_P7_DP USB3 BM-2505 SERIES USER MANUAL Page: 3-19...
Page 34: Dual Dvi-D Ports
Description: 2 x DVI (Digital Visual Interface) Integrated Connectors (Supports only DVI-D signals) DVI1 DVI1 connector signals (A): ASSIGNMENT ASSIGNMENT DP_Data2- DP_Data2+ +5V Power Ground Ground HOT Plug Detect DP_Data0- DP_Ctrl_Clock DP_Data0+ DP_Ctrl_ Data Ground CRT_VSYNC DP_Data1- DP_Data1+ Ground Ground DP_Clock+ DP_Clock- BM-2505 SERIES USER MANUAL Page: 3-20...
Page 35 Chapter 3 Hardware Configuration DVI1 connector signals (B): ASSIGNMENT ASSIGNMENT DP_Data2- DP_Data2+ +5V Power Ground Ground HOT Plug Detect DP_Data0- DP_Ctrl_Clock DP_Data0+ DP_Ctrl_ Data Ground CRT_VSYNC DP_Data1- DP_Data1+ Ground Ground DP_Clock+ DP_Clock- BM-2505 SERIES USER MANUAL Page: 3-21...
Page 36: Displayport Connector (Optional)
Chapter 3 Hardware Configuration 3.4.10 DisplayPort Connector (Optional) Connector Location: DP1 Description: DisplayPort Connector DP1 (optional) ASSIGNMENT ASSIGNMENT DP_C_DATA0+ DP_C_DATA0- DP_C_DATA1+ DP_C_DATA1- DP_C_DATA2+ DP_C_DATA2- DP_C_DATA3+ DP_C_DATA3- DP_C_AUX_ENJ DP_C_AUX+ DP_C_HPD DP_C_AUX- DP_VCC3_3 DP_VCC5 DP_VCC3_3 BM-2505 SERIES USER MANUAL Page: 3-22...
Page 37: Hd Audio Connector
44 43 42 35 34 33 32 25 24 23 22 HD_LINE-IN-L 5 4 1 3 2 Line In HD_LINE-IN-R Line Out Line Out: ASSIGNMENT Mic In LINE-OUT-L AUDIO1 LINE-OUT-R Mic In: ASSIGNMENT HD_MIC1-L_L HD_MIC1-R_L BM-2505 SERIES USER MANUAL Page: 3-23...
Page 38: Printer Port Connector (Optional)
Chapter 3 Hardware Configuration 3.4.12 Printer Port Connector (Optional) Connector Location: LPT1 Description: Printer Port Connector LPT1 (optional) Printer Port (LPT1) signals: ASSIGNMENT ASSIGNMENT STRB# ERR# INIT SLIN ACK# BUSY SLCT BM-2505 SERIES USER MANUAL Page: 3-24...
Page 39: Front Panel Connector
Chapter 3 Hardware Configuration 3.4.13 Front Panel Connector Connector Location: FP1 Description: Front Panel Connector ASSIGNMENT ASSIGNMENT HDD+ PWR+ HDD- PWR- Power Button Reset Button BM-2505 SERIES USER MANUAL Page: 3-25...
Page 40: Cpu Fan Connector
2. Default BIOS setting is “Auto Duty-Cycle Mode”. Please see Chapter 5 for more details. 3.4.15 System Fan Connector Connector Location: SYS_FAN1 Description: System Fan Connector System Fan Connector (SYS_FAN1) signals: ASSIGNMENT VCC12 SYS_FAN1 BM-2505 SERIES USER MANUAL Page: 3-26...
Page 41: Half-Sized Mini Pci Express Slots
Mini PCI Express is the successor of the Mini PCI card and provides an increased data throughput. The cards have a detached network interface and are equipped with one lane. They are used in particular in embedded designs or compact box PCs. BM-2505 SERIES USER MANUAL Page: 3-27...
Page 42: Pci Express Slots
PRSNT#2 HSIN3 HSOP4 RSVD RSVD HSON4 HSIP4 HSOP5 HSIN4 HSON5 HSIP5 HSOP6 HSIN5 HSON6 HSIP6 HSOP7 HSIN6 HSON7 HSIP7 PRSNT#2 HSIN7 HSOP8 HSON8 RSVD HSIP8 HSIN8 HSOP9 HSON9 HSIP9 HSIN9 HSOP10 HSON10 HSIP10 HSIN10 BM-2505 SERIES USER MANUAL Page: 3-28...
Page 43 Chapter 3 Hardware Configuration ASSIGNMENT ASSIGNMENT ASSIGNMENT ASSIGNMENT HSOP11 HSON11 HSIP11 HSIN11 HSOP12 HSON12 HSIP12 HSIN12 HSOP13 HSON13 HSIP13 HSIN13 HSOP14 HSIN14 HSIP14 HSIN14 HSIP15 HSIN15 PRSNT#2 HSIP15 HSIN15 RSVD BM-2505 SERIES USER MANUAL Page: 3-29...
Page 44: Sata 3.0 Connectors
Description: Serial ATA (SATA) 6GB/s Connector SATA1 Serial ATA 6GB/s Connector (SATA1) signals: ASSIGNMENT TXPC TXNC RXNC RXPC Connector Location: SATA2 Description: Serial ATA (SATA) 6GB/s Connector SATA2 Serial ATA 6GB/s Connector (SATA2) signals: ASSIGNMENT TXPC TXNC RXNC RXPC BM-2505 SERIES USER MANUAL Page: 3-30...
Page 45: Atx Power Connectors
ATX_PWR1 ATX Power Connector signals: ASSIGNMENT ASSIGNMENT +3.3V +3.3V +3.3V PSON PWROK 5VSB +12V +12V +3.3V ATX_PWR1 Connector Location: ATX_PWR2 Description: DC Power Input Connector ATX_PWR2 DC Power Input Connector signals: ASSIGNMENT ASSIGNMENT +12V +12V ATX_PWR2 BM-2505 SERIES USER MANUAL Page: 3-31...
Page 46: At / Atx Mode Selection
Jumper Location: JP2 Description: AT / ATX Mode Selection SELECTION JUMPTER SETTING JUMPER ILLUSTRATION (Default Setting) Jumper Location: JP3 Description: AT / ATX Mode Selection SELECTION JUMPTER SETTING JUMPER ILLUSTRATION Close Open (Default Setting) BM-2505 SERIES USER MANUAL Page: 3-32...
Page 47: Spi Connector
Description: SPI (Serial Peripheral Interface Bus) Connector ASSIGNMENT ASSIGNMENT 3.3V MISO MOSI 3.4.22 SPI Override Protection Selection Jumper Location: JP9 Description: SPI Override Protection Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION Open Enable (Default Setting) Disable Close BM-2505 SERIES USER MANUAL Page: 3-33...
Page 48: Intruder Detection Selection
Chapter 3 Hardware Configuration 3.4.23 Intruder Detection Selection Jumper Location: JP4 Description: Intruder Detection Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION Enable Close Open Disable (Default Setting) BM-2505 SERIES USER MANUAL Page: 3-34...
Page 49: Low Pin Count (Lpc) Connector
LPC_AD0 LPC_AD3 LPC_AD2 3.3V LPC_AD1 JP12 3.4.25 Clear RTC Data Selection Jumper Location: JRTC1 Description: Clear RTC Data Selection SELECTION JUMPER SETTINGS JUMPER ILLUSTRATION Open Normal (Default Setting) JRTC1 Clear RTC Close Data JRTC1 BM-2505 SERIES USER MANUAL Page: 3-35...
Page 50: Vccio Voltage Selection
Chapter 3 Hardware Configuration 3.4.26 VCCIO Voltage Selection Jumper Location: JP1 Description: VCCIO Voltage Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION 0.95V (Default Setting) 1.0V BM-2505 SERIES USER MANUAL Page: 3-36...
Page 51: Bios Recovery Mode Selection
Chapter 3 Hardware Configuration 3.4.27 BIOS Recovery Mode Selection Jumper Location: JP5 Description: BIOS Recovery Mode Selection SELECTION JUMPER SETTING JUMPER ILLUSTRATION Normal (Default Setting) Configure Recovery Open BM-2505 SERIES USER MANUAL Page: 3-37...
Page 52: Clear Cmos Data Selection
Step 4. Power on the PC and the PC will then auto-reboot for once in order to set SoC’s register. Step 5. Done! SELECTION JUMPER SETTINGS JUMPER ILLUSTRATION Open Normal (Default Setting) JCMOS1 Clear CMOS Close Data JCMOS1 Note: Please make sure the main power is off before you clear CMOS. BM-2505 SERIES USER MANUAL Page: 3-38...
Page 53: Software Utilities
• Installing USB 3.0 eXtensible Host Controller Utility • Installing Intel ® Management Engine Components Driver Installer • Installing Intel ® Rapid Storage Technology (RST) Driver Utility • Installing Microsoft Hotfix kb3211320 and kb3213986 Driver Installation BM-2505 SERIES USER MANUAL Page: 4-1...
Page 54: Introduction
Chapter 4 Software Utilities 4.1 Introduction Enclosed with the BM-2505 Series package is our driver utilities contained in a DVD-ROM disk. Refer to the following table for driver locations: Filename (Assume that Purpose DVD- ROM drive is D :) D:\DRIVER\Platform\Chipset\ Chipset_10.1.1.44...
Page 55 Windows 7(32-bit) D:\Platform\RST\ Windows 7(64-bit) Intel(R) Rapid Storage Technology D:\DRIVER\Platform\RST\ Windows 8.1(64-bit) D:\DRIVER\Platform\RST\ Windows 10(64-bit) D:\ DRIVER\Platform\Hotfix Microsoft Hotfix kb3211320 and kb3213986 Note: Install the driver utilities immediately after the OS installation is completed. BM-2505 SERIES USER MANUAL Page: 4-3...
Page 56: Installing Intel ® Chipset Software Installation Utility
10 series, and it should be installed immediately after the OS installation is finished. Please follow the steps below: Connect the USB DVD-ROM device to BM-2505 and insert the driver disk. Enter the Chipset folder where the Chipset driver is located.
Page 57: Installing Graphics Driver Utility
Chapter 4 Software Utilities 4.3 Installing Graphics Driver Utility The graphics interface embedded in BM-2505 can support a wide range of display types. You can have dual displays via DVI-D ports and make the system work simultaneously. To install the Graphics driver utility, follow the steps below: Connect the USB DVD-ROM device to BM-2505 and insert the driver disk.
Page 58: Installing Lan Driver Utility
4.4 Installing LAN Driver Utility Enhanced with LAN function, BM-2505 supports various network adapters. To install the LAN Driver, follow the steps below: Connect the USB DVD-ROM device to BM-2505 and insert the driver disk. Enter the LAN folder where the driver is located.
Page 59: Installing Sound Driver Utility
® Windows 7/8.1/10 series. To install the Sound Driver, follow the steps below: Connect the USB DVD-ROM device to BM-2505 and insert the driver disk. Open the Sound folder where the driver is located. Click Audio_0007-Win7_Win8_Win81_Win10_R281.exe file for Sound driver installation.
Page 60: Intel ® Usb 3.0 Extensible Host Controller Utility
100 Series Chipset Family • To install the utility, follow the steps below: Connect the USB DVD-ROM device to BM-2505 and insert the driver disk. Open the USB3 folder where the driver is located. Select Windows 7 (32/64-bit) for your OS platform.
Page 61: Intel ® Management Engine Components Driver Installer Installation
® Installation Instructions for Intel Management Engine Components Driver Installer Connect the USB DVD-ROM device to BM-2505 and insert the driver disk. Enter the ME folder where the driver is located. Select the driver folder for H110 / Q170 SKU.
Page 62: Installing Intel Rapid Storage Technology Driver Utility
RAID 0, 1 in Q170 SKU for 2 SATAIII HDD/SSD. To install the RAID/RST driver utility, follow the steps below: Connect the USB DVD-ROM device to BM-2505 and insert the driver disk. Enter the RST folder where the driver is located.
Page 63 Chapter 4 Software Utilities Option ROM prompt: In the user interface, the hard drive(s) and hard drive information listed for your system will differ from the example in the figure below: Option ROM user interface: BM-2505 SERIES USER MANUAL Page: 4-11...
Page 64: Installing Microsoft Hotfix Kb3211320 And Kb3213986 Driver Installation
The installer, compatible with Windows 10, detects the system's capabilities and installs the relevant drivers and applications. To install the utility, simply follow the steps below: Connect the USB DVD-ROM device to BM-2505 and insert the driver disk. Enter the Hotfix folder where the driver is located.
Page 65: Bios Setup
The BIOS Setup Utilities consist of the following menu items: Main Menu • Advanced Menu • Chipset Menu • Security Menu • Boot Menu • Save & Exit Menu • BM-2505 SERIES USER MANUAL Page: 5-1...
Page 66: Introduction
Chapter 5 BIOS Setup 5.1 Introduction The board BM-2505 uses an AMI (American Megatrends Incorporated) Aptio BIOS that is stored in the Serial Peripheral Interface Flash Memory (SPI Flash) and can be updated. The SPI Flash contains the built-in BIOS setup program, Power-On Self-Test (POST), PCI auto-configuration utility, LAN EEPROM information, and Plug and Play support.
Page 67 BIOS setup menu by pressing <Del> or <Esc> immediately while the POST message is running before the operating system is loading. All the menu settings are described in details in this chapter. BM-2505 SERIES USER MANUAL Page: 5-3...
Page 68: Accessing Setup Utility
Press <DEL> or <ESC> to enter setup. Figure 5-2. POST Screen with AMI Logo Press <Del> or <Esc> to access the Setup Utility program and the Main menu of the Aptio Setup Utility will appear on the screen as shown: BM-2505 SERIES USER MANUAL Page: 5-4...
Page 69 Select a different menu screen (move the cursor from the selected menu to the left or right). <↑> and <↓> Select a different item (move the cursor from the selected item upwards or downwards) BM-2505 SERIES USER MANUAL Page: 5-5...
Page 70 Load the previous configuration values. <F3> Load the default configuration values. <F4> Save the current values and exit the BIOS setup menu. <Esc> Close the sub-menu. Trigger the confirmation to exit BIOS setup menu. BM-2505 SERIES USER MANUAL Page: 5-6...
Page 71: Main
Month, day, year Sets the system date. The format is [Day Month/ Date/ Year]. Users can directly enter values or use <+> or <-> arrow keys to increase/decrease it. The “Day” is automatically changed. BM-2505 SERIES USER MANUAL Page: 5-7...
Page 72 BIOS Setting Options Description/Purpose System Time Hour, minute, second Sets the system time. The format is [Hour: Minute: Second]. Users can directly enter values or use <+> or <-> arrow keys to increase/decrease it. BM-2505 SERIES USER MANUAL Page: 5-8...
Page 73: Advanced
F81866 Super IO Sub-Menu System Super I/O Chip Parameters. Configuration Hardware Monitor Sub-Menu Monitor hardware status. F81866 Watchdog Sub-Menu F81866 Watchdog Parameters. Network Stack Sub-Menu Network Stack Settings. Configuration USB Configuration Sub-Menu USB Configuration Parameters. BM-2505 SERIES USER MANUAL Page: 5-9...
Page 74: Advanced - Cpu Configuration
No changeable options Displays L4 Cache size. No changeable options Supports Intel VMX Technology. SMX/TXT No changeable options Reports if Intel Secure Mode Extensions Technology (SMX) /Trusted Execution Technology (TXT) is supported by the processor. BM-2505 SERIES USER MANUAL Page: 5-10...
Page 75 Enabling this function will improve parallelization of computation performed on PC microprocessor. For each processor core that is physically present, the operating system addresses two virtual processors, and shares the workload between them when possible. BM-2505 SERIES USER MANUAL Page: 5-11...
Page 76: Advanced - Sata Configuration
Port 1 - 2 - Disabled Enables or Disables SATA Port Device. - Enabled Hot Plug - Disabled Enables or Disables SATA Port Device - Enabled Hot Plug function to designate a SATA port device as hot-pluggable. BM-2505 SERIES USER MANUAL Page: 5-12...
Page 77: Advanced - Pch-Fw Configuration
Description/Purpose ME Firmware Version No changeable options Displays the ME Firmware Version. ME Firmware Mode No changeable options Displays the ME Firmware Mode. ME Firmware SKU No changeable options Displays the ME Firmware SKU. BM-2505 SERIES USER MANUAL Page: 5-13...
Page 78: Advanced - Acpi Settings
SUSPEND button is pressed. Lock Legacy - Disabled Enables or Disables Lock of Legacy Resources - Enabled Resources. - Disabled Enables or Disables S3 Video Repost. S3 Video Repost - Enabled BM-2505 SERIES USER MANUAL Page: 5-14...
Page 79: Advanced - F81866 Super Io Configuration
Serial Port 5 Configuration Sub-Menu Sets the parameters of Serial Port 5 (COME). Serial Port 6 Configuration Sub-Menu Sets the parameters of Serial Port 6 (COMF). Parallel Port Sub-Menu Sets the parameters of Parallel Port (LPT). BM-2505 SERIES USER MANUAL Page: 5-15...
Page 80 Serial Port 1. Change Settings - Auto Allows you to select specific - IO=3F8h; IRQ=4 I/O address and IRQ for - IO=3F8h; IRQ=3,4,5,6,7,10,11 Serial Port 1. - IO=2F8h; IRQ=3,4,5,6,7,10,11 - IO=3E8h; IRQ=3,4,5,6,7,10,11 - IO=2E8h; IRQ=3,4,5,6,7,10,11 BM-2505 SERIES USER MANUAL Page: 5-16...
Page 81 Serial Port 2. Change Settings - Auto Allows you to select specific - IO=2F8h; IRQ=3 I/O address and IRQ for - IO=3F8h; IRQ=3,4,5,6,7,10,11 Serial Port 2. - IO=2F8h; IRQ=3,4,5,6,7,10,11 - IO=3E8h; IRQ=3,4,5,6,7,10,11 - IO=2E8h; IRQ=3,4,5,6,7,10,11 BM-2505 SERIES USER MANUAL Page: 5-17...
Page 82 Serial Port 3. Change Settings - Auto Allows you to select specific - IO=3E8h; IRQ=7 I/O address and IRQ for - IO=3E8h; IRQ=3,4,5,6,7,10,11 Serial Port 3. - IO=2E8h; IRQ=3,4,5,6,7,10,11 - IO=2F0h; IRQ=3,4,5,6,7,10,11 - IO=2E0h; IRQ=3,4,5,6,7,10,11 BM-2505 SERIES USER MANUAL Page: 5-18...
Page 83 Serial Port 4. Change Settings - Auto Allows you to select specific - IO=2E8h; IRQ=10 I/O address and IRQ for - IO=3E8h; IRQ=3,4,5,6,7,10,11 Serial Port 4. - IO=2E8h; IRQ=3,4,5,6,7,10,11 - IO=2F0h; IRQ=3,4,5,6,7,10,11 - IO=2E0h; IRQ=3,4,5,6,7,10,11 BM-2505 SERIES USER MANUAL Page: 5-19...
Page 84 Serial Port 5. Change Settings - Auto Allows you to select specific - IO=2F0h; IRQ=6 I/O address and IRQ for - IO=3E8h; IRQ=3,4,5,6,7,10,11 Serial Port 5. - IO=2E8h; IRQ=3,4,5,6,7,10,11 - IO=2F0h; IRQ=3,4,5,6,7,10,11 - IO=2E0h; IRQ=3,4,5,6,7,10,11 BM-2505 SERIES USER MANUAL Page: 5-20...
Page 85 Serial Port 6. Change Settings - Auto Allows you to select specific - IO=2E0h; IRQ=11 I/O address and IRQ for - IO=3E8h; IRQ=3,4,5,6,7,10,11 Serial Port 6. - IO=2E8h; IRQ=3,4,5,6,7,10,11 - IO=2F0h; IRQ=3,4,5,6,7,10,11 - IO=2E0h; IRQ=3,4,5,6,7,10,11 BM-2505 SERIES USER MANUAL Page: 5-21...
Page 86 DMA resource. - EPP-1.7 and SPP Mode After Mode is changed, reset - ECP Mode the system to reflect actual - ECP and EPP 1.9 Mode device settings. - ECP and EPP 1.7 Mode BM-2505 SERIES USER MANUAL Page: 5-22...
Page 87: Advanced - Hardware Monitor
No changeable options the VCC5V in supply. Detects and displays voltage level of VCC12 No changeable options the VCC12 in supply. Detects and displays voltage level of VCC3V No changeable options the VCC3V in supply. BM-2505 SERIES USER MANUAL Page: 5-23...
Page 88: Advanced - Hardware Monitor - Smart Fan Mode
Smart Fan Mode selection for CPU Control - Auto Duty-Cycle Mode Fan. Manual Duty Mode Numeric (from 1 to 100) Manual mode fan control. Users can write expected duty cycle from 1-100 (PWM fan type). BM-2505 SERIES USER MANUAL Page: 5-24...
Page 89: Advanced - F81866 Watchdog Configuration
Selects 1s (second) or 60s (minute) as Watchdog timer unit - 60s the time unit of Watchdog timer. Count for Timer Numeric Sets the timeout for Watchdog timer. (Seconds) (from 1 to 255) (Max. value: 255 seconds or minutes) BM-2505 SERIES USER MANUAL Page: 5-25...
Page 90: Advanced - Network Stack Configuration
IPv6 PXE boot option will not be created. PXE boot wait Number of seconds to wait for PXE boot Numeric (from 0 to 5) time to abort after the Esc key is pressed. BM-2505 SERIES USER MANUAL Page: 5-26...
Page 91: Advanced - Usb Configuration
The USB Configuration allows users to enable/disable USB mass storage driver support. USB Configuration Screen BIOS Setting Options Description/Purpose USB Mass Storage - Enabled Enables or Disables USB mass storage Driver Support - Disabled driver support. BM-2505 SERIES USER MANUAL Page: 5-27...
Page 92: Chipset
This menu allows users to configure advanced Chipset settings such as System Agent (SA) and PCH-IO configuration parameters. Chipset Screen BIOS Setting Options Description/Purpose System Agent (SA) Sub-Menu System Agent (SA) parameters. Configuration PCH-IO Configuration Sub-Menu PCH parameters. BM-2505 SERIES USER MANUAL Page: 5-28...
Page 93: Chipset - System Agent (Sa) Configuration
I/O devices in virtualized environment. Memory Sub-Menu Displays the DRAM information on the Configuration platform. BM-2505 SERIES USER MANUAL Page: 5-29...
Page 94: Chipset - Sa Configuration - Memory Configuration
No changeable options Displays the Frequency of Memory. Memory Timings No changeable options Displays the Memory (RAM) timings (tCL-tRCD-tRP-tRAS) and latency. • CAS Latency (tCL) - This is the most important memory timing. CAS stands BM-2505 SERIES USER MANUAL Page: 5-30...
Page 95 (tRAS = tCL + tRCD + tRP). Displays if SO-DIMM#1 socket is SO-DIMM#1 No changeable options populated/enabled or not. Displays if SO-DIMM#2 socket is SO-DIMM#2 No changeable options populated/enabled or not. Size No changeable options Displays the total memory size. BM-2505 SERIES USER MANUAL Page: 5-31...
Page 96: Chipset - System Agent (Sa) Configuration - Graphics
Selects which of IGFX/PEG Graphics Primary Display - IGFX device should be Primary Display. - PEG - Auto Keeps IGFX enabled based on the setup Internal Graphics - Disabled options. - Enabled LCD Control Sub-Menu LCD Control sub-menu. BM-2505 SERIES USER MANUAL Page: 5-32...
Page 97 - VBIOS default Selects Primary Display Device. Boot Display - DVI-D 1 - DVI-D 2 - DisplayPort Secondary IGFX - Disabled Selects Secondary Display Device. Boot Display - DVI-D 1 - DVI-D 2 - DisplayPort BM-2505 SERIES USER MANUAL Page: 5-33...
Page 98: Chipset -System Agent (Sa) Configuration - Peg Port
Enables or Disables the Root Port. - Enabled - Auto Max Link Speed - Auto Configures PCI-E1 maximum speed. - Gen1 - Gen2 - Gen3 Detect - Disabled Detects Non-Compliance PCI Express Non-Compliance - Enabled Device in PEG. Device BM-2505 SERIES USER MANUAL Page: 5-34...
Page 99: Chipset - Pch-Io Configuration
Default: Enabled. State After G3 - Power On Specifies the Power On/Off state that the - Power Off system will go into when the power is re-applied following a power failure (G3 state). BM-2505 SERIES USER MANUAL Page: 5-35...
Page 100: Chipset - Pch-Io Configuration - Pci Express
PCI Express Configuration Screen BIOS Setting Options Description/Purpose PCIE Port No changeable options Displays the LAN assigned PCIE Port. assigned to LAN Mini PCI Express Configures Mini PCI Express Port Sub-Menu Port settings. BM-2505 SERIES USER MANUAL Page: 5-36...
Page 101: Configuration
- L1.2 - L1.1 & L1.2 Hot Plug - Disabled Enables or Disables PCI Express Hot - Enabled Plug. PCIe Speed - Auto Selects PCI Express Port Speed. - Gen1 - Gen2 - Gen3 BM-2505 SERIES USER MANUAL Page: 5-37...
Page 102: Security
An administrator has much more privileges over the settings in the Setup utility than a user. Heed that a user password does not provide access to most of the features in the Setup utility. Security Screen BM-2505 SERIES USER MANUAL Page: 5-38...
Page 103 <Enter>, and the password dialog entry box appears. Select the configured Administrator Password or User Password that you want to delete. Leave the dialog box blank and press <Enter>. Press <Enter> again when the password confirmation box appears. BM-2505 SERIES USER MANUAL Page: 5-39...
Page 104: Boot
Selects the NumLock state after the NumLock State - Off system is powered on. • On: Enables the NumLock function automatically after the system is powered on. • Off: Disables the NumLock function after the system is powered on. BM-2505 SERIES USER MANUAL Page: 5-40...
Page 105 Note that in the menu displayed, you will only see the device with the highest priority for a specific boot device type. Sub-Menu CSM configuration: Enable/Disable, Configuration Option ROM execution settings, etc. BM-2505 SERIES USER MANUAL Page: 5-41...
Page 106: Boot - Csm Configuration
Boot option filter - UEFI and Legacy This option controls Legacy/UEFI ROMs - UEFI only priority. Network - Do not launch Controls the execution of UEFI and Legacy PXE OpROM. - UEFI - Legacy BM-2505 SERIES USER MANUAL Page: 5-42...
Page 107 - Do not launch - UEFI Legacy Video OpROM. - Legacy Other PCI Determines OpROM execution policy for - Do not launch devices devices other than Network, Storage or - UEFI - Legacy Video. BM-2505 SERIES USER MANUAL Page: 5-43...
Page 108: Save & Exit
Discard Changes and Reset to discard any changes you have made and restore the factory BIOS defaults. Load User Defaults You may simply press F3 at any time to load the Optimized Values which resets all BIOS settings to the factory defaults. Save & Exit Screen BM-2505 SERIES USER MANUAL Page: 5-44...
Page 109 Saves the changes done so far as User No changeable options Defaults Defaults. Restore User Restores the User Defaults to all the BIOS No changeable options Defaults settings. Boot Override - [Drive(s)] Forces to boot from selected [drive(s)]. BM-2505 SERIES USER MANUAL Page: 5-45...
Page 110: Appendix A Technical Summary
Appendix A Technical Summary This appendix will give you a brief introduction of the allocation maps for the system resources. The following topics are included: • BM-2505 Block Diagram • Interrupt Map • I/O Map • DMA Channels Map • Memory Map •...
Page 111: Bm-2505 Block Diagram
High Definition Codec SPI Flash ROM LOW PIN COUNT 80 PORT for Debug COM1 RS 232/422/485 Connector COM2/3/4/5/6 RS232 FINTEK CPU FAN*1, SYSTEM FAN*1 LPC SIO COM1/2/4 support 5V/12V HW monitor F81866AD-I LPT Port [Wafer 25pins] BM-2505 SERIES USER MANUAL Page: A-2...
Page 112: Interrupt Map
IRQ 72 Microsoft ACPI-Compliant System IRQ 73 Microsoft ACPI-Compliant System IRQ 74 Microsoft ACPI-Compliant System IRQ 75 Microsoft ACPI-Compliant System IRQ 76 Microsoft ACPI-Compliant System IRQ 77 Microsoft ACPI-Compliant System IRQ 78 Microsoft ACPI-Compliant System BM-2505 SERIES USER MANUAL Page: A-3...
Page 113 IRQ 111 Microsoft ACPI-Compliant System IRQ 112 Microsoft ACPI-Compliant System IRQ 113 Microsoft ACPI-Compliant System IRQ 114 Microsoft ACPI-Compliant System IRQ 115 Microsoft ACPI-Compliant System IRQ 116 Microsoft ACPI-Compliant System IRQ 117 Microsoft ACPI-Compliant System BM-2505 SERIES USER MANUAL Page: A-4...
Page 114 IRQ 150 Microsoft ACPI-Compliant System IRQ 151 Microsoft ACPI-Compliant System IRQ 152 Microsoft ACPI-Compliant System IRQ 153 Microsoft ACPI-Compliant System IRQ 154 Microsoft ACPI-Compliant System IRQ 155 Microsoft ACPI-Compliant System IRQ 156 Microsoft ACPI-Compliant System BM-2505 SERIES USER MANUAL Page: A-5...
Page 115 IRQ 189 Microsoft ACPI-Compliant System IRQ 190 Microsoft ACPI-Compliant System IRQ 191 Microsoft ACPI-Compliant System IRQ 192 Microsoft ACPI-Compliant System IRQ 193 Microsoft ACPI-Compliant System IRQ 194 Microsoft ACPI-Compliant System IRQ 195 Microsoft ACPI-Compliant System BM-2505 SERIES USER MANUAL Page: A-6...
Page 116 IRQ 279 Microsoft ACPI-Compliant System IRQ 280 Microsoft ACPI-Compliant System IRQ 281 Microsoft ACPI-Compliant System IRQ 282 Microsoft ACPI-Compliant System IRQ 283 Microsoft ACPI-Compliant System IRQ 284 Microsoft ACPI-Compliant System IRQ 285 Microsoft ACPI-Compliant System BM-2505 SERIES USER MANUAL Page: A-7...
Page 117 IRQ 318 Microsoft ACPI-Compliant System IRQ 319 Microsoft ACPI-Compliant System IRQ 320 Microsoft ACPI-Compliant System IRQ 321 Microsoft ACPI-Compliant System IRQ 322 Microsoft ACPI-Compliant System IRQ 323 Microsoft ACPI-Compliant System IRQ 324 Microsoft ACPI-Compliant System BM-2505 SERIES USER MANUAL Page: A-8...
Page 118 IRQ 357 Microsoft ACPI-Compliant System IRQ 358 Microsoft ACPI-Compliant System IRQ 359 Microsoft ACPI-Compliant System IRQ 360 Microsoft ACPI-Compliant System IRQ 361 Microsoft ACPI-Compliant System IRQ 362 Microsoft ACPI-Compliant System IRQ 363 Microsoft ACPI-Compliant System BM-2505 SERIES USER MANUAL Page: A-9...
Page 119 IRQ 396 Microsoft ACPI-Compliant System IRQ 397 Microsoft ACPI-Compliant System IRQ 398 Microsoft ACPI-Compliant System IRQ 399 Microsoft ACPI-Compliant System IRQ 400 Microsoft ACPI-Compliant System IRQ 401 Microsoft ACPI-Compliant System IRQ 402 Microsoft ACPI-Compliant System BM-2505 SERIES USER MANUAL Page: A-10...
Page 120 IRQ 435 Microsoft ACPI-Compliant System IRQ 436 Microsoft ACPI-Compliant System IRQ 437 Microsoft ACPI-Compliant System IRQ 438 Microsoft ACPI-Compliant System IRQ 439 Microsoft ACPI-Compliant System IRQ 440 Microsoft ACPI-Compliant System IRQ 441 Microsoft ACPI-Compliant System BM-2505 SERIES USER MANUAL Page: A-11...
Page 121 IRQ 474 Microsoft ACPI-Compliant System IRQ 475 Microsoft ACPI-Compliant System IRQ 476 Microsoft ACPI-Compliant System IRQ 477 Microsoft ACPI-Compliant System IRQ 478 Microsoft ACPI-Compliant System IRQ 479 Microsoft ACPI-Compliant System IRQ 480 Microsoft ACPI-Compliant System BM-2505 SERIES USER MANUAL Page: A-12...
Page 122 Intel(R) I210 Gigabit Network Connection IRQ 4294967287 Intel(R) I210 Gigabit Network Connection IRQ 4294967288 Intel(R) I210 Gigabit Network Connection IRQ 4294967289 Intel(R) I210 Gigabit Network Connection IRQ 4294967290 Intel(R) USB 3.0 eXtensible Host Controller - 1.0 BM-2505 SERIES USER MANUAL Page: A-13...
Page 123 IRQ 4294967291 Intel(R) HD Graphics 630 IRQ 4294967292 Intel(R) Ethernet Connection (2) I219-V IRQ 4294967293 Standard SATA AHCI Controller IRQ 4294967294 Intel(R) 100 Series/C230 Series Chipset Family PCI Express Root Port #6 - A115 BM-2505 SERIES USER MANUAL Page: A-14...
Page 124: I/O Map
Motherboard resources 0x000000B4-0x000000B5 Programmable interrupt controller 0x000000B8-0x000000B9 Programmable interrupt controller 0x000000BC-0x000000BD Programmable interrupt controller 0x000000F0-0x000000F0 Numeric data processor 0x000002E0-0x000002E7 Communications Port (COM6) 0x000002E8-0x000002EF Communications Port (COM4) 0x000002F0-0x000002F7 Communications Port (COM5) 0x000002F8-0x000002FF Communications Port (COM2) BM-2505 SERIES USER MANUAL Page: A-15...
Page 125: Dma Channels Map
0x0000F080-0x0000F083 Standard SATA AHCI Controller 0x0000F090-0x0000F097 Standard SATA AHCI Controller 0x0000FF00-0x0000FFFE Motherboard resources 0x0000FFFF-0x0000FFFF Motherboard resources 0x0000FFFF-0x0000FFFF Motherboard resources 0x0000FFFF-0x0000FFFF Motherboard resources DMA Channels Map DMA Channels Map Assignment Channel 3 Printer Port (LPT1) BM-2505 SERIES USER MANUAL Page: A-16...
Page 126: Memory Map
Motherboard resources 0xFE000000-0xFE01FFFF Motherboard resources 0xFE036000-0xFE03BFFF Motherboard resources 0xFE03D000-0xFE3FFFFF Motherboard resources 0xFE410000-0xFE7FFFFF Motherboard resources 0xDF144000-0xDF147FFF Intel(R) 100 Series/C230 Series Chipset Family PMC - A121 0x90000000-0xDFFFFFFF PCI Express Root Complex 0xFE40F000-0xFE40FFFF Intel(R) Management Engine Interface BM-2505 SERIES USER MANUAL Page: A-17...
Page 127 Intel(R) Ethernet Connection (2) I219-V 0xDF14E000-0xDF14EFFF Intel(R) 100 Series/C230 Series Chipset Family Thermal subsystem - A131 0xDF140000-0xDF143FFF High Definition Audio Controller 0xDF120000-0xDF12FFFF High Definition Audio Controller 0xA0000-0xBFFFF Intel(R) HD Graphics 630 0xA0000-0xBFFFF PCI Express Root Complex BM-2505 SERIES USER MANUAL Page: A-18...
Page 128: Configuring Watchdog Timer
To exit the Extended Function Mode, writing 0xAA to the EFER is required. Once the chip exits the Extended Function Mode, it is in the normal running mode and is ready to enter the configuration mode. BM-2505 SERIES USER MANUAL Page: A-19...
Page 129 ; -------------------------- Set timeout interval as 30 seconds ---------------------------- 0F6h ;------------------------------- Enable Watch PME-------------------------------------------- 0FAh ;------------------- Set second as counting unit and start counting -------------------- 0F5h 0F7h ;---------------------------- Exit the extended function mode ------------------------------ 0AAh BM-2505 SERIES USER MANUAL Page: A-20...
Page 130: Flash Bios Update
(3) The system will go into the BIOS setup menu. (4) Select [Boot] menu and enter into [CSM Configuration] menu. (5) Set [Boot option filter] to [UEFI Only] and press <F4> to save the configuration and restart the system. BM-2505 SERIES USER MANUAL Page: A-21...
Page 131 (6) Press <ESC> or <DEL> to enter BIOS setup menu again. (7) Select [Boot] menu and set [UEFI: Built-in EFI Shell] as the 1st boot device. (8) Press <F4> to save the configuration and restart the system to boot into EFI Shell environment. BM-2505 SERIES USER MANUAL Page: A-22...
Page 132 BIOS ROM and the system will be unable to boot up next time. After BIOS update procedure is completed, the following messages will be shown: BM-2505 SERIES USER MANUAL Page: A-23...
Page 133 Version 2.18.1263. Copyright (C) 2017 American Megatrends, Inc. BIOS Date: 11/27/2018 17:38:11 Ver: 25050PH1 Press <CTRL + P> to Enter MEBX setup menu Press <DEL> or <ESC> to enter setup. BM-2505 SERIES USER MANUAL Page: A-24...

Protech Systems BM-2505 User Manual

Quick Links

Related Manuals for Protech Systems BM-2505

Summary of Contents for Protech Systems BM-2505

Table of Contents
