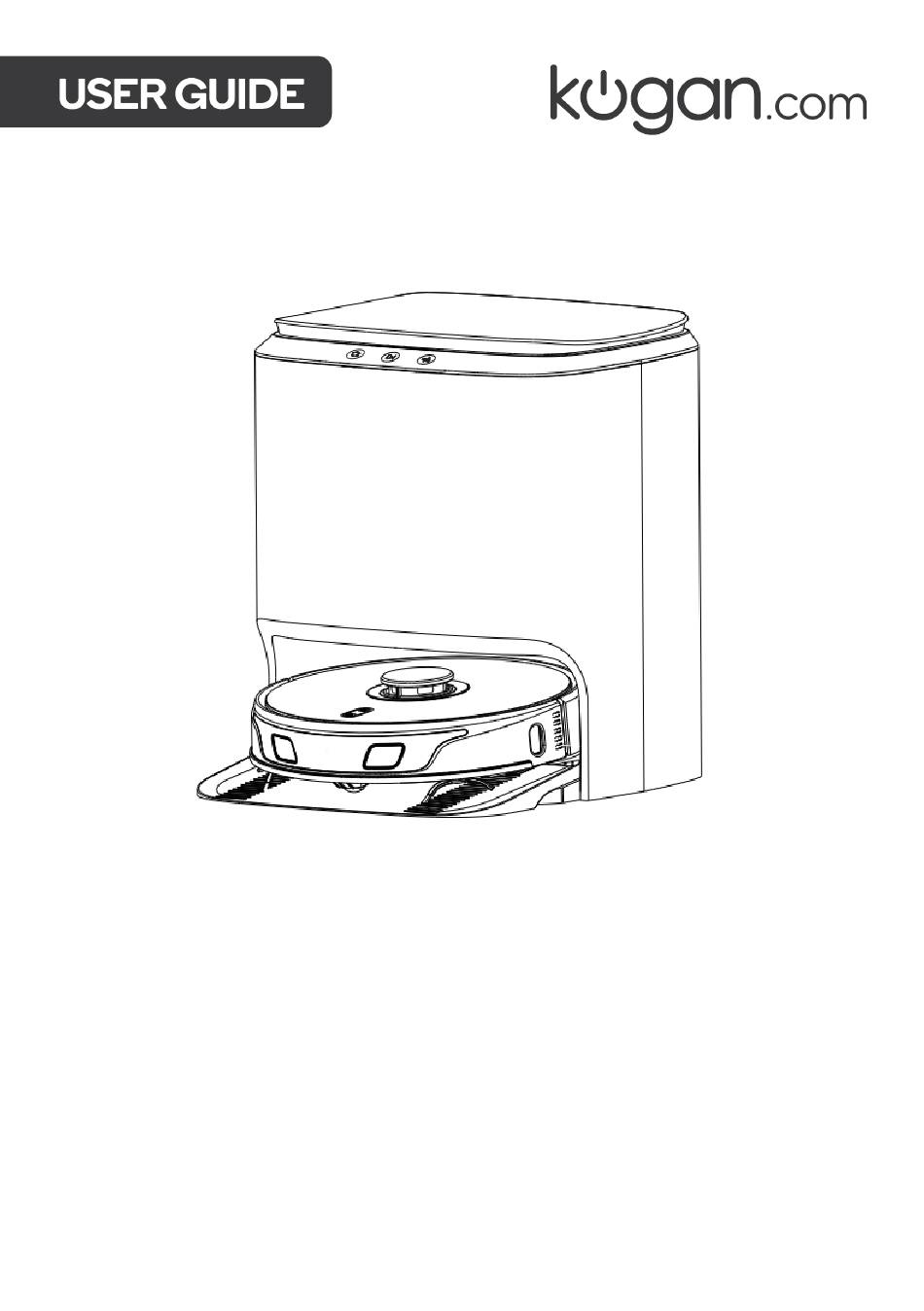

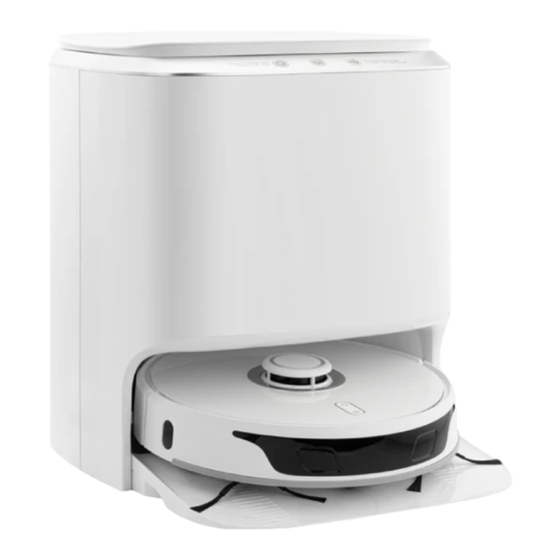

- Page 1 KOGAN SMARTERHOME™ LX18 PRO ULTRA ROBOT VACUUM AND MOP WITH AUTO-EMPTY/WASH/DRY DOCK KAVACRBL18U...
-
Page 2: Table Of Contents
Safety & Warnings Components Overview Assembly Before First Use Connect to SmarterHome Google Home Control Amazon Alexa Control Operation Cleaning and Care Specifications Troubleshooting Notes... -
Page 3: Safety & Warnings
SAFETY & WARNINGS Ensure to read all instructions and warnings in this user guide prior to first use. Retain this user guide for future reference. • The vacuum can be used adults and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge if they have been given supervision or instruction concerning use of the vacuum in a safe way and understand the hazards involved. - Page 4 • Do not use the appliance if the cord or plug is damaged. If the appliance is not working properly, has been dropped, damaged, left outdoors, or submerged in water, cease use immediately and contact help.Kogan.com • Do not handle the plug or appliance with wet hands.
- Page 5 • Do not attempt to pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. • Do not use the appliance without the dust bag and filters properly in place. • Ensure that children are supervised to prevent them from playing with the appliance. •...
- Page 6 The following information is only applicable when discarding the device and is not an instruction for daily operation: Let the robot vacuum and mop cleaner run until the battery is low and cannot clean without touching the cleaning dock; Shut down the robot vacuum and mop cleaner; Remove the bottom shell of robot vacuum and mop cleaner: Press the buckle to pull out the connector plug of the battery and take out the battery.
-
Page 7: Components
COMPONENTS Dustbin/Water HEPA & Vacuum Auto-empty Dock tank Sponge filters Roller brush Roller brush cover Mopping pad Clean water (x2) tank Dirty water tank Dust bag Cleaning tray Dust filter Mopping pad Power cord Dock cleaning brush Cleaning brush (replacement) (x2) Dust bag Side brush (x4) -
Page 8: Overview
OVERVIEW Vacuum Buttons Power button Home button Power button • Short press to start or pause cleaning • Long press to power On/Off Home button • Short press to start or pause recharging • Long press to start spot cleaning Reset Wi-Fi (pairing mode) •... - Page 9 Auto-Empty Dock Buttons Cleaning Dock Button • Short press when the vacuum is docked to start cleaning the mop • Short press when the vacuum is outside the dock to start recharging • Long press to start or stop drying Start/Pause button •...
- Page 10 Vacuum Filter cover Bumper Charging sensor Wall Dustbin button sensor Charging contact Reset Water inlet button Laser radar Laser anti-collision sensor Infrared sensor Anti-collision sensor Cliff sensor Universal wheel Ultrasonic sensors Side brush Bottom cover Roller brush Drive wheel Roller brush cover...
- Page 11 Auto-Empty Dock Top cover Dust bag Indicator Dirty water tank Clean water tank Control panel Charging contacts Water outlet Dust collection chute Dust collection chute Cleaning tray Power input Air outlet Cord storage...
- Page 12 Rear of Auto-Empty Dock “ST / AT “...
-
Page 13: Assembly
ASSEMBLY Install Auto-Empty Dock Connect the power cord to power input port on the rear of the dock and place the auto-empty dock on a flat surface. Ensure there are no other wires, cables, or other loose items around its vicinity. Ensure there is a 50cm clearance either side, and 150cm clearance in front of the auto- empty dock. - Page 14 Water Tank and Dust Bag Installation Remove the clean water tank and add clean water to the MAX water level. Maximum water mark Place the clean water tank back into the dock.
- Page 15 Install the dust bag then secure the top cover. Note: Check whether the dust filter is installed property before placing the dust bag in. Dust bag Notes: • Use tap water when filling the clean water tank, do not use distilled water. •...
- Page 16 Remove the Crash Protection Remove any protective material from the vacuum. Install Side Brush Attach the left and right side brushes (L, R) to the corresponding letter on the underside of the vacuum. There should be a clicking sound when each side brush is secured.
- Page 17 Install the Mopping Pads and Water Tank Dustbin Attach the mopping pads to water tank dustbin. Install the water tank dustbin by pushing it in horizontally along the rear of the vacuum. You will hear a “click” sound when it is installed in place.
-
Page 18: Before First Use
BEFORE FIRST USE Checks to the area Ensure there are no loose wires or cables scattered on the ground. This is to prevent the vacuum becoming entangled or dragged along. Ensure all fragile items, those easy to topple, dangerous items, and valuables are removed. This is to prevent items being damaged and personal injuries. -
Page 19: Connect To Smarterhome App
CONNECT TO SMARTERHOME™ APP Install App Download the “Kogan SmarterHome” app from the Play Store (Android) or App Store (iOS). Play Store (Android) App Store (iOS) To register: If you already have a SmarterHome account, select ‘Log In’. To register a new account, select ‘Sign Up’. - Page 20 Set device in pairing mode When the device is first turned on, it may automatically enter pairing mode (both buttons are slowly flashing). If not automatically in pairing mode when powered on, you can manually set the device in pairing mode by pressing and holding the home and power buttons simultaneously for 3 seconds until they begin slowly flashing yellow.
- Page 21 Adjust your connection method by tapping on the mode type in the top-right corner of the screen. Select “AP Mode” for the set-up type. Ensure that the device is in pairing mode, with the power and home buttons are slowly flashing yellow, select “Confirm indicator is slowly blink”...
- Page 22 The device will commence the pairing process and connect to the app. Ensure your Wi- Fi router, mobile phone, and the SmarterHome™ device are kept close until connection is complete. After successfully being added, you will have the option to rename the device and assign it to a location.
-
Page 23: Google Home Control
Note: You will need to have set up a Google Home account prior to linking your Kogan SmarterHome™ device. Adding ‘SmarterHome’ to the Google Home app From the home page of the Google Home app, select the ‘+’ icon (top left corner, see arrow in the below screenshot) to access the ‘Add and manage’... - Page 24 Select the search bar and type ‘Smarter Home’ to locate the Kogan SmarterHome™ service. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
- Page 25 Tap on any of the devices to view a list of available commands. Note: Please note that Google Home can only control the base/core functions of any compatible SmarterHome™ devices. To make full use of this product’s smart functionality, please use the Kogan SmarterHome™ app.
-
Page 26: Amazon Alexa Control
AMAZON ALEXA CONTROL Note: You will need to have set up an Alexa account prior to linking your Kogan SmarterHome™ device. Adding ‘SmarterHome’ to the Alexa app From the home page of the Alexa app, select the ‘ ’ icon in the bottom-right and select ‘Skills &... - Page 27 Tap ‘Enable to Use’ to add the Kogan SmarterHome™ skill to Alexa. From here, you will be prompted to sign into your SmarterHome™ account using either your email or mobile phone number, depending on which method you used to register your account.
- Page 28 Once connected, the app will perform a search and display the devices linked to your SmarterHome™ account. When your devices have successfully connected to the Alexa app, you will be able to control your Kogan SmarterHome™ devices via Alexa’s voice commands.
-
Page 29: Operation
OPERATION Powering ON/OFF • Press and hold the power button for 3 seconds, the indicators will illuminate and the vacuum will turn on and enter standby. • Press and hold the power button for 3 seconds while in standby, the indicator will turn off and the vacuum with shut down. - Page 30 Quick Map Use the app to quickly build a map, the vacuum will explore the house without cleaning and will automatically save the map after it is completed. The vacuum will return to the dock for charging. After the rapid map building is completed, the map can be manually partitioned and cut and different cleaning methods can be set for different areas.
- Page 31 Selected-area Cleaning After the device cleans the whole house on the current map, the host will partition the scanned map environment according to the algorithm and the actual layout of the room. At the same time, users can name partitions, reset partitions, split and merge. Note: The selected-area Cleaning function can only be used after the construction of the mop is completed.
- Page 32 Wi-Fi Reset (pairing mode) If your vacuum fails to connect to the SmarterHome app (Wi-Fi password or router configuration has changed etc.) you will need to reset the Wi-Fi settings on the vacuum and reconnect it. Press and hold the power and home buttons simultaneously for 3 seconds until the voice prompt “Reset Wi-Fi, enter the network configuration”...
- Page 33 Carpet Identification Users can set cleaning parameters in the App according to the actual situation of the household. In the self-adaptive mode, when the vacuum recognises the carpet during cleaning, it will automatically lift the mop, turn off the water outlet and increase the suction for cleaning.
-
Page 34: Cleaning And Care
CLEANING & CARE Maintenance and replacement of vacuum Part Maintenance frequency Replacement frequency Dust box Maintenance on demand Filter and filter cotton Clean up once a week 2-3 months Side brush Clean up once a week 2-3 months Main brush Clean up once a week 4-6 months Universal wheel... - Page 35 Water Tank Dustbin and Filter After a period of use, open the cover on the dustbin. Remove the filter cover, filter cotton and HEPA filter and rinse them with clear water. Shake of the excess water drops after cleaning. Blow dry or air dry the filter cover, filter cotton and HEPA filter.
- Page 36 Side Brushes The side brushes should be cleaned once a week. Turn over the vacuum and pull out the side brushes vertically. Use the cleaning brush to clear any dust, hair and debris, then reattach the side brushes. Press and reattach the left and right side brush (L, R) against the corresponding letters on the bottom of the vacuum.
- Page 37 Roller Brush The roller brush should be cleaned once a week. Turn over the vacuum and press the release tab on the Rolling brush cover to remove out the Roller brush. Remove any dust, hair and debris from the rolling brush using the cleaning brushes. Replace the roller brush and press the roller brush cover to ensure it is securely in place.
- Page 38 Cleaning Tray and Cleaning Tank Remove out the cleaning tray. Rinse and scrub the cleaning tray with a cleaning brush. Short press the dock cleaning button, clean water flows into the cleaning tank.
- Page 39 Use the cleaning brush to clean the cleaning tank. Short press the dock cleaning button to drain the dirty water in the cleaning tank. Reinstall the cleaning tray according to the diagram, making sure that both sides are in place. “Click”...
- Page 40 Clean Water Tank Remove the clean water tank and open the cover. Clean the inner wall of the water tank with the cleaning brush and rinse it with clean water before putting it back.
- Page 41 Dirty water tank Take out the dirty water tank, open the cover of the water tank and empty the dirty water. Clean the inner wall of the water tank with the cleaning brush and rinse it with clean water before putting it back. Note: The floats in clean and dirty water tanks are moving parts.
- Page 42 Sensors and Charging Contacts Wipe the sensors and charging contacts on the device with soft dry cloth, including: 6 cliff sensors and ultrasonic sensors at the bottom of the vacuum. The sensor along the wall on the right side of the vacuum and the recharge sensor on the left side.
- Page 43 Ultrasonic sensor Cliff sensor Cliff sensor Cliff sensor Wall sensor Charging contacts Recharging alignment sensor...
- Page 44 Charging contacts Signal transmitter Battery The vacuum has a built-in high-performance rechargeable lithium-ion battery pack. To maintain battery performance, keep the vacuum charged. If the vacuum will not be used for an extended time, turn it off and store it and charge it at least once every 3 months.
-
Page 45: Specifications
SPECIFICATIONS Vacuum Product name Robot Vacuuming and Mop Cleaner Product number T910 Host size 350x350x98mm Rated power Rated voltage 14.4V Charging voltage Battery capacity 5200mAh lithium battery Host net weight 4.2kg 2.4GHz:2400MHz~2483.5MHz 5GHz:5150MHz~5250MHz;5725MHz~5875MHz Wireless connection RF 433.92MHz Cleaning dock Dock model JZ100 Rated input 220V-240V~50/60Hz... -
Page 46: Troubleshooting
TROUBLESHOOTING Problem Reason/Solution • The battery level is too low. Place the vacuum against the charging contacts of the auto-empty dock. The vacuum will then begin charging and turn on. The vacuum is not • The ambient temperature is below 0°C or above 40°C. turning on. - Page 47 The Wi-Fi signal is not good. Ensure that the vacuum and The robot vacuum the dock are in a good Wi-Fi coverage area and follow the and mop cleaner is instructions in this user guide to reset the Wi-Fi before offline.
- Page 48 Prompt Tone Solution Please put back the dust box The dust box has been taken out, place the dust and restart. box back. Please turn off the child lock Disable the child lock. and try again. If the front-line laser anti-collision sensor is dirty or Please wipe the front wall blocked, wipe the window of the front line laser anti- detection sensor.
- Page 49 The top lidar cover is squeezed by an obstacle, The lid of the lidar is squeezed, remove the obstacle or move to a new location to please check. start. If you need to shut down, When the dock is cleaned and charged, it cannot please move the host away be turned off.
-
Page 50: Notes
NOTES... - Page 52 Need more information? We hope that this user guide has given you the assistance needed for a simple set-up. For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com...
