Craftsman 757.243481 Owner's Manual

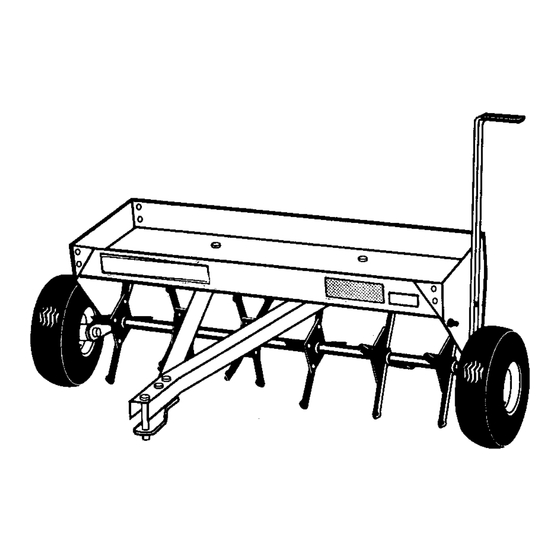

40" lawn aerator plug-type for use with riders and lawn/garden tractors

Table Of Contents

Advertisement

Quick Links

Download this manual

CRRFTSMRN.

OWNERS

MANUAL

MODEL

NO.

757.243481

Caution:

Read Rules for

Safe Operation

and Instructions

Carefully

CRRFTSMRNo

LAWN AERATOR

(PLUG-TYPE)

FOR USE WITH RIDERS

AND LAWN/GARDEN

TRACTORS

• Assembly

• Installation

• Operation

• Repair Parts

L-15:90=SC-2

Sears, Roebuck and Co., Hoffman Estates, IL 60179, U. S. A.

Table of Contents

Advertisement

Summary of Contents for Craftsman CRAFTSMAN 757.243481

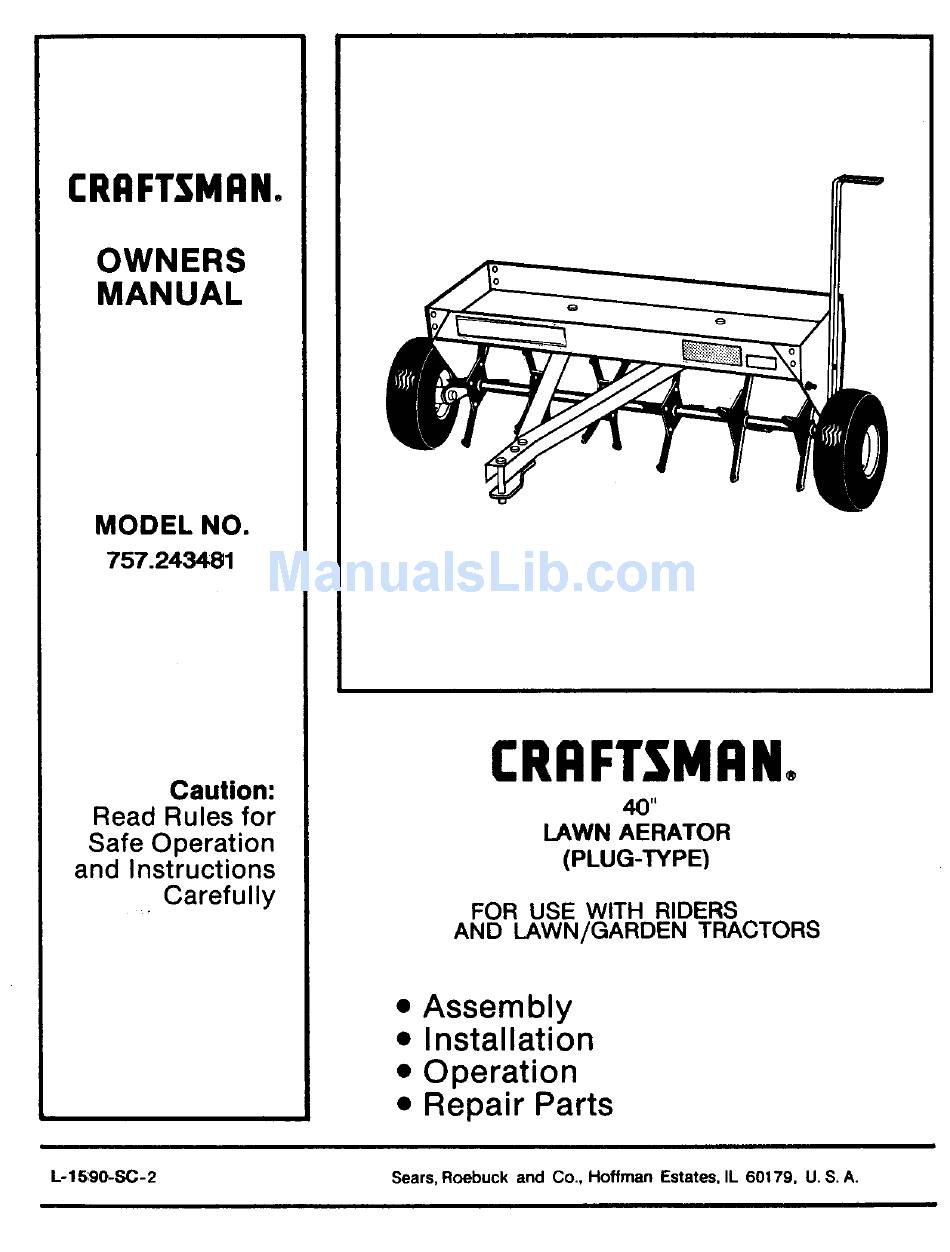

Page 1 757.243481 Caution: Read Rules for Safe Operation and Instructions Carefully L-15:90=SC-2 CRRFTSMRNo LAWN AERATOR (PLUG-TYPE) FOR USE WITH RIDERS AND LAWN/GARDEN • Assembly • Installation • Operation • Repair Parts Sears, Roebuck and Co., Hoffman Estates, IL 60179, U. S. A.
Page 2: Table Of Contents
SEARS, ROEBUCK AND CO., D/817 WA, Hoffman Estates, IL 60179, U.S.A. CONGRATULATIONS on your purchase of a Sears Craftsman engineered and manufactured to give you the best possible dependability and performance. Should you experience any problem you can not easily remedy, please contact your nearest Sears Service Center/Department.
Page 3: Safety Rules
• Know controls and how to stop quickly, READ THE OWNER'S MANUAL. • Do not allow children to operate the vehicle, do not allow adults to operate without proper instruction and without having read the owner's manual. • Do not carry passengers. Keep children and pets a safe distance away.
Page 4 No. 5 B-4786 lock Nut, 5116. Lock Washer, 17 Used 2 Used No. 15 B-4867 Handle Grip 1/4"x 1-1/2" 1 Used NO. 17 B-4868 Flex Head Bolt 5/16' x 2-1/2" 2 Used Z-1530 HARDWARE PLUGGING SPOON NO,32 B-1674P Hex LoOk Nut, 5/16" 25 Used ©...
Page 5: Assembly
It is recommended that you carefully read this Owner's Manual BEFORE starting assembly of this unit. Fold out the carton for use as a pad during assembly and arrange each kind of hardware into a group to ease assembly. All reference to Right Hand and Left Hand are made while standing behind unit facing forward, TOOLS REQUIRED FOR ASSEMBLY 1 - Pair Pliers...
Page 6 PLUGGING UNIT ASSEMBLY Refer to Fig. 4 • Identify the two Outer Tube Assemblies (13- has one plate welded close to end of tube) and the Center Tube Assembly (14- has both plates welded close to end of tube). • Insert the Axle Assembly (11) partially through hole in Side Plate (6) at RI.._HT SIDE.
Page 7: Operation
WARNING • To avoid personal injury equipment damage, never exceed the recommended operating speed range of 3 to 5 MPH. WHEN TO AERATE Your Aerator should not be used when Lawn Conditions are too Wet or too Dry. To determine condition, dig a small amount of your soil (about three inches deep): •...
Page 8: Repair Parts
