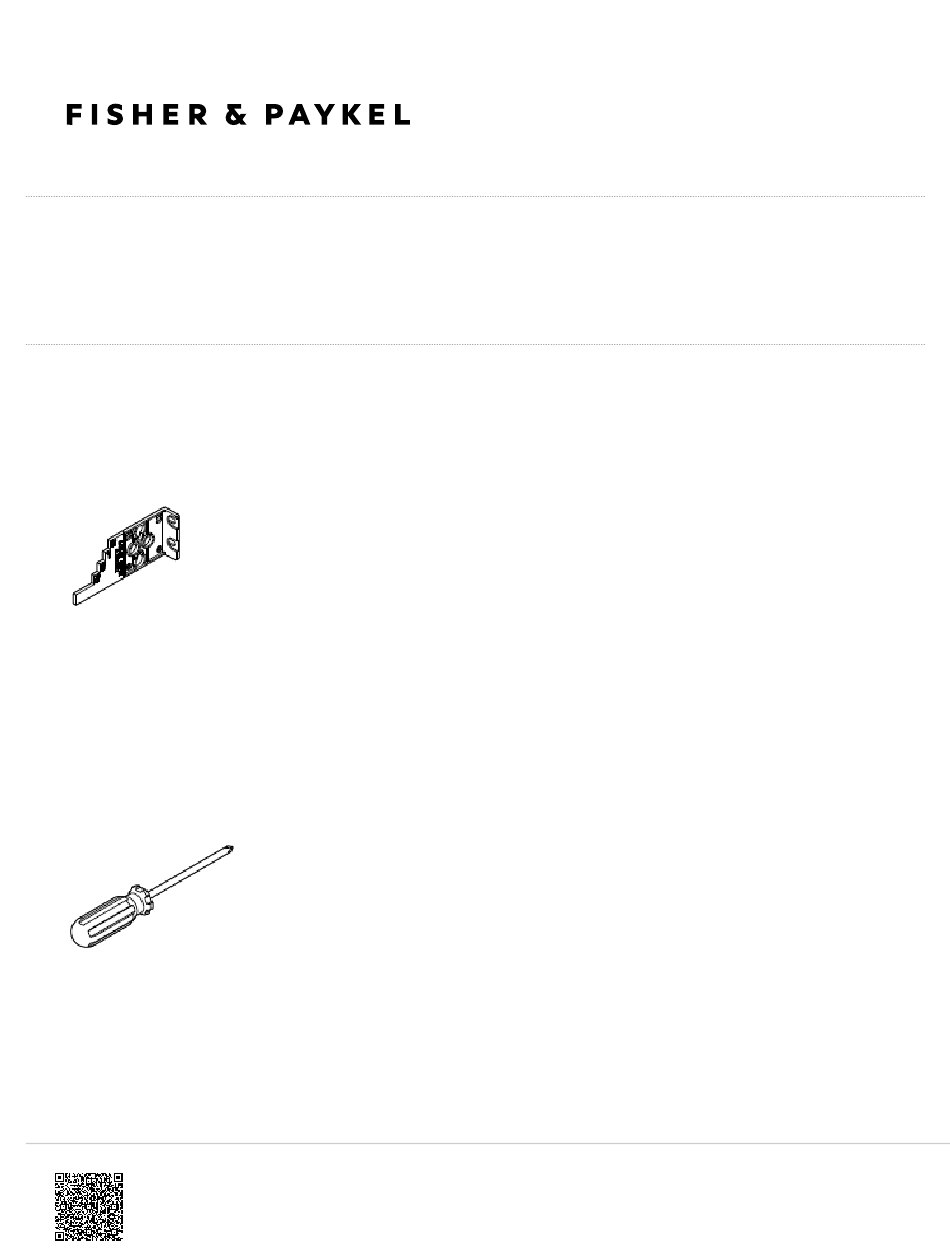

Single or Dual Installation
Single Installation
Install Fasteners Kit
Cabinet depth alignment gauge (4)
Tools
Cross-head screwdriver
https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa...
Updated: Sat, 16 Sep 2023 23:15:22 GMT
Powered by
1
Advertisement
Related Manuals for Fisher & Paykel RS6121FRJK2
Summary of Contents for Fisher & Paykel RS6121FRJK2
- Page 1 Single or Dual Installation Single Installation Install Fasteners Kit Cabinet depth alignment gauge (4) Tools Cross-head screwdriver https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 2 1. Loosen the screws at the right and left, top and 3. Attach the alignment gauges so that the screw head bottom corners of the door (A). passes through the keyhole (C). https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 3 Ensure that the hose is not run over when moving the product/s to prevent damage • and possible water leaks. Use low speed, low torque setting when using a powered driver. • Ensure power cord is not damaged during installation. • https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 4 ◦ Place a ruler on the steps of the alignment gauges to check if they are in line (C) relative to the thickness of the door panel. 8. Check if the gaps between product and cabinetry side walls are even on both sides. https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 5 Mark the step on each alignment gauge based on the thickness of the door panel to be installed to the door. Tools Cross-head screwdriver Powered driver (optional) https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 6 2. Continue turning the adjusting screws alternately between front and rear feet until you achieve the correct alignment. 3. Once you are satisfied with the alignment, raise the height of the product by alternately adjusting the front and https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 7 5. Fix each top bracket to the ceiling surface with two 8Gx16 countersunk screws (B). ◦ 457mm column = 1 bracket ◦ 610mm column = 2 brackets ◦ 762mm column = 2 brackets https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
-
Page 8: Dual Installation
6. Fix the alcove side brackets (1x per each side) to the alcove side surface with 8Gx16 countersunk screws (C). Dual Installation Install Fasteners Kit Cabinet depth alignment gauge (1) Top Joiner Bracket Kit Central spacer (1) 8Gx16 Mush washer screw (2) https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by... - Page 9 Follow the steps carefully for the correct installation of first and second products inside • the cabinetry. https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 10 (D). 3. Fix the central spacer to the alcove ceiling with two 8Gx16 countersunk screws. Tighten the screws with a screwdriver or Powered driver) (E). https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 11 Install Fasteners Kit Cabinet depth alignment gauge (4) Tools Cross-head screwdriver Powered driver (optional) Installing Depth Alignment Gauges The alignment gauges are only temporary and removable after installation. https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 12 4. Lock the position of the alignment brackets in the 2. Locate the alignment gauge to the screws with the keyhole, and tighten the screws just enough to firmly correct orientation (B). hold the gauges (D). https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 13 (A). 3. Roll the first product (preferably, Freezer) inside the cabinetry (B). ◦ Ensure that the water hose is not run over to prevent damage and possible water leak. https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 14 ◦ Place a ruler on the steps of the alignment gauges to check if they are in line (E) relative to the thickness of the door panel. 9. Check if the gaps between product and cabinetry side wall are even. https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 15 Install Fasteners Kit 8Gx16 Countersunk screw (5) https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 16 (2x) 8Gx16 co (B). Adjusting Height of the Product Inside the Cabinetry ◦ 457mm column = 1 bracke ◦ 610mm column = 2 bracke ◦ 762mm column = 2 bracke https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 17 ◦ Check the alignment gauges while adjusting the screws to make sure Image shows 457mm (first produ you maintain the alignment of the product. top bracket. 4. Ensure all feet are positively engaged with the floor. https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 18 Positioning and Aligning the Second Product Inside the Cabinetry 5. Align the top cap of the second product flush with the central spacer and top cap of first product (C). https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 19 (E) relative to the thickness of the door panel. 8. Check if the gaps between product and cabinetry side wall are even. Tools Cross-head screwdriver Powered driver (optional) https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 20 (A). ◦ Check the alignment gauges while adjusting the screws to make sure you maintain the alignment of both products. 4. Ensure all feet are positively engaged with the floor. https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 21 ◦ Place the plastic washers between the both products are positively engaged with the bottom joiner brackets before fixing with floor. the screw and nut. Tighten with M4 hex key. https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
- Page 22 Image shows 762mm (second product) with 2 top brackets. https://producthelp.fisherpaykel.com/eu/Cool/Built-In_Refrigeration/Integrated/RS6121FRJK2/Manuals_and_Guides/02Installa… Updated: Sat, 16 Sep 2023 23:15:22 GMT Powered by...
