Note: Many menu settings feature an "enable/disable" option. These options are indicated by a
"" for enabled or a "x" for disabled.
Indicates the level of password required to modify setting.
1
System Setup - Display
SYSTEM SETUP
SETTINGS
Use
and
arrows to set desired display brightness. Press
SYSTEM SETUP
SETTINGS
Use
and
arrows to set desired display contrast. Press
SETTINGS
SYSTEM SETUP
Use
or
arrows to enable/disable inverted display (bright background with dark letters). Press
SETTINGS
SYSTEM SETUP
Use
or
arrows to set the amount of time of keyboard inactivity before the display returns to the main screen.
Press
to confi rm.
System Setup - Language & Units
SYSTEM SETUP
SETTINGS
Use
and
arrows to select preferred display language. Press
SETTINGS
SYSTEM SETUP
Use
and
arrows to select preferred pressure unit display (psi, bar kPa). Press
System Setup - Passwords
SETTINGS
SYSTEM SETUP
Use
arrows to set preferred password for level 1 access. Press
SETTINGS
SYSTEM SETUP
Use
arrows to set preferred password for level 2 access. Press
NOTE: A higher level can change a lower level password (level 2 can change level 1). If passwords are changed from
factory default and forgotten, charges my be incurred to reset the passwords.
Settings - Date & Time
SETTINGS
DATE & TIME
Use
arrows to set current local time (24 hr format). Press
SETTINGS
DATE & TIME
Use
arrows to set current date (YYYY-MM-DD). The day of week will automatically update as required.
Press
to confi rm.
SETTINGS
DATE & TIME
Use
arrows to set current date format (YYYY-MM-DD, DD-MM-YYYY, MM-DD-YYYY).
Press
to confi rm.
Jockey

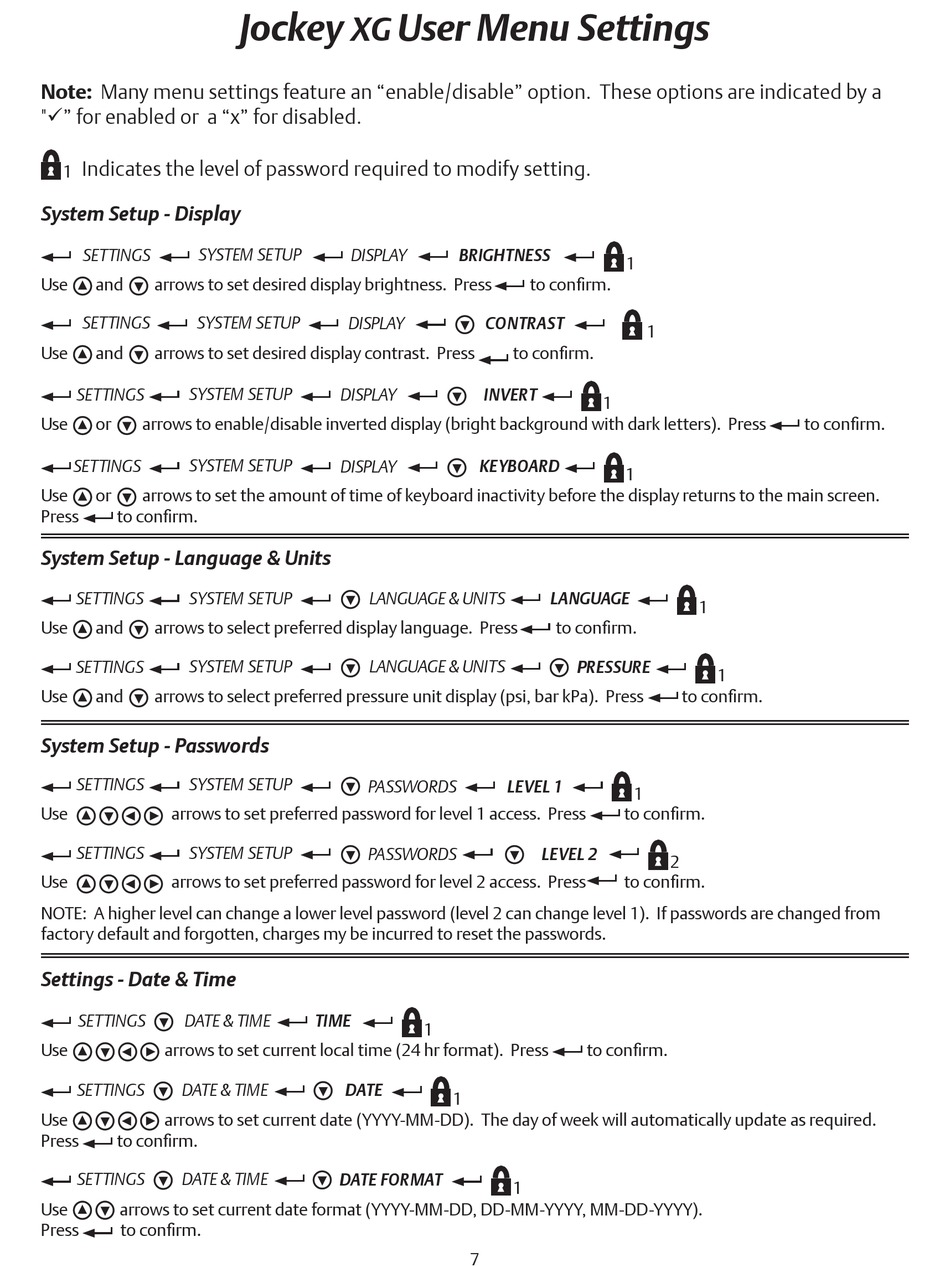

User Menu Settings
XG
DISPLAY
DISPLAY
DISPLAY
DISPLAY
LANGUAGE & UNITS
LANGUAGE & UNITS
PASSWORDS
PASSWORDS
TIME
DATE
DATE FORMAT
BRIGHTNESS
to confi rm.
CONTRAST
to confi rm.
INVERT
1
KEYBOARD
LANGUAGE
to confi rm.
PRESSURE
LEVEL 1
LEVEL 2
1
to confi rm.
1
1
7
1
1
1
1
1
to confi rm.
1
to confi rm.
2
to confi rm.
to confi rm.
