Emerson Rosemount 3051 Quick Start Manual

Pressure transmitter, flow meter with 4-20 ma hart and 1-5 vdc low power protocol
Hide thumbs Also See for Rosemount 3051:
Table of Contents

Advertisement

Quick Links

Download this manual

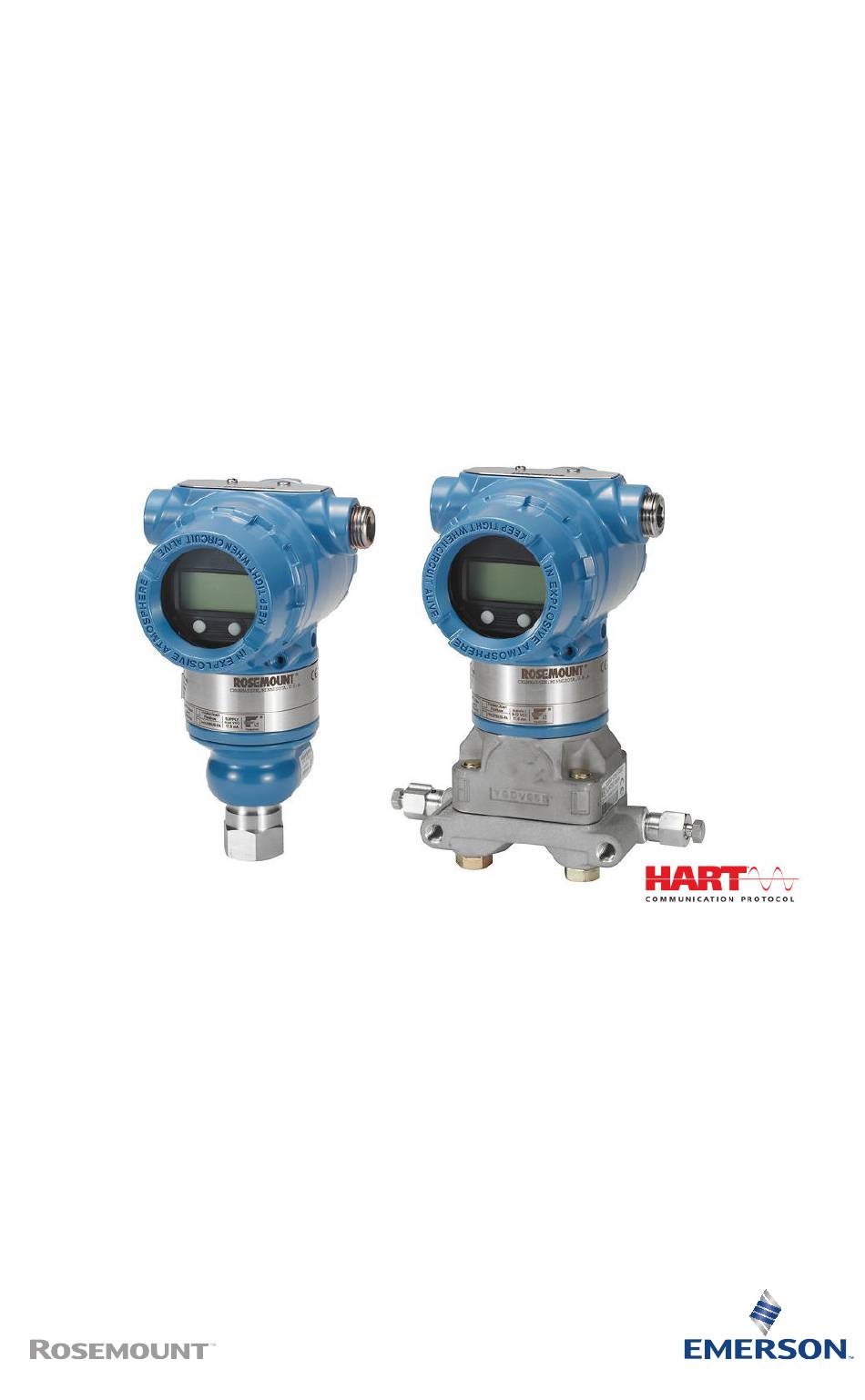

Quick Start Guide
00825-0100-4001, Rev LA
March 2020
™
Rosemount
3051 Pressure Transmitter
and 3051CF Series Flow Meter
®
with 4-20 mA HART
and 1-5 Vdc Low
Power Protocol

Advertisement

Table of Contents
loading

Related Manuals for Emerson Rosemount 3051

Summary of Contents for Emerson Rosemount 3051

  • Page 1 Quick Start Guide 00825-0100-4001, Rev LA March 2020 ™ Rosemount 3051 Pressure Transmitter and 3051CF Series Flow Meter ® with 4-20 mA HART and 1-5 Vdc Low Power Protocol...

  • Page 2: Table Of Contents

    Quick Start Guide March 2020 Contents About this guide...........................3 Mount the transmitter........................5 Housing rotation........................12 Set the jumpers.......................... 13 Connect the wiring and power up....................14 Verify configuration........................18 Trim the transmitter........................22 Safety Instrumented Systems (SIS)..................... 24 Product certifications......................... 28 Emerson.com/Rosemount...

  • Page 3: About This Guide

    March 2020 Quick Start Guide About this guide This guide provides basic guidelines for Rosemount 3051 Transmitters. It does not provide instructions for configuration, diagnostics, maintenance, service, troubleshooting, Explosion-Proof, Flame-Proof, or intrinsically safe (I.S.) installations. Refer to the Rosemount 3051...
  • Page 4 Physical security is an important part of any security program and fundamental to protecting your system. Restrict physical access by unauthorized personnel to protect end users’ assets. This is true for all systems used within the facility. Emerson.com/Rosemount...

  • Page 5: Mount The Transmitter

    March 2020 Quick Start Guide Mount the transmitter Liquid flow applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Mount the transmitter so that the drain/vent valves are oriented upward. Gas flow applications Procedure 1.
  • Page 6 Quick Start Guide March 2020 Steam flow applications Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Fill impulse lines with water. Emerson.com/Rosemount...
  • Page 7 March 2020 Quick Start Guide Panel and pipe mount Figure 2-1: Panel and Pipe Mounting Panel mount Pipe mount Coplanar flange Traditional flange Rosemount 3051T Rosemount 3051H 5/16 x 1½ panel bolts are customer supplied. Quick Start Guide...
  • Page 8 Use only bolts supplied with the transmitter or sold by Emerson as spare parts. Figure 2-2 illustrates common transmitter assemblies with the bolt length required for proper transmitter assembly.
  • Page 9 March 2020 Quick Start Guide 2. Torque the bolts to the initial torque value using a crossing pattern (see Table 2-1 for torque values). 3. Torque the bolts to the final torque value using the same crossing pattern (see Table 2-1 for torque values).
  • Page 10 Consult factory if other ingress protection ratings are required. Always ensure a proper seal by installing the electronics housing cover(s) so that metal contacts metal. Use Rosemount O-rings. For M20 threads, install conduit plugs to full thread engagement or until mechanical resistance is met. Emerson.com/Rosemount...
  • Page 11 March 2020 Quick Start Guide In-line gage transmitter orientation The low side pressure port (atmospheric reference) on the in-line gage transmitter is located in the neck of the transmitter, behind the housing. The vent path is 360° around the transmitter between the housing and sensor. (See Figure 2-4.)

  • Page 12: Housing Rotation

    Note Over-rotating will damage the transmitter. Figure 3-1: Housing Rotation A. Housing rotation set screw (5/64-in.) Rosemount 3051C original position aligns with "H" side; Rosemount 3051T original position is the opposite side of the bracket holes. Emerson.com/Rosemount...

  • Page 13: Set The Jumpers

    March 2020 Quick Start Guide Set the jumpers If alarm and security jumpers are not installed, the transmitter will operate normally with the default alarm condition alarm high and the security off. Procedure 1. If the transmitter is installed, secure the loop, and remove power. 2.

  • Page 14: Connect The Wiring And Power Up

    Quick Start Guide March 2020 Connect the wiring and power up Figure 5-1 shows wiring connections necessary to power a Rosemount 3051 and enable communications with a handheld communicator. Use the following steps to wire the transmitter: Procedure 1. Remove the housing cover on the field terminals side.
  • Page 15 B. 6–12 Vdc supply Note Installation of the transient protection terminal block does not provide transient protection unless the Rosemount 3051 case is properly grounded. Signal wiring grounding Do not run signal wiring in conduit or open trays with power wiring, or near heavy electrical equipment.
  • Page 16 Loops with a 250 Ω resistance require a minimum of 16.6 V. Note The transmitter must have a minimum of 250 Ω to communicate with a Field Communicator. If you are using a single power supply to power more than one Rosemount 3051 Transmitter, make sure the power supply used Emerson.com/Rosemount...
  • Page 17 March 2020 Quick Start Guide and the circuitry common to the transmitters do not have more than 20 Ω of impedance at 1200 Hz. Figure 5-4: Load Limitation Maximum loop resistance = 43.5 x (power supply voltage - 10.5) A. Load (Ωs) B.

  • Page 18: Verify Configuration

    Table 6-2. Figure 6-2: Device Dashboard - Device Revision 3 and DD Revision 6 Note A check (✓) indicates the basic configuration parameters. At minimum, these parameters should be verified as part of the configuration and startup procedure. Emerson.com/Rosemount...
  • Page 19 March 2020 Quick Start Guide Table 6-1: Traditional Interface - Device Revision 3 and DD Revision 2 Fast Key Sequence Function Fast Key Sequence Alarm and Saturation Levels 1, 4, 2, 7 Analog Output Alarm Type 1, 4, 3, 2, 4 Burst Mode Control 1, 4, 3, 3, 3 Burst Operation...
  • Page 20 2, 2, 6, 1, 6 ✓Range Values 2, 2, 2 Scaled D/A Trim (4–20 mA Output) 3, 4, 2, 2 Sensor Temperature/Trend (Rosemount 3051S) 2, 2, 1, 6 ✓Tag 2, 2, 6, 1,1 ✓Transfer Function 2, 2, 1, 3 Emerson.com/Rosemount...
  • Page 21 March 2020 Quick Start Guide Table 6-2: Traditional Interface - Device Revision 3 and DD Revision 2 Fast Key Sequence (continued) Function Fast Key Sequence Transmitter Security (Write Protect) 2, 2, 5, 1 ✓Units 2, 2, 1, 1 Upper Sensor Trim 3, 4, 1, 1 Zero Trim 3, 4, 1, 3...

  • Page 22: Trim The Transmitter

    1. Loosen the certifications label screw and slide the label to expose the zero adjustment buttons. 2. Set the 4 mA point by pressing the zero button for two seconds. Verify the output is 4 mA. The optional LCD display will show ZERO PASS. Emerson.com/Rosemount...
  • Page 23 March 2020 Quick Start Guide Figure 7-1: Zero Adjustment Buttons A. Zero adjustment buttons Quick Start Guide...

  • Page 24: Safety Instrumented Systems (Sis)

    Configuration Use any HART-compliant master to communicate with and verify configuration of the Rosemount 3051. User-selected damping will affect the transmitters ability to respond to changes in the applied process. The damping value + response time must not exceed the loop requirements.
  • Page 25 Use the Fast Key sequences in Table 6-1 Table 6-2 to perform a loop test, analog output trim, or sensor trim. See the Rosemount 3051 Reference Manual for additional information. Proof test 1 This proof test will detect 59.6 percent of DU failures not detected by the Rosemount 3051 automatic diagnostics.
  • Page 26 Proof test 2 This proof test, when combined with the five-year proof-test, will detect 94.6 percent of DU failures not detected by the Rosemount 3051 automatic diagnostics. Procedure 1. Execute the Master Reset command to initiate start-up diagnostics.
  • Page 27 March 2020 Quick Start Guide Reference Specifications The Rosemount 3051 must be operated in accordance to the functional and performance specifications provided in the Rosemount 3051 Reference Manual. Failure rate data The FMEDA report includes failure rates and common cause Beta factor estimates.

  • Page 28: Product Certifications

    A copy of the EU Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EU Declaration of Conformity can be found at Emerson.com/Rosemount. Ordinary location certification As standard, the transmitter has been examined and tested to determine...
  • Page 29 ≤ +60 °C) [Fieldbus/PROFIBUS]; Type 4X Special Conditions for Safe Use (X): 1. The Rosemount 3051 Transmitter housing contains aluminum and is considered a potential risk of ignition by impact or friction. Care must be taken into account during installation and use to prevent impact and friction.
  • Page 30 2. The Rosemount 3051 Transmitter with the transient terminal block (Option code T1) will not pass the 500 Vrms dielectric strength test, and this must be taken into account during installation.
  • Page 31 March 2020 Quick Start Guide Dust-Ignitionproof for Class II and Class III, Division 1, Groups E, F, and G; T5 (–50 °C ≤ Ta ≤ +85 °C); Class I, Division 2, Groups A, B, C, and D; T5; Suitable for Class I Zone 2, Group IIC;...
  • Page 32 3. Some variants of the equipment have reduced markings on the nameplate. Refer to the Certificate for full equipment marking. 9.4.3 IA ATEX FISCO Certificate BAS97ATEX1089X Standards EN60079-0:2012 + A11:2013, EN60079-11:2012 Markings II 1 G Ex ia IIC T4 Ga (–60 °C ≤ T ≤ +60 °C) Emerson.com/Rosemount...
  • Page 33 March 2020 Quick Start Guide Table 9-3: Input Parameters Parameter Fieldbus/PROFIBUS Voltage U 17.5 V Current I 380 mA Power P 5.32 W Capacitance C ≤5 nF Inductance L ≤10 µH Special Conditions for Safe Use (X): 1. The apparatus is not capable of withstanding the 500 V insulation test required by clause 6.3.12 of EN60079-11: 2012.
  • Page 34 HART: Ex ia IIC T5/T4 Ga, T5(-60 °C ≤ T ≤ +40 °C), T4 (-60 °C ≤ ≤ +70 °C) Fieldbus/PROFIBUS: Ex ia IIC T4(–60 °C ≤ T ≤ +60 °C) Table 9-5: Input Parameters Parameter HART Fieldbus/PROFIBUS Voltage U 30 V 30 V Emerson.com/Rosemount...
  • Page 35 March 2020 Quick Start Guide Table 9-5: Input Parameters (continued) Parameter HART Fieldbus/PROFIBUS Current I 200 mA 300 mA Power P 0.9 W 1.3 W Capacitance C 0.012 µF 0 µF Inductance L 0 mH 0 mH Special Conditions for Safe Use (X): 1.
  • Page 36 ≤ +70 °C) Special Condition for Safe Use (X): 1. This apparatus is not capable of withstanding the 500 V insulation test required by clause 6.5.1 of IEC 60079-15. This must be taken into account when installing the apparatus. Emerson.com/Rosemount...
  • Page 37 March 2020 Quick Start Guide Brazil 9.6.1 E2 INMETRO Flameproof Certificate UL-BR 13.0643X Standards ABNT NBR IEC 60079-0:2013; ABNT NBR IEC 60079-1:2016; ABNT NBR IEC 60079-26:2016 Markings Ex db IIC T6…T4 Ga/Gb, T6(–60 °C ≤ T ≤ +70 °C), T4/T5 (–60 °C ≤...
  • Page 38 ABNT NBR IEC 60079-11. This must be taken into account when installing the equipment. 2. The enclosure may be made of aluminum alloy and given protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if equipment requires EPL Ga. Emerson.com/Rosemount...
  • Page 39 March 2020 Quick Start Guide China 9.7.1 E3 China Flameproof Certificate GYJ19.1056X [Transmitters]; GYJ15.1368X [Flow meters] Standards GB3836.1-2010, GB3836.2-2010, GB3836.20-2010, GB12476.1-2013, GB12476.5-2013 Markings 3051 Series: Ex d IIC T6 T4 Ga/Gb, Ex tD A20 IP66 T95 °C T 105 °C (-20 °C ≤ T ≤...
  • Page 40 产品安全使用特殊条件: • 证书编号后缀“X”表明产品具有安全使用特殊条件： 1. 产品（选用铝合金外壳）外壳含有轻金属，用于 0 区时需注意 防止由于冲击或摩擦产生的点燃危险。 2. 当选择 T1 瞬态抑制端子时,此设备不能承受 GB3836.4-2010 标 准中第 6.3.12 条规定的 500V 交流有效值试验电压的介电强度 试验。 3. Transmitter output 为 X 时，需使用由厂家提供的型号为 701PG 的 Smart Power Green Power Module 电池。 4. 产品外壳含有非金属部件，使用时须防止产生静电火花，只能 用湿布清理。 产品使用注意事项: • Emerson.com/Rosemount...
  • Page 41 March 2020 Quick Start Guide 1. 产品使用环境温度范围： 气体/粉尘 温度组别 环境温度范围 Transmitter output 气体 A, M -60 °C +40 °C 气体 A, M -60 °C +70 °C 气体 F, W -60 °C +60 °C 气体 -40 °C +70 °C 粉尘 A, F, W T80 °C -20 °C +40 °C...
  • Page 42 1. 产品使用环境温度范围为： -40 °C ≤ T ≤ 70 °C 2. 最高输入电压： 最高输入电压 Transmitter output A, M (3051 Enhanced and 3051 Low 55 Vdc Power HART) F, W 40 Vdc 3. 现场安装时，电缆引入口须选用经国家指定的防爆检验机构检 验认可的、具有 Ex e 或 Ex n 型的电缆引入装置或堵封件，冗余 电缆引入口须用堵封件有效密封。 Emerson.com/Rosemount...
  • Page 43 March 2020 Quick Start Guide 4. 安装现场确认无可燃性气体存在时方可维修。 5. 用户不得自行更换该产品的零部件，应会同产品制造商共同解 决运行中出现的故障，以杜绝损坏现象的发生。 6. 产品的安装、使用和维护应同时遵守产品使用说明书、 GB3836.13-2013“爆炸性环境 第 13 部分：设备的修理、检修、 修复和改造”、GB3836.15-2000“爆炸性气体环境用电气设备 第 15 部分：危险场所电气安装（煤矿除外）”、GB3836.16-2006 “爆炸性气体环境用电气设备 第 16 部分：电气装置的检查和维 护（煤矿除外）” 、GB50257-1996“电气装置安装工程爆炸和火 灾危险环境电力装置施工及验收规范”的有关规定。 Japan 9.8.1 E4 Japan Flameproof Certificate TC20577, TC20578, TC20583, TC20584 [HART]; TC20579, TC20580, TC20581, TC20582 [Fieldbus] Markings Ex d IIC T5 Republic of Korea...
  • Page 44 Ex de IIC Gb 9.12.2 ATEX Flameproof and Increased Safety Certificate FM13ATEX0076X Standards EN60079-0:2012, EN60079-1:2007, IEC60079-7:2007 Markings II 2 G Ex de IIC Gb Table 9-10: Conduit Plug Thread Sizes Thread Identification mark M20 × 1.5 ½ –14 NPT ½ NPT Emerson.com/Rosemount...
  • Page 45 March 2020 Quick Start Guide Table 9-11: Thread Adapter Thread Sizes Male thread Identification mark M20 × 1.5 – 6H ½–14 NPT ½ –14 NPT ¾ –14 NPT ¾ –14 NPT Female thread Identification mark M20 × 1.5 – 6H ½–14 NPT ½–14 NPT G½...
  • Page 46 Application Table 9-12: Location Classes Temperature Humidity Vibration Enclosure 9.13.4 SLL Lloyds Register (LR) Type Approval Certificate 11/60002 Application Environmental categories ENV1, ENV2, ENV3, and ENV5 9.13.5 C5 Custody Transfer - Measurement Canada Accuracy Approval Certificate AG-0226; AG-0454; AG-0477 Emerson.com/Rosemount...
  • Page 47 March 2020 Quick Start Guide 9.14 EU Declaration of Conformity Quick Start Guide...
  • Page 48 Quick Start Guide March 2020 Emerson.com/Rosemount...
  • Page 49 March 2020 Quick Start Guide Quick Start Guide...
  • Page 50 Quick Start Guide March 2020 Emerson.com/Rosemount...
  • Page 51 March 2020 Quick Start Guide 9.15 China RoHS table Quick Start Guide...
  • Page 52 The Emerson logo is a Twitter.com/Rosemount_News trademark and service mark of Emerson Electric Facebook.com/Rosemount Co. Rosemount is a mark of one of the Emerson Youtube.com/user/ family of companies. All other marks are the RosemountMeasurement property of their respective owners.
