Summary of Contents for Electro-Voice EVL-ZLX-12P-BT

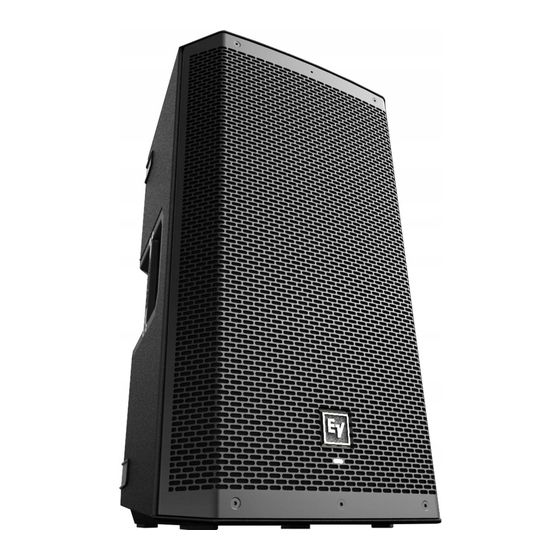

- Page 1 ZLX Portable Loudspeaker Series Installation manual...
-
Page 3: Table Of Contents
Wireless audio STEREO configuration Passive loudspeakers 5.2.1 Basic stereo system using full-range systems 5.2.2 Using full-range systems as stage monitors 5.2.3 Stacking full-range systems with subwoofers Troubleshooting Technical data Dimensions Frequency response Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253... -
Page 4: Safety
When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug the apparatus during lightning storms or when unused for long periods of time. 2019-05 | 03 | F.01U.319.253 Installation manual Electro-Voice... -
Page 5: Suspension
Electro-Voice loudspeakers can only be suspended using accessories and hardware described in Electro-Voice manuals and installation guides. Do NOT use handles to suspend the loudspeaker. Handles on Electro- Voice loudspeakers are intended to only be used for temporary transport by people. -
Page 6: Precautions
à l'établissement d'une communication satisfaisante. Precautions If an Electro-Voice loudspeaker is used outdoors on a sunny day, place the loudspeaker in a shaded or covered area. The loudspeaker amplifiers have protection circuits that temporarily shut the loudspeaker off when extremely high temperatures are reached. -
Page 7: Certifications
Do not use Electro-Voice loudspeakers in an environment where temperatures are below 0°C (32°F) or exceed +35°C (95°F). Never expose an Electro-Voice loudspeaker to rain, water, or high moisture. Electro-Voice loudspeakers are easily capable of generating sound pressure levels sufficient to cause permanent hearing damage to anyone within normal coverage distance. -
Page 8: Notices
Notice! Bluetooth® is available in select countries. Contact your nearest Electro-Voice dealer or Electro-Voice distributor for more information. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Bosch Security Systems, Inc. is under license. Other trademarks and trade names are those of their respective owners. - Page 9 ZLX Portable Loudspeaker Series Safety | en For use in China: CHINA ROHS DISCLOSURE TABLE Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253...
-
Page 10: Description
| Description ZLX Portable Loudspeaker Series Description Thank you for choosing an Electro-Voice portable loudspeaker system. Please take time to consult the manual to understand all the features built into your EV system and fully utilize its performance capabilities. - Page 11 Exclusive split-baffle design for superior driver time alignment. – 44 Hz - 20 kHz frequency range. – 250 W Continuous, 1000 W Peak power handling. – 96 dB SPL sensitivity; 126 dB max SPL. Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253...
-
Page 12: Quick Setup
ZLX Portable Loudspeaker Series Quick setup The ZLX series loudspeakers from Electro-Voice are fully integrated audio systems with carefully matched electronics and transducers. These products make it easy to setup a high quality sound system quickly with a minimum amount of cables and external electronics. -
Page 13: Quick Setup - Wireless Streaming
Turn the level down on your mobile device for convenient volume control (optional). To prevent clipping, do not exceed the level previously observed (~75% BT VU). See also – DSP controls, page 20 Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253... -
Page 14: Tripod, Pole Mount, And Floor Monitor Operation
Do not attempt to suspend more than one loudspeaker on a stand designed for a single loudspeaker. Using two hands lift the loudspeaker. Set the pole cup located on the bottom of the loudspeaker onto the pole. 2019-05 | 03 | F.01U.319.253 Installation manual Electro-Voice... - Page 15 If you are not using a threaded pole mount, continue to the next step. Using two hands lift the loudspeaker. Set the pole cup located on the bottom of the loudspeaker onto the pole. Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253...
-
Page 16: Floor Monitor
Safely route cables to prevent injury to performers, production crew, and audience members. Notice! Secure cables with wire ties or tape whenever possible. Front View Side View Figure 3.2: Optimum coverage in monitor position 2019-05 | 03 | F.01U.319.253 Installation manual Electro-Voice... -
Page 17: Amplifier Dsp
POWER - AC switch or switching the power ON or OFF. The LCD screen lights up when the power is turned ON, after approximately 3 seconds. MAINS IN - AC connection is established via an IEC-connector. Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253... -
Page 18: System Status
Notice! BT and S system statuses are available for ZLX-12BT and ZLX-15BT models only. Notice! Bluetooth® is available in select countries. Contact your nearest Electro-Voice dealer or Electro-Voice distributor for more information. 2019-05 | 03 | F.01U.319.253 Installation manual Electro-Voice... - Page 19 LIMIT is shown small on the screen, the limiter is active but keeps distortion under control. The large LIMIT indicates the sound is negatively affected. Reducing the output volume (MASTER VOL) is strongly recommended when the large limit indication is shown. Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253...
-
Page 20: Dsp Controls
4.3.1 DSP control menu The full-range loudspeaker DSP control menu selections are available for the powered ZLX loudspeakers. EXIT MODE MUSIC (Default) LIVE SPEECH CLUB LOCATION POLE (Default) MONITOR BRACKET OFF (Default) 2019-05 | 03 | F.01U.319.253 Installation manual Electro-Voice... - Page 21 EXIT, 1, 2, 3, 4, 5, EXIT RECALL EXIT, 1, 2, 3, 4, 5, EXIT STREAMING OFF (Default) (ZLX-12BT and ZLX-15BT) PAIRING LOCK OFF (Default) RESET RESET ARE YOU SURE? NO (Default) Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253...
- Page 22 | Amplifier DSP ZLX Portable Loudspeaker Series INFO [PRODUCT NAME] [FIRMWARE VERSION] ©YYYY ELECTRO-VOICE EXIT Tab. 4.1: Full-Range Loudspeaker DSP Control Menu EXIT menu The Exit menu is used to return to the home screen. Notice! The display returns to the home screen after two minutes of inactivity.
- Page 23 Push the MASTER VOL knob to select STORE. The store screen appears. Push the MASTER VOL knob to select 1. The Enter name for 1 screen appears. Use the MASTER VOL knob to scroll through the characters. Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253...
- Page 24 The Reset menu is used to reset the loudspeaker to original factory settings. Available options for this selection are: NO or YES. The default is NO. To reset the system to original factory settings, do the following: 2019-05 | 03 | F.01U.319.253 Installation manual Electro-Voice...
- Page 25 Performing a reset erases the user customized settings saved under the STORE menu. The five user customized settings in the STORE and RECALL menus return to <EMPTY>. INFO menu The Information menu is used to display the product name and firmware version. Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253...
-
Page 26: Recommended Configuration
The direction of the arrow indicates the signal path. Mode: Speech Location: Pole Sub: Tab. 5.2: DSP settings loudspeaker on a tripod See also – Tripod or pole mount, page 14 – Amplifier DSP, page 17 2019-05 | 03 | F.01U.319.253 Installation manual Electro-Voice... -
Page 27: Mp3 Player Mono Configuration
The direction of the arrow indicates the signal path. Mode: Music Location: Pole Sub: Tab. 5.3: DSP settings loudspeaker on a tripod See also – Tripod or pole mount, page 14 – Amplifier DSP, page 17 Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253... -
Page 28: Using Full-Range Systems As Monitors
The direction of the arrow indicates the signal path. Mode: Live Location: Monitor Sub: Tab. 5.4: DSP settings loudspeakers as monitors See also – Floor monitor, page 16 – Amplifier DSP, page 17 2019-05 | 03 | F.01U.319.253 Installation manual Electro-Voice... -
Page 29: Stacking Full-Range Systems With Subwoofers
Pole Sub: ELX200-18SP ELX200-18SP Mode: Live Location: Pole Low Pass: ZLX-12BT Tab. 5.5: DSP settings loudspeaker and subwoofer stacked See also – Tripod or pole mount, page 14 – Amplifier DSP, page 17 Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253... -
Page 30: Wireless Audio Stereo Configuration
Parameters and mobile device pairing is to be done on the LEFT speaker. Right Left Notice! The direction of the arrow indicates the signal path. Mode: Music Mix Out: BT Audio: Tab. 5.6: DSP settings wireless audio streaming See also – Amplifier DSP, page 17 2019-05 | 03 | F.01U.319.253 Installation manual Electro-Voice... -
Page 31: Passive Loudspeakers
Do not exceed the maximum load rating of the amplifier. Amplifier Load (per Output Channel) # of Speakers Nominal Minimum 8 Ohms 7.2 Ohms 4 Ohms 3.6 Ohms 2.7 Ohms 2.4 Ohms 2 Ohms 1.8 Ohms Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253... -
Page 32: Using Full-Range Systems As Stage Monitors
Do not exceed the maximum load rating of the amplifier. Amplifier Load (per Output Channel) # of Speakers Nominal Minimum 8 Ohms 7.2 Ohms 4 Ohms 3.6 Ohms 2.7 Ohms 2.4 Ohms 2 Ohms 1.8 Ohms 2019-05 | 03 | F.01U.319.253 Installation manual Electro-Voice... -
Page 33: Stacking Full-Range Systems With Subwoofers
Not used Caution! Do not exceed the maximum load rating of the amplifier. Amplifier Load (per Output Channel) # of Subwoofer/Full-Range Nominal Minimum Combinations 4 Ohms 3.8 Ohms 2 Ohms 1.9 Ohms Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253... -
Page 34: Troubleshooting
MIC microphone pre-amp. position Sound is distorted Excessive input level Reduce the input level or loudspeaker level knobs to front LED is OFF, prevent limit. LCD screen LIMIT is 2019-05 | 03 | F.01U.319.253 Installation manual Electro-Voice... - Page 35 If you are experiencing drop- outs, your speaker may be in an environment that makes reliable wireless audio difficult. Try to move the loudspeaker to different locations in the room, and Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253...
- Page 36 2.4gHz routers and microphone receivers. If the problem persists, revert back to a wired connection while at that particular venue. If these suggestions do not solve your problem, contact your nearest Electro-Voice dealer or Electro-Voice distributor. See also –...
-
Page 37: Technical Data
LF Transducer: EVS-15L, 380 mm (15 in) woofer HF Transducer: DH-1K Connectors: (2) XLR/TRS combo jack (1) 3.5 mm input and (1) XLR link output Enclosure: Polypropylene Grille: 18 Gauge steel with black powder coat Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253... - Page 38 ZLX-15P Frequency response (-3 dB) : 55 Hz - 18 kHz Frequency range (-10 dB): 42 Hz - 20 kHz Maximum SPL : 127 dB Coverage (H x V): 90° x 60° 2019-05 | 03 | F.01U.319.253 Installation manual Electro-Voice...
- Page 39 Grille: 18 gauge steel with black powder coat Color: Black Dimensions (H x W x D): 610 mm x 356 mm x 356 mm (24 in. x 14 in. x 14 in.) Net weight: 14.9 kg (32.8 lb) Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253...
- Page 40 Shipping weight: 22.0 kg (48.3 lb) Full Space Measurement, will have low frequency extension when mounted on floor or wall. Maximum SPL is measured at 1 m using broadband pink noise at maximum output. 2019-05 | 03 | F.01U.319.253 Installation manual Electro-Voice...
-
Page 41: Dimensions
[7 in] 43.4° 43.4° Figure 7.1: Dimensions: 12" ZLX models 423 mm [17 in] 685 mm [27 in] 383 mm [15 in] 187 mm [7 in] 43.4° 43.4° Figure 7.2: Dimensions: 15" ZLX models Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253... -
Page 42: Frequency Response
| Technical data ZLX Portable Loudspeaker Series Frequency response Powered loudspeakers Figure 7.3: Frequency response: 12" powered ZLX models Figure 7.4: Frequency response: 15" powered ZLX models Passive loudspeakers Figure 7.5: Frequency response: 12" passive models 2019-05 | 03 | F.01U.319.253 Installation manual Electro-Voice... - Page 43 ZLX Portable Loudspeaker Series Technical data | en Figure 7.6: Frequency response: 15" passive models Electro-Voice Installation manual 2019-05 | 03 | F.01U.319.253...
- Page 44 Bosch Sicherheitssysteme GmbH Bosch Security Systems, Inc Robert-Bosch-Ring 5 12000 Portland Avenue South 85630 Grasbrunn Burnsville MN 55337 Germany www.boschsecurity.com www.electrovoice.com © Bosch Sicherheitssysteme GmbH, 2019 © Bosch Security Systems, Inc., 2019...
