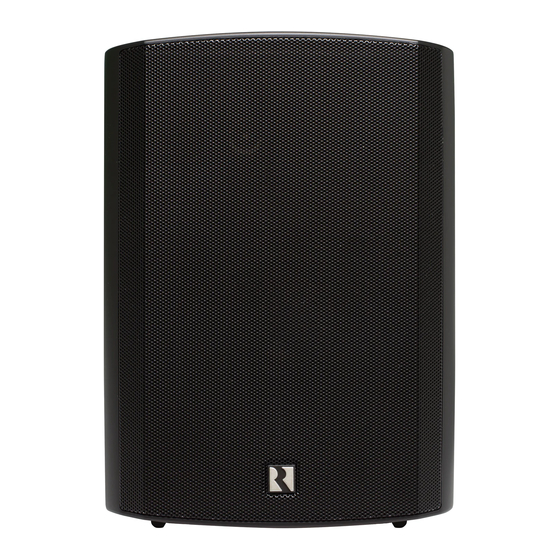

- Page 1 AW70V6mk2 70V Surface Mount Indoor/Outdoor Speakers Installation Manual...
-
Page 2: Speaker Assembly
A "C-slot" bracket design allows for one-handed installation by allowing The AW70V6mk2 speakers are designed to add high quality, the bracket to support the speaker's weight until it is locked custom-tailored sound for distributed audio systems using into position. - Page 3 7.5W, 15W, 30W, 60W (70V) 15W, 30W, 60W (100V) 6Ω Bypass AW70V6mk2 Russound 200 International Drive, Suite 155 Portsmouth, NH 03801 USA Binding Posts - to secure speaker wire, up to 12 gauge. Russound AW70V6mk2 70V Surface Mount Indoor/Outdoor Speaker Installation Manual...
-
Page 4: Speaker Cable
(70V or 100V) and 4. Connect the wires to the speaker terminals, being sure to the black is negative (COM). Cable with both wires the same Russound AW70V6mk2 70V Surface Mount Indoor/Outdoor Speaker Installation Manual... - Page 5 For our example with a 300-watt amplifier, the amplifier’s total available wattage when doing so. here are the approximate number of speakers that could be Russound AW70V6mk2 70V Surface Mount Indoor/Outdoor Speaker Installation Manual...
-
Page 6: Connecting The Speaker
Label speaker wires with left, right, and location. AC wiring, cross them at right angles. Use Russound AW series speaker cable or any reputable brand Leave about 2 feet (0.6 m) of cable at each end for connecting of 16 to 12 gauge multi-stranded wiring for amplifier- to- to the speakers and amplifier. - Page 7 Mounting bracket vertical position 2. Use a masonry drill to make pilot holes for the anchors. 3. Insert the suitable masonry anchors into the pilot holes and attach the mounting bracket with screws. Russound AW70V6mk2 70V Surface Mount Indoor/Outdoor Speaker Installation Manual...
- Page 8 3. Attach bracket with lock washers and bolts, and tighten. 4. Leave about 2 feet of cable at the speaker end for connections and adjustments. Mounting bracket vertical position Russound AW70V6mk2 70V Surface Mount Indoor/Outdoor Speaker Installation Manual...
-
Page 9: Final Assembly
Simply lift the logo slightly until it can rotate, and then rotate it to the desired orientation. Release the logo when finished and it will spring back into position. Russound AW70V6mk2 70V Surface Mount Indoor/Outdoor Speaker Installation Manual... -
Page 10: Technical Specifications
In these cases, repairs will be made on the basis of the retail value of the parts and labor. To return for repairs, the unit must be shipped to Russound at the owner’s expense, along with a note explaining the nature of service required. - Page 11 Russound AW70V6mk2 70V Surface Mount Indoor/Outdoor Speaker Installation Manual...
- Page 12 AW70V6mk2 70V Surface Mount Indoor/Outdoor Speakers Installation Manual Russound, Inc. ©2023 Russound/FMP, Inc. All rights reserved. All trademarks are 200 International Drive, Suite 155 property of their respective owners. Specifications are subject Portsmouth, NH 03801 USA to change without notice. Russound is not responsible for tel 603.659.5170...
