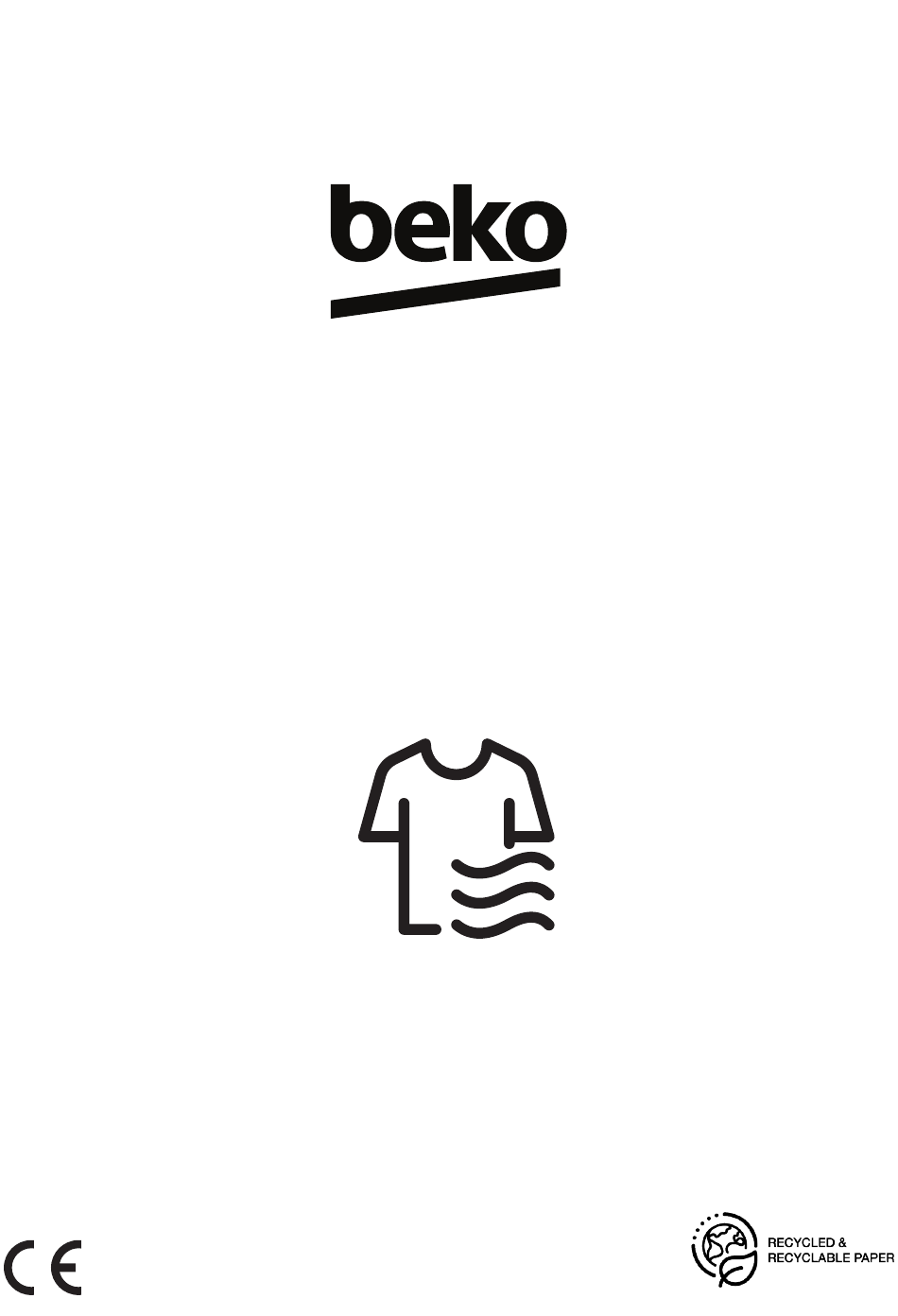

- Page 1 Dryer User Manual BTBC43XB BTBC43XB1 2960313287_EN/250523.0919...
- Page 2 Dear Customer, Please read this guide prior to use this product! Thank you for choosing Beko product. We would like you to achieve the optimal efficiency from this high quality product which has been manufactured with state of the art technology. Please make sure you read and understand this guide and supplementary documentation fully before use.
-
Page 3: Table Of Contents
1 Safety Instructions ................... 5 1.1 Intended use ......................5 1.2 Safety of children, vulnerable persons and pets ............5 1.3 Electrical Safety ....................6 1.4 Transporting safety ....................6 1.5 Installing safety .....................7 1.6 Usage safety ......................8 1.7 Maintenance and cleaning safety ................10 1.8 Lighting safety ....................10 2 Environmental instructions.............. - Page 4 6 Running the product ................18 6.1 Control Panel ......................18 6.2 Symbols ......................18 6.3. Preparation of drying machine ................18 6.4 Program selection and consumption chart ............19 6.5 Auxiliary functions ....................21 6.6 Warning indicators ....................21 6.7 Starting the program ...................22 6.8 Child Lock ......................22 6.9 Changing the program after it is started ..............22 6.10 Cancelling the program ..................22 6.11 End of program ....................23...
-
Page 5: Safety Instructions
1 Safety Instructions This section includes the safety instructions necessary to prevent the risk of personal injury or material damage. • Our company shall not be held responsible for damages that may occur if these instructions are not observed. • Installation and repair operations shall always be performed by Authorized Service. -
Page 6: Electrical Safety
• Keep the packaging materials away from children. Risk of injury and suffocation. • Keep all additives used with the product away from children. • Before disposing of the product, cut the power cord and destroy the loading door. 1.3 Electrical Safety •... -
Page 7: Installing Safety
1.5 Installing safety • To prepare the product ready for installation, ensure that the electrical installation and water drain is proper by checking the information in the user manual. If it is not suitable for installation, call a qualified electrician and plumber to arrange the utilities as necessary. -
Page 8: Usage Safety
• Plug the product in a grounded socket that conforms with the voltage, current and frequency values specified in the type label. • Do not plug the product to loose, broken, dirty, greasy sockets or sockets that has come out their seats or sockets with a risk of water contact. •... - Page 9 • If all items cannot be removed rapidly and cannot be placed where heat can dissipate, do not stop the drying machine before drying cycle completed. • The last part of the drying machine cycle is conducted without heating (cooling cycle) in order to ensure that the items are kept at a temperature that will not harm the items.
-
Page 10: Maintenance And Cleaning Safety
1.7 Maintenance and cleaning safety • Do not wash the product by spraying or pouring water on it. Do not use a pressure cleaner, steam cleaner, hose or pressurised gun to clean the product. • Do not use sharp or abrasive tools to clean the product. •... -
Page 11: Environmental Instructions
2 Environmental instructions 2.1 Compliance with the WEEE Regulations and Waste Disposal This product does not contain the dangerous and prohibited materials indicated in the “Regulation on The Control of Waste Electrical and Electronic Equipment” published by Ministry of Environment and Urbanisation of Republic of Turkey. Complies WEEE Regulations. -
Page 12: Your Drying Machine
3 Your drying machine 3.1 Technical specifications Height (Min. / Max.) 84,6 cm / 86,6 cm* Width 59,8 cm Depth 60,5 cm Capacity (max.) 9 kg** Net weight (± %10) 44 kg Voltage Rated power input See type label*** Model code * Min. -
Page 13: General Appearance
3.2 General appearance 3.3 Scope of delivery 1. Water 6. Water discharge filling cap* hose* 2. Filter drawer 7. Pure spare Water* sponge* 8. Odour 3. User Capsule Manual Group* 4. Drying 9. Brush* basket* 1. Top panel 5. Drying 10. -
Page 14: Installation
4 Installation • Once the drying machine is installed, the connections must stay stable. After placing the drying machine, ensure that the back wall does not come in contact Read the “Safety Instructions” first! with any extrusion (a water tap, electrical outlet etc.). -
Page 15: Water Connection
4.4 Adjusting the stands Do not leave an accessory or any parts of the shipping safety group NOTICE inside the drum. Until the drying machine stands level 4.3 Water connection and sturdy, adjust Instead of periodically draining the water the stands by turning accumulated in the water tank, you can them left and right. -
Page 16: Preparation
5 Preparation 5.3 Preparing the laundry to be dried Items such as coins, metal parts, needles, nails, screws, stones etc. may damage the drum group of the product or may cause functional Read the “Safety Instructions” first! operation issues. Therefore check all laundry that will be loaded to the product. -
Page 17: Correct Load Capacity
• If you are using environment friendly filter, you are not required to clean the filter after every cycle. When the environment friendly icon is lit on the screen, change the filter cloth. 5.5 Correct load capacity NOTICE If the laundry in the product exceed maximum load capacity, it may not... -
Page 18: Running The Product
6 Running the product 6.1 Control Panel 1. On/Off/Program Selection button. 5. Low temperature selection button. 2. Start / Stand-by button. 6. Audible warning and child lock selection button. 3. End time selection button. 7. Wrinkle prevention selection button/ Drum 4. -
Page 19: Program Selection And Consumption Chart
6.4 Program selection and consumption chart Programmes Programme Description You can dry your heat-resistant cotton textiles with this programme. A drying setting suitable for the Cottons 1000 thickness of the products to be dried and the desired level of dryness should be selected. It dries single layer, casual cotton textiles in the most Cottons Eco 1000... - Page 20 It is the programme that you can dry your washed products you want to provide with extra hygiene Hygienic Drying (baby clothes, underwear, towels, etc.). It provides high hygiene for your textiles via heat effect. You can use this programme for your dry clothes and laundry that you want to provide with hygiene without Hygienic Refresh washing them.
-
Page 21: Auxiliary Functions
3. Press the End Time selection button and Allergy UK is the trademark of set the delay time you wish. End time LED the British Allergy Foundation. turns on. (When pressed and hold the The Seal of Approval has been button, End Time proceeds non-stop). -
Page 22: Starting The Program
Cleaning of filter drawer/ • Press the Start/Stand-by button to start the program. heat exchanger Adding and removing clothes Warning symbol flashes periodically to remind during stand-by that filter drawer must be cleaned. If you want to add or remove clothes to/from 6.7 Starting the program the drying machine after the drying program Press the Start/Stand-by button to start the... -
Page 23: End Of Program
The inside of the drying machine shall be extremely hot when you cancel the program during machine operation, so run the refreshing program to allow it to cool down. 6.11 End of program When the program ends, the LED’s of End/ Wrinkle Prevention and Fibre Filter Cleaning Warning on the program follow-up indicator turn on. -
Page 24: Maintenance And Cleaning
7 Maintenance and cleaning • Open both of the lint filters (outer and inner) and remove the fibres with your hands or with the brush on the air deflector. You can clean the hair in the filters with a vacuum cleaner. -
Page 25: Cleaning The Sensor
• Insert the lint filters on one another and place it back in its place. Clean the metal surfaces of the sensor 4 times a year. Do not use metal tools to clean the sensors’ metal surfaces. Due to fire and explosion hazard, do not use solutions, cleaning materials •... -
Page 26: Cleaning The Condenser
Remove the water tank in the drawer or the The cleaning brush is inside the kickplate carefully. documentation bag. Get your brush from the documentation bag and insert it to its place on the air deflector to store it. Clean the fibre on the metal surface of the If fibre is accumulated in the funnel on the condenser with damp... - Page 27 When the air deflector cover is removed, it is normal to have water at the plastic section in front of the condenser. If you see fibre accumulation on the fan cover and the toe board, remove with a cloth. Do not have weight on the toe board when it is open.
-
Page 28: Troubleshooting
8 Troubleshooting The drying operation takes too long. Fibre filter (interior and exterior filters) pores may be clogged. >>> Wash the fibre filters with warm water and dry them The front side of the condenser may be clogged. >>> Clean the front side of the condenser. The ventilation grills in front of the machine may be closed. - Page 29 The fibre filter cleaning icon is lit. Fibre filters (interior and exterior filters) may be unclean. >>> Wash the filters with warm water and dry them. A layer may be formed in the fibre filter pores, leading to clogging. >>> Wash the filters with warm water and dry them. A layer may be formed in the fibre filter (internal and external filters) pores that leads to clogging.<<Wash the filters with warm water and dry>>...
- Page 30 PRODUCT FICHE Complying Commission Delegated Regulation (EU) No 392/2012 BEKO Supplier name or trademark BTBC43XB / 7188236690 Model name BTBC43XB1 / 7188237860 Rated capacity (kg) Air Vented Type of Tumble Dryer Condenser Energy efficiency class 258,6 Annual Energy Consumption (kWh)
