A58ML2 Setup Manual
Dichiarazione di conformità
sintetica
Ai sensi dell'art. 2 comma 3 del D.M.
275 del 30/10/2002
Si dichiara che questo prodotto è
conforme alle normative vigenti e
soddisfa i requisiti essenziali richiesti
dalle direttive
2004/108/CE, 2006/95/CE e
1999/05/CE
quando ad esso applicabili
Short Declaration of conformity
We declare this product is complying
with the laws in force and meeting all
the essential requirements as specified
by the directives
2004/108/CE, 2006/95/CE and
1999/05/CE
whenever these laws may be applied

Advertisement

Table of Contents
loading

Summary of Contents for Biostar A58ML2

  • Page 1 A58ML2 Setup Manual FCC Information and Copyright This equipment has been tested and found to comply with the limits of a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 2: Table Of Contents

    Table of Contents Chapter 1: Introduction ............... 1 Before You Start ................. 1 Package Checklist ..............1 Motherboard Specifications ............2 Rear Panel Connectors ............. 3 Motherboard Layout ..............4 Chapter 2: Hardware Installation ..........5 Install Central Processing Unit (CPU) ........5 Install a Heatsink ...............
  • Page 3: Chapter 1: Introduction

    A58ML2 CHAPTER 1: INTRODUCTION 1.1 Before You Start Thank you for choosing our product. Before you start installing the motherboard, please make sure you follow the instructions below:  Prepare a dry and stable working environment with sufficient lighting.  Always disconnect the computer from power outlet before operation.
  • Page 4: Motherboard Specifications

    1x Serial Port Header Form Factor microATX Form Factor, 190 mm x 178 mm Windows XP / 7 / 8 / 8.1 OS Support Biostar reserves the right to add or remove support for any OS with or without notice.
  • Page 5: Rear Panel Connectors

    A58ML2 1.4 Rear Panel Connectors Note 1: VGA Output requires an AMD family processor with intedrated graphics. Note 2: Since the audio chip supports High Definition Audio Specification, the function of each audio jack can be defined by software. The input / output function of each audio jack listed above represents the default setting.
  • Page 6: Motherboard Layout

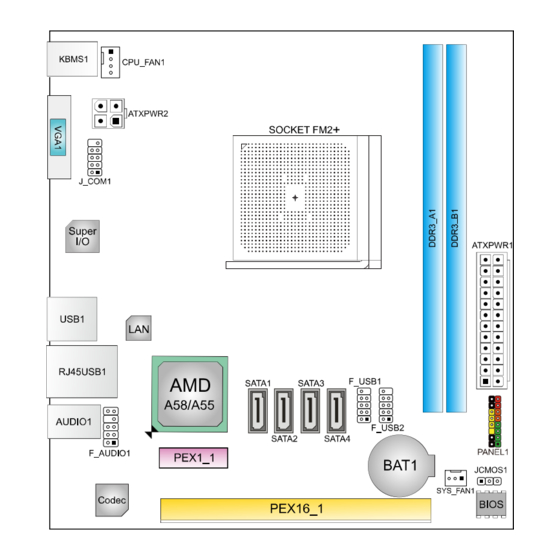

    Motherboard Manual 1.5 Motherboard Layout Note: ■ represents the 1st pin.
