TP-Link VIGI C340-W-4 Quick Start Manual

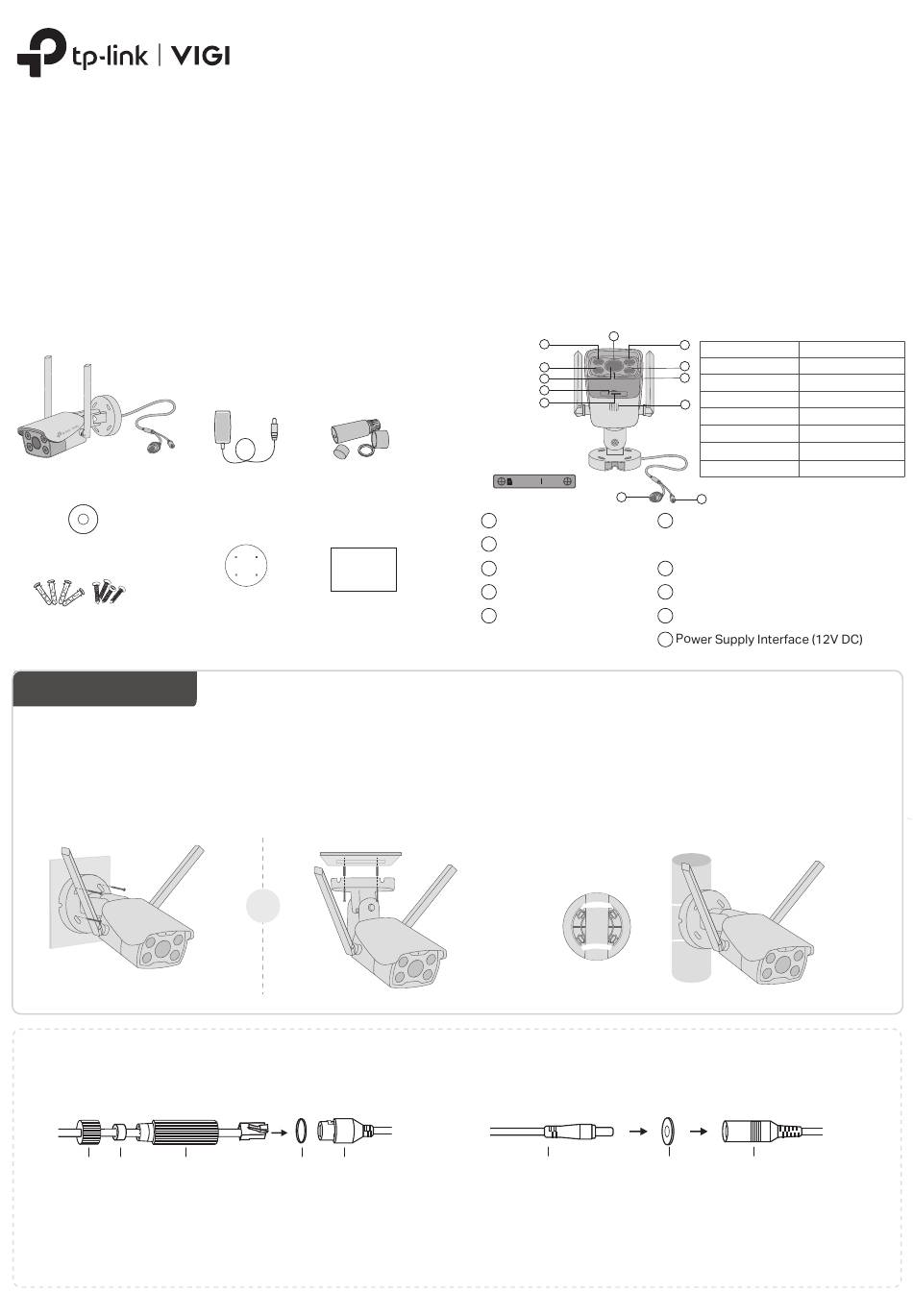

Quick Start Guide
VIGI Wi-Fi Network Camera
*Images may differ from actual products.
Package Contents

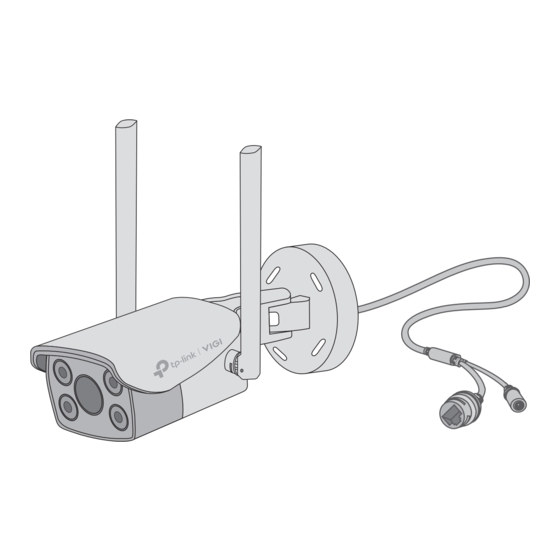

Network Camera
Waterproof Seal
Anchors and Screws
1
Mount Camera
Option 1: Wall/Ceiling Mounting
1. Stick the mounting template to the desired mounting place.
Drill 4 screw holes according to the template.
2. Insert the anchors into the holes, use the provided screws to
fix the camera's bracket to the wall or ceiling.
Installing Waterproof Cable Attachments
Install the waterproof cable attachments for the network interface when the
camera is installed outdoors.
Note: Make sure each part is securely attached and the waterproof rings are flush to keep out water.
Fix Nut Waterproof Waterproof
Ring Jacket
1. Route the network cable through the following components in order: fix nut,
waterproof ring, and then the waterproof jacket.
2. Fix the O-ring to the network interface of the camera and connect the network
cables.
3. Attach the network interface with the waterproof jacket, then twist to lock.
4. Insert the waterproof ring into the waterproof jacket. Rotate the fix nut to
secure it to the waterproof jacket.
Waterproof Cable
Power Adapter
Attachments
Quick
Start
Guide
Mounting Template Quick Start Guide
OR
Network
O-ring
Interface
Safety First:
• Make sure your power supply matches your camera.
The camera's standard power supply is 12V DC.
• Make sure that the wall is strong enough to
withstand 4 times the weight of the camera and
mounting bracket.
• If you are uncertain or uncomfortable performing the
installation, consult a qualified electrician.
Appearance
1
2
3
4
5
6
Note: Before inserting the
micro SD card or resetting
the camera, unfasten the two
fixed screws to remove the
cover.
Micro SD RESET
9
Microphone
1
IR LED
2
White Light
3
Lens
4
RESET Button
5
Long press the button to reset
the camera to factory settings.
Option 2: Pole Mounting
1. Thread each of the two cable ties through the slits on the
back of the camera's bracket indicated below.
2. Slip the two cable ties through the pole. Tighten them to
firmly attach the pole.
Install Waterproof Seal for Power Connectors
Install the waterproof seal for the power connectors when the camera is installed
outdoors.
Male Power Connector Waterproof Seal
Status LED Indication
Status Description
2
Solid red Starting up
3
7
Blink red and green Ready for setup
Blink green slowly Connecting to Wi-Fi
8
Solid green Connected to Wi-Fi
Blink red slowly Wi-Fi connection lost
Blink red quickly Camera resetting
Blink green quickly Camera updating
10
Micro SD Card Slot
6
Insert a micro SD card for local storage. Initialize
the SD card via VIGI app before recording videos.
Status LED
7
Speaker
8
RJ45 Ethernet Port
9
10
Female Power Connector
