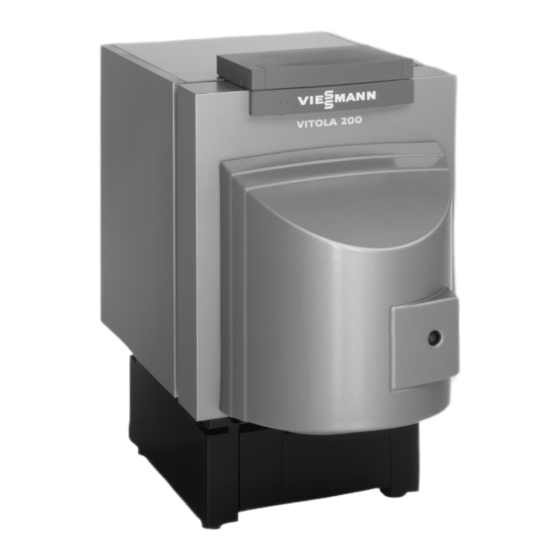

- Page 1 Start-up/Service Instructions for use by heating contractor Vitola 200 VB2 Series Oil-/Gas-Fired Boiler Heating input 83 to 300 MBH 24 to 88 kW VITOLA 200 IMPORTANT Read and save these instructions for future reference. 5167 405 v2.2 04/2008...
- Page 2 Viessmann equipment. Please see section For a listing of For information " "...
- Page 3 Safety, Installation and Warranty Requirements Safety, Installation and Warranty Requirements (continued) Please ensure that this manual is read and understood before commencing installation. Failure to comply with the issues listed below and details printed in this manual can cause product/property damage, severe personal injury, and/or loss of life. Ensure all requirements below are understood and fulfilled (including detailed information found in manual subsections).
-
Page 4: Table Of Contents
Contents Page Safety Important Regulatory and Installation Requirements ..General Information About these Service Instructions ........Necessary Tools . -
Page 5: Safety
Literature applicable to all aspects of site and advise the system the Vitola: operator/ultimate owner where the - Technical Data Manual literature can be found. Contact - Installation Instructions Viessmann for additional copies. - Start-up/Service Instructions - Installation codes mentioned in this manual... -
Page 6: General Information
General Information About these Service Instructions Take note of all symbols and notations intended to draw attention to potential hazards or important product information. These include ”WARNING”, ”CAUTION”, and ”IMPORTANT”. See below. Warnings draw your attention to the WARNING presence of potential hazards or important product information. -
Page 7: Start-Up And Service
Start-up and Service Initial Start-up See Operating Instructions, Service Instructions of Power Burner and Boiler Control 1. Ensure combustion and ventilation air WARNING openings of boiler room are open and that chimney and all flue pipes are Keep boiler clear and free from connected, sealed and unobstructed combustible materials, gasoline, and inside. -
Page 8: Service
2. Open combustion chamber door Illustration shows Viessmann Chassis Burner installed on Vitola 200 boiler. 1. Disconnect and remove burner hood (Viessmann Chassis burner only). - Page 9 Start-up and Service Service (continued) 3. Clean chimney, flue pipe and heat exchanger 1. Check flue pipe condition, chimney connection, and chimney itself, both inside and outside, for rust, deterioration, blockage, or leakage. Repair or replace as necessary. 2. Ensure combustion and ventilation air openings of boiler room are open and unobstructed.
- Page 10 Start-up and Service Service (continued) 5. Close combustion chamber door 1. Push in combustion chamber insert as far as it will go. Handle must be at bottom. IMPORTANT The combustion chamber insert has a lip at the back. Push combustion chamber insert into combustion chamber so that lip slides into matching notch at the back of the combustion...
- Page 11 Start-up and Service Service (continued) 8. Ensure proper operation of automatic fill valve and expansion tank; also ensure proper system water pressure IMPORTANT Check fill pressure when system is cold. Ensure proper operation of automatic fill valve and expansion tank. If a non-diaphragm expansion tank is CAUTION used, ensure the correct water level is...
- Page 12 Start-up and Service Service (continued) 11. Ensure that an adequate combustion air supply exists in the boiler room Ensure fresh air intake of boiler room is open. This opening must never be blocked or partially covered. 12. Ensure functionality of the barometric draft regulator of the burner During operation of the burner, the barometric installed in the vent system must move freely.
-
Page 13: Parts List
Parts List Ordering Replacement Parts: Please provide boiler Model and Serial Number from rating plate when ordering replacement parts. Order replacement components from your Viessmann distributor. Parts 001 Insulation jacket (entire insulation 008 Pressure vessel insulation blanket Boiler control, see... - Page 14 Additional Information Parts List (continued) Parts List 012 Combustion chamber door Not illustrated 013 Packing seal 026 Insulation accessories 014 Combustion chamber door 027 Flue outlet sealant refractory 028 Spray paint, vitosilver 032 Observation port cover 029 Touch-up pen, vitosilver 033 Rope seal 030 Installation Instructions 034 Door pin...
- Page 15 Additional Information Notes...
-
Page 16: Maintenance Record
Operating Instructions To operate boiler, please follow all instructions located in the Operating Instructions and User’s Information Manual of the Power Burner and the Boiler Control Viessmann Manufacturing Company (U.S.) Inc. Viessmann Manufacturing Company Inc. 45 Access Road 750 McMurray Road Warwick, Rhode Island •...
