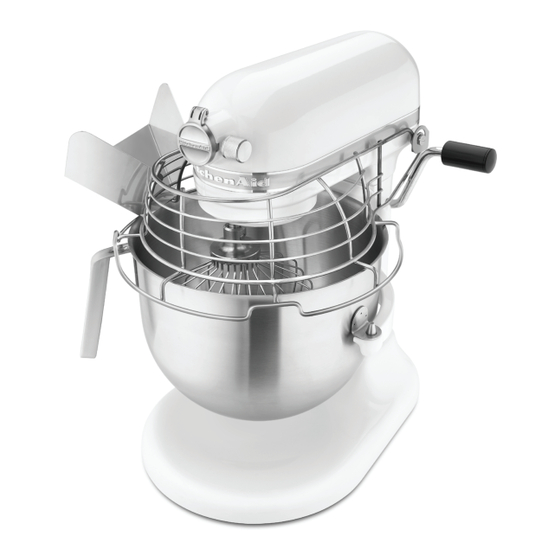

KitchenAid 5KSM7990 Product Manual

Professional bowl-lift stand mixer
Hide thumbs Also See for 5KSM7990:
Table of Contents

Advertisement

Quick Links

Download this manual

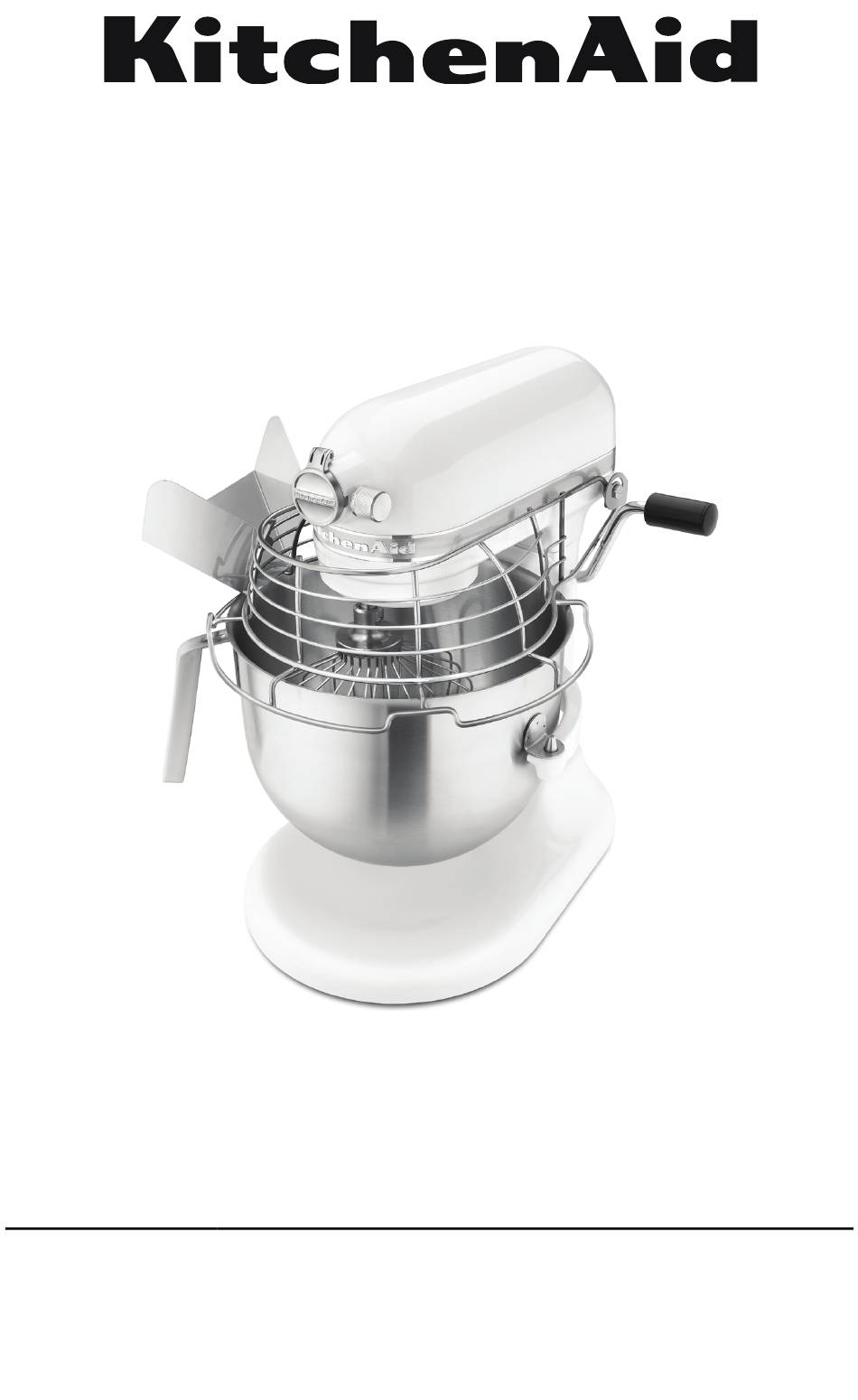

PROFESSIONAL BOWL-LIFT STAND
MIXER
5KSM7990
PRODUCT GUIDE
W11457006A

Advertisement

Table of Contents
loading

Related Manuals for KitchenAid 5KSM7990

Summary of Contents for KitchenAid 5KSM7990

  • Page 1 PROFESSIONAL BOWL-LIFT STAND MIXER 5KSM7990 PRODUCT GUIDE W11457006A...

  • Page 2: Parts And Features

    PARTS AND FEATURES 1. 6.9 L (7 qt.) Stainless Steel Bowl 9. Bowl-Lift Lever (not shown) 2. Bowl Support 10. Bowl Guard 3. Locating Pins 11. Beater Shaft 4. Stop Switch 12. Bowl Handle 5. Speed Control Lever 13. 11-Wire Stainless Steel Elliptical Whip 6.

  • Page 3: Product Safety

    PRODUCT SAFETY Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages. This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
  • Page 4 7. The use of accessories/attachments not recommended or sold by KitchenAid may cause fire, electric shock or injury. 8. If the supply cord is damaged, it must be replaced by KitchenAid, its service agent, or similarly qualified persons in order to avoid a hazard.

  • Page 5: Electrical Requirements

    This product is supplied with a Y type power cord. If the power cord is damaged, it must be replaced by KitchenAid or a service agent in order to avoid a hazard. The acoustic pressure level measured in conformity with the prEN 454-test code is less than 70 dBA.

  • Page 6: Speed Control Guide

    SPEED CONTROL GUIDE All speeds features Soft Start which allows the Stand Mixer to start at a lower speed to help avoid ingredient splash-out and “flour puff” at start-up, then increases to the selected speed. SPEE- OPERATING ACCESSORIES ACTION DESCRIPTION TIME For slow stirring, combining, mashing, and starting all...

  • Page 7: Capacity Chart

    CAPACITY CHART 6.9 L BOWL All-purpose flour 2 to 2.2 kg 8 breads of 450 g Bread 160 pieces Cookies/Biscuits 3.5 kg Mashed Potatoes PRODUCT ASSEMBLY Turn the Stand Mixer off (0) and then unplug. Place Bowl-Lift Lever in down position.
  • Page 8 To attach the Bowl: Fit the Bowl Supports over Locating Pins and press down on back of the Bowl until Bowl Pin snaps into spring latch. A. Spring Latch B. Locating Pin IMPORTANT: If the Bowl is not securely snapped into place, it will be unstable and wobble during use.

  • Page 9: Product Usage

    USING THE POURING CHUTE*** Place the Pouring Chute***: Attach the Pouring Chute to the front of Bowl Guard. It provides a convenient way to add ingredients to the Stand Mixer Bowl. Auto-Reset Motor Protection: If the Stand Mixer stops due to overload, slide the Speed Control Lever to off (0) and unplug the Stand Mixer.
  • Page 10 Test the Beater to Bowl Clearance: Plug the Stand Mixer into an earthed outlet. Turn Stand Mixer ON and test each speed, making sure the beater does not touch the Bowl during operation. If the beater is too far away from the bottom or is hitting the Bowl, proceed to next step to make adjustments.
  • Page 11 To attach the Bowl Guard***: Make sure that the guard is returned to the down position before beginning to use the Stand Mixer. The Stand Mixer will not run if the Bowl Guard is not in the proper position. Stop Switch: If you need to stop the Stand Mixer immediately during use, press the Stop Switch.

  • Page 12: Product Disassembly

    WARNING Injury Hazard Unplug mixer before touching beaters. Failure to do so can result in broken bones, cuts, or bruises. Do not scrape the Bowl while operating. Scraping the Bowl once or twice during mixing is usually sufficient. IMPORTANT: The Stand Mixer may warm up during use. Under heavy loads with extended mixing time, the top of the unit may become hot.

  • Page 13: Care And Cleaning

    Remove the accessory: Press accessory upward and turn to the left. Pull down the accessory from Beater Shaft. To Remove Bowl: Place Bowl-Lift Lever in the down position. Grasp Bowl Handle and lift straight up and off Locating Pins. CARE AND CLEANING IMPORTANT: Do not immerse the Stand Mixer body in water or other liquids.
  • Page 14 Wipe the Stand Mixer body with a soft, damp cloth. The following parts are dishwasher-safe, top rack only: Bowl, Stainless Steel Flat Beater, Stainless Steel Spiral Dough Hook, and Removable Pouring Chute The following part should be hand-washed only using warm, soapy water and drying thoroughly: 11-Wire Stainless Steel Elliptical Whip.

  • Page 15: Troubleshooting

    Turn off (0) the Stand Mixer for 10-15 seconds, then turn it back on. If the Stand Mixer still does not start, allow it to cool for 30 minutes before turning it back on. See the “Terms of KitchenAid Guarantee (“Guarantee”)” section. If the problem cannot be Do not return the Stand Mixer to the retailer;...

  • Page 16: Recycling The Product

    RECYCLING THE PRODUCT � This appliance is marked in compliance with law in the EU and UK covering, Waste Electrical and Electronic Equipment (WEEE). � By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.
  • Page 17 - 1275/2008: Ecodesign for Standby and Off Mode Electric Power. This declaration of conformity is issued under the sole responsibility of the manufacturer. Signed for and on behalf of: KitchenAid Europa, Inc. St. Joseph, MI 07 July 2020 Legal Representative: Place and date;...
  • Page 18 If the consumer wishes to make a claim under the Guarantee, the consumer has to contact the country specific KitchenAid service centres or the Guarantor directly at KitchenAid Europa, Inc. Nijverheidslaan 3, Box 5, 1853 Strombeek-Bever, Belgium;...

  • Page 19: Product Registration

    Further or other claims, in particular claims for damages, are excluded unless liability is mandatory by law. After expiry of the Guarantee period or for products for which the Guarantee does not apply, the KitchenAid customer service centres are still available to the end-customer for questions and information.
