DEVIreg™ 530
2.

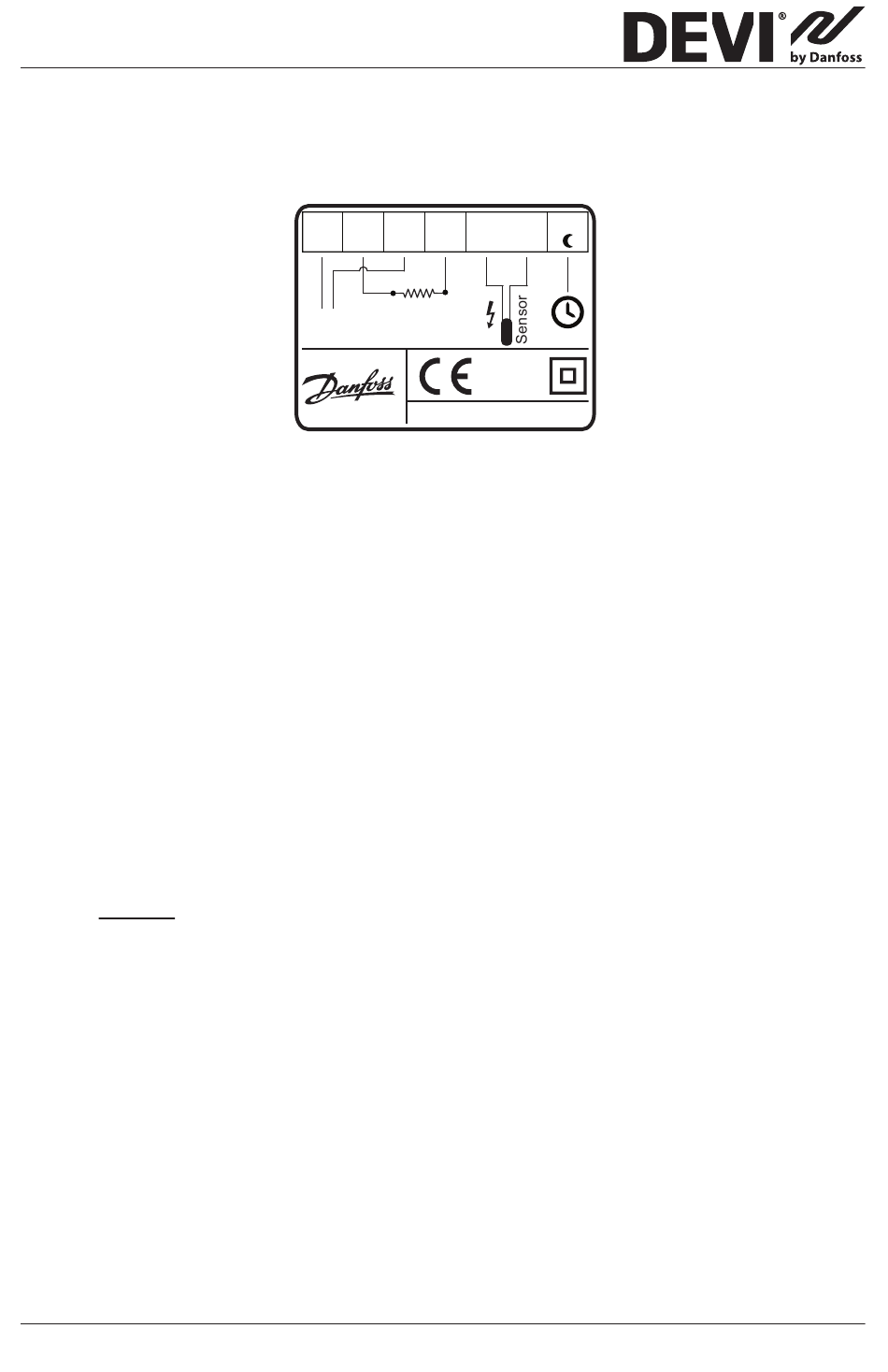

Connect the thermostat according to the connection
diagram.
By connecting an external timer to the terminal
marked by a moon symbol (and by using for example
the same phase as for the mains power supply), the
thermostat can be set to reduce the temperature by
5°C during specified periods.
The screen of the heating cable must be connected
to the earth conductor of the power supply cable by
using a separate connector.
Note: Always install the floor sensor in a conduit in
the floor.
Installation Guide
N
L
N
L
LOAD
LOAD
Mains
Max. Load
220-240V~
15 (1) A
D530
NTC
L
-5°C
IP31
-10T30
9
9
