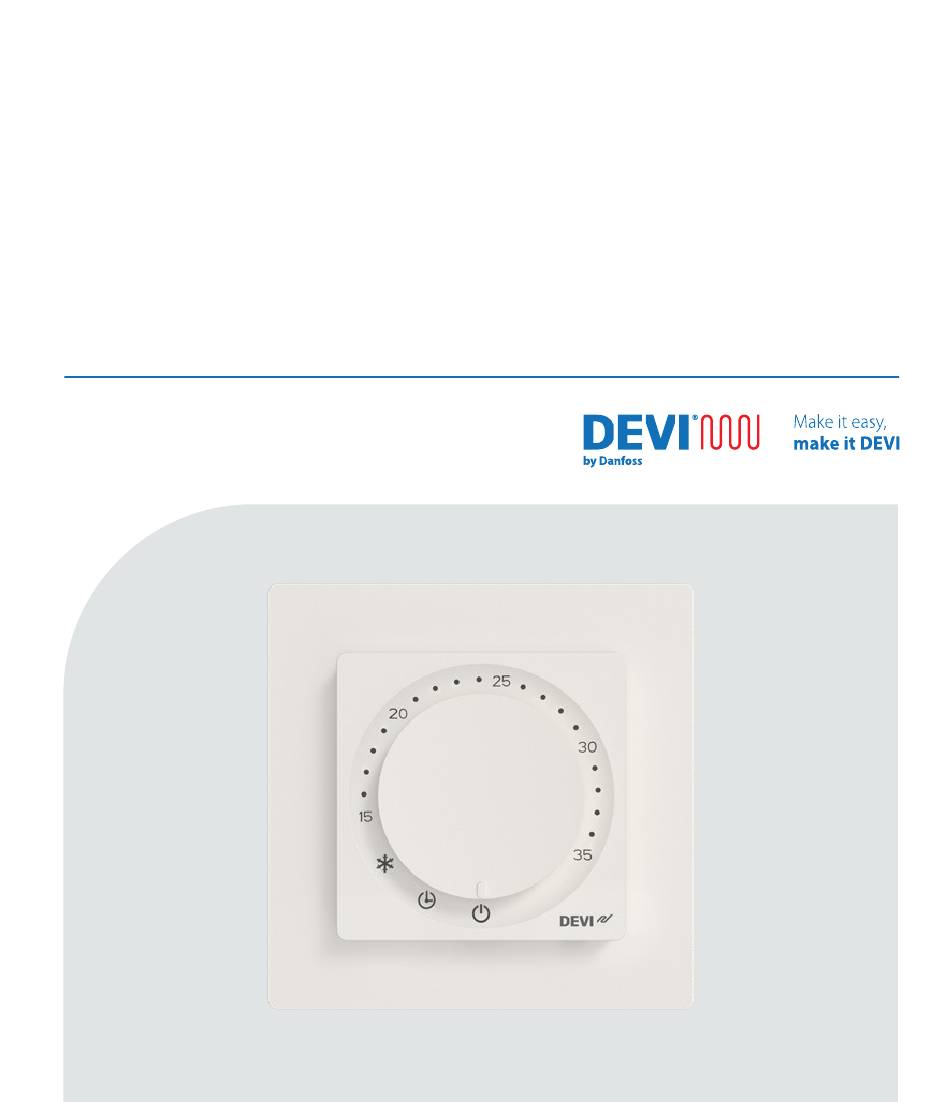

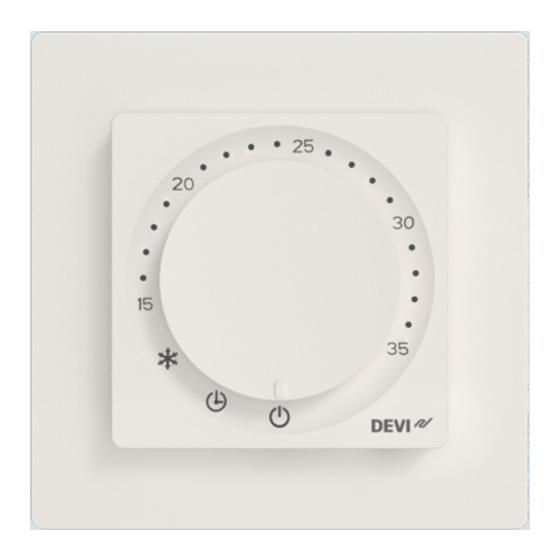

- Page 1 Installation Guide DEVIreg™ Room Intelligent electronic timer controlled thermostat with App control...
-
Page 3: Table Of Contents
INSTALLATION GUIDE DEVIreg™ Room Table of contents Introduction Standard Compliance Safety instruction Installation Guidelines User Guide DEVI Control App DEVI Control App User Guide Eco Design Sheet Warranty Disposal instruction... -
Page 4: Introduction
INSTALLATION GUIDE DEVIreg™ Room Introduction The DEVIreg™ Room is a Thermostat for use with electric oor heating, the thermostat has multiple control modes: Floor, Room* and Combined. the thermostat has adaptive timer support which provides an e cient way of controlling your electric oor heating system. -
Page 5: Standard Compliance
EN 300 328 (E cient use of radio spectrum for radio equipment operating in the 2,4 GHz band) SIMPLIFIED EU DECLARATION OF CONFORMITY Hereby, Danfoss A/S declares that the radio equipment DEVIreg™ Room is in compliance with Directive 2014/53/EU. The full Declaration of conformity can be found on... -
Page 6: Safety Instruction
INSTALLATION GUIDE DEVIreg™ Room Safety instruction Make sure that the mains power supply to the thermostat is shut o before starting the installation. Important: When the thermostat is used to control a oor heating element, always use a oor sensor, and never set the maximum oor temperature to more than the manufacturer recommends for the speci c ooring type. -
Page 7: Installation Guidelines
INSTALLATION GUIDE DEVIreg™ Room Instructional video material To make it easy we show the features and functions of the product in videos that are present on our YouTube channel. Installation Guidelines Follow these guidelines when placing the thermostat. Install the thermostat in a suitable height on the wall (typical 80 –... - Page 8 INSTALLATION GUIDE DEVIreg™ Room Do not place the thermostat in a way that it will be exposed to direct sunlight. The thermostat must not be installed in direct wet areas (Zones 0, 1 and 2).Always follow local regulations regarding IP classes, this doesn’t mean that the thermostats can’t be installed in bathrooms.
- Page 9 INSTALLATION GUIDE DEVIreg™ Room Installation steps Description Illustration 1. Unpack the thermostat. Make sure all parts are delivered (1 pc. thermostat unit ,1 pc. Power supply, 1 pc. Frame, 1 pc. Frame adapter, 1 pc. Spacer, and 1 pc. wire sensor) along with the instructions written in local o cial language.
- Page 10 INSTALLATION GUIDE DEVIreg™ Room Description Illustration 3. The bending radius for the Flexpipe must be more than 50 mm. 4. Make sure the oor sensor is located with equal distances between two heating cables (> 2 cm) located at a representative position.
- Page 11 INSTALLATION GUIDE DEVIreg™ Room Description Illustration 6. Ensure that the wiring circuit is disconnected and voltage free, turn o the all-pole disconnect. 7. Connect the wires according to the wiring diagram on back of the power supply of the thermostat. Ensure that the terminals are properly fastened and wires are securely connected.
- Page 12 INSTALLATION GUIDE DEVIreg™ Room Description Illustration 9. Fasten the thermostat’s power supply to the wall terminal box using screws in minimum 2 of the designated holes on the power supply unit. Notice: place the thermostat according to the - arrow 10.
- Page 13 INSTALLATION GUIDE DEVIreg™ Room Description Illustration 13. The thermostat is now ready The thermostat does not require for use. any settings to be performed in the app, however this will be required to modify advanced features, schedules and more. 14. Dismount thermostat front for Perform steps 11 and 10 carefully in replacement.
- Page 14 INSTALLATION GUIDE DEVIreg™ Room Connection scheme DEVIreg™ Room Room t° sensor NTC 15 kOhm at 25°C sensor adaptation possible Load max. 16 A...
- Page 15 INSTALLATION GUIDE DEVIreg™ Room Technical speci cations Operating voltage 220-240 V~, 50/60 Hz Power consumption OFF: <175 mW Idle: <200 mW Contact rating: - Resistive load 230 V ~ 16 A/3680 W - Inductive load Cos φ = 0,3 max. 1 A Floor sensor NTC 15 k @ 25 °C, 3 m.
- Page 16 INSTALLATION GUIDE DEVIreg™ Room Temperature for Ball 75 °C pressure test Storage temperature -25 °C to 60 °C Timer functions 3 periods per day. Resolution of timer is 30 minutes. Timer backup for 1 hour Dimensions 85 mm x 85 mm x 20-24 mm (in wall depth: 22 mm) Weight 204 g...
-
Page 17: User Guide
INSTALLATION GUIDE DEVIreg™ Room User Guide Product interface Temperature adjustment Indicator Timer schedule/App communication Frost protection * When knob is in temp adjustment mode the thermostat will not run the time schedule program. - Page 18 INSTALLATION GUIDE DEVIreg™ Room Knob position Description In this position the thermostat is not active. In this position the thermostat is running in schedule mode. Timer schedule / App communication In this position the thermostat is ready for App con guration/modi cation. In this position the thermostat is Frost protection operating in frost protection mode.
- Page 19 INSTALLATION GUIDE DEVIreg™ Room Selecting the timer schedule / app communication mode the device will be connectable in the DEVI control app, the communication is done via Bluetooth 4.2, where temperatures, settings, schedule, limits and more can be set to the desired level. Selecting the OFF mode will disable the thermostat completely.
- Page 20 INSTALLATION GUIDE DEVIreg™ Room Indicators The indicators are shine through and are within the knob of the product, these will light up when needed. Indicators (inside the knob) All indicators fade out after a duration (default 20 seconds) unless an error is present.
- Page 21 INSTALLATION GUIDE DEVIreg™ Room Heat indicator • This indicator lights up and turns red when the thermostat switches on and delivers current to the electric heating element. After some seconds the indicator fades out. • This indicator lights up and turns green when the thermostat is powered and OK.
- Page 22 INSTALLATION GUIDE DEVIreg™ Room Schedule • This indicator lights up white when the built in schedule changes from Non active to active and vice versa. After some seconds, the indicator fades out. • The indicator ashes in part of the paring process.
- Page 23 INSTALLATION GUIDE DEVIreg™ Room Factory reset To perform a factory reset the thermostat needs to be powered and correctly mounted, on the bottom of the device (circled below) is a pin hole, by pressing a needle into this pinhole a button will be activated, after 20-30 seconds of activation of this button the thermostat will perform a factory reset.
- Page 24 INSTALLATION GUIDE DEVIreg™ Room Breakout To enable the thermostat to go up to a oor temperature of 45°C, or to use the room only control functionality. a permanent modi cation must be made, this can invalidate your warranty on the product and connected products.
-
Page 25: Devi Control App User Guide
INSTALLATION GUIDE DEVIreg™ Room DEVI Control App: DEVI Control App User Guide: REFERENCE TO APP MANUAL To pair the thermostat with the app, initiate the app and follow the instructions provided in the app. App enabled functions • wizard assisted installation •... - Page 26 INSTALLATION GUIDE DEVIreg™ Room Warnings and error messages Warning table Warning Description Reference Schedule Set when Schedule is active (Set in App) overwritten due but dial has been turned to set a manual to manual dial setpoint setting If time is totally invalid - less than 2021 or Invalid clock above 2050 or use production date or rst time connected to App...
- Page 27 Description Solution Need restart Floor Sensor Connection Contact The thermostat disconnected to sensor installer or requires a restart is lost local Danfoss to operate again service Floor Sensor Sensor Contact The thermostat short- short- installer or requires a restart circuited...
- Page 28 Error type Description Solution Need restart Unrecover- Power Contact able error, supply is installer or Power supply detected as local Danfoss defective service Potentiom- Potenti- Contact eter / dial ometer is installer or potentiometer is error detected as local Danfoss...
-
Page 29: Eco Design Sheet
INSTALLATION GUIDE DEVIreg™ Room Eco Design Sheet To comply with ECO design regulations for electric local space heaters 1188/2015 the following table is to be lled in with the speci cs of the heating system. Herein the thermostat information for this speci c product is pre lled, please ll any/all blank slots. - Page 30 INSTALLATION GUIDE DEVIreg™ Room electronic heat charge control Maximum with room and/ continuous [yes/no] or outdoor max,c heat output temperature feedback Auxiliary fan assisted heat [yes/no] electricity output consumption Type of heat output/ At nominal <0,00062 room temperature control heat output (select one) single stage heat output...
- Page 31 INSTALLATION GUIDE DEVIreg™ Room with electronic room [no] temperature control electronic room temperature [no] control plus day timer electronic room temperature [yes] control plus week timer Other control options (multiple selections possible) room temperature control, with [no] presence detection room temperature control, with [no]...
- Page 32 INSTALLATION GUIDE DEVIreg™ Room with distance [no] control option with adaptive [yes] start control with working [no] time limitation with black bulb [no] sensor Danfoss A/S, Nordborgvej 81, Contact details 6430 Nordborg, Denmark...
-
Page 33: Warranty
• thermostats incl. DEVIreg™ Room. Should you, against all expectations, experience a problem with your DEVI product, you will nd that Danfoss o ers DEVIwarranty valid from the date of purchase that was no later than 2 years from production... - Page 34 The DEVIwarranty shall not extend to products which have not been paid in full. Danfoss will, at all times, provide a rapid and e ective response to all complaints and inquiries from our customers.
- Page 35 INSTALLATION GUIDE DEVIreg™ Room...
-
Page 36: Disposal Instruction
INSTALLATION GUIDE DEVIreg™ Room Disposal instruction This symbol on the product indicates that it may not be disposed of as household waste. It must be handed over to the applicable take-back scheme for the recycling of electrical and electronic equipment. •... - Page 37 INSTALLATION GUIDE DEVIreg™ Room...
- Page 38 INSTALLATION GUIDE DEVIreg™ Room...
- Page 39 INSTALLATION GUIDE DEVIreg™ Room Danfoss A/S Nordborgvej 81 6430 Nordborg Denmark 140R0040 | AN461038960054en-010103 Produced by Danfoss © 2023.11...
