Installation Guide
DEVIreg™ Smart
Intelligent Electronic Timer Thermostat or Timer
Switch with Wi-Fi connectivity and App control
www.DEVI.com

Advertisement

Table of Contents
loading

Summary of Contents for Danfoss DEVI Smart

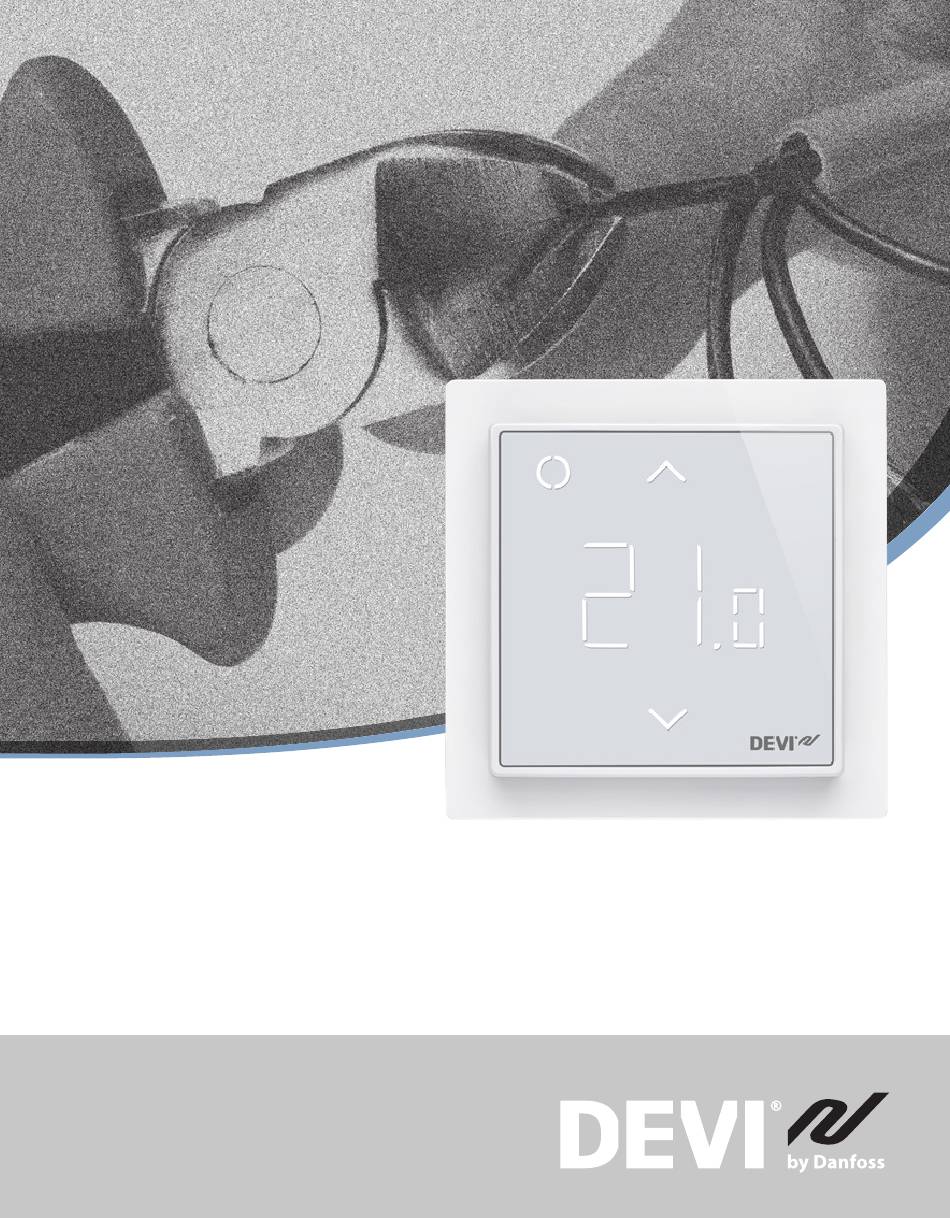

  • Page 1 Installation Guide DEVIreg™ Smart Intelligent Electronic Timer Thermostat or Timer Switch with Wi-Fi connectivity and App control www.DEVI.com...
  • Page 2: Table Of Contents

    DEVIreg™ Smart Table of Contents Introduction ..... . 2 Technical Speci cations ....4 Safety Instructions .
  • Page 3 DEVIreg™ Smart • An installation wizard with room/ oor type-speci c setup (requires an app). • Support for multiple frame systems. • Compatible with several 3rd party NTC sensors. • Thermostat settings can be speci ed before installation and imported to the thermostat using a web-generated code (For DEVIreg™...
  • Page 4: Technical Speci Cations

    DEVIreg™ Smart More information on this product can also be found at: devismart.com Technical Speci cations Operation voltage 220–240 V~, 50/60 Hz Standby power Max. 0,40 W consumption Relay: Resistive load Max. 16 A / 3680 W @ 230 V Inductive load Max.
  • Page 5 DEVIreg™ Smart Ambient temperature 0 °C to 30 °C Frost protection 5 °C to 9 °C (default 5 °C) temperature* Temperature range* Room temperature: 5 °C to 35 °C. Floor temperature: 5 °C to 45 °C. Max. oor: 20 °C to 35 °C (if unrecover- able seal is broken then up to 45 °C).
  • Page 6: Safety Instructions

    DEVIreg™ Smart IP class Protection class Class II - Dimensions 85 x 85 x 20-24 mm (in-wall depth: 22 mm) Weight 127 g * not relevant for switch function Electrical safety and Electro-Magnetic Compatibility for this product is covered by the compliance with the EN/IEC Standard “Automatic electrical controls for household and similar use”: •...
  • Page 7 DEVIreg™ Smart • The installation of the thermostat/switch must be done by an authorized and quali ed installer according to local regulations. • The thermostat/switch must be connected to a power supply via an all-pole disconnection switch. • Always connect the thermostat/switch to continuous power supply.
  • Page 8: Mounting Instructions

    DEVIreg™ Smart Mounting Instructions Please observe the following placement guidelines: Place the thermostat at a suitable height on the wall (typically 80–170 cm). Switch can be placed on free area on the wall. The thermostat/switch should not be placed in wet rooms.
  • Page 9 DEVIreg™ Smart Note for thermostat: A oor sensor is recommended in all oor heating applications and mandatory to thin mats and under wooden oors to reduce the risk of over-heating the oor. • Place the oor sensor in a protecting plastic conduit in the oor construction in an appropriate place, where the oor is not exposed to sunlight or draft from door openings...
  • Page 10 Mains Maximum 220-240V~ power supply cable by using Load 16 (1) A 50-60 Hz Danfoss A/S a separate connector. Nordborgvej 81 IP21 6430 Nordborg Denmark Standby maximum 0.4 Watt Note: Always install the oor sensor in a conduit in the oor.
  • Page 11 DEVIreg™ Smart the screws through the holes in each side of the thermostat/switch. Add the frame before assem- bling of top part to the snap locks/bottom part. Click the front part module in place. Pay attention, in relation to the female header, in not to bending the connectors.
  • Page 12 DEVIreg™ Smart Important: Do NOT press in the center of the display screen. When mounting and reassembling the thermostat/switch. Press your ngers under the top of the front part and pull toward you until it releases from the snap lock: To ensure that the batteries are fully charged, the thermostat/switch shall be connected to main supply for minimum 15 hours.
  • Page 13: Display Symbols

    DEVIreg™ Smart Display Symbols Top part main functionalities are to support user interface through display and hold all the controller logic. Display main functionalities are to show the current status of the thermostat/switch and recognize the user actions from the buttons. Display consists of di erent buttons, numbers and symbols.
  • Page 14 DEVIreg™ Smart Type Description Button/Symbol Control button Button/Symbol Arrow Up button Button/Symbol Arrow Down button Symbol Thermostat function: 3 digit 7 seg- ment numbers with comma separator for temperature indication. Timer switch function: “On”/”O ” text. Symbol indications Indication Mode/State Description Blue - blinking Access Point...
  • Page 15 DEVIreg™ Smart Green – blinking Active Mode Thermostat/switch waiting for & Access con rmation of action Point Mode Arrows – Active Mode Safety lock is on blinking rapidly when touched Interaction directly on thermostat Function Button Description Turn 1. Touch any button Thermostat/switch thermostat/ 2.
  • Page 16 DEVIreg™ Smart Frost protec- Touch and hold Con- Deactivate frost protec- tion trol (1) for 1 sec. tion Safety lock Touch and hold Up (2) Activate/Deactivate + Down (3) for 3 sec. safety lock Factory Touch and hold Activates factory Control (1) + Up (2) restore state restore...
  • Page 17 DEVIreg™ Smart Error Description Solution Need restart type Floor Connection Contact The thermostat Sensor to sensor is service requires a restart lost to operate again. discon- nected Floor Sensor short- Contact The thermostat Sensor circuited service requires a restart short- to operate again.
  • Page 18 DEVIreg™ Smart Communication Error Codes Communication Description error Wrong SSID or STA trying to connect to the AP password No IP address STA - connection acquired, no IP yet, waiting for con guration data. No internet con- STA connected and has an IP from nection DHCP server.
  • Page 19: Configuring

    DEVIreg™ Smart Configuring Download App Download the DEVIsmart™ app from App Store or Google Play or at devismart.com. Find Wi-Fi name and password for the Wi-Fi network, that you would like to connect your thermostat/switch to. If in doubt contact net- work administrator or internet service provider.
  • Page 20: Settings

    DEVIreg™ Smart Settings IMPORTANT DURING THERMOSTAT SET-UP Select whether only a oor sen- sor or a combination of room and oor sensor should be used. A “room only” option is also available, but requires that you have to break the small plastic seal and the seal in the print board below, on the back of the display module, e.g.
  • Page 21 DEVIreg™ Smart maximum oor temperature up to 45 °C. Furthermore, it will be possible to use only a room sensor. However, this option is not recommended due to an increased risk of overheating the oor. IMPORTANT: When the thermostat is used to control a oor heating element in connection with a wooden oor or similar material, always use a oor sensor and never set the maximum oor temperature to more than 35 °C.
  • Page 22 DEVIreg™ Smart Thermal Examples of Details Approximate set- resistance ooring kg/m ting for 25°C oor K/ W] temperature 0,05 8 mm HDF based > 800 28 °C laminate 0,10 14 mm beech 650 – 800 31 °C parquet 0,13 22 mm solid oak >...
  • Page 23: Warranty

    • thermostats: DEVIreg™ Smart. Should you, against all expectations, experience a problem with your DEVI product, you will nd that Danfoss o ers DEVIwarranty valid from the date of purchase on the following conditions: During the warranty period Danfoss shall o er a new comparable product or repair the product if the product is found to be faulty by reason of defective design, materials or workmanship.
  • Page 24 All work will be invoiced in full if Danfoss is required to inspect or repair faults that have arisen as a result of any of the above. The DEVIwarranty shall not extend to products which have not been paid in full.
  • Page 25 DEVIreg™ Smart Installation Guide...
  • Page 26: Radio Equipment Directive

    SIMPLIFIED EU DECLARATION OF CONFORMITY The simpli ed EU declaration of conformity referred to in article 10(9) shall be provided as follows: Hereby, Danfoss A/S declares that the radio equipment type i.e. DEVIreg Smart is in compliance with Directive 2014/53/EU.
  • Page 27 • Implement a means to manage reports of vulnerabilities: You can report any vulnerabilities by visiting our website: https://www.danfoss.com/en/service-and-support/ report-security-vulnerability/ • Provide transparency and automatic update of rmware: The product supports security updates for at least ve years from the date of purchase.
  • Page 28: Disposal Instruction

     DEVIreg™ Smart Disposal Instruction This symbol on the product indicates that it may not be disposed of as household waste. It must be handed over to the applicable take-back scheme for the recycling of electrical and electronic equipment. • Dispose of the product through channels provided for this purpose.
  • Page 29 DEVIreg™ Smart Installation Guide...
  • Page 30 DEVIreg™ Smart Installation Guide...
  • Page 31 DEVIreg™ Smart Installation Guide...
  • Page 32 DEVIreg™ Smart 8096265 8096265 Danfoss A/S Nordborgvej 81 6430 Nordborg, Syddanmark Denmark IMPORTER UK:Danfoss Ltd., 22 Wycombe End, HP9 1NB, GB 8096265 & AN335651484034en-010106 Produced by Danfoss © 03/2024...
