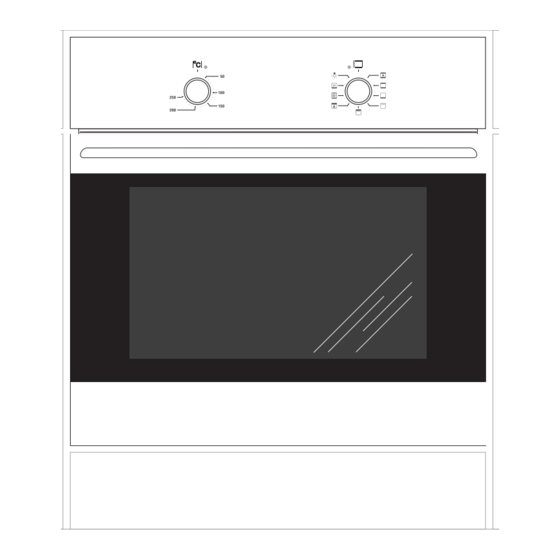

Built-in electric oven

Advertisement

Quick Links

10132.3EX
10132.3EW
10132.3ES
INSTRUCTION MANUAL
BUILT-IN ELECTRIC OVEN
IO-CBI-0213 / 8065664
(02.2017 / v3)
O
C

Advertisement

loading

Summary of Contents for Amica 10132.3EX

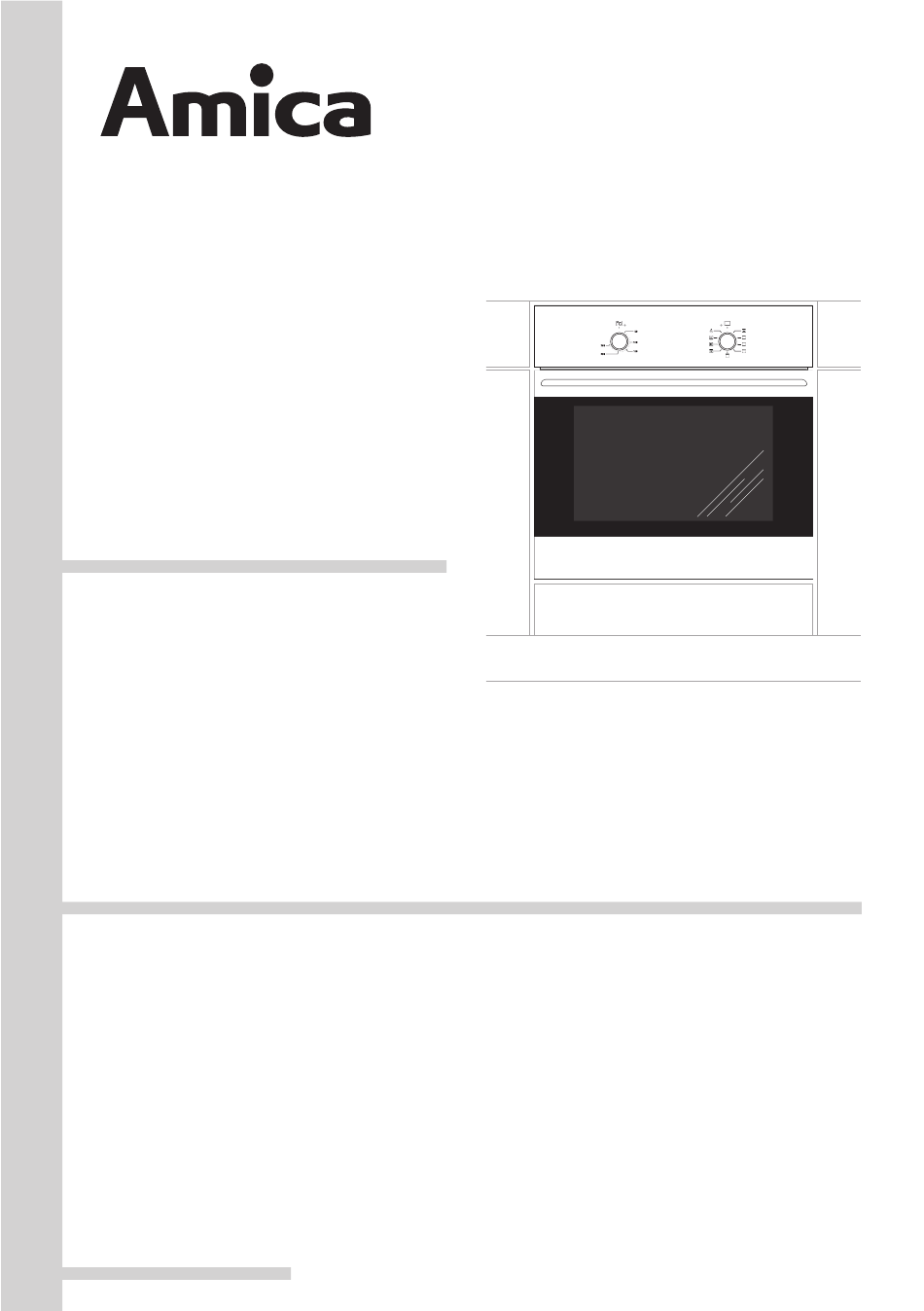

  • Page 1 10132.3EX 10132.3EW 10132.3ES INSTRUCTION MANUAL BUILT-IN ELECTRIC OVEN IO-CBI-0213 / 8065664 (02.2017 / v3)
  • Page 2 DEAR CUSTOMER, The oven is exceptionally easy to use and extremely efficient. After reading the instruction manual, operating the oven will be easy. Before being packaged and leaving the manufacturer, the oven was thoroughly checked with regard to safety and functionality. Before using the appliance, please read the instruction manual carefully.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Safety instructions ......................4 Description of the appliance ..................... 8 Installation ......................... 10 Operation ........................... 12 Baking in the oven – practical hints ................16 Cleaning and maintenance ....................18 Technical data ........................22...
  • Page 4: Safety Instructions

    SAFETY INSTRUCTIONS Warning: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or...
  • Page 5 SAFETY INSTRUCTIONS Warning: Ensure that the appliance is switched off before replacing the lamp to avoid the possibillity of electric shock. You should not use steam cleaning devices to clean the appliance. ● Ensure that small items of household equipment, including connection leads, do not touch the hot oven as the insulation material of this equipment is usually not resistant to high temperatures. ● Do not leave the oven unattended when frying. Oils and fats may catch fire due to overheating or boiling over. ● Do not put pans weighing over 15 kg on the opened door of the oven. ● Do not use harsh cleaning agents or sharp metal objects to clean the door as they can scratch the surface, which could then result in the glass cracking.
  • Page 6 HOW TO SAVE ENERGY Using energy in a respon- sible way not only saves money but also helps the environment. So let’s save energy! And this is how you can do it:  Do not uncover the pan too often (a watched pot never boils!).
  • Page 7 DISPOSAL OF THE APPLIANCE UNPACKING During transportation, protec- Old appliances should not sim- tive packaging was used to ply be disposed of with normal protect the appliance against household waste, but should any damage. After unpacking, be delivered to a collection and please dispose of all elements recycling centre for electric and of packaging in a way that will...
  • Page 8: Description Of The Appliance

    DESCRIPTION OF THE APPLIANCE Cooker operation Temperatureregula- signal light R torsignal light L Oven function Temperature adjust- selector knob ment knob...
  • Page 9 SPECIFICATIONS OF THE APPLIANCE Cooker fittings: Grill grate Baking tray* (drying rack) Roasting tray* *optional...
  • Page 10: Installation

    INSTALLATION Installing the oven  The kitchen area should be dry and aired and equipped with efficient ventillation. When installing the oven, easy access to all control elements should be ensured.  This is a Y–type design built–in oven, which means that its back wall and one side wall can be placed next to a high piece of furniture or a wall.
  • Page 11 INSTALLATION Electrical connection Warning: This appliance must be earthed. The appliance is supplied fitted with a power cord and 3 pin plug protected by 13amp fuse. The cable type must be a minimum of H05VV-F (PVC insulated and sheathed) 3 cores x 1,5mm . The power supply plug must be accessible to allow disconnection of the appliance in the installed position.
  • Page 12: Operation

    OPERATION Before using the appliance for the first time ● Remove packaging, clean the interior of the oven. ● Take out and wash the oven fittings with warm water and a little washing–up liqu- ● Switch on the ventillation in the room or open a window. ● Heat the oven (to a temperature of 250°C, for approx.
  • Page 13 OPERATION Oven is off Oven functions and operation. Independent oven lighting Oven with automatic air Set the knob in this position to light up the oven interior. circulation (including fan) Rapid Preheating The oven can be warmed up using the bottom and top heaters, as well as the grill. Operation Top heater, roaster and fan on.
  • Page 14 OPERATION Bottom heater on When the knob is set to this position the oven is heated using only the bottom heater. Baking of cakes from the bottom until done (moist cakes Switching on the oven is indicated by two with fruit stuffing). signal lights, R, L, turning on.
  • Page 15 OPERATION Use of the grill The grilling process operates through infrared rays emitted onto the dish by the incandes- cent grill heater. In order to switch on the grill you need to:  Set the oven knob to the position marked grill.
  • Page 16: Baking In The Oven - Practical Hints

    BAKING IN THE OVEN – PRACTICAL HINTS Baking  we recommend using the baking trays which were provided with your cooker;  it is also possible to bake in cake tins and trays bought elsewhere which should be put on the drying rack; for baking it is better to use black trays which conduct heat better and shorten the baking time;...
  • Page 17 BAKING IN THE OVEN – PRACTICAL HINTS Oven with automatic air circulation (including fan) Type Oven Temperature Level Time in minutes functions dish 160 - 200 2 - 3 30 - 50 25 - 35 160 - 180 2 - 3 20 - 40* 65 - 70 220 - 240...
  • Page 18: Cleaning And Maintenance

    CLEANING AND MAINTENANCE By ensuring proper cleaning and mainte- Replacement of the oven light bulb nance of your cooker you can have a sig- nificant influence on the continuing fault-free In order to avoid the possibility of an operation of your appliance. electric shock ensure that the appliance is switched off before replacing the bulb.
  • Page 19 CLEANING AND MAINTENANCE Removing the inner panel Door removal 1. Using a flat screwdriver unhook the up- per door slat, prying it gently on the sides In order to obtain easier access to the oven (fig. B). chamber for cleaning, it is possible to remove 2. Pull the upper door slat loose. (fig. B, C) the door.
  • Page 20 CLEANING AND MAINTENANCE 3. Pull the inner glass panel from its seat Regular inspections (in the lower section of the door). Re- move the inner panel (fig. D). Besides keeping the oven clean, you 4. Clean the panel with warm water with should: some cleaning agent added. ● carry out periodic inspections of the con- Carry out the same in reverse order to trol elements and cooking units of the...
  • Page 21 CLEANING AND MAINTENANCE Regular inspections Caution! Besides keeping the oven clean, you All repairs and regulatory activities should: should be carried out by the appropri-  carry out periodic inspections of the con- ate service centre or by an appropri- trol elements and cooking units of the ately authorised fitter.
  • Page 22: Technical Data

    TECHNICAL DATA Electrical supply 220-240V ~50Hz Maximum load 2,9 kW Oven: bottom heater 1,1 kW top heater 0,9 kW grill 2,0 kW Cooker dimensions H/W/D 59,5 / 59,5 / 57,5 cm Complies with EU regulations EN 60335-1, EN 60335-2-6 standards Certificate of compliance CE The Manufacturer hereby declares that this product complies with the general requirements pursuant to the following European Directives:...
