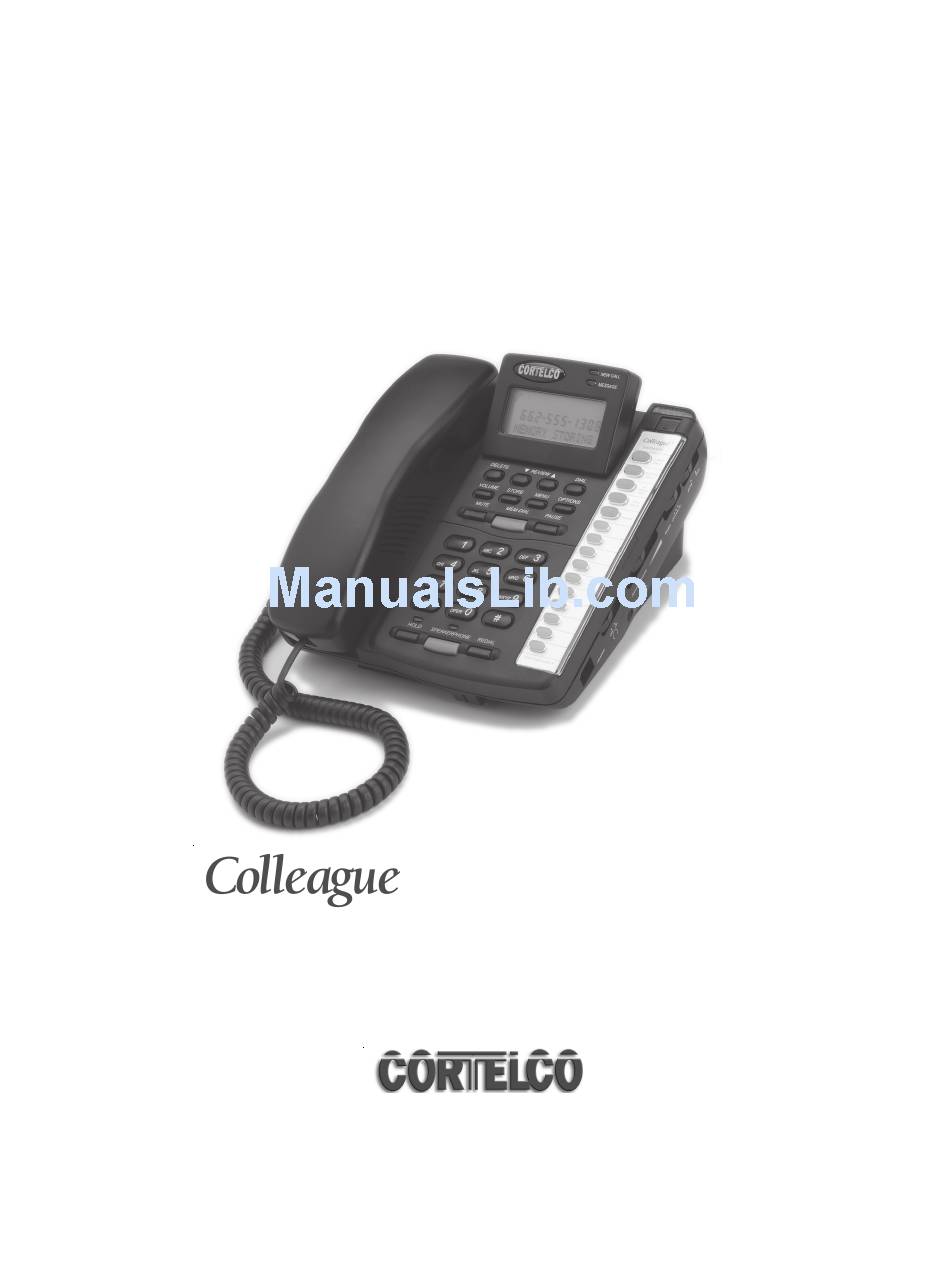

- Page 1 WNER’S NSTRUCTION ANUAL ID T ALLER ISPOSITION 2200 ODEL...
- Page 2 URCHASING OLLEAGUE ISPOSITION We want you to know all about your new Colleague Telephone, how to install it, the features it provides, and the services you can expect from its use. We have included this information in your Owner’s Instruction Manual.
-
Page 3: Table Of Contents
INSTALLATION ... 7 24/90V MESSAGE WAITING LAMP ... 8 WALL MOUNT INSTRUCTIONS ... 9 FACTORY PRESETS ... 9 TELEPHONE PART IDENTIFICATION ... 11 TELEPHONE FEATURES ... 12 PULSE AND TONE DIALING ... 12 RECEIVING A PHONE CALL ... 12 PLACING A PHONE CALL ... 12 SPEAKERPHONE ... - Page 4 PRIVATE CALLS ... 20 UNKNOWN CALLS ... 21 CALL WAITING DELUXE ... 21 TELEPHONE SERVICE PROBLEMS ... 22 MAINTENANCE INFORMATION ... 23 TELEPHONE REPAIR ... 24 FCC INFORMATION ... 25 LIMITED WARRANTY ... 26...
-
Page 5: Important Safety Instructions
Unplug this product from the wall outlet before cleaning. Use a damp cloth for cleaning. Do not use liquid or aerosol cleaners. Do not use the telephone near water. For example, do not use near a bathtub, wash bowl, kitchen sink, laundry tub, swimming pool, or in a wet basement. - Page 6 Avoid using a telephone during a local thunderstorm. There may be a remote risk of electrical shock from lightning. Do not use a telephone to report a gas leak in the vicinity of the leak. Unplug the telephone from the wall outlet and refer servicing to qualified service personnel under the following conditions: •...
-
Page 7: Telephone Usage
Use the existing line cord supplied to connect the LINE jack of your answering • machine to the wall modular line jack. Use the new line cord supplied to connect the telephone’s jack of your new • Caller ID phone to the PHONE jack of your answering machine. -
Page 8: 24/90V Message Waiting Lamp
3. For 90V PBX Message Waiting Indication, move the switch to the position marked “90V”. For 24V PBX Message Waiting Indication, move the switch to the position marked “24V”. If connecting directly to telephone lines, move the switch to the center “OFF” position. -
Page 9: Wall Mount Instructions
WALL MOUNT INSTRUCTIONS 1. Install wall mount bracket in wall mount position and route cords as shown in diagram below. 2. Connect the adapter and the line cord. See Steps 2 & 3 on preceding page for specific instructions. 3. Push out the handset hook and reattach in opposite direction for the wall mount position, plug the coiled cord into the handset, and then plug the other end of the cord into the case. - Page 10 After the adapter is connected, you can make the initial settings of the unit as indicated below. [SET LANGUAGE] appears on the display. Press the REVIEW UP ( ) button to select the language. E - English, F - French, S - Spanish, and then press the DIAL button to confirm the selection.
-
Page 11: Telephone Part Identification
ELEPHONE 11 12 13 14 15 34 35 Handset Hook Store Button Volume Button Mute Button Memory Dial Button Handset Cord Jack Line Cord Jack Data Cord Jack Hook Switch Delete Button Review Up/Down Buttons LCD Display Menu Button Green Message / Extension In Use LED Red New Call LED Dial Button... -
Page 12: Telephone Features
If you are unsure which system you have, set the switch to the TONE position and lift the handset. When you get a dial tone, dial a telephone number. If the dial tone continues, move the switch to PULSE, and then dial the telephone number again. -
Page 13: Duration Counter
To Store A Number In Memory: Press the STORE button, [MEMORY STORING] appears on the display window. Dial the telephone number (15 digits maximum) to store in memory. Note: The memory locations can be chained together to store numbers of longer length. -
Page 14: Volume Button
This telephone provides a line break signal for accessing PABX service or for conve- nient use of Call Waiting from your local telephone company. If you have Call Waiting service, you can alternate the Call Waiting function per the following instructions. -
Page 15: Headset Compatible
Note: With the headset switch turned to the ON position, the speakerphone feature will be disabled. DATA PORT This is a connection which is in parallel with the telephone line. It allows the connection of a device such as a modem, caller ID, or an answering machine. CALL WAITING DISPLAY In the past, if you had call-waiting service, a tone alerted you there was a new call coming while you were on an existing call. -
Page 16: Caller Id Features
Note: Make sure you have subscribed to both Call Waiting Caller ID and Caller ID service from your local telephone company. If you only have Caller ID service, the unit works for Caller ID only. ID FEATURES ALLER MESSAGE LIGHT An indicator marked NEW CALL will light up to let you know when there are new calls received. -
Page 17: Receiving Calls
RECEIVING CALLS When the telephone is not in use and a new call is received, the display will show the NEW symbol, the phone number, the caller s name, and time and date of the call for 20 seconds. The RPT (repeat) symbol will appear if the call has come in more than once. -
Page 18: Deleting Calls
Please hang up the telephone and program the area code. If a local call (a telephone number with the same area code as you set) is reviewed and its 7-digit number displayed, press DIAL to dial the number displayed. -
Page 19: Options Button
Pressing OPTIONS three times will go back to the original 7-digit telephone number. • For example: Your area code is 205 and you are reviewing telephone number 785-2883. When the desired format of the telephone number is reached, press DIAL to dial the displayed number. Press Option button once... -
Page 20: Message Error
When the desired format of the telephone number is reached, press DIAL to dial the displayed number. Press Option button once Original 1+(914) 656-5756 (914) 656-5756 CALL# 8:29 8/24 8:29 8/24 191 - 465 - 6575 914 - 656 - 5756... -
Page 21: Unknown Calls
CALL WAITING DELUXE The following features require Call Waiting Deluxe or Type 2.5 Caller ID service provided by your telephone company. When you hear the call waiting beep, you can choose from a variety of advanced Call Waiting options. •... -
Page 22: Telephone Service Problems
SPEAKERPHONE indicator is on. Turn off speakerphone. NO DIAL TONE Wire is disconnected at telephone jack or at wall jack. Test the telephone in a different wall jack. If it works, the first jack may be defective. HAVE DIAL TONE BUT CANNOT DIAL OUT Check if the PULSE/TONE switch is at the correct position. -
Page 23: Maintenance Information
Avoid putting near heating appliances and devices that generate electrical noise (for example, motors and florescent lamps). Clean your telephone equipment with a damp cloth. Stains may be removed with a mild soap. Do not use liquid or aerosol detergents or cleaning agents. -
Page 24: Telephone Repair
DO NOT ATTEMPT TO REPAIR THIS PRODUCT YOURSELF. Call Waiting Caller ID Telephones manufactured by CORTELCO must be returned to us for repair. You can return your telephone to CORTELCO for repair or replacement in accordance with our LIMITED WARRANTY. -
Page 25: Fcc Information
The Ringer Equivalence Number, which is used to determine the number of devices you may connect to your phone line, indicates the amount of power that your telephone draws from the telephone company line during ringing. If you have more than one... -
Page 26: Limited Warranty
CORTELCO with the product and loss of parts. The warranty is voided in the event any unauthorized person alters or repairs the unit.
