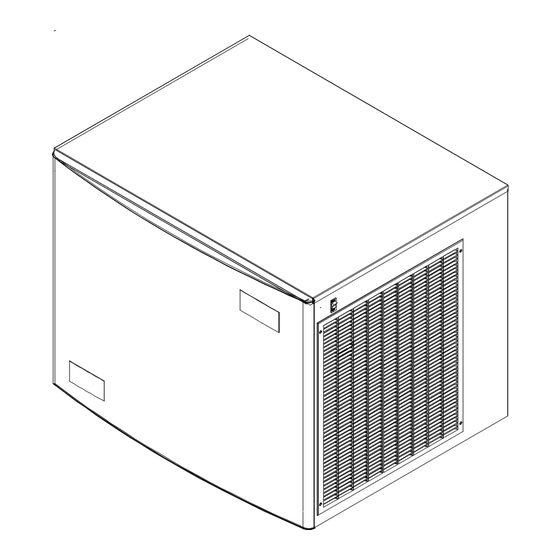

XTREME ICE MAKER (322 AND 330 SERIES)
MODEL NO.
631803001
631803002
631803003
631803004
631803020
631803021
XTREME ICE (322 and 330)
ILLUSTRATED PARTS LIST
1 of 13
Rev A
IMI CORNELIUS INC.
www.cornelius.com
Manual Part No. 630460172IPL
07–21–2005
IMI Cornelius Co., 2005
Advertisement
Related Manuals for Cornelius Xtreme 322 Series
Summary of Contents for Cornelius Xtreme 322 Series
- Page 1 ILLUSTRATED PARTS LIST XTREME ICE MAKER (322 AND 330 SERIES) MODEL NO. 631803001 631803002 631803003 631803004 631803020 631803021 XTREME ICE (322 and 330) Manual Part No. 630460172IPL 1 of 13 Rev A IMI CORNELIUS INC. www.cornelius.com 07–21–2005 IMI Cornelius Co., 2005...
-
Page 2: Illustrated Parts List
Kit Svc Front Panel Asy 30-In. (See Figure 12) 631500118 Kit Svc Front Panel Asy 22-In. (See Figure 12) Manual Part No. 630460172IPL 07–21–2005 IMI Cornelius Co., 2005 IMI CORNELIUS INC. www.cornelius.com Item Part No. 630201041 Cover Elec Box 318308000... - Page 3 Switch Proximity 630900829 Cover Evap Small 630900870 Fitg Placeholder 630900908 Orifice Flow Reducer 631500120 Kit Svc Water Distributor Asy (See Figure 10) 3 of 13 Rev A IMI CORNELIUS INC. www.cornelius.com Name Manual Part No. 630460172IPL 07–21–2005 IMI Cornelius Co., 2005...
-
Page 4: Air Condenser
161426001 Clamp Gear No. 12 630000789 Valve and Brkt Svc (322 Series) 630000786 Valve and Brkt Svc (330 Series) Manual Part No. 630460172IPL 07–21–2005 IMI Cornelius Co., 2005 WATER COOLED Item Part No. 166184001 Dryer Filter 161921006 Valve Expan 165629005... - Page 5 Valve Dump (230V 50HZ) 630201086 Brkt Wtr Pan 630000759 Chassis (330 Series) 630000788 Chassis (322 Series) 630201126 Brkt Wtr Pan Cap Manual Part No. 630460172IPL 5 of 13 Rev A IMI CORNELIUS INC. www.cornelius.com DETAIL A Name 07–21–2005 IMI Cornelius Co., 2005...
- Page 6 Kit Comp 1/2HP 120V, 60HZ 630900736 Comp 1/2HP 230V 50HZ 164083005 Nut Hex 5/16-18 164154001 Washer Ft .375 I.D. Manual Part No. 630460172IPL 07–21–2005 IMI Cornelius Co., 2005 SEE DETAIL A Item Part No. 630900745 630900744 630900786 630201036 164126000 165637008...
- Page 7 Screw SM 8 HXWS 16 SS XTREME ICE (322 and 330) Item Part No. 630900934 630900834 Pan Water Small 630900892 Plug Evaporator Ass’y (See Figure 7) 7 of 13 Rev A IMI CORNELIUS INC. www.cornelius.com Name Manual Part No. 630460172IPL 07–21–2005 IMI Cornelius Co., 2005...
- Page 8 630000814 Evap and Plate RH 630201026 Gasket Frame Evap R 630901495 Frame Evap RH Manual Part No. 630460172IPL 07–21–2005 IMI Cornelius Co., 2005 Item Part No. 630901495 Nut Lock Nylon 8–32 630900857 Frame Evap Bottom 630201025 Gasket Frame Evap L 630900896 Screw SM No.
- Page 9 Name Brkt Wire Frmd Fan Mtr Washer Sr .690 I.D. Bolt MA 1/4-20 HX 32 Motor Asy Fan/Term 120V 60HZ Motor Asy Fan/Term 230V 50HZ Screw MA 8-36 HX 16 Manual Part No. 630460172IPL 07–21–2005 IMI Cornelius Co., 2005...
- Page 10 Spacer Circ Board 630900720 Relay Start 120V 60HZ 630900722 Relay Start 230V 50HZ 161838002 Block Term 630900905 Switch Push Btn Manual Part No. 630460172IPL 07–21–2005 IMI Cornelius Co., 2005 Item Part No. 630200166 630900728 630900729 03611 630201032 630201035 630900902 630900102...
- Page 11 Cap Front Panel (330 Series) 630201019 Rail LT Fnt Pnl 630201017 Rail RT Fnt Pnl FIGURE 12. FRONT PANEL ASSEMBLY XTREME ICE (322 and 330) Manual Part No. 630460172IPL 11 of 13 Rev A IMI CORNELIUS INC. www.cornelius.com 07–21–2005 IMI Cornelius Co., 2005...
- Page 12 08699 Fitg Union 5/8-18 x 3/8-MPT 01210 Cond Coil Wtr 164820105 Brkt Coil Wtr Manual Part No. 630460172IPL 07–21–2005 IMI Cornelius Co., 2005 Item Part No. 35987 Brkt Cond Coil 36039 Screw SM No. 14 HX 20 00214 Washer Lk .296 I.D.
- Page 13 IMI CORNELIUS INC. www.cornelius.com ILLUSTRATED PARTS LIST XTREME ICE MAKER (322 AND 330 SERIES) ACCESSORIES/KITS Manual Part No. 630460172IPL 13 of 13 07–21–2005 IMI Cornelius Co., 2005 Rev A XTREME ICE (322 and 330)
