VVX 501 VVX 601
Polycom VVX 501 and
® ®
Polycom VVX 601
® ®
Business Media Phones
Quick User Guide
For use with Polycom® UC Software 4.1.2

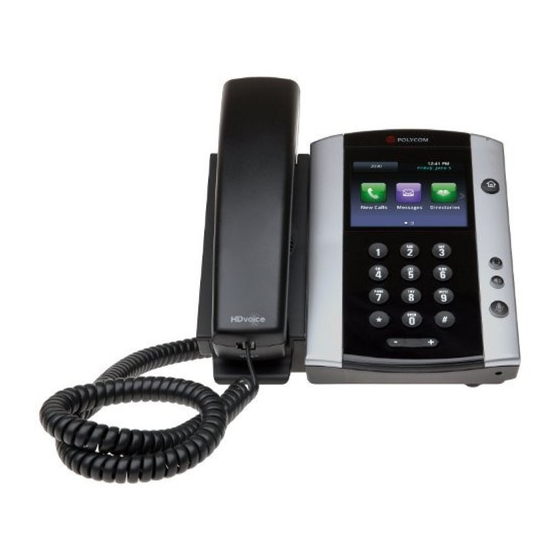

The information in this guide applies to both the
Polycom® VVX® 501 and Polycom® VVX® 601 Business
Media Phones. Note that configurations vary and the
screen displays used in this guide may not reflect those
on your phone. See your system administrator for more
information.
www.polycom.com | 1725-44639-001 Rev.A | November 2012
© 2012, Polycom, Inc. All rights reserved. POLYCOM®, the
Polycom logo and the names and marks associated with
Polycom's products are trademarks and/or service marks of
Polycom, Inc. and are registered and/or common law marks in
the United States and various other countries. All other
trademarks are property of their respective owners. No portion
hereof may be reproduced or transmitted in any form or by any
means, for any purpose other than the recipient's personal
use, without the express written permission of Polycom.
About the Touchscreen
Tap to select and highlight screen items. To scroll, touch
the screen, and swipe your finger up, down, right, or left.
To go back to a previous screen, tap Back.
Phone Views
Your phone has four main Views: Home, Calls,
Active Call, and Lines view (the default). You can access
Home and Lines view at any time. If your phone has one
or more calls, you can also access Calls or Active Call
view.
To change Views:
• For Home view, press .
• From Home view, press
to alternate between
Home and Lines view, or, if you have one or more
calls, between Home and either Calls or Active Call
view.
• To switch between Lines and either Calls or Active Call
view, swipe the screen.
Home View
Home view displays icons you can tap to access phone
functions. Touch and hold the Page Indicator (shown
next) to display more or fewer icons. You can also swipe
the screen to display more icons.
VVX 601
VVX 501
From Home view, tap the phone Line to display your
phone Lines and Favorites (shown next). To go back,
tap Close (shown next).
VVX 501 VVX 601
Lines View
Lines view displays phone Lines, Favorites, and soft keys.
VVX 501 VVX 601
If your phone is idle, you can:
• Tap the phone Line to access the Dialer.
• Swipe to switch between Lines view and the Browser
(if enabled on your phone).
Active Call View
If your phone only has one call—and it's active—you can
access Active Call view.
Calls View
If your phone has multiple calls, or one held call, you can
access Calls view.
Call color indicates status:
• Dark green—Active call
• Dark blue—Incoming and held calls
• Bright green—Active call is highlighted
• Bright blue—Incoming or held call is highlighted
Tap a call to highlight it. The soft keys control the
highlighted call.
Entering Data
Use the onscreen keyboard or the dialpad keys to enter
information. To backspace, tap .
To use the onscreen keyboard, tap .
To type with the dialpad keys, press a dialpad key
repeatedly to view the character options and stop to
select. To type other characters, tap Encoding or Mode.
When using the dialpad keys, use the 1, *, 0, and # keys.
About Calls
Only one call can be active at one time.
You can use the handset, speakerphone, or headset for
calls. During a call, you can change modes by picking up
the handset, or by pressing or .
Tip: Returning to Your Calls
If you navigate away from your call(s), tap
to see Active Call or Calls view again.
Note: About Headsets
Your phone supports wired and wireless
headsets, including electronic hookswitch (EHS)
headsets. VVX 600 phones also support
Bluetooth headsets. For connection directions,
refer to your headset documentation. For more
information, see Using Headsets with Polycom
Phones, available from
http://support.polycom.com/UCEngAdvisories.
Placing Calls
Pick up the handset, or press or . Enter the
phone number, and tap .
From Lines view: Tap the phone Line, enter the phone
number, and tap .
From Home view: Tap New Call, enter the phone
number, and tap .
Timesaver: Placing Calls Quickly
Tap a recent call or Favorite, or tap a contact's
phone number in the Contact Directory.
