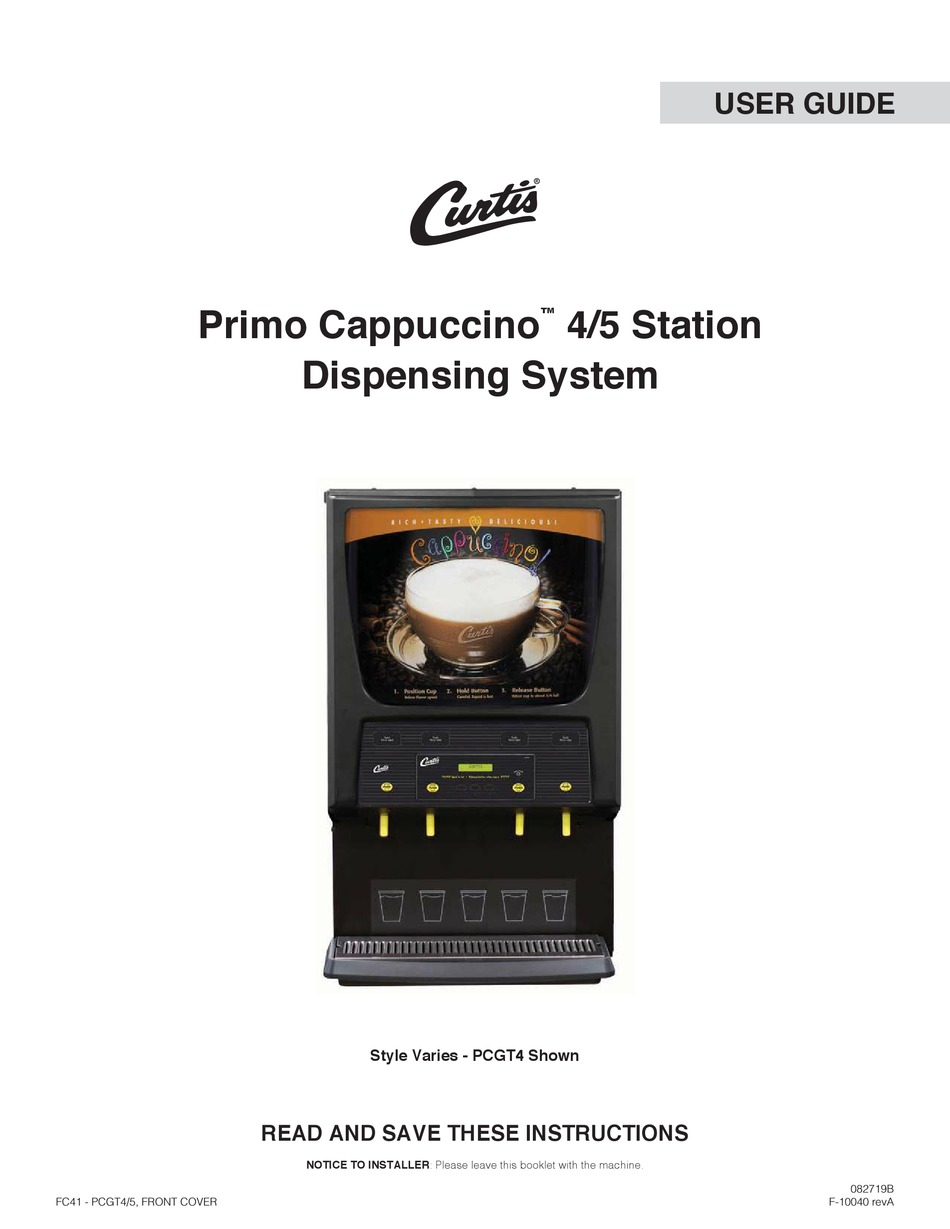

- Page 1 USER GUIDE ™ Primo Cappuccino 4/5 Station Dispensing System Style Varies - PCGT4 Shown READ AND SAVE THESE INSTRUCTIONS NOTICE TO INSTALLER: Please leave this booklet with the machine.
-
Page 2: Table Of Contents
........................................................................................................................................................Contact Information Wilbur Curtis Co., Inc. 6913 Acco Street | Montebello, CA 90640 US Phone: 323-837-2300 | Toll Free: 800-421-6150 Email: csrassistance@wilburcurtis.com | Web: www.wilburcurtis.com . - 4:00 . PT Email: techsupport@wilburcurtis.com 082719A... -
Page 3: Fs41
KEY FEATURES/SPECIFICATIONS/SYSTEM REQUIREMENTS FS41 Key Features • G3 Digital Control Module - Provides precise control over all critical blending and dispensing functions. • Factory Pre-Set - For out-of-the-box operation. • LCD Digital Display - Extra bright and easy to use. •... -
Page 4: Is2
• This appliance is designed for commercial use. Any service other than cleaning and preventive maintenance should be performed by an authorized Wilbur Curtis service technician. • To reduce the risk of re or electric shock, DO NOT open the service panels. There are no user serviceable parts inside. - Page 5 IMPORTANT SAFEGUARDS CE Requirements • This appliance must be installed in locations where it can be overseen by trained personnel. • For proper operation, this appliance must be installed where the temperature is between 5°C to 35°C. • This appliance is not suitable for outdoor use. •...
-
Page 6: Ii2
INSTALLATION INSTRUCTIONS WARNING: WARNING: Improper electrical connection may result in an electric shock hazard or damage the unit. This appliance must be properly grounded. NOTICE: DO NOT connect this appliance to a hot water supply. The water inlet valve is not rated for hot water. -
Page 7: Ii22
INSTALLATION INSTRUCTIONS II22 Installation Leveling WARNING: Use the leveling legs to level the dispenser only. Do not use them to adjust dispenser height. Do not extend them higher than necessary. Position the dispenser on the counter top. Level it left to right and front to back by turning the bottom of the Style may vary legs. - Page 8 INSTALLATION INSTRUCTIONS II22 Setting Up 120/220 Volt Units for 220-240 Volt Operation Style may vary WARNING: Do not connect the power cord to the power supply until instructed to do so. Remove the top and left side covers to expose the terminal block.
- Page 9 INSTALLATION INSTRUCTIONS II22 Connecting the Wiring (Units That Come from the Factory Without a Power Cord Attached...cont.) 18 Feed the power cable into the unit. The unit may be Power wired for connection directly to a junction box or for use cable with a power plug that connects to an electrical outlet meeting the SPECIFICATIONS.
- Page 10 INSTALLATION INSTRUCTIONS II22 Power Up the Unit 24 Turn on the water supply valve. 25 Make sure that the circuit breaker supplying power to the dispenser is on. 26 Turn the toggle switch on the back of the dispenser to correct volume, the heating element(s) will turn on automatically.
-
Page 11: Oi33
OPERATING INSTRUCTIONS OI33 Dispensing WARNING - TO AVOID SCALDING, AVOID SPLASHING. Keep body parts clear of the spout during dispensing. Do not remove the cup during dispensing. The G3 dispenser is factory preset for optimal performance. The unit should be ON. Open the front panel. -
Page 12: Ci19
CLEANING INSTRUCTIONS CI19 Spout Cleaning - Every 3 or 4 Hours Make sure power is ON. Place a container under the dispense spout to catch the rinse water. water running from the spout runs clear. Cleaning the Exterior - Daily WARNING: HOT SURFACES - To avoid injury, allow the dispenser to cool before cleaning. -
Page 13: Ci20
The following cleaning process requires a mild solution of dish-washing detergent and warm water, One-Pro Beverage Equipment Cleaner (Curtis PN WC-79001) and food grade lubricant (Curtis PN WC-4916). Mix the One- Pro cleaner at a ratio of 1 oz. (28 g.) per 5 gal. (19 L) of hot water (122°F/50°C min.). - Page 14 PROGRAMMING GUIDE PG12 CURTIS Ready to Dispens To enter programming mode: With unit ON, press and hold Entering STOP/WASH button for 10 CURTIS Programming mode Ready to Dispens seconds. While pressing STOP/WASH, Washing... “Washing...Select Station” Select Station appears on the display.
- Page 15 100% 70 gm next menu. *Approximate Banner Name - changes the banner name that appears on the display (the factory default is CURTIS to access. Press to choose the letter to change. Then press repeatedly to change the letter. Press...
- Page 16 PROGRAMMING GUIDE PG12 Programming Options (cont.) 1, 2 Dispense Total - when accessed, displays the total dispense cycles on the unit. It cannot be reset. The display returns to the previous screen automatically after a few seconds. Press to continue to the next menu.
- Page 17 ROUGH-IN DRAWINGS RD47 PCGT4/5 24.54 in [62.3 cm] 20.86 in [53.0 cm] 34.78 in [88.3 cm] 6.17in [15.7 cm] 13.94 in 8.38 in [35.4 cm] [21.3 cm] CUP CLEARANCE DISPENCE BUTTON HEIGHT 43.38 in [110.2 cm] LIFT DOOR MODELS DIMENSIONS APPLY TO ALL 4 AND 5 STATION MODELS PCGT4/5, ROUGH-IN DRAWING 030519C...
- Page 18 ILLUSTRATED PARTS LIST IP78 PCGT4/5 - Door Assemblies - Exploded View PCGT4, PCGT5, PCGT5DV, PCGT5800 MISCELLANEOUS PCGT4300, PCGT5300 PCGT4/5, ILLUSTRATED PARTS/RECOMMENDED PARTS 022321G...
- Page 19 SCREW, 6-32x3/8 PHIL ROUND HD WATER KIT WC-4426 SCREW, 8-32x3/8 PH HEAD TRUSS LABEL, MEMBRANE CONTROL PANEL PCGT4/5 WC-39957 CURTIS LOGO (UNITS BUILT 12/09/11 AND WC-4468 SCREW, 8-32x5/8 PH HD TRUSS SS LATER) KIT, DOOR COMPLETE PCGT4/5 LABEL, MEMBRANE CONTROL PANEL PCGT5 23A &...
- Page 20 ILLUSTRATED PARTS LIST IP78 PCGT4/5 - Exterior - Exploded View PCGT4/5, ILLUSTRATED PARTS/RECOMMENDED PARTS 022321G...
- Page 21 ILLUSTRATED PARTS LIST IP78 PCGT4/5 - Exterior - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-68159 1,3,4,5,7 COVER, TOP PCGT5 WC-68147 SCREEN, DRIP TRAY PCGT5 WC-68159-101 2,6 COVER, TOP PCGT5300 CA-1157 DRIP TRAY PCGT4/5 WC-68123 PANEL, SIDE LEFT PCGT3/5 WC-3518 LEG, GLIDE 3/8”-16 STUD SCREW...
- Page 22 ILLUSTRATED PARTS/RECOMMENDED PARTS IP78 PCGT4/5 - Interior Components - Exploded View Water tanks assemblies - See section IP76 for 120 Volt models - See section IP77 for four station 120/220 Volt models - See section IP79 for ve station 120/220 Volt models without hot water faucet - See section IP80 for 220-240 Volt models - See section IP196 for ve station 120/220 Volt models with hot water faucet Also available as part of canister mixer kit, item 9.
- Page 23 ILLUSTRATED PARTS LIST IP78 PCGT4/5 - Interior Components - Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION KIT, MOTOR WHIPPER ASSY PC’S MOTOR WC-4426 SCREW, 8-32x3/8 PH HEAD TRUSS 21 # WC-3739 SCREWS & INSTRUCTIONS CA-1030-17 HOSE, EXTRACTOR FAN 17”...
- Page 24 ILLUSTRATED PARTS LIST IP76 WC-6294/5/6 - Tank Assembly (120 Volt) CONFIGURATION TABLE ITEM 9: DUMP ITEM 11 (CONICAL ITEM 13 (BLIND VALVES BUSHING) BUSHING) MODEL INSTALLED IN INSTALLED IN INSTALLED IN POSITIONS: POSITIONS: POSITIONS: EXPR10 1,3,4 1,3,4 PCGT3 PCGT3300 1, 2, 3 1, 2, 3 4, 5 PCGT3700...
- Page 25 ILLUSTRATED PARTS LIST IP77 WC-62111/2 - Tank Assembly (120/220 Volt) CONFIGURATION TABLE ITEM 13 (BLIND ITEM 9: DUMP ITEM 11 (CONICAL VALVES BUSHING) BUSHING) MODEL INSTALLED IN INSTALLED IN INSTALLED IN POSITIONS: POSITIONS: POSITIONS: PCGT3DV 1, 2, 3 1, 2, 3 4, 5 PCGT3DV8080 1, 2, 3, 5...
- Page 26 ILLUSTRATED PARTS LIST IP79 WC-62017 - Tank Assembly (120 Volt with Hot Water Faucet) Water Level Probe Detail (Older Units) a Valve must be calibrated when replaced. See instructions with kit. WC-62017 - Tank Assembly - Parts List ITEM # PART # DESCRIPTION ITEM #...
- Page 27 ILLUSTRATED PARTS LIST IP80 WC-54126-31 - Tank Assembly (220-240 Volt) CONFIGURATION TABLE ITEM 9: DUMP ITEM 11 (CONICAL ITEM 13 (BLIND VALVES BUSHING) BUSHING) MODEL INSTALLED IN INSTALLED IN INSTALLED IN POSITIONS: POSITIONS: POSITIONS: EXPRE 1,3,4 1,3,4 PCGT3E 1, 2, 3 1, 2, 3 4, 5 PCGT4E...
- Page 28 ILLUSTRATED PARTS LIST IP196 WC-54307 - Tank Assembly (120/220 Volt with Hot Water Faucet) a Valve must be calibrated when replaced. See instructions with kit. Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-43055* GUARD, SHOCK RESET THERMOSTAT (WC-522) GUARD, SHOCK/HEATING ELEMENT FOR SIN- WC-4394* GLE HEATING ELEMENT...
- Page 29 ELECTRICAL SCHEMATICS ES85 4 Station, 120 Volt Models PCGT4/5, ELECTRICAL SCHEMATICS 080221C...
- Page 30 ELECTRICAL SCHEMATICS ES85 5 Station, 120 Volt Models PCGT4/5, ELECTRICAL SCHEMATICS 080221C...
- Page 31 ELECTRICAL SCHEMATICS ES85 5 Station, 120/220 Volt Models PCGT4/5, ELECTRICAL SCHEMATICS 080221C...
- Page 32 TROUBLESHOOTING GUIDE TG23 WARNING: Electric Shock Hazard - Scald and Burn Hazard - IMPORTANT: always check all inlet and Valve Test Procedure Troubleshooting Guidelines ERROR CODES • • • Use this troubleshooting guide along with the appropriate ELECTRICAL SCHEMATIC. • Valve Test Procedure in either direction Water Not Hot Enough...
- Page 33 TROUBLESHOOTING GUIDE TG23 Water Does Not Heat At All Tank Does Not Fill • Water Not Hot Enough • Ready to Dispens • Heating... ELECTRICAL SCHEMATIC Heating... Water Too Hot (Boiling or Excessive Steaming) IMPORTANT: Over Temp Sensor or Ready to Dispens Over Temp Sensor Error Message Heating...
- Page 34 TROUBLESHOOTING GUIDE TG23 No Power - Display Not Lit Water Tank Does Not Fill Water Tank Does Not Fill IMPORTANT:...
- Page 35 TROUBLESHOOTING GUIDE TG23 Water Level Error Message ERROR CODES SPECIFICATIONS Water Flows From Dispenser Spout Constantly No Water Flows From the Spout While “Dispensing...” Appears on the Display PROGRAMMING GUIDE Only Water is Dispensed PROGRAMMING GUIDE...
- Page 36 TROUBLESHOOTING GUIDE TG23 Product Dispensed Into Cup is Weak IMPORTANT: PROGRAMMING GUIDE Whipper Motor Does Not Run During Dispensing Dispenser Does Not Respond (at all) When Dispense Button is Pushed Dispensing... Dispensing... Dispensing... During Dispensing Manual dispense models: Preset dispense models: PROGRAMMING GUIDE Front Panel Light Not Working ILLUSTRATED PARTS LIST...
- Page 37 TROUBLESHOOTING GUIDE TG24 Dump Valve Calibration After installing a new dump valve, do not reinstall the dump valve cover and canisters, so that you can perform the calibration steps below: Turn the toggle switch on the back of the unit to the ON position. Wait for the ready light to come on. Place a measuring cup below the spout connected to the dump valve that was replaced.
- Page 38 ERROR CODES System Fault Messages An error message will appear on the screen in the event of a malfunction under the following conditions: ERROR MESSAGE WARNING DESCRIPTION CAUSE Water Level Error 1-(800)-000-0000 1-(800)-000-0000...
- Page 39 Return Merchandise Authorization (RMA): All returned equipment must be properly re-packaged in the original carton and received by Curtis within 45 days following the issuance of a RMA. NO UNITS OR PARTS WILL BE ACCEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA).
