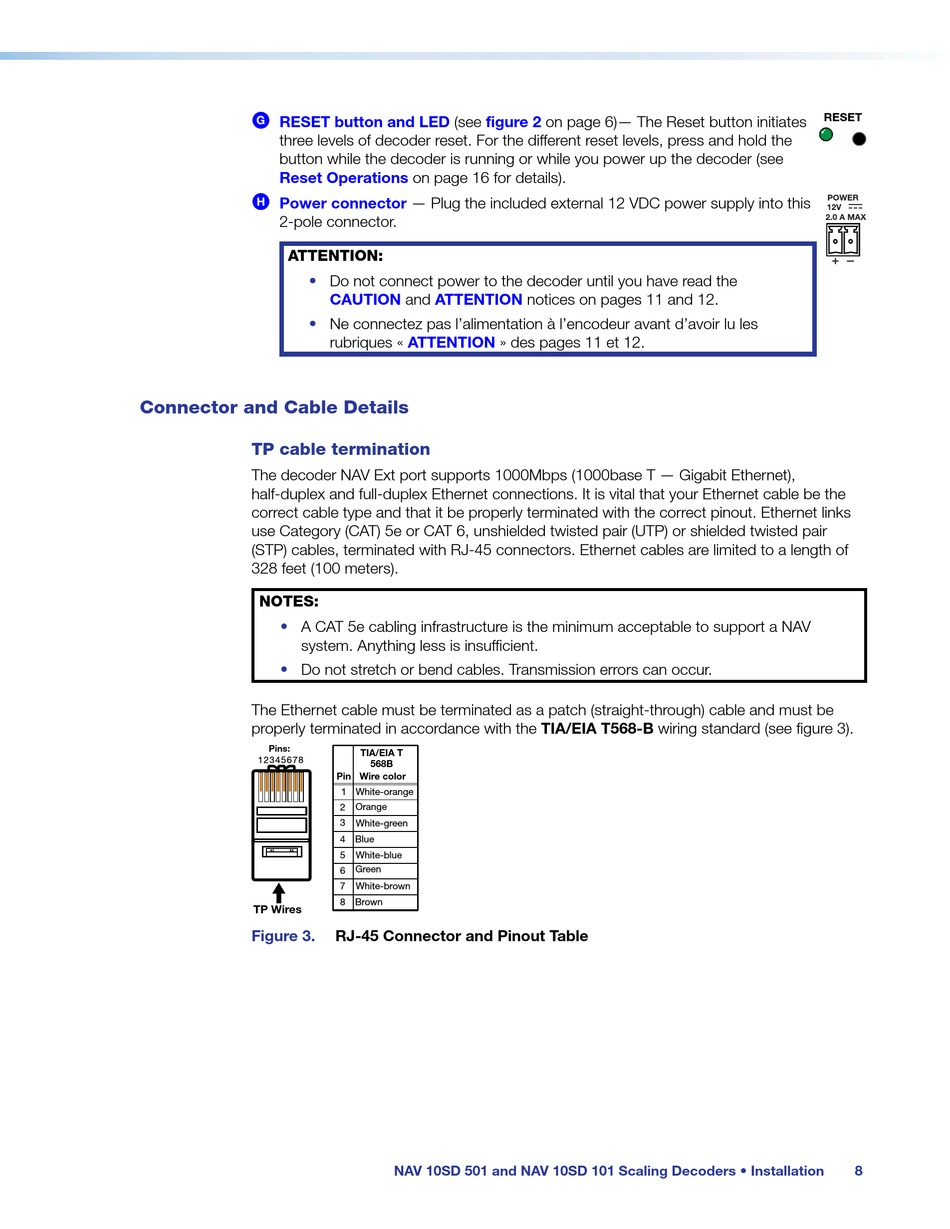

G
RESET button and LED
three levels of decoder reset. For the different reset levels, press and hold the
button while the decoder is running or while you power up the decoder (see
Reset Operations
H
Power connector
2-pole connector.
ATTENTION:
•
•
Connector and Cable Details
TP cable termination
The decoder NAV Ext port supports 1000Mbps (1000base T — Gigabit Ethernet),
half-duplex and full-duplex Ethernet connections. It is vital that your Ethernet cable be the
correct cable type and that it be properly terminated with the correct pinout. Ethernet links
use Category (CAT) 5e or CAT 6, unshielded twisted pair (UTP) or shielded twisted pair
(STP) cables, terminated with RJ-45 connectors. Ethernet cables are limited to a length of
328 feet (100 meters).
NOTES:
•
A CAT 5e cabling infrastructure is the minimum acceptable to support a NAV
system. Anything less is insufficient.
•
Do not stretch or bend cables. Transmission errors can occur.
The Ethernet cable must be terminated as a patch (straight-through) cable and must be
properly terminated in accordance with the TIA/EIA T568-B wiring standard (see figure 3).
Pins:
12345678
TP Wires
Figure 3.
(see
figure 2
on page 16 for details).
— Plug the included external 12 VDC power supply into this
Do not connect power to the decoder until you have read the
CAUTION
and
ATTENTION
Ne connectez pas l'alimentation à l'encodeur avant d'avoir lu les
ATTENTION
rubriques «
» des pages 11 et 12.
TIA/EIA T
568B
Pin
Wire color
1
White-orange
2
Orange
3
White-green
4
Blue
5
White-blue
Green
6
7
White-brown
8
Brown
RJ-45 Connector and Pinout Table
NAV 10SD 501 and NAV 10SD 101 Scaling Decoders • Installation
on page 6)— The Reset button initiates
notices on pages 11 and 12.
RESET
POWER
12V
2.0 A MAX
