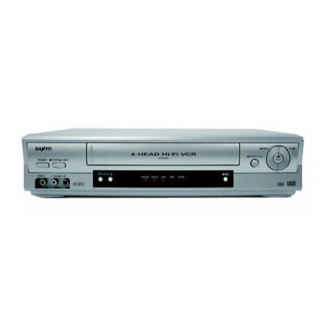

Sanyo VWM-900 Quick Setup Manual

Video Cassette Recorder
QUICK SETUP GUIDE
VWM-900
INSTALLATION - It is important that the steps are carried out in the order shown.
1
AUDIO
R
ANT.IN
IN OUT
L
VHF/UHF
IN OUT
/CATV
VIDEO
RF OUT
SETTING THE VCR CHANNELS
1 2
Press MENU, and press v v or Press V V to choose the
V V to select the TUNING SOURCE SELECT item, then
menu, then press ENTER. press b b or B B to select
TUNER.
Welcome to SANYO,
Thank you for choosing a SANYO VCR. This Quick Setup Guide will enable
you to easily install and use your new VCR. For more detailed information,
please refer to the instruction manual.
Connect the TV antenna cable (not
A
supplied) to the ANT.IN connector
on the back of the VCR.
Connect the supplied RF coaxial
B
cable from the RF OUT
(VHF/UHF/CATV) connector on the
VCR to the TV's antenna input con-
nector.
If your TV has audio/video input
C
jacks, connect the VCR and TV
using the audio and video cable
(not supplied). (If your TV does not
have A/V input jacks, just connect
A B
and .)
Connect the AC power cord only to
D
an AC 120V, 60Hz outlet.
3
Press v v or V V to choose the AUTO CHANNEL
SET item, then press b b or B B to set the channel.
The tuner will automatically cycle through all
available channels in the area and place them in
the tuner's memory.
2 3
When the TV is connected to When using the Audio/Video
RF OUT (VHF/UHF/CATV) cable (not supplied)
using only RF coaxial cable
Set your TV to the VIDEO mode
(supplied)
using the TV/VIDEO button on
While the VCR is turned off, your TV.
press and hold CHANNEL (V V / / v v )
Direct audio/video connections
on the front panel for more than
usually result in a better picture
five seconds (Indicators blinks as
and sound quality for tape
below). Use CHANNEL (V V / / v v ) on
playback.
the front panel to change the RF
output channel (CH 03 or CH
04).
• Select the same channel on
the TV.
Indicators on INDICATOR PANEL
(CH 03) (CH 04)
4
After the AUTO CHANNEL SET
PROCEEDING is complete, set
the TUNING BAND (TV or
CATV) on the TUNING menu.
• Remember, TV is for the air anten-
na reception, CATV is for cable or
wireless cable connection.
TUNING BAND set-
• Use CH/TRACK (v v /V V ) or CHAN-
ting is not required
NEL (V V / / v v ) on the front panel to
in this case.
cycle the VCR through the chan-
nels in memory.
VIDEO
