Exploded Parts Diagram - Double - Dimplex VFA2927 Service Manual

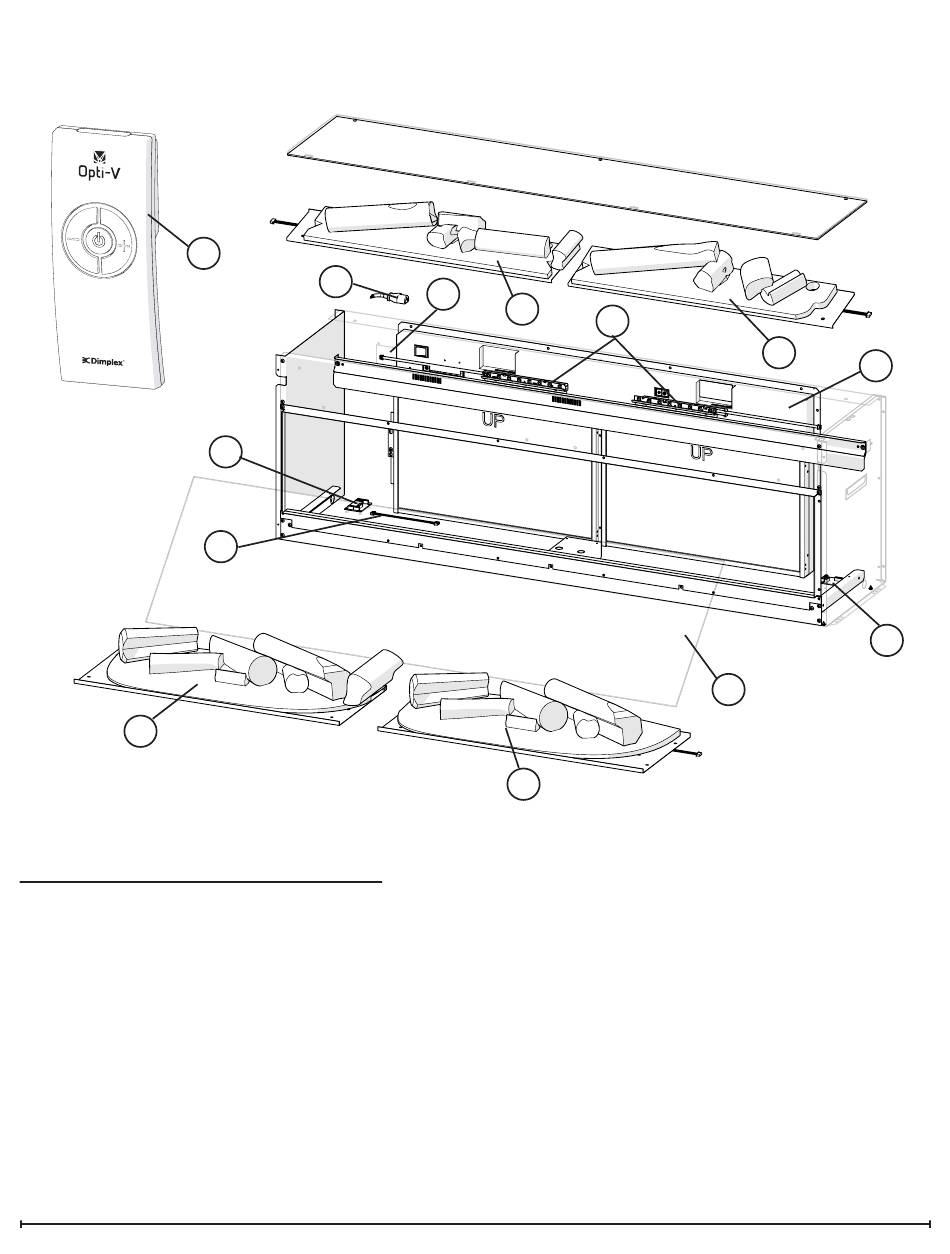

EXPLODED PARTS DIAGRAM - DOUBLE

3
10
Replacement Parts List - Double
LED Light Strip (2 per unit). . . . . . . . . . . . . . . 9600880100RP
1.
LED Light Controller (2 per unit)* . . . . . . . . . . 9600930100RP
2.
3. Opti-V Remote Control . . . . . . . . . . . . . . . . . . 9600950100RP
4. Power Supply Wire Harness . . . . . . . . . . . . . 9600980100RP
5. Electrical Connector . . . . . . . . . . . . . . . . . . . . 9601030100RP
6. LV Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9601040100RP
Double LED Screen Assembly (see note)*
7.
Double Glass* . . . . . . . . . . . . . . . . . . . . . . . . 9601000100RP
8.
Right Lower Logset Assembly*. . . . . . . . . . . . 9600990100RP
9.
10. Left Lower Logset Assembly* . . . . . . . . . . . . . 9601010100RP
6
4
2
6
9600970100RP
5
12
1
9
11. Right Upper Logset Assembly (see note) . . . . 9600960100RP
12. Left Upper Logset Assembly (see note) . . . . . 9601020100RP
13. 8mm Socket . . . . . . . . . . . . . . . . . . . . . . . . . 9601170100RP
!
NOTE: Send out Socket when sending out upper logs
and Screen Assembly.
* Group items that include suction cups.
11
7
2
8
www.dimplex.com
