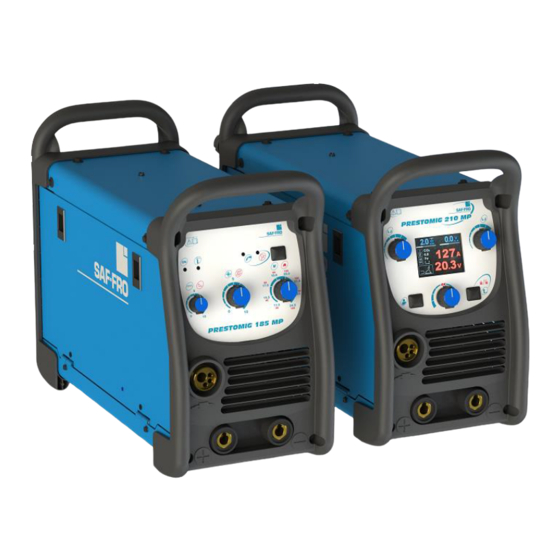

- Page 1 IM3079 12/2022 REV04 PRESTOMIG 185MP & 210MP OPERATOR’S MANUAL ENGLISH Lincoln Electric Bester Sp. z o.o. ul. Jana III Sobieskiego 19A, 58-260 Bielawa, Poland...
-
Page 2: Table Of Contents
12/05 THANKS! For having choosen the QUALITY of the Lincoln Electric products. Please Examine Package and Equipment for Damage. Claims for material damaged in shipment must be notified immediately to the dealer. For future reference record in the table below your equipment identification information. Model Name, Code & Serial Number can be found on the machine rating plate. -
Page 3: Technical Specifications
Technical Specifications NAME INDEX PRESTOMIG 185MP W000403577 PRESTOMIG 210MP W000403576 INPUT 185MP 210MP 230 Vac ± 10%, 1- Input Voltage U 115 Vac ± 10%, 1-phase 230 Vac ± 10%, 1-phase phase Frequency 50/60 Hz Input Amperes I 1max 6,2kVA @ 25% Duty Input Power at Rated Cycle (40°C) 2,6kVA @ 40% Duty Cycle 6,2kVA @ 25% Duty Cycle... - Page 4 13,6 Vdc 210MP 115Vac GTAW 51 Vdc 110A 14,4 Vdc 125A 15 Vdc WELDING CURRENT RANGE GMAW FCAW-SS SMAW GTAW 185MP 20A – 200A 20A –200A 20 – 160A 230Vac 20A – 200A 20A – 200A 20 – 160A 20A – 160A 210MP 115Vac 20A –...
-
Page 5: Eco Design Information
ECO design information The equipment has been designed in order to be compliant with the Directive 2009/125/EC and the Regulation 2019/1784/EU. Efficiency and idle power consumption: Efficiency when max power consumption Index Name Equivalent model / Idle power consumption W000403577 PRESTOMIG 185MP 81,6% / 42W No equivalent model... - Page 6 Typical gas usage for MIG/MAG equipment: DC electrode positive Wire Wire Feeding Gas flow Material type diameter Shielding Gas Current Voltage [m/min] [l/min] [mm] Carbon, low 0,9 ÷ 1,1 95 ÷ 200 18 ÷ 22 3,5 – 6,5 Ar 75%, CO alloy steel Aluminium 0,8 ÷...
-
Page 7: Electromagnetic Compatibility (Emc)
If any electromagnetic disturbances are detected the operator must put in place corrective actions to eliminate these disturbances with, if necessary, assistance from Lincoln Electric. Before installing the machine, the operator must check the work area for any devices that may malfunction because of electromagnetic disturbances. -
Page 8: Safety
Failure to follow the instructions in this manual could cause serious personal injury, loss of life, or damage to this equipment. Read and understand the following explanations of the warning symbols. Lincoln Electric is not responsible for damages caused by improper installation, improper care or abnormal operation. - Page 9 WELDING SPARKS CAN CAUSE FIRE OR EXPLOSION: Remove fire hazards from the welding area and have a fire extinguisher readily available. Welding sparks and hot materials from the welding process can easily go through small cracks and openings to adjacent areas. Do not weld on any tanks, drums, containers, or material until the proper steps have been taken to insure that no flammable or toxic vapors will be present.
-
Page 10: Introduction
Introduction The welding machines PRESTOMIG 185MP enables following equipment been added welding: PRESTOMIG 185MP and PRESTOMIG 210MP: GMAW (MIG/MAG) Work lead – 3m FCAW-SS Gas hose – 2m SMAW (MMA). Driving roll V0.8/V1.0 for solid wire (mounted in the wire feeder). - Page 11 4. Knob Control: Depending on welding process, this knob Output Connections controls: Refer to points [7], [8] and [9] of the Figures below. Inductance: control Controls and Operational Features controlled by this knob. If the 1. LED Indicator Power switch (only GMAW value is higher, the arc will be...
- Page 12 15. Escape Button (right): 18. Power Lead with Plug (2m): Power lead with plug is a standard equipment. Connect the power lead with plug Cancels an action / exit menu. to the main supply before turning power on. Locks and unlocks knobs and buttons on the panel (press and hold button for 4 seconds).
- Page 13 Table 1 Table 2 English English...
- Page 14 Loading the Electrode Wire Adjusting of Force of Pressure Roll Force Turn the machine off. Open the side cover of the machine. The pressure arm controls the amount of force the drive Unscrew the locking nut of the sleeve. rolls exert on the wire.
- Page 15 Changing Driving Rolls Preparation the Machine for Welding GMAW and FCAW-SS Process WARNING Procedure of begin welding of GMAW or FCAW-SS Turn the input power off of the welding power source process: before installation or changing drive rolls. Determine the wire polarity for the wire to be used. Consult the wire data for this information.
- Page 16 The Burnback Time is the amount of time that the weld The 2-Step - 4-Step changes the function of the gun’s output continues after the wire stops feeding. It prevents trigger. the wire from sticking in the puddle and prepares the end ...
- Page 17 Welding SMAW (MMA) Process Welding GTAW Process PRESTOMIG 185MP and PRESTOMIG 210MP does not (PRESTOMIG 210MP only ) include the electrode holder with lead necessary for PRESTOMIG 210MP can be used to GTAW process with SMAW welding, but the one can be purchased separately. DC (-).
- Page 18 Guide’s Marking Interface PRESTOMIG 210MP Description of the user interface in "Quick Guide" chapter Select Welding Process SMAW (MMA) Welding Basic menu GMAW (MIG/MAG) Burnback Brightness Level Manual Welding View Software FCAW- Self shielded Run-in WFS Hardware Version Manual Welding Information GMAW (MIG/MAG)
- Page 19 We respond to our customers based on the best become null and void. information in our possession at that time. Lincoln Electric is not in a position to warrant or guarantee such advice, Any noticeable damage should be reported immediately and assumes no liability, with respect to such information and repaired.
-
Page 20: Weee
12/05 Part list reading instructions Do not use this part list for a machine if its code number is not listed. Contact the Lincoln Electric Service Department for any code number not listed. Use the illustration of assembly page and the table below to determine where the part is located for your particular code machine. -
Page 21: Accessories
Accessories W10429-15-3M The gas-cooled gun LGS2 150 G-3.0M to GMAW process - 3m W10429-24-3M The gas-cooled gun LGS2 240 G-3.0M to GMAW process - 3m W10429-25-3M The gas-cooled gun LGS2 250 G-3.0M to GMAW process - 3m W10529-17-4V WTT2 17V 4M 1/4G 35-50 E/H-200A-25-3M Welding cable with electrode holder to SMAW process - 3m.
